Kobelco ACERA 215SR Manual

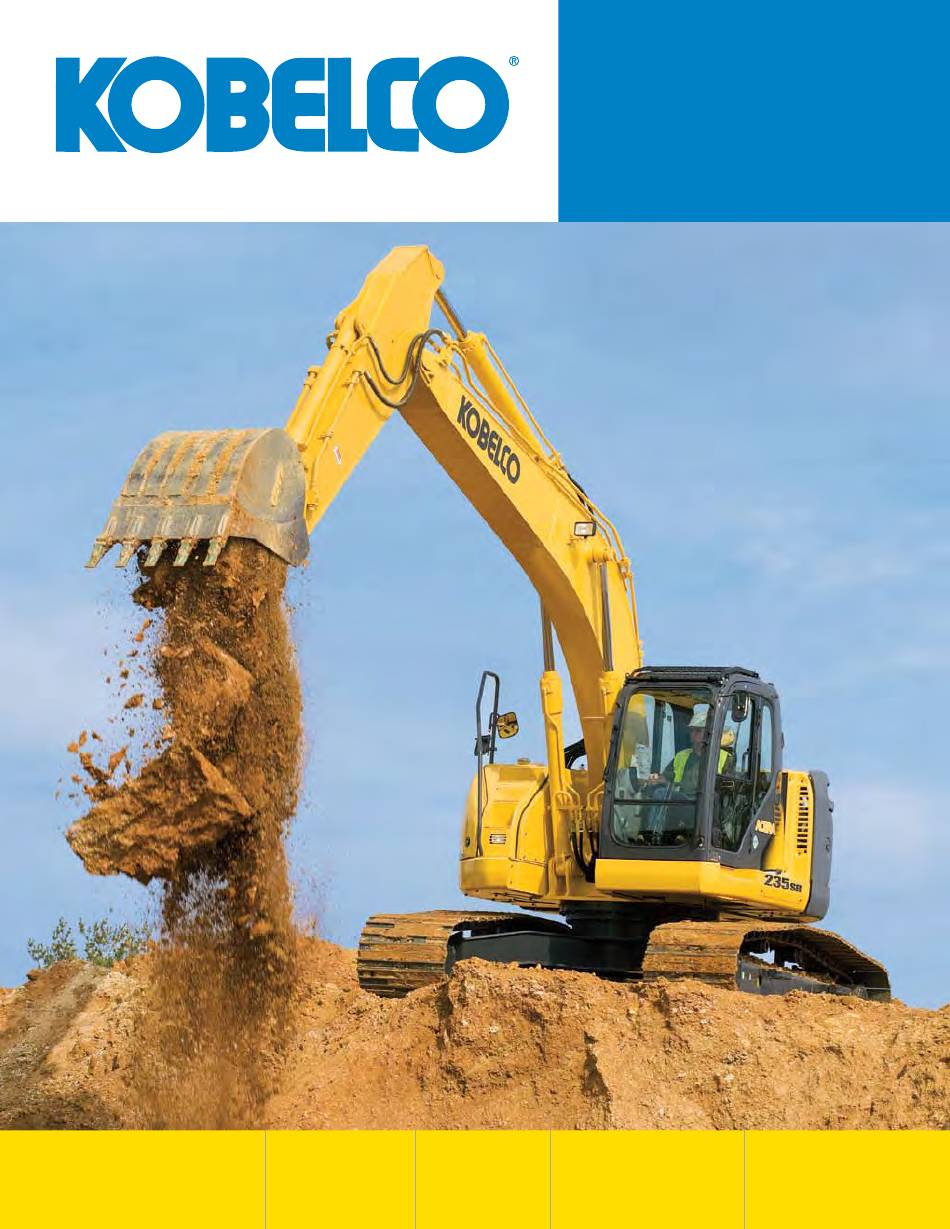

Kobelco ACERA 215SR Manual

Short radius excavators
Hide thumbs

Advertisement

Quick Links

Download this manual
Operating Weight
215SR
54,700 lbs (24,800 kg)
235SR
58,870 lbs (26,700 kg)
Net Horsepower (SAE)
Max Digging Depth
153 @ 2,000 rpm
21'7" (6.59 m)
(114 kW @ 2,000 rpm)
21'8" (6.65 m)
215SR
235SR
SHORT RADIUS EXCAVATORS
Bucket Capacity
0.63-1.60 cu yd (0.48-1.22m
)
3
0.63-1.80 cu yd (0.48-1.38m
)
3
ACERA
®
ACERA
®
Bucket Breakout Force (SAE)
27,450 lbf (122 kN)
31,700 lbf (141 kN)

Advertisement

loading
Need help?

Need help?

Do you have a question about the ACERA 215SR and is the answer not in the manual?

Questions and answers

Related Manuals for Kobelco ACERA 215SR

Summary of Contents for Kobelco ACERA 215SR

  • Page 1 215SR ACERA ® 235SR ACERA ® SHORT RADIUS EXCAVATORS Operating Weight Net Horsepower (SAE) Max Digging Depth Bucket Capacity Bucket Breakout Force (SAE) 215SR 54,700 lbs (24,800 kg) 153 @ 2,000 rpm 21’7” (6.59 m) 0.63-1.60 cu yd (0.48-1.22m 27,450 lbf (122 kN) 235SR 58,870 lbs (26,700 kg) (114 kW @ 2,000 rpm)
  • Page 2 215SR ACERA / 235SR ACERA KOBELCO BREAKS THE COMFORT BARRIER! The new Kobelco 215SR ACERA & 235SR ACERA excavators use superior design technology to deliver the highest level of operator comfort, major increases in performance and incredibly low overall system noise. The new INDR...
  • Page 3 Long Life pre-filter screens are easily removed for cleaning and reinstallation. These filters keep your radiators cleaner, longer, greatly extending your maintenance intervals.
  • Page 4 215SR ACERA / 235SR ACERA FUTURE NOISE REDUCTION TECHNOLOgy IS HERE! Kobelco’s INDR (Integrated Noise and Dust Reduction) system is a unique design that provides three very distinct functions: ® • Superior air filtration • Excellent engine and hydraulic system cooling •...
  • Page 5 Ground Level access to INDR system filters. Note special INDR air intake vents. Side door provides access to valve assembly and hydraulic lines. A clean hydraulic layout simplifies maintenance and reduces shop time.
  • Page 6 WE PUT THE OPERATOR FIRST At Kobelco, we put you, the operator, first by providing excellent visibility and system control. We know you can’t perform at your best if you’re not comfortable. That’s why Kobelco has gone to the extremes to ensure that our cabs deliver maximum personal comfort, progressive hydraulic acceleration and a clear view of the job site.
  • Page 7 Spacious dimensions and an unrivaled view make the Kobelco cab a comfortable and productive place to work. A personal climate control console includes an LCD display and controls for the high-output air conditioning and heating system and the four-speed fan. Just program...
  • Page 8 Auto Warm-up System Kobelco’s 215SR and 235SR excavators feature a fully automatic engine and hydraulic warm-up system. This system warms-up the hydraulic circuit to an optimum 126°F (52°C) and kicks-in whenever ambient temperatures drop below 50°F (10°C). This feature improves...
  • Page 9 Feel the passion we’ve built into the new Kobelco 215SR ACERA and 235SR ACERA excavators. If you demand productivity, performance and fine control, see your nearest Kobelco dealer today, or use our dealer locator at www.
  • Page 10 215SR DIMENSIONS, WEIgHTS & BUCKET SELECTION CHART D IM ENSIO NS: 215SR Unit ft-in (m) WEI gH TS 215SR with 9’ 5” (2.87 m) std. HD arm ARM LENgTH ft (m) 9’ 5” (2.87 m) Operating Weight w/ Bucket lb (kg) 54,700 (24,800) BOOM LENgTH 18’...

  • Page 11: Specifications

    215SR SPECIFICATIONS W ORKI Ng RANgES ft-in STANDARD ARM 9’ 5” (2.87) 35 (10.66) Max digging reach 31’ 10” (9.71) 30 (9.14) Max digging reach at ground level 31’ 3” (9.53) Max digging depth 21’ 7” (6.59) 25 (7.62) Max digging height 34’...
  • Page 12 235SR DIMENSIONS, WEIgHTS & BUCKET SELECTION CHART D IM ENSIO NS: 235SR Unit ft-in (m) WEI gHT S 235SR with 9’ 8” (2.94 m) std. HD arm ARM LENgTH ft (m) 9’ 8” (2.94 m) Operating Weight w/ Bucket lb (kg) 58,870 (26,700) BOOM LENgTH 18’...
  • Page 13 235SR SPECIFICATIONS W ORKI Ng RANgES ft-in STANDARD ARM 9’ 8” (2.94) 40 (12.19) Max digging reach 32’ 4” (9.85) 35 (10.66) Max digging reach at ground level 31’ 10” (9.68) Max digging depth 21’ 8” (6.65) 30 (9.14) Max digging height 36’...
  • Page 14 215SR ACERA / 235SR ACERA...
  • Page 16 5. Operator should be fully acquainted with the Operator’s and Maintenance Manuals before operating this machine. Rules for safe operation of equipment should be followed at all times. 6. Capacities apply only to the machine as originally manufactured and normally equipped by KOBELCO Construction Machinery America LLC.
  • Page 17 5. Operator should be fully acquainted with the Operator’s and Maintenance Manuals before operating this machine. Rules for safe operation of equipment should be followed at all times. 6. Capacities apply only to the machine as originally manufactured and normally equipped by KOBELCO Construction Machinery America LLC.
  • Page 18 215SR ACERA / 235SR ACERA...

  • Page 19: Standard And Optional Equipment

    215SR ACERA / 235SR ACERA STANDARD AND OPTIONAL EQUIPMENT STANDARD EQUIPMENT • AM/FM radio • Heavy-Duty X-Frame undercarriage - 235SR • Arm: 9’ 5” (2.87 m) – 215SR; • Power Boost “without time limit” 9’ 8” (2.94 m) – 235SR with vertical ribbed rock guard, tapped •...
  • Page 20 © 2008 CNH America LLC. All rights reserved. Kobelco is a brand licensed to Kobelco Construction Machinery Company America LLC. Any trademarks referred to herein, in association with goods and/or services of companies other than CNH America LLC, are the property of those respective companies.
