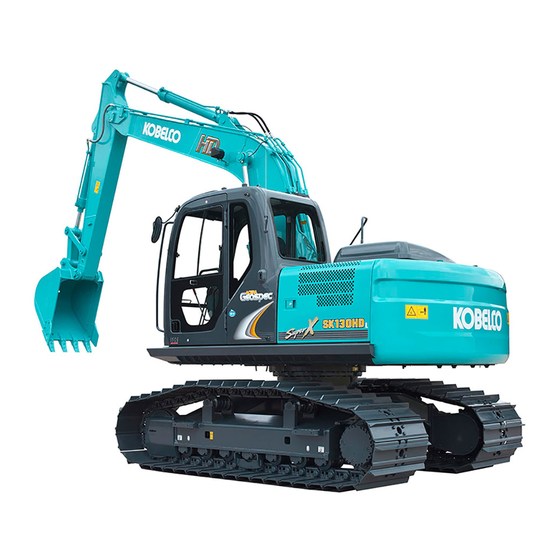

- Page 1 HYDRAULIC EXCAVATOR SHOP SK130HD MANUAL model INDEX SPECIFICATIONS SECTION MAINTENANCE SECTION SYSTEM SECTION DISASSEMBLY SECTION TROUBLESHOOTING ENGINE SECTION PROCEDURE OF INSTALLING OPTIONS SECTION S5LX0001E01 Book Code No.
- Page 2 INDEX TKCM SK130HDL-8B Book Code No. Index 25 1 Title Distribution Year–Month S5YN0129E01 OUTLINE 2013-08 S5LX0201E01 SPECIFICATIONS 2013-08 S5LX0301E01 ATTACHMENT DIMENSIONS 2013-08 S5YP1101E01 TOOLS 2013-08 S5LX1201E01 STANDARD MAINTENANCE TIME SCHEDULE 2013-08 MAINTENANCE STANDARD S5LX1301E01 AND TEST PROCEDURE 2013-08 S5LX2101E01 MECHATRO CONTROL...
- Page 3 NOTE: This Manual is prepared as a technical material in This Manual may be properly revised due to the im- which the information necessary for the maintenance provement of products, modification of specifications, and repairing services of our hydraulic excavators are etc.
- Page 4 ［ 1. OUTLINE ］ 1. OUTLINE TABLE OF CONTENTS 1.1 GENERAL PRECAUTIONS FOR MAKING REPAIRS ……………………………………………………1-3 1.1.1 PREPARATION BEFORE DISASSEMBLING …………………………………………………………1-3 1.1.2 SAFETY WHEN DISASSEMBLING AND ASSEMBLING ……………………………………………1-3 1.1.3 DISASSEMBLING AND ASSEMBLING HYDRAULIC EQUIPMENT ………………………………1-4 1.1.4 ELECTRICAL EQUIPMENT ………………………………………………………………………………1-6 1.1.5 HYDRAULIC PARTS ………………………………………………………………………………………1-7 1.1.6 WELD REPAIR ………………………………………………………………………………………………1-7 1.1.7 ENVIRONMENTAL ISSUES ………………………………………………………………………………1-7 1.2 INTERNATIONAL UNIT SYSTEM ……………………………………………………………………………1-8...
- Page 5 (NA) SK260LC-9 : LL14-08001~ (NA) SK330-9 : LC12-15001~ SK350LC-9 : YC12-10001~ (NA) July, 2013 SK500LC-9 : YS12-03501~ (NA) August, 2013 ED160-3 : LH02-01501~ (EUR) ED160-3 : LH02-01501~ (NA) SK75SR-3E : YT08-30001~ (NA) SK85CS-3E : LF08-05501~ (NA) SK130HDL-8B : LX08-T0101~ (TKCM)
- Page 6 ［ 1. OUTLINE ］ GENERAL PRECAUTIONS FOR MAKING REPAIRS 1.1.1 PREPARATION BEFORE DISASSEMBLING (1) Knowledge of operating procedure Read Operator's Manual carefully to understand the operating procedure. (2) Cleaning machines Clean machines of soil, mud, and dust before carrying into the service shop. Carrying a soiled machine into the service shop, causes making less efficient work and damage of parts.
- Page 7 ［ 1. OUTLINE ］ 1.1.3 DISASSEMBLING AND ASSEMBLING HYDRAULIC EQUIPMENT (1) Removing hydraulic equipment assy Before removing pipes, release the pressure of hydraulic oil tank, or open the cover on the return side to tank, and take out the filter. Drain the oil in the removed pipes into pan to prevent the oil from spilling on the ground.
- Page 8 ［ 1. OUTLINE ］ (5) Installing hydraulic equipment Confirm hydraulic oil and lubrication oil. Air release is required in the following cases ; a. Change of hydraulic oil b. Replacement of parts on suction pipe side c. Removing and attaching hydraulic pump d.
- Page 9 ［ 1. OUTLINE ］ 1.1.4 ELECTRICAL EQUIPMENT (1) The disassembly of electrical equipment is not allowed. (2) Handle equipment with care so as not to drop it or bump it. (3) Connector should be removed by unlocking while holding the connector. Never stress in tension to the caulked section by pulling wire.
- Page 10 -When it was swallowed ; Don't force him to vomit it, but immediately receive medical treatment. -When it has adhered on skin ; Wash with soap and water. (4) Others For spare parts, grease and oil, use KOBELCO genuine ones.
- Page 11 ［ 1. OUTLINE ］ INTERNATIONAL UNIT SYSTEM Introduction Although this manual uses the SI units system. Outline of SI units system is described here. Given hereinunder are an excerpt of the units that are related to this manual : 1. Etymology of SI Units English : International System of units 2.
- Page 12 ［ 1. OUTLINE ］...
- Page 13 ［ 1. OUTLINE ］ 1-10...
- Page 14 ［ 2. SPECIFICATIONS ］ 2. SPECIFICATIONS TABLE OF CONTENTS 2.1 NAME OF COMPONENTS ……………………………………………………………………………………2-3 2.2 GENERAL DIMENSIONS ………………………………………………………………………………………2-4 2.2.1 SK130HDL-8B [4.68m (15ft-4in) Boom+2.38m (7ft-10in) Standard Arm+0.45m (0.59cu-yd) Bucket] …………………………………………………………………………………………………………………………2-4 2.3 WEIGHT OF COMPONENTS …………………………………………………………………………………2-5 2.4 TRANSPOTATION ………………………………………………………………………………………………2-7 2.4.1 OVERALL DIMENSIONS OF MACHINE ON A TRAILER …………………………………………2-7 2.4.2 DIMENSIONS OF ATTACHMENT ………………………………………………………………………2-7...
- Page 15 ［ 2. SPECIFICATIONS ］ Issue Date of Issue Applicable Machines Remarks S5LX0201E01 First Edition August, 2013 SK130HDL-8B : LX08-T0101~ (TKCM)
- Page 16 ［ 2. SPECIFICATIONS ］ NAME OF COMPONENTS NAME NAME NAME MITSUBISHI Engine Track Guide Hydraulic Pump Bucket Cylinder Upper Roller Engine Muffler Idler Link Slewing Ring Main Control Valve Bucket Link Travel Motor Hydraulic Oil Tank Bucket Battery Fuel Tank Operator Cab Engine Radiator Swing Motor...
- Page 17 ［ 2. SPECIFICATIONS ］ GENERAL DIMENSIONS 2.2.1 SK130HDL-8B [4.68m (15ft-4in) Boom+2.38m (7ft-10in) Standard Arm+0.45m (0.59cu-yd) Bucket] Dimensions marked * do not include the height of the shoe lug.
- Page 18 ［ 2. SPECIFICATIONS ］ WEIGHT OF COMPONENTS Unit ; kg (lb) Item / Model SK130HDL-8B Fully equipped weight 15,000 (33,100) Upper frame assy (Assembly of following :) 5,410 (11,930) Upper frame 1,408 (3,110) Counter weight 1,200 (2,650) 266 (587) Engine...
- Page 19 ［ 2. SPECIFICATIONS ］ Item / Model SK130HDL-8B Lubricant and water (Assembly of following :) 419 (924) Hydraulic oil 155 (342) Engine oil 17 (37) Fuel 234 (516) Water 14 (31) Marks * show dry weight.
- Page 20 ［ 2. SPECIFICATIONS ］ TRANSPOTATION 2.4.1 OVERALL DIMENSIONS OF MACHINE ON A TRAILER (1) 4.68m (15ft-4in) Boom+2.38m (7ft-10in) Arm+0.45m (0.59cu-yd) Bucket Item/Shoe type 900mm (35.4in) LC Width : mm (ft-in) 2,940 (9'8") Weight: kg (lbs) 15,000kg (33,100 lbs) 2.4.2 DIMENSIONS OF ATTACHMENT (1) BOOM Item / Type 4.68m (15ft-4in) Boom...
- Page 21 Thank you so much for reading. Please click the “Buy Now!” button below to download the complete manual. After you pay. You can download the most perfect and complete manual in the world immediately. Our support email: ebooklibonline@outlook.com...
