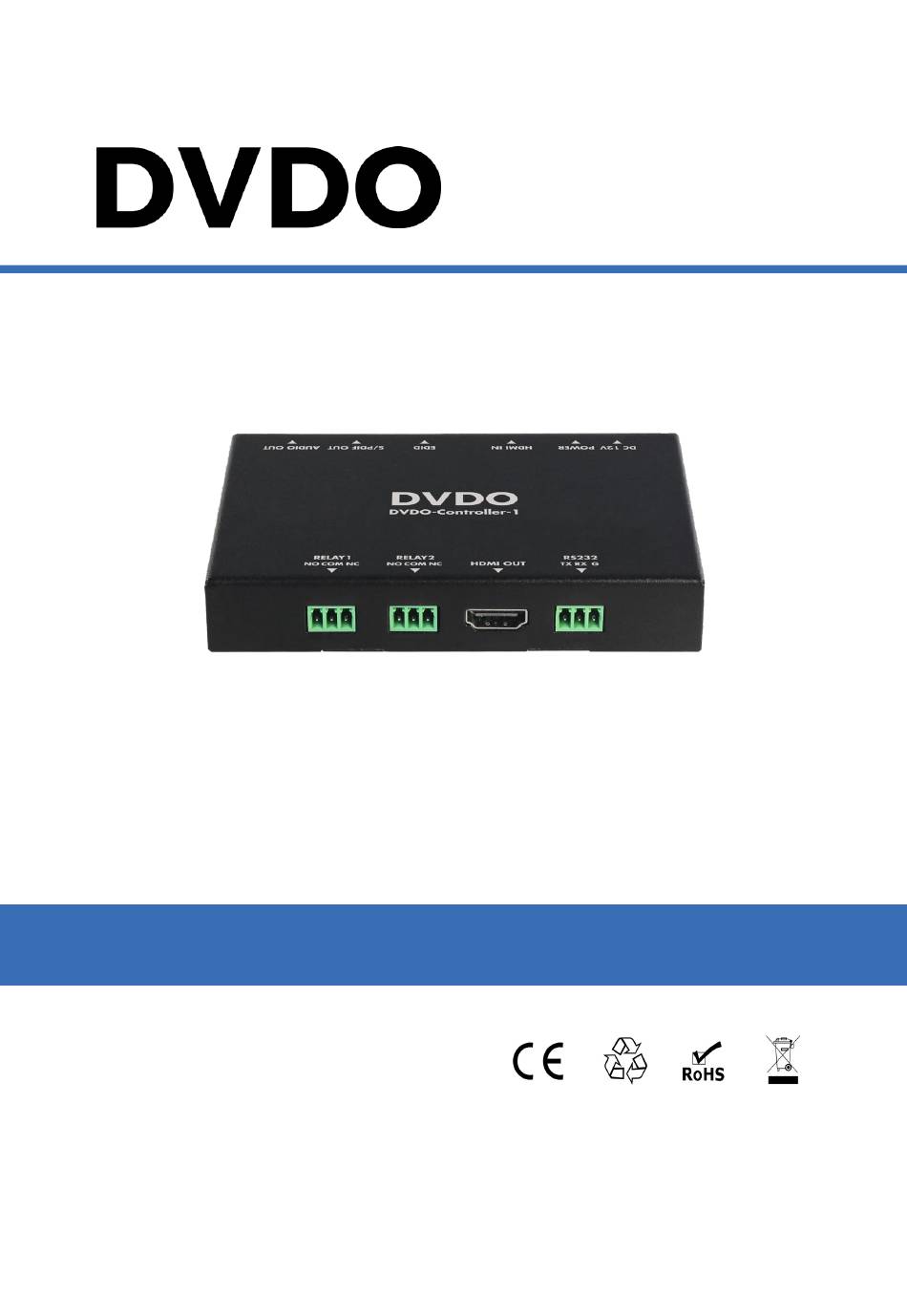

- Page 1 DVDO-Controller-1 HDMI In-line Controller User Manual Version: V1.0.0...
- Page 3 DVDO DVDO-Controller-1 HDMI In-line Controller User Manual Important Safety Instructions 1. Do not expose this apparatus 6. Clean this apparatus to rain, moisture, dripping or only with dry cloth. splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.
-
Page 4: Table Of Contents
DVDO DVDO-Controller-1 HDMI In-line Controller User Manual Table of Contents Introduction ...................... 5 Features ....................5 Key Benefits ..................... 5 Package Contents ..................6 Specifications ................... 6 Panel Description ..................7 Front Panel ..................7 Rear Panel ..................8 Installation and Wiring ..................9 EDID Management .................. -
Page 5: Introduction

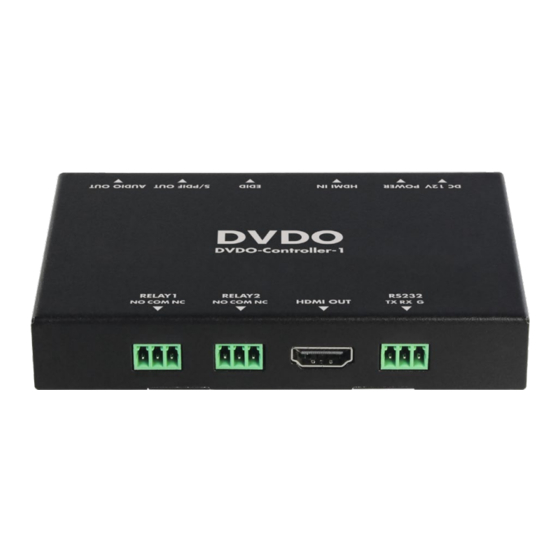

DVDO DVDO-Controller-1 HDMI In-line Controller User Manual Introduction DVDO-Controller-1 is an HDMI in-line controller which supports resolutions up to 4K@60Hz (chroma sub-sampling 4:4:4 8-bit) and HDCP 2.2. Its digital or analog audio output allows audio to be de-embedded from HDMI input and sent to audio distribution system, such as AVR or Zone Amplifier. -
Page 6: Package Contents
DVDO DVDO-Controller-1 HDMI In-line Controller User Manual Package Contents Before you start the installation of the product, please check the package contents as below: DVDO-Controller-1 x 1 DC 12V 1A Power Adapter (with US, UK, EU, AU Pins) x 1 ... -
Page 7: Panel Description
DVDO DVDO-Controller-1 HDMI In-line Controller User Manual General Operating Temperature 0°C to 45°C (32°F to 113°F) Storage Temperature -20°C to 70°C (-4°F to 158°F) Humidity 10% to 90%, non-condensing Human-body Model: ESD Protection ±8kV (Air-gap discharge)/ ±4kV (Contact discharge) Power Supply... -
Page 8: Rear Panel
DVDO DVDO-Controller-1 HDMI In-line Controller User Manual Rear Panel Name Description DC 12V Connect to the power adapter provided. Power LED LED On: Power is applied to the device. HDMI In Connect to an HDMI source device. Switch for EDID Management with 15 EDID EDID presets. -
Page 9: Installation And Wiring
DVDO DVDO-Controller-1 HDMI In-line Controller User Manual Installation and Wiring Connect an HDMI source (such as PC, Blu-ray, games console, satellite/cable TV, media server etc.) to HDMI IN port of this device. Connect an HDMI display device (Such as projector) to the HDMI OUT port of this device. - Page 10 DVDO DVDO-Controller-1 HDMI In-line Controller User Manual Amplifier Audio HDMI Audio HDMI Relay RS232 Projector Screen Projector DVDO-Controller-1_V1.0.0...
-
Page 11: Edid Management
DVDO DVDO-Controller-1 HDMI In-line Controller User Manual EDID Management EDID (Extended Display Identification Data) is a data structure provided by a digital display to describe its capabilities to a video source. This device features multiple EDID presets which can be performed by using the EDID rotary switch on rear panel. -
Page 12: Rs232 Control Tool
DVDO DVDO-Controller-1 HDMI In-line Controller User Manual RS232 Control Tool RS232 port configuration tool is one control tool running on PC to pro-load the RS232 commands for this device to control the sink device. Connect a PC to this device via a UART-to-USB cable, running the configuration tool to set the connection parameters correctly before sending the pro-loading commands to this device. - Page 13 DVDO DVDO-Controller-1 HDMI In-line Controller User Manual DVDO-Controller-1_V1.0.0...
-
Page 14: Warranty Terms And Conditions
DVDO DVDO-Controller-1 HDMI In-line Controller User Manual Warranty Terms and Conditions For the following cases we shall charge for the service(s) claimed for the products if the product is still remediable and the warranty card becomes unenforceable or inapplicable. The original serial number (specified by us) labeled on the product has been removed, erased, replaced, defaced or is illegible.
