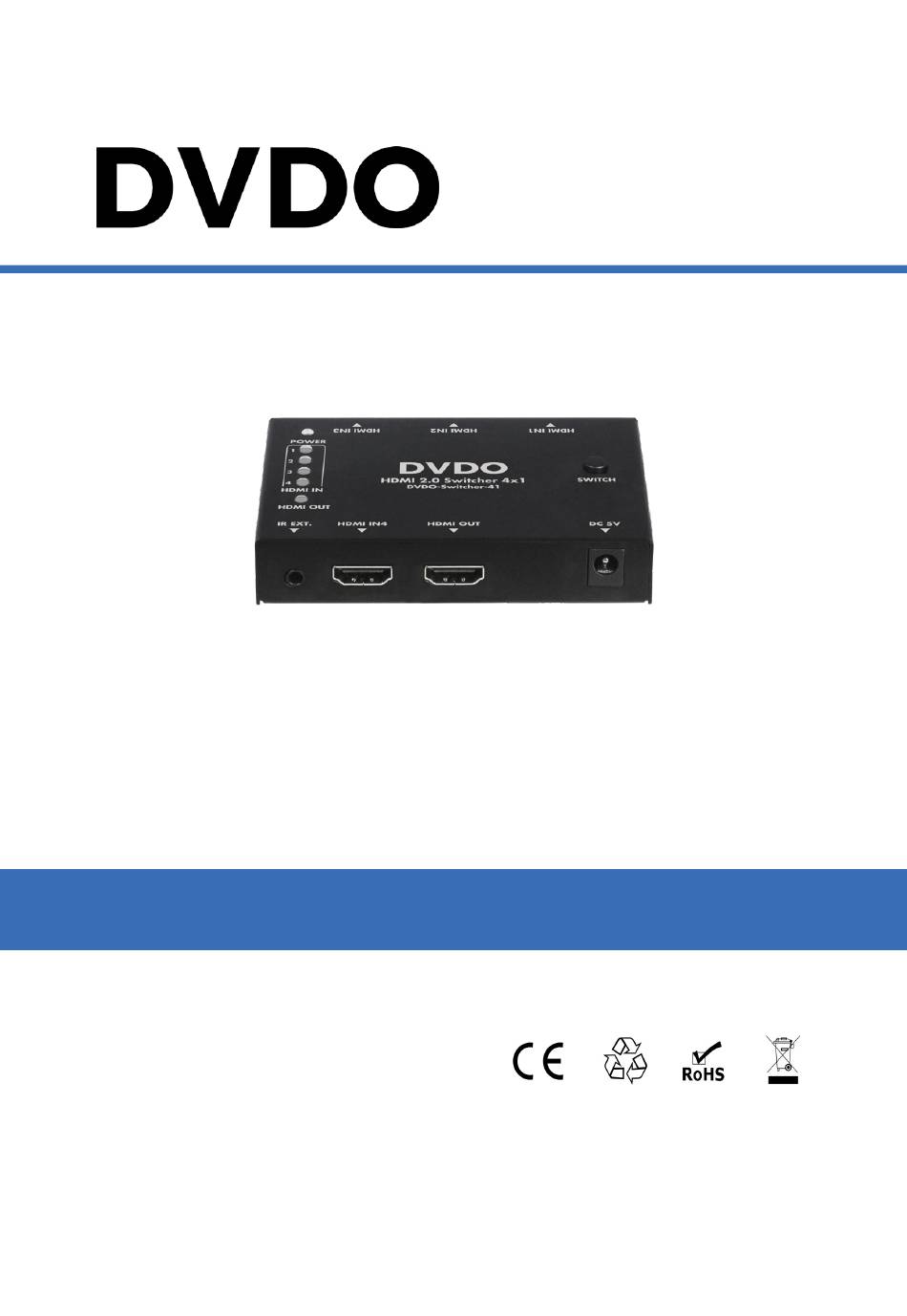

- Page 1 DVDO-Switcher-41 4 x 1 4K@60 444 HDMI Switcher User Manual Version: V1.0.0...
- Page 2 DVDO DVDO-Switcher-41 4 x 1 4K@60 444 HDMI Switcher User Manual Important Safety Instructions 1. Do not expose this apparatus 6. Clean this apparatus to rain, moisture, dripping or only with dry cloth. splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.
-
Page 3: Table Of Contents
DVDO DVDO-Switcher-41 4 x 1 4K@60 444 HDMI Switcher User Manual Table of Contents Introduction ...................... 4 Overview ....................4 Features ....................4 Package Contents ..................4 Specifications ................... 5 Panel Description ..................6 Installation and Wiring ..................7 Control of the Switcher ..................8 Top Panel Button Control .............. -
Page 4: Introduction
DVDO DVDO-Switcher-41 4 x 1 4K@60 444 HDMI Switcher User Manual Introduction Overview Thank you for purchasing this product. For proper installation and optimum performance, please read the instructions in this manual carefully. DVDO-Switcher-41 Switcher features HDMI 2.0 and HDCP 2.2 compatibility and supports resolutions up to 4K@60Hz 4:4:4 8bit, enabling four Ultra HD sources to be switched to one Ultra HD display. -
Page 5: Specifications
DVDO DVDO-Switcher-41 4 x 1 4K@60 444 HDMI Switcher User Manual Specifications Video Input/Output Signal Type HDMI 2.0 with 4K@60Hz 4:4:4 8bit, HDCP 2.2 Input/Output Resolution Up to 4096x2160@60Hz, include Supported 4K@60Hz/4K@30Hz/1080P/1080i/720P 4K: 8/10/12 bit Deep color 1080P: up to 16 bit... -
Page 6: Panel Description

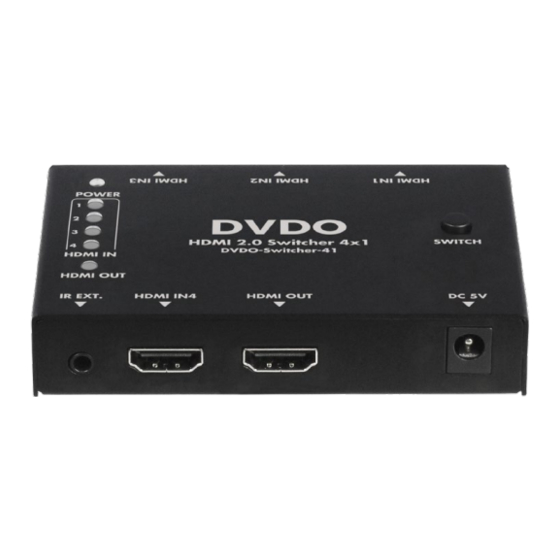

DVDO DVDO-Switcher-41 4 x 1 4K@60 444 HDMI Switcher User Manual Panel Description Name Description POWER LED On/Off: The device is powered on/off. On: The HDMI source is selected. HDMI IN LED (1-4) Off: The HDMI source is not selected. -
Page 7: Installation And Wiring
DVDO DVDO-Switcher-41 4 x 1 4K@60 444 HDMI Switcher User Manual Installation and Wiring Blu-ray Player 4K Media Player Rear panel Front panel Blu-ray Player Remote DVDO-Switcher-41_V1.0.0... -
Page 8: Control Of The Switcher
DVDO DVDO-Switcher-41 4 x 1 4K@60 444 HDMI Switcher User Manual Control of the Switcher You can choose to control the switcher at your convenience through top panel button, IR remote or automatic switch function. Top Panel Button Control Press the SWITCH button to... -
Page 9: Automatic Switch Control
DVDO DVDO-Switcher-41 4 x 1 4K@60 444 HDMI Switcher User Manual Button IR Codes Description 0x02 0x0a Switch to next active source input (Cycle 14). Switch to previous active source input (Cycle 0x02 0x08 41). 0x02 0x04 Switch to source input 1. -
Page 10: Troubleshooting
DVDO DVDO-Switcher-41 4 x 1 4K@60 444 HDMI Switcher User Manual Troubleshooting No Power Ensure the power is on. Ensure you use the power adapter provided in the package. No Picture or Video Flash Ensure all devices are on, and all cables are qualified and connected ... -
Page 11: Warranty Terms And Conditions
DVDO DVDO-Switcher-41 4 x 1 4K@60 444 HDMI Switcher User Manual Warranty Terms and Conditions For the following cases we shall charge for the service(s) claimed for the products if the product is still remediable and the warranty card becomes unenforceable or inapplicable.
