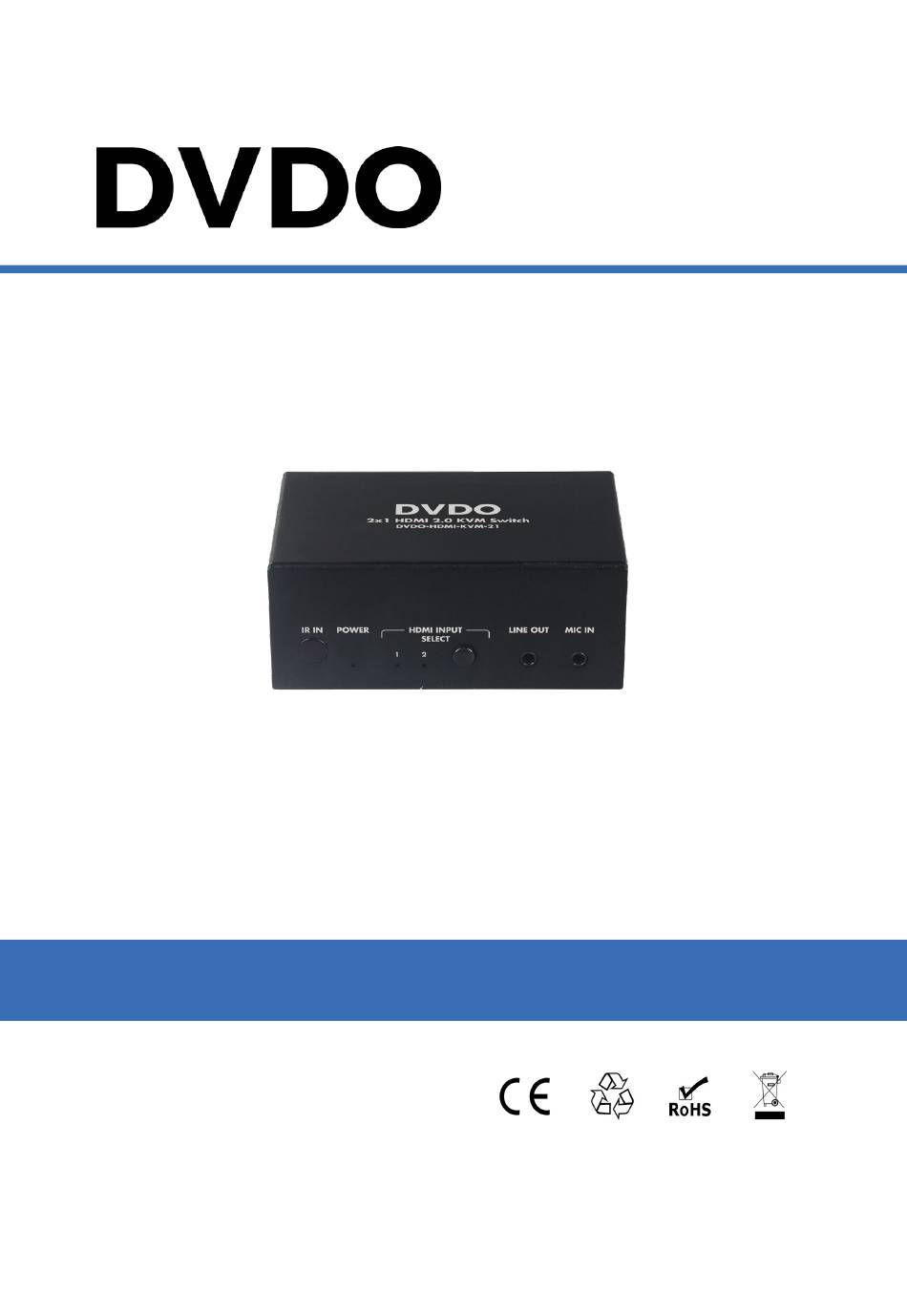

- Page 1 DVDO-HDMI-KVM-21 2x1 HDMI 2.0 KVM Switch User Manual Version: V1.0.0...
- Page 3 DVDO DVDO-HDMI-KVM-21 2x1 HDMI 2.0 KVM Switch User Manual Important Safety Instructions 1. Do not expose this apparatus 6. Clean this apparatus to rain, moisture, dripping or only with dry cloth. splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.
-
Page 4: Table Of Contents
DVDO DVDO-HDMI-KVM-21 2x1 HDMI 2.0 KVM Switch User Manual Table of Contents Introduction ...................... 5 Features ....................5 Package Contents ..................5 Specifications ................... 6 Panel Description ..................7 Installation and Wiring ..................8 IR Remote Handset ..................9 Warranty Terms and Conditions ..............10... -
Page 5: Introduction
DVDO DVDO-HDMI-KVM-21 2x1 HDMI 2.0 KVM Switch User Manual Introduction This product is a 2x1 HDMI KVM Switcher with HDMI and HDCP2.2 compatibility. It supports resolutions up to 4K@60Hz 4:4:4, multi-channel audio and automatic HDCP 2.2/1.4 compatibility. The switcher allows users control two USB source devices/computers with only one set of USB devices (e.g. -
Page 6: Specifications
DVDO DVDO-HDMI-KVM-21 2x1 HDMI 2.0 KVM Switch User Manual USB-A to USB-B Data Cable (1500mm) x 2 Mounting Brackets (with Screws) x 2 User Manual x 1 Specifications Technical HDMI with 4K@60Hz 4:4:4, HDCP 2.2; USB: Input/Output Signal Type USB2.0... -
Page 7: Panel Description
DVDO DVDO-HDMI-KVM-21 2x1 HDMI 2.0 KVM Switch User Manual Panel Description Name Description IR In Receiving the control signal of the IR remote. On: The switcher is powered on. Power LED Off: The switcher is powered off. HDMI Input Selection Button: Press to switch the HDMI Input selected input source. -
Page 8: Installation And Wiring
DVDO DVDO-HDMI-KVM-21 2x1 HDMI 2.0 KVM Switch User Manual Installation and Wiring Earphone Line Out Mic In Camera Mouse Keyboard USB Device USB Device USB Device HDMI In USB Host HDMI Out USB Host HDMI In IR Remote Display DVDO-HDMI-KVM-21_V1.0.0... -
Page 9: Ir Remote Handset
DVDO DVDO-HDMI-KVM-21 2x1 HDMI 2.0 KVM Switch User Manual IR Remote Handset The switcher can be controlled by the IR remote provided. Point the remote directly at the IR receive cable connected to the "IR Ext." port or point the remote directly at “IR In”... -
Page 10: Warranty Terms And Conditions
DVDO DVDO-HDMI-KVM-21 2x1 HDMI 2.0 KVM Switch User Manual Warranty Terms and Conditions For the following cases we shall charge for the service(s) claimed for the products if the product is still remediable and the warranty card becomes unenforceable or inapplicable.
