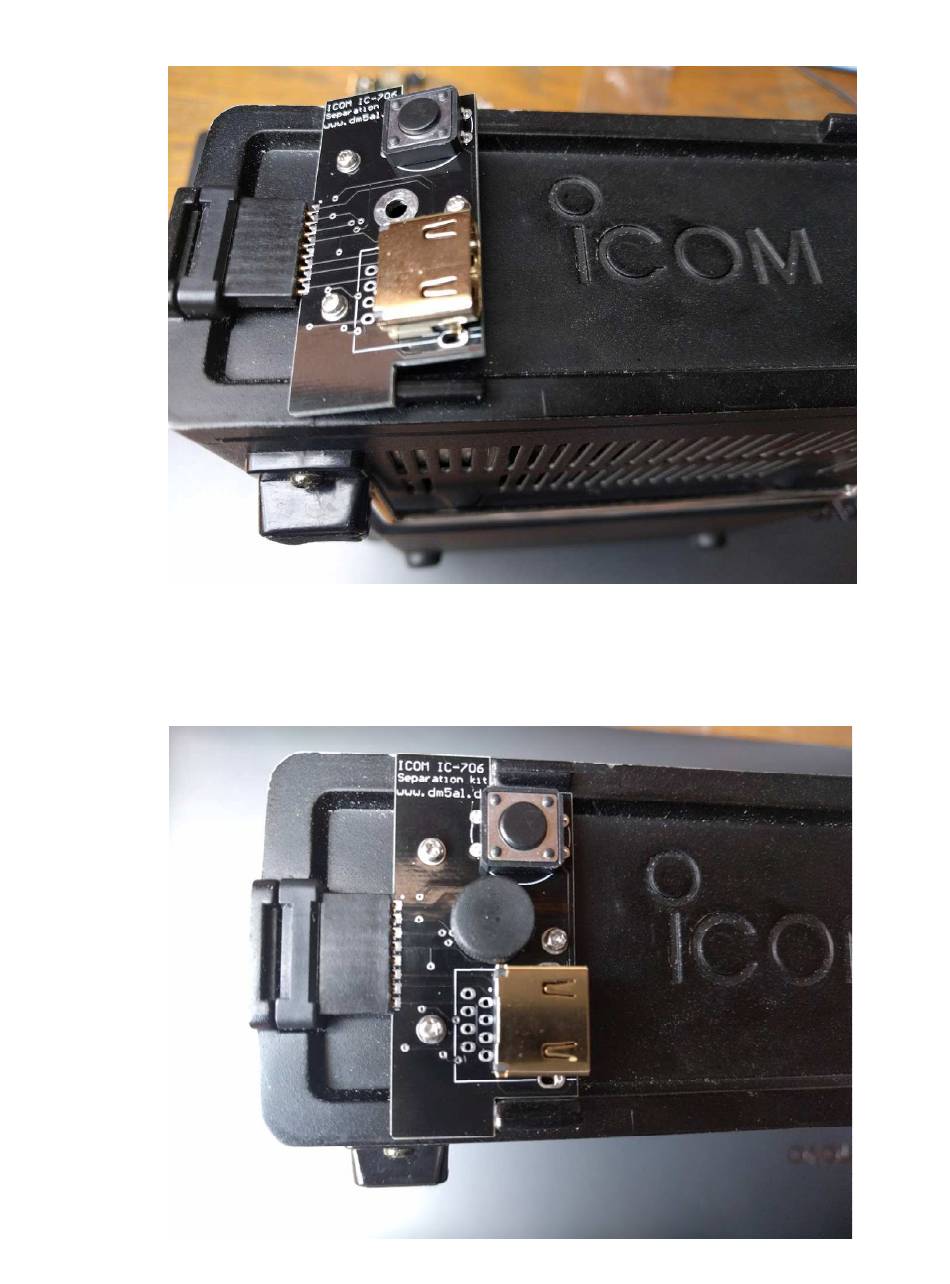

1. Position base unit adapter as it shown on a picture below. Pogo pins must be positioned
strictly to half holes on the edge of the base unit adapter!
2. Push the base unit adapter and fix it with a thumb screw:
3.
