Sealey Power Tools SA19/S.V2 Instructions

thank you for purchasing a sealey product. Manufactured to a high standard this product will, if used according to these instructions and
properly maintained, give you years of trouble free performance.
IMPORTANT: please read these instrUCtions CareFUllY. note the saFe operational reQUireMents, Warnings & CaUtions.
Use the prodUCt CorreCtlY and With Care For the pUrpose For WhiCh it is intended. FailUre to do so MaY CaUse
daMage or personal inJUrY, and Will inValidate the WarrantY. please Keep instrUCtions saFe For FUtUre Use.
1. saFetY instrUCtions
 Warning! Ensure Health & Safety, local authority, and general workshop practice regulations are adhered to when using this equipment.
 Warning! Disconnect the sander from the air supply before changing accessories, servicing or performing any maintenance.
 Keep the sander clean and maintain it in good condition (use an authorised service agent).
 replace or repair damaged parts. Use genuine parts only. Non authorised parts may be dangerous and will invalidate the warranty.
 Keep the work area clean, uncluttered and ensure there is adequate lighting.
 Warning! Wear approved safety eye or face protection, ear defenders, and if dust is generated, respiratory protection.
 Keep hands and body clear of the work when operating the sander.
 Maintain correct balance and footing. Ensure the floor is not slippery and wear non-slip shoes.
 remove ill fitting clothing. remove ties, watches, rings, and other loose jewellery, and contain and/or tie back long hair.
 Keep children and unauthorised persons away from the working area.
 check moving parts alignment on a regular basis.
 secure unstable workpiece with a clamp, vice or other adequate holding device.
 Avoid unintentional starting.
 Warning! Ensure correct air pressure is maintained and not exceeded.
 Keep air hose away from heat, oil and sharp edges. check air hose for wear before each use, and ensure that all connections are secure.
 do not force the sander to achieve a task it was not designed to perform.
 do not operate the sander if any parts are damaged or missing as this may cause failure and/or possible personal injury.
 Warning! do not cut, grind, saw or sand any materials containing asbestos.
 do not switch the sander on whilst the disc is in contact with the work piece.
 do not carry the sander by the hose, or yank the hose from the air supply.
 do not hold the workpiece by hand. use clamps or a vice (not included) to secure the workpiece. Available from your sealey dealer.
 do not allow untrained persons to operate the sander.
 do not operate the sander when you are tired or under the influence of alcohol, drugs or intoxicating medication.
 do not use sander where there are flammable liquids, solids or gases such as paint solvents, including waste wiping or cleaning rags etc.
 do not leave the sander operating unattended.
 do not carry the sander with your finger on the power switch.
 do not direct air from the air hose at yourself or others.
 When work is complete ensure the air supply is turned off.
 When not in use disconnect from the air supply and store in a safe, dry, childproof area.
2. air sUpplY
the recommended hook-up procedure can be viewed in fig 1.
2.1. Ensure the air valve is in the "off" position before connecting to the air supply.
2.2. You will require an air pressure of 6bar (90psi), and an air volume of more than 10cfm for operating the unit.
2.3.  Warning! Ensure the air supply does not exceed 140psi while operating the sander. too high an air pressure and unclean air will
shorten the product life due to excessive wear, and may be dangerous causing possible damage and personal injury.
2.3.. Drain the air tank daily. Water in the air line will damage the lift.
2.4. clean the air inlet filter screen weekly.
2.5. Line pressure should be increased to compensate for unusually long air hoses (over 8 metres). the minimum hose diameter should
be 8mm I.D. and fittings must have the same inside dimensions.
2.6. Keep hose away from heat, oil and sharp edges. check hoses for wear, and make certain that all connections are secure.
fig.1
Jack sealey Limited 2013
InstructIons for:

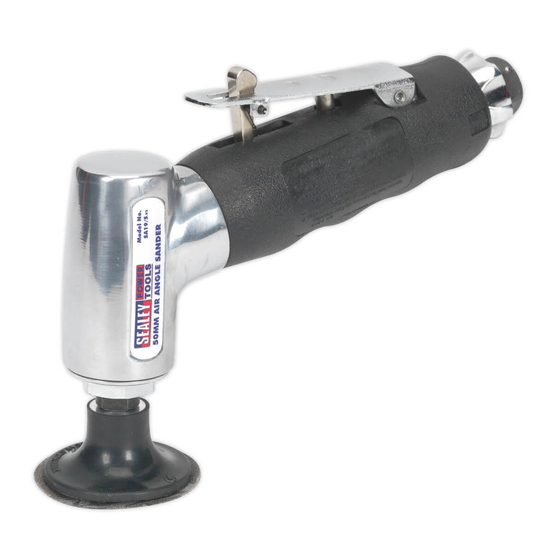

air operated angle head sander
sa19/s.V2
MoDEL no:
Original Language Version
sA19/s.V2 Issue: 2 (sP) - 06/09/13
