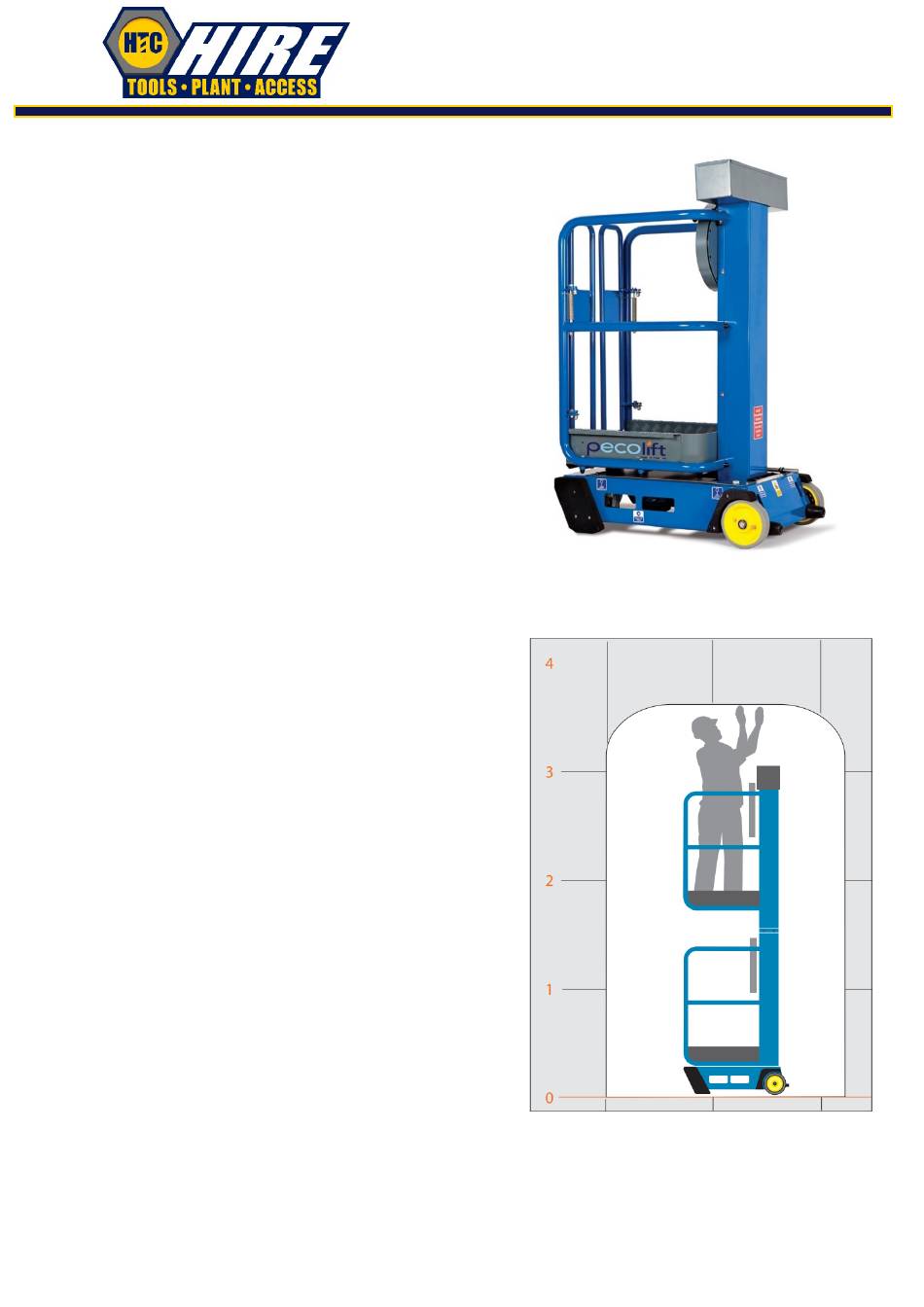

Power Towers Pecolift Tower Manual

INTRODUCTION

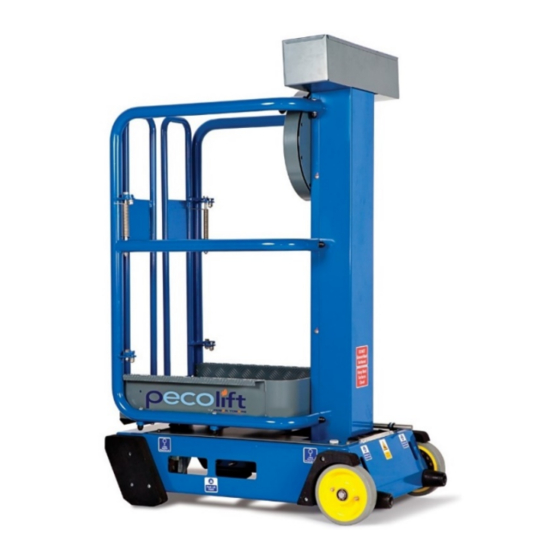

The Pecolift Tower is a simple, safe and efficient alternative to
step-ladders, platform/podium steps and small scaffold towers.
The Pecolift is the first non-powered, powered access platform.
It does not require batteries (or charging) or connection to an
electricity supply. It works by a unique, patented stored power
mechanism which enables the platform to be elevated with very
little effort by the operator.
The Pecolift is designed for working internally on flat, level
surfaces, and as it has no batteries, electric motor, electrics or
hydraulics it is very ecologically friendly. It is ideally suited to
working in a very wide range of applications from the very 'clean'
environments of hospitals, food and drinks production facilities,
pharmaceuticals and retail, to facilities maintenance, shop-fitting
and construction and even on zone 1/21 hazardous areas.
The Pecolift is suitable for any application provided it is used
within its specified operating parameters. If used for applications
such as sand blasting, welding, paint spraying or with any other
hazardous materials, measures must be taken to ensure the
Pecolift does not become damaged in any way which may
impair safety, or reliability. Additional protection for the operator
may be required in some cases, which is the responsibility of the
operator and/or the operator's employer.

OPERATING DIMENSIONS

Maximum Working Height:
Maximum Platform Height:
Platform Dimensions:
Working Foot Print:
Safe Working Load:
Maximum Manual Force:
Maximum Gradient for Operation:
Maximum Wind Force:
Maximum Wheel Force:
Maximum Castor Point Load:
Sound Pressure Level:

CLOSED DIMENSIONS

Length
Width:
Height:
Weight:
3.50m
1.50m
720 mm (L) x 600 mm (W)
985 mm x 700 mm
150 Kg (1 person + tools)
200N
0 degrees
Internal use only, 0(zero mph)
125 kg
125 kg (1.23kN)
Less than 70dB(A)
985 mm
700 mm
1.550 m
180Kg
Pecolift Tower
