- Page 1 User Manual Air Sampler PCE-AS1 User manuals in various languages (français, italiano, español, português, nederlands, türk, polski, русский, 中文) can be found by using our product search on: www.pce-instruments.com Last change: 16 July 2021 v1.0 © PCE Instruments...
-
Page 2: Table Of Contents
Contents Safety notes ................... 1 Applications ................... 2 Features ....................2 Specifications ..................3 Delivery contents ......................3 Device description ................3 Operating instructions ................. 5 Key description......................... 5 Menu ..........................6 Maintenance and precautionary measures ........10 Troubleshooting .................. 11 Warranty .................... -
Page 3: Safety Notes
Safety notes Please read this manual carefully and completely before you use the device for the first time. The device may only be used by qualified personnel and repaired by PCE Instruments personnel. Damage or injuries caused by non-observance of the manual are excluded from our liability and not covered by our warranty. -
Page 4: Applications
Applications Pharmaceutical industry： Monitoring the number of microorganisms under the laminar flow hood; Analysis of the cleanliness of a clean room; Testing the effectiveness of sterilization. Food and beverage industry： Detection of microbial contamination in clean rooms according to the HACCP concept. Hospitals：... -
Page 5: Specifications

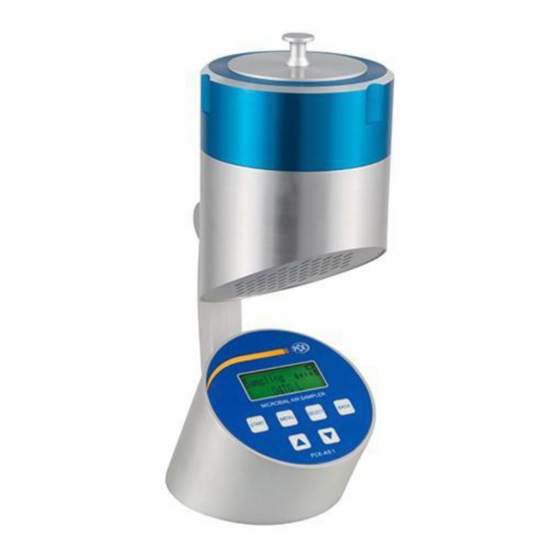

Relative humidity：0～90 % Dimensions approx. 120 × 300 mm Weight approx. 2.6 kg Delivery contents 1 x Air Sampler PCE-AS1 1 x Calibration attachment 1 x Mains power adaptor 1 x Carrying case 1 x Instruction manual Device description © PCE Instruments... - Page 6 1. Cover of the collecting head 2. Specimen mount 3. Pump 4. Collecting head stand 5. Control panel with touch screen 6. Power supply 7. On / off switch © PCE Instruments...
-
Page 7: Operating Instructions
Operating instructions Key description As shown in the figure above, the contents displayed in each label area are in accordance with the following rules： ①：Current date ②：The current time is displayed in the non-sampling mode, and the remaining sampling time is displayed when sampling. -
Page 8: Menu
Menu 6.2.1 Main menu description: Icon Function Bluetooth and buzzer status Press to set the group, range: 0-99 Press to set the time delay, range: 0-99 Press to set the location, range: 0-29 Press to set the sampling amount, range: 0-6000l(In 10l) Adjust the selected setting options. - Page 9 6.2.2 View data menu description As shown in the first figure, select the month, year and day box to be adjusted and then you can modify it by using the up and down keys. The upper row is the start date of the data to be viewed and the lower row will automatically show the current date when entering the menu and can also be modified.
- Page 10 6.2.4 Delete data menu description Go to the second menu. Press the Del key in the second menu to delete all the saved sampling data. Please operate with caution! If you do not want to delete the data, you can press the HOME button to return to the main interface.
- Page 11 6.2.6 Program sampling menu description After setting the single sampling quantity, sampling times and sampling interval, press the START button to start program sampling. The grouping, location and delay of program sampling are saved by calling up the corresponding parameters of standard sampling directly. The total number of samples will be displayed in the data in the next row after setting the values of single sampling amount and sampling number.
-
Page 12: Maintenance And Precautionary Measures
6.2.7 Description of language setting Press the Chinese or English key to select the corresponding language. After the selection, press the SAVE button to save the selected language and go back to the main interface. By pressing the HOME button, you will directly return to the main interface and the set language has not been saved. -
Page 13: Troubleshooting
Troubleshooting Problem Possible reason Solution Display does not switch on / 1. Battery low 1. Connect the charger. remains dark even though 2. Fuse faulty 2. Open the lower part of the „On / Off“ key is pressed. device and insert a new fuse. Pump does not work when 1. - Page 14 PCE Instruments contact information Germany France Spain PCE Deutschland GmbH PCE Instruments France EURL PCE Ibérica S.L. Im Langel 4 23, rue de Strasbourg Calle Mayor, 53 D-59872 Meschede 67250 Soultz-Sous-Forets 02500 Tobarra (Albacete) Deutschland France España Tel.: +49 (0) 2903 976 99 0 Téléphone: +33 (0) 972 3537 17 Tel.
