Content:
Multi Sensor ....................................................................................................................................................... 2
1. Product Introduction ............................................................................................................................ 2
2. Product Appearance ............................................................................................................................ 2
3. Specification ......................................................................................................................................... 3
4. Features/Capabilities ........................................................................................................................... 4
5. Installation Position and Notes ............................................................................................................ 4
6. Product Installation .............................................................................................................................. 5
7. Attention .............................................................................................................................................. 6
We build your success in IoT.

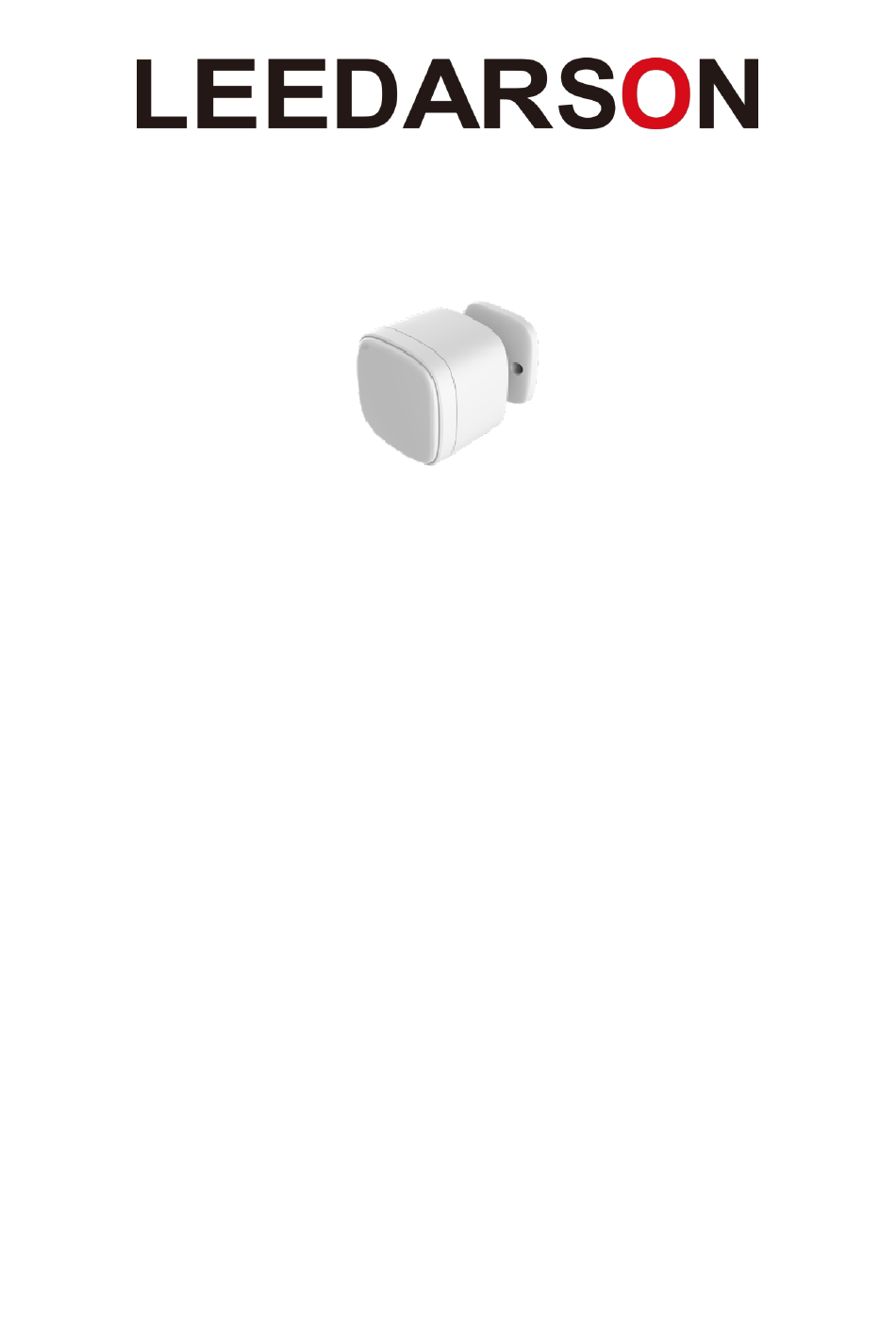

LEEDARSON Multi-Sensor
Advertisement
Table of Contents
Related Manuals for Leedarson Multi-Sensor
Summary of Contents for Leedarson Multi-Sensor
- Page 1 We build your success in IoT. LEEDARSON Multi-Sensor Content: Multi Sensor ............................... 2 1. Product Introduction ..........................2 2. Product Appearance ..........................2 3. Specification ............................3 4. Features/Capabilities ........................... 4 5. Installation Position and Notes ......................4 6. Product Installation ..........................5...
- Page 2 Multi-Sensor Quick Start Guide 1. Product Introduction The Multi sensor is designed for using with scenes in home automation systems, integrate motion, light , temperature and humidity sensors, powered by CR123A battery or USB cable. The Motion Sensor lets you know when movement is detected in a certain area and can trigger different actions in response to that movement (or lack of movement).
- Page 3 3. Specification PIR （ Passive Infrared ） Detection Technology Detection Angle 100°±10° Temperature Accuracy ±1℃ Humidity Accuracy ±5% Communication Protocol Zigbee Radio Frequency 2.4G (2405-2480MHz) 40m (Line of sight) outdoor Wireless Range About 30m indoors (depending on building materials) RF Output power(E.I.R.P.) 6.3 dBm Power Source 3V, CR123A *1...
- Page 4 The LEEDARSON Multi Sensor is powered by one CR123A batteries with 2 years battery life. The LEEDARSON Multi Sensor is designed to be mounted on the wall and indoor use only. The LEEDARSON Multi Sensor has configuration Luminance intensity/ Temperature/ Humidity Report time interval.
- Page 5 6. Product Installation Adding the device as accessories, install it according to the diagram below: ① Choose the installation location on the wall, fix the universal wheels by screw or 3M adhesion tape on the wall. ② Take off the bracket in the back, install battery into the body. ③...
- Page 6 7. Attention 1. If need to clean the sensor, please use a soft cloth with a little alcohol to wipe it after you cut off the power. 2. This product is just for indoor use. 3. Replace the battery timely on low battery warning to ensure the detector works properly. Please remove the battery and safe keeping, if you don’t use this product for a long time.
- Page 7 Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
