Introduction
Door/Window sensors are designed to secure the perimeter of the residential premise and provide the ability to
add various automation services. The Door/Window sensor, which consists of a magnet that attaches to a door or window, will
communicate door events to the home security system. When the magnet is moved away from the sensor, a signal will be sent to
the control panel that communicates the changed state to the security system. Signals can also be used to activate a chime or
convenience lighting based on system settings.
Specification
Frequency
Battery Type
Operating Temperature
Storage Temperature
Battery Life
Dimension
Pairing Sensor
The Door/Window sensor needs to be paired before installation.
1.
While next to the home controller or security system slide the top cover open to expose the battery pull tab, pull the plastic
tab to activate the sensor, slide the top cover to the closed position, Figure 1.
5.
Once the device has successfully paired to the home controller or security system it
steps in the installation section.
Installation
1.
Once paired the LED will blink either a red,
performance with the home controller or security system. Move the sensor to the intended location of installation. If the
LED is slowly blinking green you have good communication with the home controller or security system and can proceed
with the remainder of the installation process. Double blinking amber indicates the sensor can communicate, however, look
at improving the communication by alternating the location of the sensor on the door or window. Fast blinking red indicates
the sensor cannot be installed at this location.
Note: The LED will illuminate for 3 minutes after the initial pairing process, if additional time is needed to position
the sensor slide to the top cover open and then closed and the LED will illuminate for an additional 30 seconds.
2.
Please make sure that the sensor and magnet is located less than 0.25 inch from each other. For optimal performance, it is
highly recommended to install the Door/Window sensor on the fixed frame and the magnet on the moving part of the
door/window. Place the sensor near the top of the door/window close to the opening edge of the door/window. When

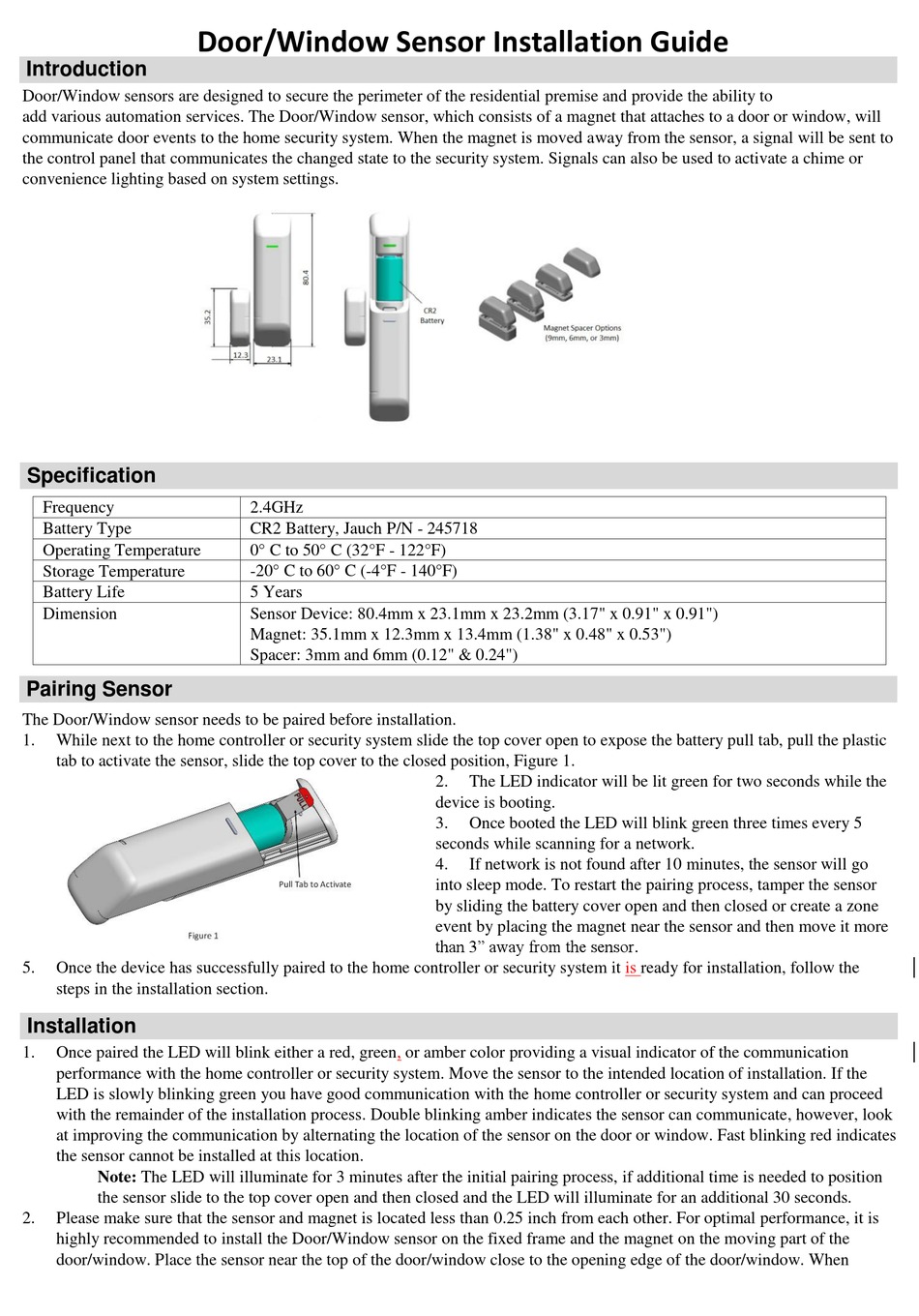

Door/Window Sensor Installation Guide
2.4GHz
CR2 Battery, Jauch P/N - 245718
0 C to 50 C (32° F - 122° F)
-20 C to 60 C (-4° F - 140° F)
5 Years
Sensor Device: 80.4mm x 23.1mm x 23.2mm (3.17" x 0.91" x 0.91")
Magnet: 35.1mm x 12.3mm x 13.4mm (1.38" x 0.48" x 0.53")
Spacer: 3mm and 6mm (0.12" & 0.24")
green,
2.
The LED indicator will be lit green for two seconds while the
device is booting.
3.
Once booted the LED will blink green three times every 5
seconds while scanning for a network.
4.
If network is not found after 10 minutes, the sensor will go
into sleep mode. To restart the pairing process, tamper the sensor
by sliding the battery cover open and then closed or create a zone
event by placing the magnet near the sensor and then move it more
than 3" away from the sensor.
or amber color providing a visual indicator of the communication
is
ready for installation, follow the
Advertisement
Table of Contents
Related Manuals for Leedarson LDHD2AZW
Summary of Contents for Leedarson LDHD2AZW
- Page 1 Door/Window Sensor Installation Guide Introduction Door/Window sensors are designed to secure the perimeter of the residential premise and provide the ability to add various automation services. The Door/Window sensor, which consists of a magnet that attaches to a door or window, will communicate door events to the home security system.
- Page 2 mounting the sensor and magnet ensure the marks on the sensor and magnet are aligned (Figure 2). The LED on the sensor should be positioned at the top when possible. Ensure you have space to slide open the battery door when positioning the sensor. Peel the paper off one side of the double-sided tape provided, attach to the back of the sensor and press firmly for a few seconds.
- Page 3 If the LED remains green or blinks 3 times every 5 seconds, it’s an indication that the device is having trouble connecting to the home controller or security system. To resolve this state, remove the battery for 10 seconds, then re-insert the battery, and slide the battery cover to close the device.
- Page 4 Certification Product name: Door Window sensor Model: LDHD2AZW Responsible Party – U.S. Contact Information Leedarson America, Inc. 300 Technology Court, Suite 100 Smyrna, GA 30082 Website: iot.leedarson.com This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
