Summary of Contents for Asus VP299CL Series

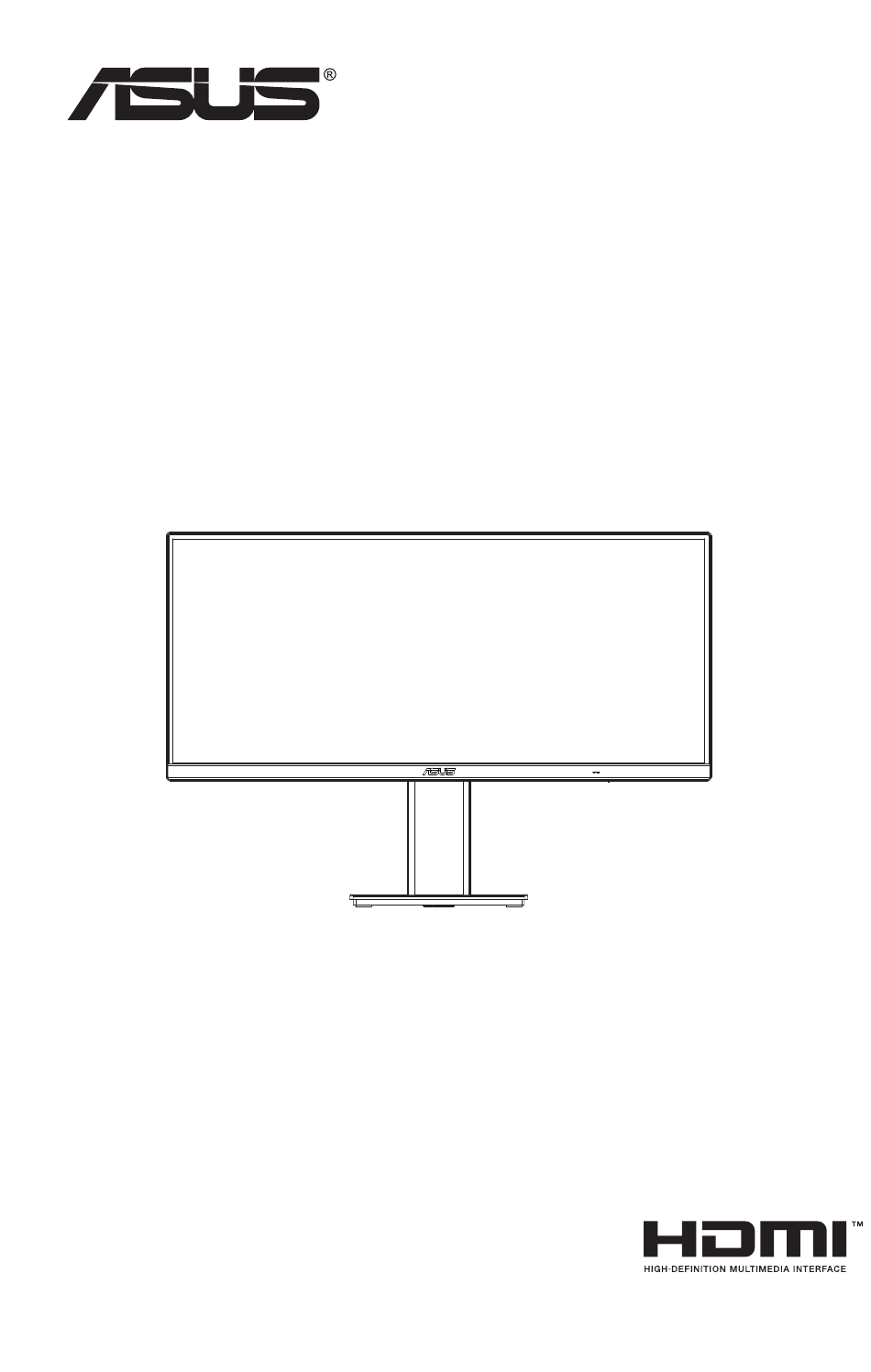

- Page 1 VP299CL Series LCD Monitor User Guide...
-
Page 2: Table Of Contents
Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing. -
Page 3: Notices
Notices Federal Communications Commission Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: • This device may not cause harmful interference. • This device must accept any interference received including interference that may cause undesired operation. - Page 4 Declaration of Conformity This device complies with the requirements set out in the Council Directive on the Approximation of the Laws of the Member States relating to Electromagnetic Compatibility (2014/30/EU), Low-voltage Directive (2014/35/EU), ErP Directive (2009/125/EC) and RoHS directive (2011/65/EU). This product has been tested and found to comply with the harmonized standards for Information Technology Equipment, these harmonized standards published under Directives of Official Journal of the European Union.
-
Page 5: Safety Information
Safety information • Before setting up the monitor, carefully read all the documentation that came with the package. • To prevent fire or shock hazard, never expose the monitor to rain or moisture. • Never try to open the monitor cabinet. The dangerous high voltages inside the monitor may result in serious physical injury. •... - Page 6 WARNING Usage of other than specified head- or earphones can result in hearing loss due to excessive sound pressures. Please confirm the distribution system in building installation shall provide the circuit breaker rated 120/240V, 20A (maximum). If provided with a 3-pin attachment plug on the power cord, plug the cord into a grounded (earthed) 3-pin outlet. Do not disable the power cord grounding pin, for example, by attaching a 2-pin adapter.
-
Page 7: Care & Cleaning
Care & Cleaning • Before you lift or reposition your monitor, it is better to disconnect the cables and power cord. Follow the correct lifting techniques when positioning the monitor. When lifting or carrying the monitor, grasp the edges of the monitor. Do not lift the display by the stand or the cord. •... - Page 8 These documents are not part of the standard package. Takeback Services ASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment. We believe in providing solutions for our customers to be able to responsibly recycle our products, batteries and other components as well as the packaging materials.
-
Page 9: Welcome
® Thank you for purchasing the ASUS LCD monitor! The latest widescreen LCD monitor from ASUS provides a crisper, broader, and brighter display, plus a host of features that enhance your viewing experience. With these features, you can enjoy the convenience and delightful visual... -
Page 10: Assembling The Monitor
Assembling the monitor To assemble the monitor Place the display on a cloth on the table, Use a screwdriver to tighten the assembly screws,and secure the arm to the display tightly.Then attach the base to the arm and fix with the screw to join them tightly. You can easily tighten the screw by fingers. Adjust the monitor to the angle that is most comfortable for you. -5 ~ 23 Chapter 1: Product Introduction... -
Page 11: Connect Cables
Connect cables 1.4.1 Rear of the LCD monitor HDMI AC-IN Port HDMI Port DisplayPort Type-C Port Audio - out Port Kensington Lock ASUS LCD Monitor VP299 Series... -
Page 12: Monitor Introduction
Monitor introduction 1.5.1 Using the Controls button Use the control button on the back of the monitor to adjust the image settings. Power Close Menu Input Select Power Button/Power Indicator: • Press this button to turn the monitor on/off. • The color definition of the power indicator is as the below table. -
Page 13: Detaching The Arm/Stand (For Vesa Wall Mount)
• We recommend that you cover the table surface with soft cloth to prevent damage to the monitor. • Hold the stand of the monitor while removing the screws. ASUS LCD Monitor VP299 Series... -
Page 14: Adjusting The Monitor
Adjusting the monitor • For optimal viewing, we recommend that you look at the full face of the monitor, then adjust the monitor to the angle that is most comfortable for you. • Hold the stand to prevent the monitor from falling when you change its angle. -
Page 15: Outline Dimension
Outline dimension Unit: mm 225,00 [8,858] 58,03 [2,285] 13,00 [0,512] 10,50 689,77 [0,413] [27,156] 672,77 [26,487] VESA Screw 4PCS (M4xL10) 187,05 [7,364] ASUS LCD Monitor VP299 Series... -
Page 16: Osd (On-Screen Display) Menu
Press the Center key to enter the slide bar and then use the or buttons, according to the indicators on the menu, to make your changes. Press the ◄/► to move left / right menu. ASUS LCD Monitor VP299 Series... -
Page 17: Osd Function Introduction
3.1.2 OSD Function Introduction Splendid This function contains eight sub-functions that you can select for your preference. Each mode has the Reset selection, allowing you to maintain your setting or return to the preset mode. VP299CL HDR OFF Splendid Standard Mode DisplayPort 2560x1080@60Hz Standard Mode sRGB Mode Scenery Mode... - Page 18 OSD disappeared. • When this function is enable, the following functions are not available: Splendid Demo Mode, GamePlus and QuickFit. • Color Augmentation: The adjusting range of color enhancement is from 0 to 100. • This function is not available in sRGB mode under Splendid. • This function is not available when Reddish or Yellowish is selected in the Skin Tone menu. ASUS LCD Monitor VP299 Series...
- Page 19 • EyeCheck: The EyeCheck function contains three patterns: (1) Snellen Chart (2) Amsler Grid (3)Astigmatism. Snellen Chart Amsler Grid While focusing at the center point, check that all the lines are straight. Astigmatism Check that each line is of the same width. Chapter 3: General Instruction...
- Page 20 (2) Slowly roll your eyes (3) Move your eyes diagonal. • High energy blue light may lead to eye strain and AMD (Age-Related Macular Degeneration). Blue light filter to reduce 70% (max.) harmful blue light to avoiding CVS (Computer Vision Syndrome). ASUS LCD Monitor VP299 Series...
- Page 21 Color Select the image color you like from this function. VP299CL HDR OFF Color Standard Mode DisplayPort 2560x1080@60Hz Brightness Contrast Saturation Color Temp. Skin Tone • Brightness: The adjusting range is from 0 to 100. • Contrast: The adjusting range is from 0 to 100. •...
- Page 22 0 to faster 100. • Aspect Control: Adjusts the aspect ratio to “Full”, “4:3”. • VividPixel: ASUS Exclusive Technology that brings lifelike visuals for crystal-clear and detail-oriented enjoyment. The adjusting range is from 0 to 100. •...
- Page 23 More: Return the next page of Image Setting. • Back: Return the previous page of Image Setting. • HDR: High Dynamic Range.Contains two HDR modes(ASUS Cinema HDR and ASUS Gaming HDR). • Shadow Boost: Dark color enhancement adjust monitor gamma curve to enrich the dark tones in an image making dark scenes and objects much easier be found.
- Page 24 Position: Adjusts the position of PIP sub-window to “Right-Top”, “Left- Top”, “Right-Bottom” or “Left-Bottom”. Input Select Select the input source from HDMI, DisplayPort, USB Type-C input signal. VP299CL HDR OFF Input Select Standard Mode DisplayPort 2560x1080@60Hz HDMI DisplayPort USB Type-C ASUS LCD Monitor VP299 Series...
- Page 25 System Setup Adjusts the system configuration. VP299CL HDR OFF System Setup Standard Mode DisplayPort 2560x1080@60Hz Splendid Demo Mode GamePlus Sound QuickFit ECO Mode OSD Setup Language More VP299CL HDR OFF System Setup Standard Mode DisplayPort 2560x1080@60Hz Back Key Lock Information Power Indicator Power Key Lock All Reset •...
- Page 26 Paper size: Provides users to view their documents in real size on the screen. EXIT • Photo size: Provides photographers and other users to accurately view and edit their photos in real size on the screen. ASUS LCD Monitor VP299 Series 3-11...
- Page 27 8x10 • ECO Mode: Activate the ecology mode for power saving. • OSD Setup: Adjusts the OSD Timeout, DDC/CI, and Transparency of the OSD screen. • Language: Select OSD language. The selections are: English, French, German, Spanish, Italian, Dutch, Russian, Poland, Czech, Croacia, Hungary, Romania, Portugal, Turkey, Simplified Chinese, Traditional Chinese, Japanese, Korean, Persian, Thai, and Indonesian.
- Page 28 Shortcut : User can select from “Blue Light Filter” “Splendid”, “Brightness”, “PIP/PBP Setting”, “Input Select”, “Color Temp.”, “Volume ”, “QuickFit”, “Rest Reminder”, “Color Augmentation”, “GamePlus” and set as shortcut key. The default setting is Input Select. ASUS LCD Monitor VP299 Series 3-13...
-
Page 29: Specifications
3.2 Specifications Model VP299CL Panel Size 29” (73 cm) Max. Resolution 2560 x 1080 (WFHD) Brightness (MAX) 350cd/m Intrinsic Contrast Ratio (Typ.) 1000:1 Viewing Angle (CR>10) 178°(V) /178°(H) Display Colors 16.7 M Response Time 4MS(Gray to Gray), 1ms (MPRT) Satellite Speaker Sound from HDMI Type-C input DisplayPort input HDMI input Earphone jack 3.5mm Mini-jack... -
Page 30: Troubleshooting (Faq)
• Adjust the volume settings of both your monitor and computer. • Make sure the computer sound card driver is properly installed and activated. • Make sure the audio source is correct on the OSD. ASUS LCD Monitor VP299 Series 3-15... -
Page 31: Supported Timing List
Supported Timing List PC Supported Primary Timing Resolution HDMI DP/Type-c 720 x 400 @ 70Hz 640 x 480 @ 60Hz 640 x 480 @ 67Hz 640 x 480 @ 72Hz 640 x 480 @ 75Hz 800 x 600 @ 56Hz 800 x 600 @ 60Hz 800 x 600 @ 72Hz 800 x 600 @ 75Hz 832 x 624 @ 75Hz 1024 x 768 @ 60Hz 1024 x 768 @ 70Hz 1024 x 768 @ 75Hz 1280x1080 @ 60Hz 1280 x1024 @ 75Hz 1920 x 1080 @ 60Hz 1680 x 1050 @ 60Hz 1440 x 900 @ 60Hz 1280 x 1024 @ 60Hz 1280 x 960 @ 60Hz 1280 x 720 @ 60Hz 640 x 480 P 59.94/60Hz 1280 x 720 P 59.94/60Hz 1280 x 720 P 50Hz 1920 x 1080 P 50Hz...
