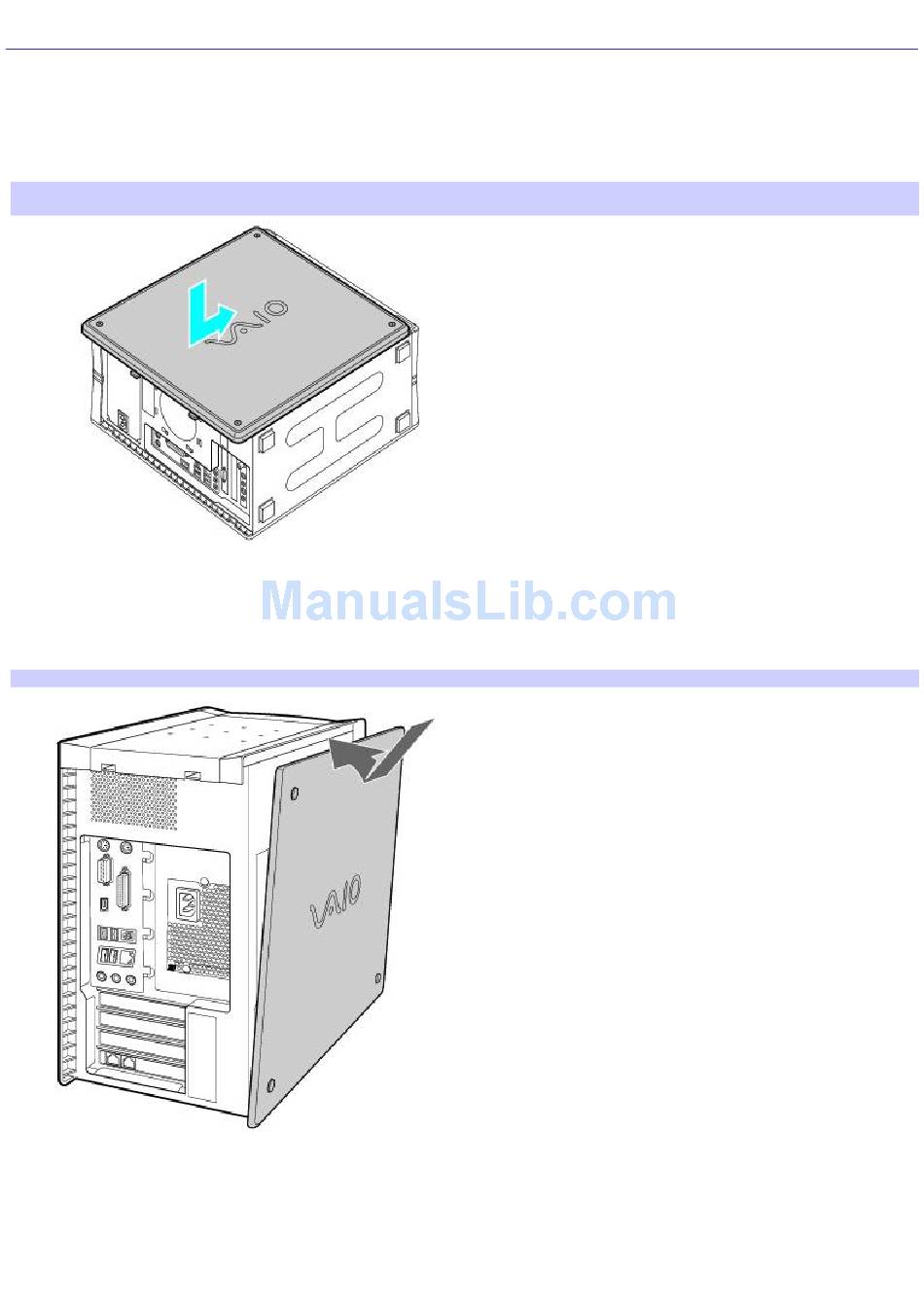

Replacing the Side Panel
To replace the side panel (PCV-RZ series model)
1.
Align tabs on the side panel to the tracks on the chassis frame.
2.
Gently slide the side panel onto the chassis, until the tabs lock the panel into place.
Replacing the side panel
(PCV- RZ series m odel equipped with Giga Pocket)
To replace the side panel (PCV-RX series)
1.
Align the tabs on the side panel to the chassis rim.
2.
Press the side panel firmly against the unit until it snaps into place.
Replacing the side panel (PCV- RX series m odel)
Page 61
