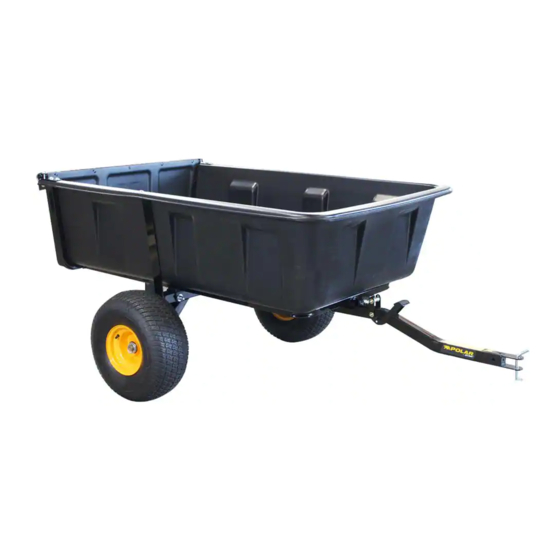

Clam POLAR TRAILER HD MAX Quick Start Manual

Clam POLAR TRAILER HD MAX Quick Start Manual

Hide thumbs Also See for POLAR TRAILER HD MAX:

Advertisement

Quick Links

- S P E C IF I C AT I O N S:
Part Number:
Load Capacity:
Load Size:
Dimensions:
Overall Weight:
Tires:
Instruction P/N
Please contact customer service directly at the E-mail or phone number listed below for any
quality issues. ONCE USED THIS PRODUCT CANNOT BE RETURNED TO STORE.
** Warranty cannot be honored without an original, dated receipt **
IMPORTANT-PLEASE READ:
CLAM OUTDOORS INC. warrants to the original retail purchaser its product be free from manufacturers defects for (5)
years from the date of the original purchase. Clam Outdoors Inc will replace or repair any part found defective within the
(5) year time limit. All parts must be returned to Clam Outdoors Inc. Before returning any parts, you must first call or write
and acquire a return authorization. All returns must be returned postage-prepaid and include the original cash register
receipt (date and purchase price).
To submit a warranty claim request, please use one of the following methods:
▪ Customer Service Hrs: 9am to 4pm, Monday – Friday Central Standard Time
▪ Clam Corporation
Attn: Customer Service – Warranty Department
12135 Brockton Lane
Rogers, MN 55369
▪ Phone: 763-231-4120
▪ Fax: 763-231-4121
▪ Email:
customerservice@clamcorp.com
▪ Website:
Polartrailer.com
The warranty does not apply to any Polar Trailer which has been subjected to an accident, improper installation,
modification, adjustment, repair, misuse, misapplication, neglect, including but not limited to improper maintenance, or
use of unauthorized parts or attachments.
LIMITATION OF LIABILITY
It is expressly understood that Clam Outdoors Inc. liability for its products, whether due to breach of warranty, negligence,
strict liability, or otherwise, is limited to the repair of the product as stated above. Clam Outdoor Inc. is not liable for any
injury, loss, damage, or expense, whether direct or consequential, including but not limited to loss of use, income, profit,
or damage to material arising in connection with the sale, installation, use of, inability to use, or the repair or replacement
of Clam Outdoor Inc. products. Clam Outdoor Inc. reserves the right to make alterations or modifications in its products
at any time, which in its opinion, may improve the performance and efficiency of the product. It shall not be obligated to
make such alterations or modifications to products already in service.
115261
1800 lbs.
27 Cubic Feet
L92x W57 x H39
200 lbs.
20 x 8.00-8
106378
WARRANTY INFORMATION
HD MAX
MODEL 10535

Advertisement

loading
Need help?

Need help?

Do you have a question about the POLAR TRAILER HD MAX and is the answer not in the manual?

Questions and answers

Summary of Contents for Clam POLAR TRAILER HD MAX

  • Page 1 Clam Outdoors Inc will replace or repair any part found defective within the (5) year time limit. All parts must be returned to Clam Outdoors Inc. Before returning any parts, you must first call or write and acquire a return authorization.
  • Page 2 THE FOLLOWING STATEMENTS ARE SUGGESTIONS AND DO NOT SUPERCEDE OR ELIMINATE ANY TOWING AND SAFETY INSTRUCTIONS LISTED IN ANY OWNERS MANUALS FOR ANY PRODUCT BEING USED FOR THE PURPOSE OF TOWING ANY CLAM OUTDOORS INC. PRODUCTS. ALWAYS REFER TO THE TOWING VEHICLES MANUAL, GUIDELINES OR INSTRUCTIONS.
  • Page 3: Parts List

    PARTS LIST QTY. PART NO. DESCRIPTION 105131 BASE, HD MAX 2800 105005 ASSY, 20 X 8.00 - 8, WHEEL 106378 INSTRUCTIONS, HD MAX TRAILER 105470 LABEL, TONGUE DECAL, HD MAX 105752 LABEL, TUB BASE, REMOVABLE, HD MAX TRAILER 106335 INNERPACK, HD MAX TRAILER (INCLUDES THE FOLLOWING) 105113 WLDMT, UPRIGHT SUPPORT...
  • Page 4 FASTENERS...
  • Page 5 STEP-1 *USING A DROP OF OIL ON ALL NUTS WILL EASE THE ASSEMBLY PROCESS. *IT IS BEST TO USE THE AID OF ANOTHER PERSON DURING ASSEMBLY. 1. ASSEMBLE THESE COMPONENT USING THE FASTENERS AS SHOWN AND SECURELY TIGHTEN. STEP-2 1. ASSEMBLE THESE COMPONENTS WITH FASTENERS AS SHOWN AND SECURELY TIGHTEN.
  • Page 6 STEP-3 1. INSTALL FRAME ASSEMBLY FROM STEP-1 TO AXLE ASSEMBLY FROM STEP-2 WITH FASTENERS AS SHOWN. SECURELY TIGHTEN. REFLECTORS TAPE THIS SIDE STEP-4 1. LOOSELY INSTALL BOTTOM REAR OF BASE TO FRAME ASSEMBLY WITH ALL FASTENERS REQUIRED. DO NOT TIGHTEN FASTENERS .
  • Page 7 STEP-5 1. LOOSELY INSTALL SIDE OF BASE TO FRAME ASSEMBLY (BOTH SIDES) WITH ALL FASTENERS REQUIRED. DO NOT TIGHTEN FASTENERS . STEP-6 1. LOOSELY INSTALL TOP BASE TO FRAME AND REAR COMPONETS ASSEMBLY (BOTH SIDES) WITH ALL FASTENERS REQUIRED. DO NOT TIGHTEN FASTENERS .
  • Page 8 STEP-7 1. LOOSELY INSTALL BOTTOM, OF BASE TO FRAME ASSEMBLY WITH ALL FASTENERS AS SHOWN. AT THIS POINT SECURELY TIGHTEN ALL FASTENERS STEP-8 1.INSTALL TUBE AND TONGUE ASSEMBLY TO AXLE ASSEMBLY WITH ALL FASTENERS AS SHOWN. DO NOT OVER TIGHTEN BOTH TUBE AND TONGUE MUST MOVE FREELY...
  • Page 9 STEP-9 1.INSTALL WHEELS TO AXLE SHAFTS AS SHOWN. GREASE SHAFTS ANNUALLY LYNCH PIN (101823) MUST BE LOCKED IN POSITION AS SHOWN BEFORE MOVING TRAILER...
  • Page 10 STEP-10 1. INSTALL THE TAILGATE AND SLIDE INTO BRACKETS AS SHOWN AND INSTALL THE LYNCH PINS. SLIDE INTO BRACKET BOTH SIDES LOCKING PIN (101314) MUST BE LOCKED IN POSITION AS SHOWN TO KEEP TAILGATE IN POSITION...
  • Page 11 LATCH OPERATION PULL BAR UPWARD TO UNLOCK AND LOCK TAILGATE. DUMP OPERATION 1. PUSH DOWN ON FOOT PEDAL TO RELASE TRAILER BOX KEEP CLEAR OF ROTATING BOX AREA TO AVOID INJURY TAILGATE MUST BE OPEN AND POSITIONED ON TOP OF BASE AS SHOWN...
  • Page 12 VISIT OUR WEB-SITE FOR ADDITIONAL ACCESSORIES THAT MAY BE AVAILABLE FOR YOUR TRAILER TOOL RACK PART# 110517 TOOL ORGANIZER PART# 110518...
