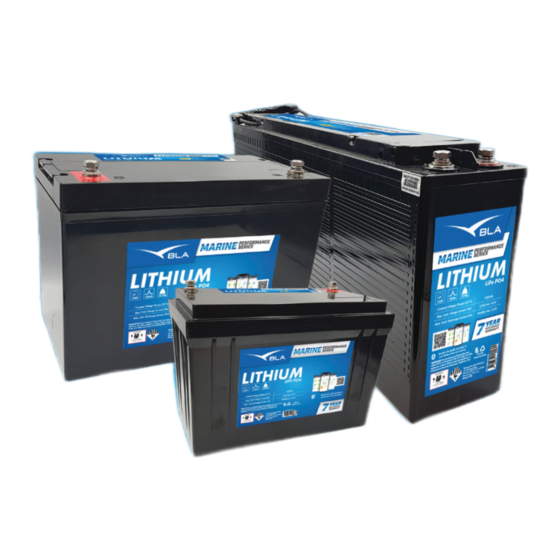

Summary of Contents for Marine LITHIUM LiFePO4
- Page 1 Instruction Manual...
- Page 2 • Always use a charger with a Lithium profile and ensure that it has been selected. BLA Marine Performance Lithium Chargers are recommended for this battery. • If using an inverter, ensure that it does not exceed the specifications of the battery.
-
Page 3: Warranty
WARRANTY BLA Marine Performance Batteries packaged by Sealed Performance Batteries has a 7-year replacement warranty when installed in an approved application. Please visit bla.com.au and register your battery to ensure your battery is in an approved application. bla.com.au/bla-marine-performance-battery-warranty CHARGING •... -
Page 4: Battery Voltage
BMS Over-discharge Protection Voltage SERIES AND PARALLEL OF BATTERIES There are strict conditions under which the BLA Marine Performance Lithium Batteries Range can be configured into Series OR Parallel systems. Please note these conditions below. • Not all SNL batteries can be configured into a Series or Parallel system. Please note for all Bluetooth Batteries. -
Page 5: Parallel Configuration
PARALLEL CONFIGURATION ANODE CATHODE PACK 4 PACK 1 FIG 1 Ensure all batteries to be in the parallel configuration have been fully charged individually by matched chargers. Ensure OCV of each battery is less than <0.2V of each other. After charging, set aside and allow to rest for 8 hours. Utilising wires of circumference large enough to carry required current (>100A), connect the batteries in the above (Fig 1) configuration. -
Page 6: Series Configuration
SERIES CONFIGURATION ANODE CATHODE PACK 4 PACK 1 FIG 2 Check to ensure the battery is suitable for Series configuration. Ensure all batteries to be in the series configuration have been fully charged individually by matched chargers. Ensure OCV of each battery is less than <0.2V of each other. After charging, set aside and allow to rest for 8 hours. - Page 7 APP DOWNLOADS To download our app, please scan the QR code below. This will give you the option to download the app via Apple Store or Google Android. Scanning the QR code will also give you access to manuals and safety data sheets. Monitor the health and state of your battery from your phone.
- Page 8 P.O. Box 7171, Hemmant, Queensland, Australia 4174 W: bla.com.au 44 Sir Woolf Fisher Drive, East Tamaki, Auckland NZ 2013 W: bla.co.nz...
