Johnson Controls IQ Dimmer User Manual

IQ Dimmer
User Guide

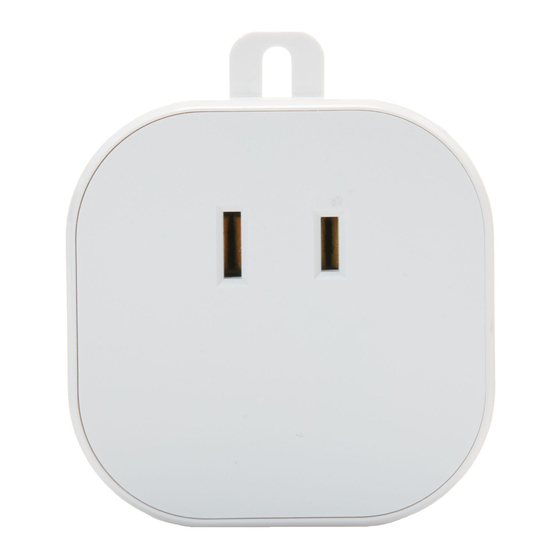

Plug In Dimmer
INTRODUCTION
IQ Dimmer is a Z-Wave Plus® cer�fied device with S2 security and SmartStart
features. You can now add this device securely and with ease using QR code on the
product with compa�ble gateways suppor�ng S2 and SmartStart. The IQ Dimmer is
a member of the Z-Wave™ family and communicates with other Z-Wave cer�fied
devices in a control network. It can be used to turn any plug in lamps On, Off, or
control dimming of any lamps with dimmable light bulbs. Each Z-Wave device also
serves as a node to repeat the signal in the network, thus, extending the overall
Z-Wave mesh wireless network range. Different types and brands of Z-Wave devices
can be associated with the IQ Dimmer in your system and they will work together to
op�mize and expand the coverage of your Z-Wave network.
FEATURES
• Works with incandescent and most dimmable fluorescent (CFL), or LED ligh�ng
• 700 Series Z-Wave module
• LED to indicate ON/OFF status
• Remotely or manually turns ON or OFF, or DIM lights
• Z-Wave Plus Cer�fied with S2 security and SmartStart (QR code on bo�om of device)
• Safety tab to secure unit to AC outlet
• Compact design - does not block the 2nd AC outlet
• Over-The-Air firmware upgrade available, if supported by controller
• Supports Network Wide Inclusion (through a repeater), if supported by controller.
• Func�ons as a Z-Wave signal repeater
! WARNING !
RISK OF FIRE, ELECTRICAL SHOCK & BURNS
DO NOT USE WITH MEDICAL AND LIFE SUPPORT INSTRUMENT
No user serviceable parts are in this module
To reduce the risk of electric shock, this product has a grounding type plug that has a
third (grounding) pin. This plug will only fit into a grounding type power outlet. If the
plug does not fit into the outlet, contact a qualified electrician to install the proper
outlet. Do not change the plug in any way
CAUTION: To Reduce the Risk of Overhea�ng And Possible Damage To Other
Equipment, Do Not Install To Control A Motor-Operated Appliance,
A Non-Dimmable Fluorescent Ligh�ng Fixture, Or A Transformer-Supplied Appliance
The ligh�ng devices connected to this Z-Wave module must not exceed 2.5A, 300W
incandescent, 65W dimmable CFL/LED.
SETUP
Step 1
Plug in a lamp with 2-pin AC plugs to
the receptacle of the IQ Dimmer
Step 2 Insert the module's 3-pin plug into an AC
outlet in the same room as your gateway.
In normal opera�ng mode, the LED on the
front panel will be lit.
Step 3 Inclusion/Exclusion: Add or remove the device into your network by a
Z-Wave cer�fied controller. The IQ Dimmer supports the latest S2 security and
SmartStart offered by Z-Wave cer�fied controllers. If your controller supports S2 or
SmartStart, please refer to the user guide of the controller for detailed instruc�ons
on adding or removing devices to/from the network. You should be able to add the
IQ Dimmer into your network using the unique QR code or the DSK 5 digit pin
located on the product or packaging. In addi�on, the device can be added or
removed using the tradi�onal method for Z-Wave as follows:
1. Place your network controller into inclusion mode by following the controller
manufacturer's instruc�ons.
2. When the controller is ready, single click the bu�on on the top of the IQ Dimmer.
The controller should indicate that the new device was added successfully.
3. Once the IQ Dimmer has been successfully added to your home network, you can
move it to the preferred loca�on in the home.
If the controller shows it failed, repeat the procedure.
Manual Reset
If Inclusion s�ll fails a�er the 2nd a�empt, you need to
first reset the IQ Dimmer before repea�ng the above
step. The manual reset method is as follows:
1. Unplug the IQ Dimmer from the AC
outlet and also unplug the power plug of
This product speaks
the appliance from the IQ Dimmer (if
with other Z-Wave
plugged in).
cer�fied devices
2. Press and hold the bu�on on the IQ Dimmer.
3. Plug the IQ Dimmer back into the
AC outlet with the bu�on pressed
A�er 3 seconds, release the bu�on. If you see the LED blink, that means that the
PD700 has been reset successfully and you may retry Step 3 above to add the
module into your network. Otherwise, please repeat the manual reset procedure.
Note: If the IQ Dimmer
locally does not mean it has been removed from your controller so�ware. If you wish to
remove the PD700 from your controller so�ware you will need to Remove (Exclude) the
module from the network by your controller. If the
network suppor�ng S2 security, the only way to add the device back into the network is
using the QR code or the DSK code. Therefore, please store the QR code on the product
as well as copy of the full DSK printed on the package in a safe loca�on.
Use the manual reset procedure only in the event that the network primary
controller is lost or otherwise inoperable.
BASIC OPERATION
The connected lamp can be controlled manually with a push bu�on or
wirelessly via the so�ware from your controller.
A Z-Wave cer�fied controller is capable of se�ng up products in your
desired network. Once the device is added, you may assign it to a Group.
In the event of a power failure, the device will return to the last dimming level
a�er the power is restored.
About the push bu�on:
There is a single bu�on on the IQ Dimmer for manual opera�on that:
A) Manually turns the connected ligh�ng ON/OFF by pressing the bu�on. It
func�ons as a toggle switch; if the light is ON, pressing the bu�on turns
the light OFF and vice a versa.
Adjust the brightness level of the connected ligh�ng by pressing and
B)
holding the bu�on. Release the bu�on when the desired level is reached.
It func�ons as a toggle switch as well. The ligh�ng keeps dimming un�l the
minimum level is reached or the bu�on is released. When you press the
bu�on again and hold, the brightness of the light will keep increasing un�l
the maximum level is reached or when the bu�on is released.
C) Adds(Includes) or Deletes(Excludes) your IQ Dimmer to/from your Z-Wave
network. Please refer to the instruc�ons manual of your gateway or
remote controller for detail procedures on how these ac�ons can be done.
1
2
was previously Added (Included) in your network, rese�ng it
IQ Dimmer
or
is removed from the
