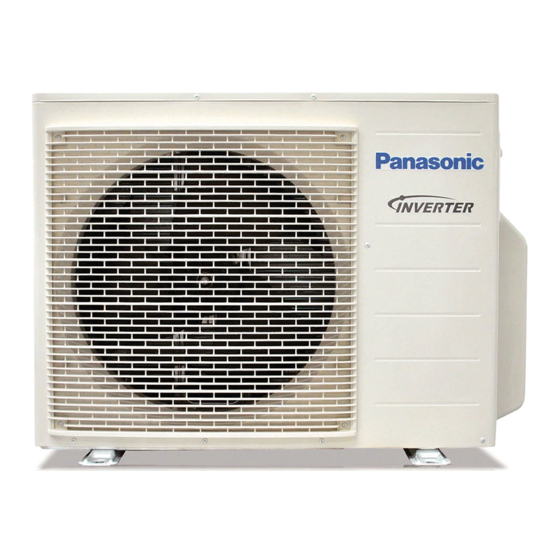

Panasonic CU-3E19RBU Service Manual

Please file and use this manual together with the service manual for Model No. CS-E9RKUAW CS-E12RKUAW CS-E18RKUAW,
CS-E24RKUAW, CS-ME7RKUA,
PAPAMY1503094CE, PAPAMY1503095CE, PAPAMY1505112CE.
This service information is designed for experienced repair technicians only and is not designed for use by the general public.
It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to
service or repair the product or products dealt with in this service information by anyone else could result in serious injury or death.
There are special components used in this equipment which are important for safety. These parts are marked by
Diagrams, Circuit Board Diagrams, Exploded Views and Replacement Parts List. It is essential that these critical parts should be replaced
with manufacturer's specified parts to prevent shock, fire or other hazards. Do not modify the original design without permission of
manufacturer.
In order to avoid frostbite, be assured of no refrigerant leakage during the installation or repairing of refrigerant circuit.
CS-E12RB4UW, CS-E18RB4UW,
WARNING

IMPORTANT SAFETY NOTICE

PRECAUTION OF LOW TEMPERATURE

Order No: PAPAMY1505100CE
Air Conditioner
CS-ME5RKUA, Order No.
© Panasonic Corporation 2015
Outdoor Unit
CU-3E19RBU
CU-4E24RBU
Destination
U.S.A.
Canada
PAPAMY1501049CE,
in the Schematic
!
