Summary of Contents for PATHFINDER 6057

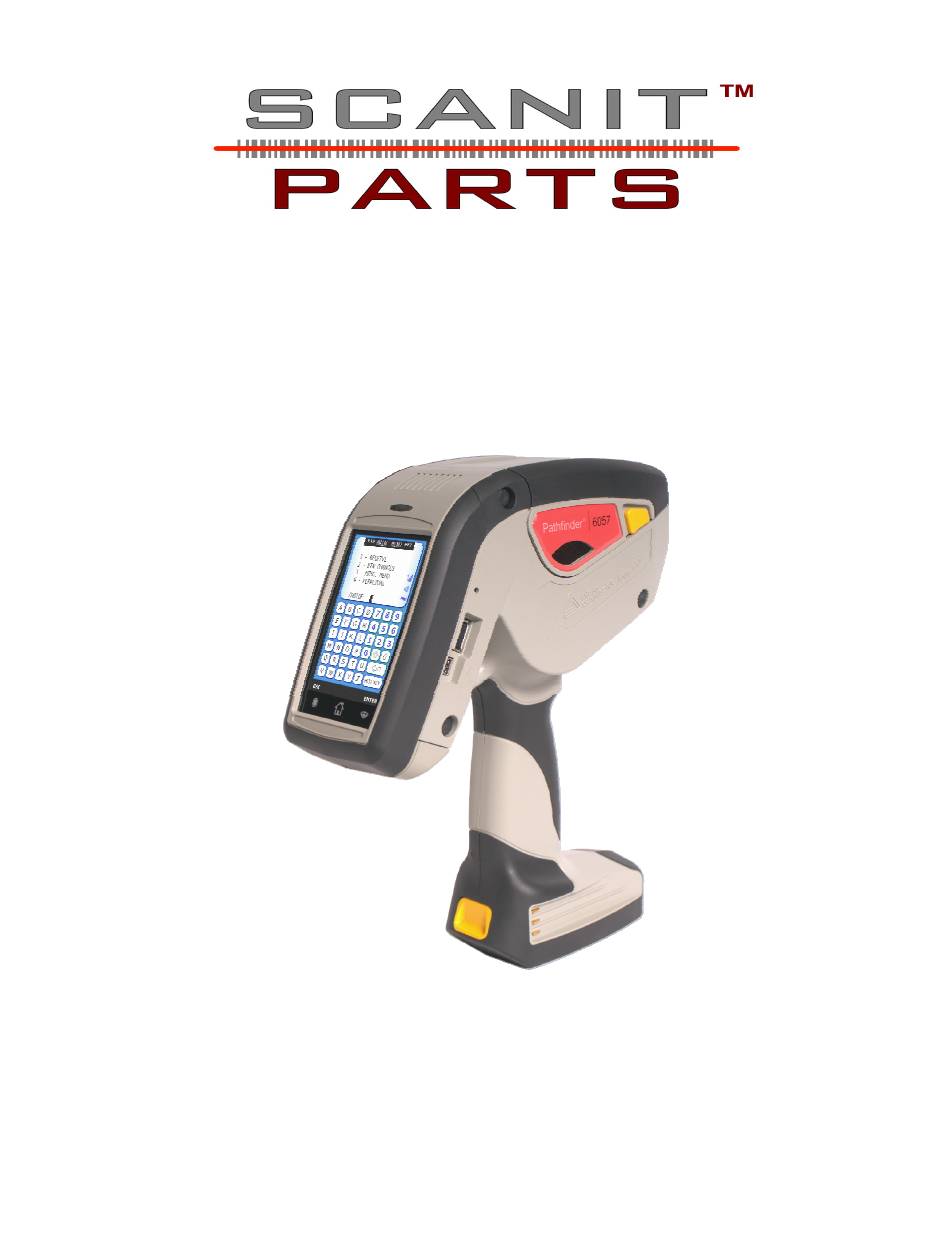

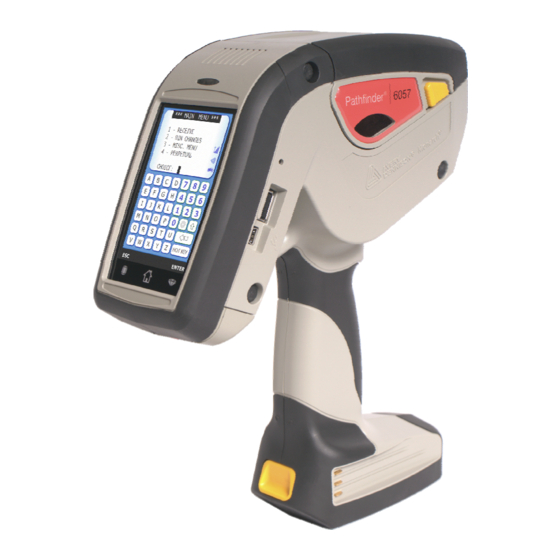

- Page 1 6057 Scanner Manual www.scanitparts.com ...
- Page 2 How to use the Monarch Scanner Note: On the ScanIt Parts PC, the Interact window must always be open. To boot the system: Push the power button under the scanner screen. When prompted, touch the screen to connect. Load Labels: Select then select this will print one label.
- Page 3 Main Menu 1: Receive Print Labels: Select the , select then select which type of label to print: Part # Barcode ● Point of Sale SPO Label ● Reserved Note: Customize the labels: Main Menu > Equipment > Label Designer.
- Page 4 Main Menu 2: Bin Changes 1) Scan the part number. 2) Enter the new bin location. 3) A label will automatically print. Note: If a label does not automatically print, select the button, then select Print Label: Select the , select , then select which type of label to print: ...
- Page 5 Main Menu 3: Misc Menu 1. Other Items Call for information Note: Available for CDK and Reynolds only 2. Create Part List Step 1. Enter batch number Step 2. Scan part number Step 3. Enter a quantity Step 4. Scan all parts to be added to the list Step 5.
- Page 6 3. Part Inquiry Step 1. Scan Part: Displays part #, description, bin location, and quantity Step 2. Print Label: Select then Step 3. Choose label type Note: Add up to 2 additional labels using the label designer through Main Menu > Equipment > Label Designer 4.
- Page 7 Main Menu 4: Perpetual Inventory Step 1. Pull Inventory in Interact Step 2. Enter the bin location on the scanner Step 3. Begin scanning parts The default quantity will be 1. Example: If you have 20 pieces in a bin, you can (A) scan one piece at a time or (B) scan a part then select then Note: No quantity changes are uploaded to your inventory while doing...
-
Page 8: Charging The Battery
Charging the Battery ***** Wait 15 seconds after removing the charged battery from the charger, before inserting the dead battery in the charger. To recharge the battery, insert the battery into the charger, with the ribbed end sticking out. Charging time can take up to three hours. - Page 9 Load Labels in 10 Steps 1. Turn on the scanner 6. Feed the paper THROUGH the slot at the 2. Press the latch buttons and open the supply base of the label deflector. cover. 3. Peel and discard the first four labels from the Label backing paper. Deflector 4. Place the label roll in the supply holder so the labels feed from the bottom. 7. Leave 1/2 inch of first label exposed. 8. Close the supply cover. 9. Hold the backing paper and push up the label deflector until it snaps into place. 10. Then select the Hot Key button and press Supply Holder Paper Feed. The scanner should print a ...
- Page 10 Nightly orders did not pull If the computer that Scanit Parts is on shuts down or reboots overnight, ensure you complete the following steps to ensure order and inventory is up to date before scanning. Open Scanit Parts Main Menu. If your Main Menu looks like this: * If your Main Menu looks like this: Step 1.
- Page 11 Thank you for purchasing a Monarch 6057 Scanner. THIS WARRANTY IS A LIMITED WARRANTY AND IS IN LIEU OF AND EXCLUDES ALL OTHER WARRANTIES, EITHER EXPRESSED OR IMPLIED. Warranty Period – Warranty begins on the day you purchase the product up to one year.
- Page 12 For Support: http://www.scanitparts.com/contact.aspx 2) Call (810) 695-9332, Option 1, Technical Support To Order Labels or Batteries: http://www.scanitparts.com/order.aspx 2) Call (810) 695-9332, Option 3, Supplies www.scanitparts.com ...
