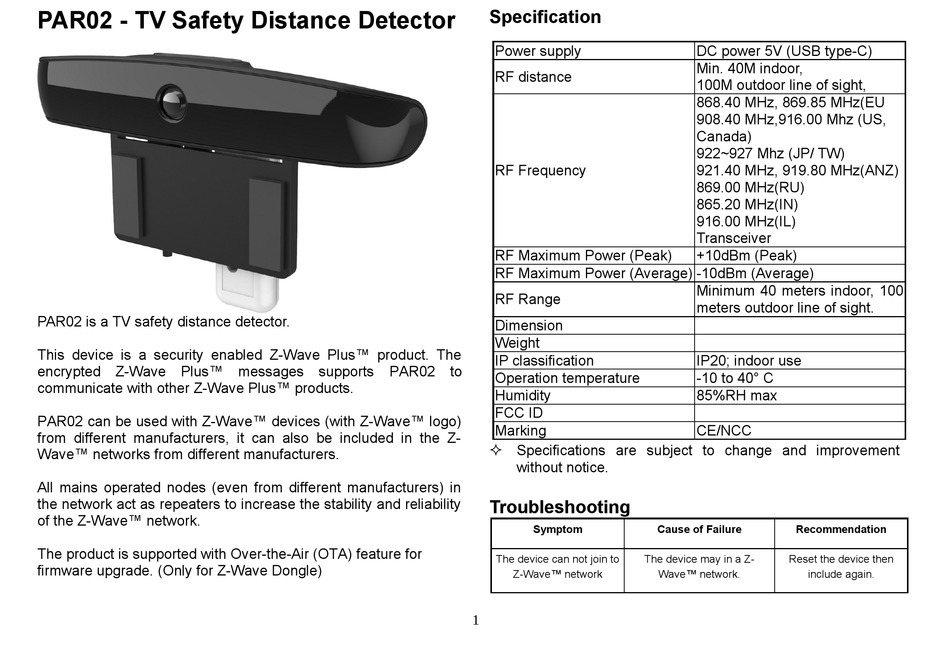

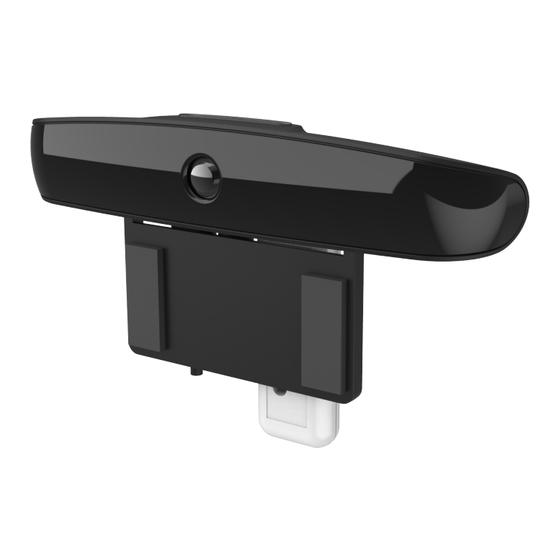

PAR02 - TV Safety Distance Detector
PAR02 is a TV safety distance detector.
This device is a security enabled Z-Wave Plus™ product. The
encrypted Z-Wave Plus™ messages supports
communicate with other Z-Wave Plus™ products.
PAR02 can be used with Z-Wave™ devices (with Z-Wave™ logo)
from different manufacturers, it can also be included in the Z-
Wave™ networks from different manufacturers.
All mains operated nodes (even from different manufacturers) in
the network act as repeaters to increase the stability and reliability
of the Z-Wave™ network.
The product is supported with Over-the-Air (OTA) feature for
firmware upgrade. (Only for Z-Wave Dongle)
Specification
Power supply
RF distance
RF Frequency
RF Maximum Power (Peak)
RF Maximum Power (Average) -10dBm (Average)
RF Range
Dimension
Weight
IP classification
PAR02 to
Operation temperature
Humidity
FCC ID
Marking
Specifications are subject to change and improvement
without notice.
Troubleshooting
Symptom
The device can not join to
Z-Wave™ network
1
DC power 5V (USB type-C)
Min. 40M indoor,
100M outdoor line of sight,
868.40 MHz, 869.85 MHz(EU
908.40 MHz,916.00 Mhz (US,
Canada)
922~927 Mhz (JP/ TW)
921.40 MHz, 919.80 MHz(ANZ)
869.00 MHz(RU)
865.20 MHz(IN)
916.00 MHz(IL)
Transceiver
+10dBm (Peak)
Minimum 40 meters indoor, 100
meters outdoor line of sight.
IP20; indoor use
-10 to 40° C
85%RH max
CE/NCC
Cause of Failure
Recommendation
The device may in a Z-
Reset the device then
Wave™ network.
include again.
Advertisement
Table of Contents
Related Manuals for Philio PAR02
Summary of Contents for Philio PAR02
- Page 1 Z-Wave Plus™ products. Humidity 85%RH max FCC ID PAR02 can be used with Z-Wave™ devices (with Z-Wave™ logo) Marking CE/NCC from different manufacturers, it can also be included in the Z- Specifications are subject to change and improvement Wave™...
- Page 2 Notice: If IR learning failed, the device’s will return to previous status. Repeat step1 to Learn IR Code. For Instruction to http:// www.philio-tech.com If you need to change TV, follow the next steps to clear the IR 「...
- Page 3 Can use Z-Wave™ Controller to send command Simple AV Con- If device learning IR completed, device will in standby mode. Long trol, then PAR02 will send IR Code. press the button on the top of the device, then green LED will flash.
- Page 4 Wave™ functions. Please refer to the instructions for your Z- Notice: The QR Code can be found on the Wave™ Certified Primary Controller to access the Setup function, device PAR02 or on the box. and to Add / Remove / associate devices. ™...
- Page 5 Adding a node ID allocated by Z-Wave™ Controller means inclusion. When PAR02 detected people in the detection range per 30 second, the device Removing a node ID allocated by Z-Wave™ Controller means exclusion. will unsolicited to send the report to the nodes in the group 1.
- Page 6 Manufacturer Specific to a Z-Wave™ network. Highest granted Security Class Device Reset Locally Notice 2: PAR02 can be operated in any Z-Wave™ network Highest granted Security Class which provided by other certified Z-Wave™ Controllers. All non- Power level battery operating devices act as repeaters to increase the stability...
- Page 7 FCC Caution: Any changes or modifications not expressly environmentally safe recycling. approved by the party responsible for compliance could void the Philio Technology Corporation user's authority to operate this equipment. 8F., No.653-2, Zhongzheng Rd., Xinzhuang Dist., New Taipei City 24257, Taiwan(R.O.C) This transmitter must not be co-located or operating in conjunction w ww.philio-tech.com...
