Velleman HQ POWER PS12015 Manual

1. Introduction

Thank you for buying the PS12015. Read this manual carefully before bringing the device into service. Make sure
that the device was not damaged in transit. If the device is damaged, don't use it and contact your dealer.

2. Technical Specifications

Input Voltage
Output Voltage
Output Current
Ripple & Noise
Supply Regulation
Load Regulation
Accuracy Voltage
Protection
Operating Temperature
Operating Humidity
Operating Atmospheric Pressure
Dimensions (L x W x H)
Weight
Fuse

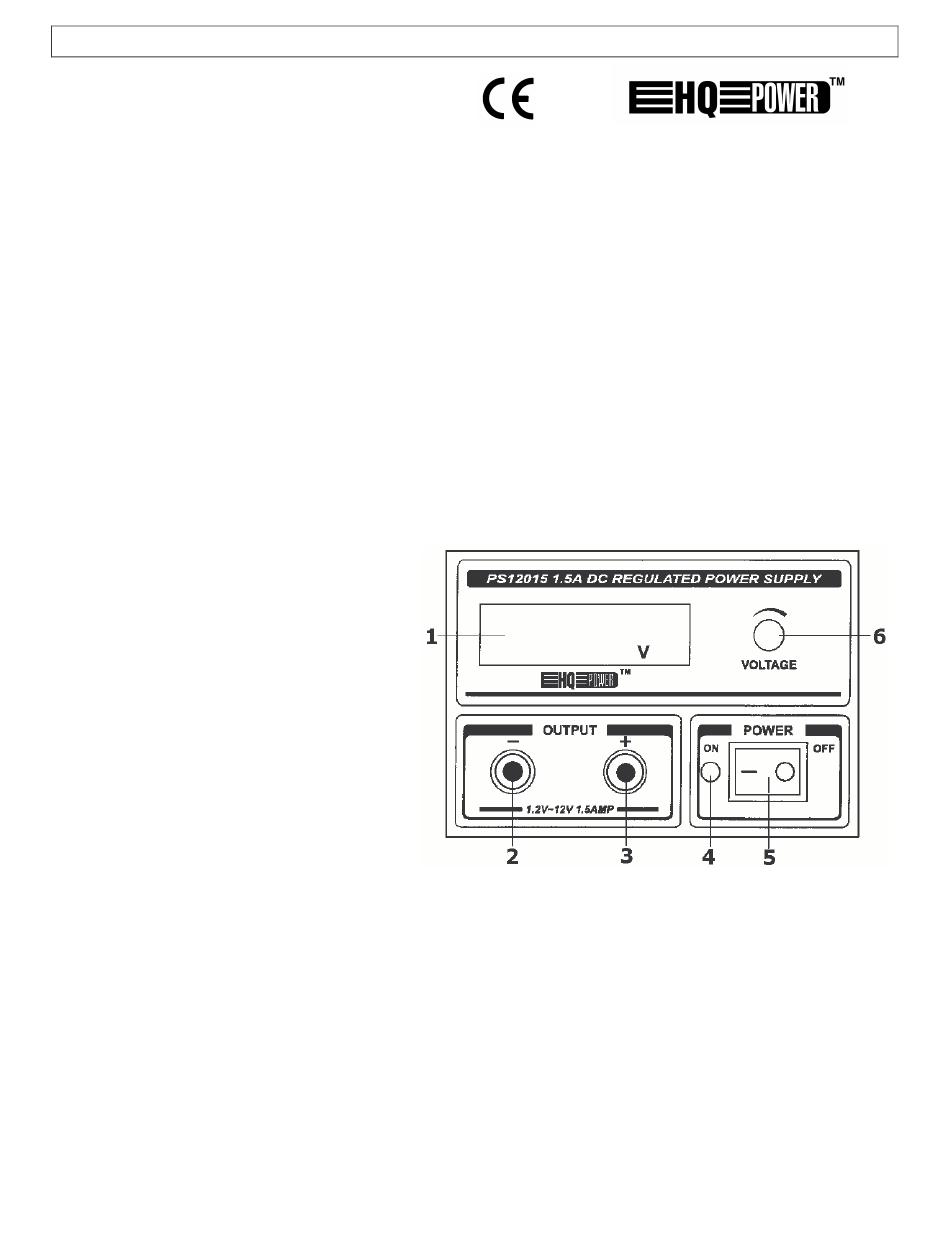

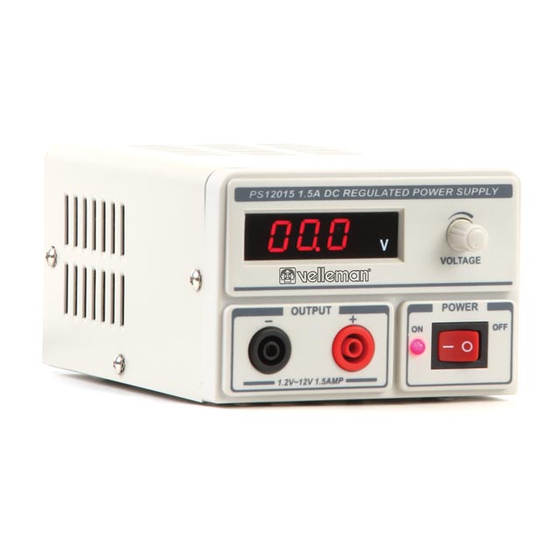

3. Front Panel & Operation
1. Voltage indication
2. Black = negative (-) output terminal
3. Red = positive (+) output terminal
4. ON/OFF LED
5. ON/OFF switch
6. Voltage adjustment knob
Connect the device to the mains, switch it on
(#5, LED #4 lights up), adjust the voltage (#6) to
the desired level and connect the desired load.
Mind the polarity.
If the device shouldn't power on, check (and
replace) the fuse at the back. If the device still won't power on, have it repaired by a qualified technician.

4. Notes

- For more accurate voltage reading, connect an external high accuracy meter.
- This unit is short circuit protected. If a short circuit should occur, turn the power supply off and solve the problem.
- Install or store the device in a clean and well-ventilated environment.
- Do not try to open the housing yourself. All repairs should be executed by a qualified technician.
- Disconnect the unit from the mains before maintenance and when it will not be used for a long time.
- The unit can get very hot when you are using a high power output.
- If the unit is defective, the output may exceed the maximum rated voltage. Always keep an eye on the load to
prevent damage.
- This device should be earthed properly.
The information in this manual is subject to change without prior notice.
PS12015
PS12015 - - DC-REGULATED POWER SUPPLY
: AC 230V ±10% ; 50Hz ±2Hz
: 1.2-12V continuously adjustable
: 1.5A
: CV ≤ 2.0mVrms
: CV ≤ 1x10
: CV ≤ 5x10
: ±1% ± 2 digits
: current-limiting
: 0 - 40°C
: <RH80%
: 86kPa ~ 104kPa
: 115 x 80 x 190mm
: 1.8kg
: 220V, 0.5A (order code FF0.5N)
+0.5mV
-4
+2mV
-4
1 VELLEMAN
