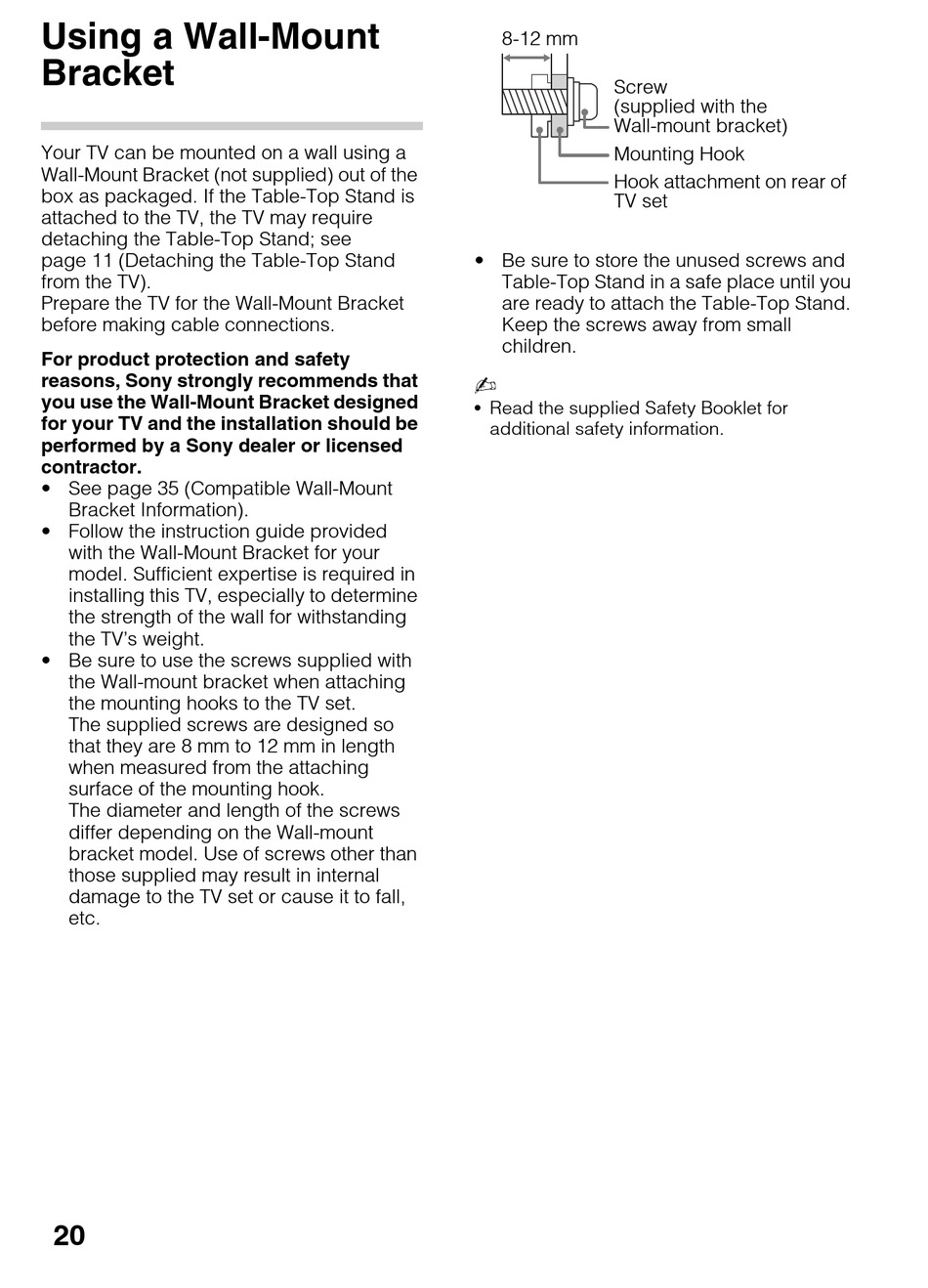

Using a Wall-Mount
Bracket
Your TV can be mounted on a wall using a
Wall-Mount Bracket (not supplied) out of the
box as packaged. If the Table-Top Stand is
attached to the TV, the TV may require
detaching the Table-Top Stand; see
page 11 (Detaching the Table-Top Stand
from the TV).
Prepare the TV for the Wall-Mount Bracket
before making cable connections.
For product protection and safety
reasons, Sony strongly recommends that
you use the Wall-Mount Bracket designed
for your TV and the installation should be
performed by a Sony dealer or licensed
contractor.
• See page 35 (Compatible Wall-Mount
Bracket Information).
• Follow the instruction guide provided
with the Wall-Mount Bracket for your
model. Sufficient expertise is required in
installing this TV, especially to determine
the strength of the wall for withstanding
the TV's weight.
• Be sure to use the screws supplied with
the Wall-mount bracket when attaching
the mounting hooks to the TV set.
The supplied screws are designed so
that they are 8 mm to 12 mm in length
when measured from the attaching
surface of the mounting hook.
The diameter and length of the screws
differ depending on the Wall-mount
bracket model. Use of screws other than
those supplied may result in internal
damage to the TV set or cause it to fall,
etc.
20
8-12 mm
Screw
(supplied with the
Wall-mount bracket)
Mounting Hook
Hook attachment on rear of
TV set
• Be sure to store the unused screws and
Table-Top Stand in a safe place until you
are ready to attach the Table-Top Stand.
Keep the screws away from small
children.
~
• Read the supplied Safety Booklet for
additional safety information.
