Cadillac 1996 Seville Owner's Manual

page of 354

/ 354
Bookmarks

Quick Links

Download this manual

REPRODUCTION

Summary of Contents for Cadillac 1996 Seville

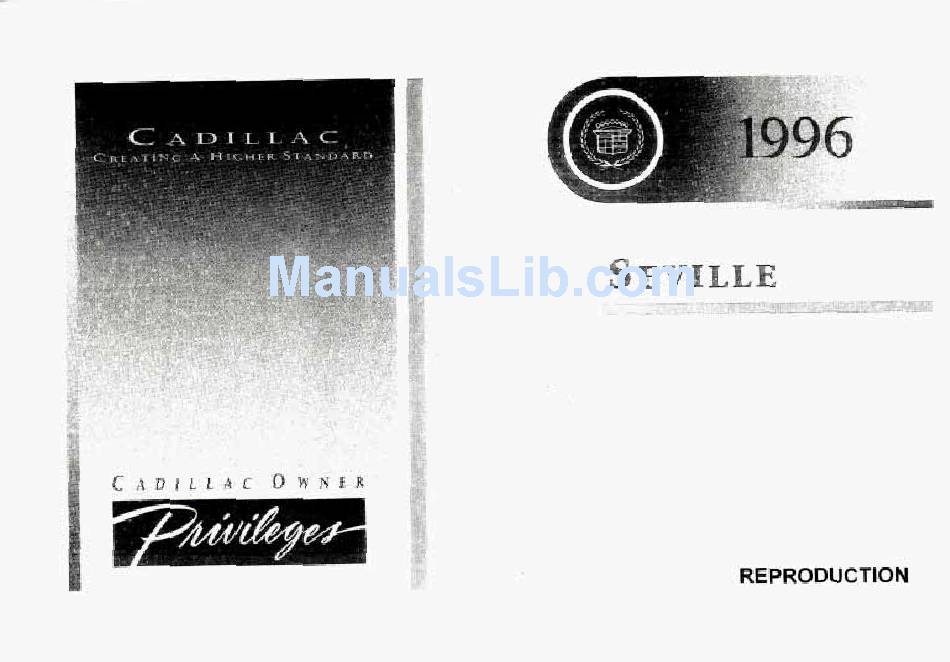

Page 1 REPRODUCTION...
Page 2 Here the manual tells you how to keep your Cadillac running properly and looking good. Customer Assistance Information This section tells you how to contact Cadillac for assistance and how to get service and owner publications. It also gives you information on “Reporting Safety Defects” on page 7-10.
Page 3 “General Motors of Canada Limited” for Cadillac Motor Car Division whenever it appears in this manual. Please keep this manual in your Cadillac, so it will be there if you ever need it when you’re on the road. If you sell the vehicle, please leave this manual in it so the new owner can use it.
Page 4 PENALTY OF LEADERSHIP (Cadillac Car Co. Mich. Motor Detroit, TEXT THIS APPEARED AN ADVERTISEMENT IN THE SATURDAY EVENING POST JANUARY ?ND. IN YEAR 1915 COPYRIGHT. CADILLAC MOTOR DlViSlON...
Page 5 Henry M. Leland, founder of Cadillac, stands beside the 1905...
Page 6 191 2 models. Cadillac is the only American manufacturer to win this honor and the only manufacturer in the world to win Few automobiles are fortunate enough to have the rich heritage that is Cadillac.
Page 7 From this achievement evolved the Compression V8 Engine reference to Cadillac as “Standard of the World.” In 1909 Cadillac was purchased by the then new General Motors Corporation. Convenience, cleanliness and all-weather comfort were greatly enhanced in 1910 when Cadillac became the first manufacturer “The Penalty of Leadership”...
Page 8 Cadillacs beginning with the 191 5 standard in model. Many Cadillac "firsts" have followed over the years, including the synchro-mech clashless transmission. a nationwide comprehensive service policy, security plate glass, chrome plating and the first car to be designed by a stylist (1927 LaSalle/Harley Earl).
Page 9 Once you have seen and driven it for yourself. we think you will agree that the word is “elegance” - and that the car is Cadillac! CADLLAC MOTOR Advertisement for 1960 Sixty Special many...
Page 10 For the 1948 model, Cadillac introduced the legendary tail fin which once more set the trend in automotive styling for nearly two decades. This was closely followed with the two door hardtop Coupe DeVille and the industry's first modern overhead valve, high compression V8 engine on the 1949 model.
Page 11 The electronics and computerization which were pioneered by Cadillac in the ’70s came of age i n the ’80s with Digital Fuel Injection and On-Board Diagnostics 1980, four wheel Anti-lock Brakes on 1986 models and Traction Control in the fall of 1989.
Page 12 How to Use this Manual Many people read their owner’s manual from beginning to end when they first receive their new vehicle. If you do this, it will help you learn about the features controls for your vehicle. In this manual, you’ll find that pictures and words work together to explain things quickly.
Page 13 Vehicle Damage Warnings Also, in this book you will find these notices: NOTICE: These mean there is something that could damage your vehicle. the notice area, we tell you about something that can darnage your vehicle. Many times, this damage would not be covered by your warranty, and it could be costly.
Page 14 Vehicle Symbols These are some of the symbols For example, These symbols are important these symbols on an for you and are used your passengers original battery: whenever your vehicle is CAUTION driven: POSSIBLE INJURY DOOR LOCK PROTECT UNLOCK EYES BY SHIELDING CAUSTIC FASTEN...
Page 15 NOTES...
Page 16 1 Seats and Restraint System Here you'll find information about the seats in your Power Seats Cadillac and how to use your safety belts properly. You not do with can also learn about some things you should air bags and safety belts.
Page 17 The power seat controls are located on the outboard side of the front seat cushion. Move the front of the control in the direction of the arrows to adjust the front portion of the cushion up or down. Move the rear of the control in the direction of the arrows to adjust the rear portion of the cushion up or down.
Page 18 Memory Seat (Option) Adjust the driver’s seat to a comfortable position and then press the SET button. Within five seconds, press button “1 seating position may be programmed by repeating the above steps and pressing button “2” instead of Note that each time a memory button is pressed a single beep will sound through the radio.
Page 19 Heated Front Seat (Option) The control is located center console. Move the switch to LO or HI to the heating elements in the seat. The LO setting warms the seatback and cushion until the seat approximates body temperature. The setting heats the seat to a slightly higher temperature.
Page 20 Reclining Front Seatbacks Press the control forward or But don't have a seatback reclined if your vehicle is moving.
Page 21 CAUTION: Sitting in a reclined position when your vehicle is in motion can be dangerous. Even if you buckle up, your safety belts can’t do their job when you’re reclined like this. ’ The shoulder belt can’t do its job because it won’t be against your body.
Page 22 CAUTION: Don’t let anyone ride where he or she can’t wear a safety belt properly. you are in a crash and you’re not wearing a safety belt, your injuries can be much worse. can hit things inside the vehicle or be ejected from it. You can be seriously injured or killed.
Page 23 Why Safety Belts Work When you ride in or on anything, you goes. Take the simplest vehicle. Suppose it's wheels. go as fast .as it Put someone on a seat just...
Page 24 up to speed. Then stop the vehicle. The doesn’t stop. The person keeps going until stopped by something. rider In a real vehicle. it could be the windshield...
Page 25 or the instrument panel or the safety belts! With safety belts, you slow down as the vehicle does. You get more time to stop. You stop over more distance, and your strongest bones take the forces. That's why safety belts make such good sense.
Page 26 Here Are Questions Many People Ask About Safety Belts and the Answers &= Won’t I be trapped in the vehicle after an accident if I’m wearing a safety belt? You could be whether you’re wearing a safety belt or not. But you can unbuckle a safety belt, even if you’re upside down.
Page 27 Be aware that there are special things to know about safety belts and children. And there are different rules for smaller children and babies. If a child will be riding in your Cadillac, see the part of this manual called “Children.” Follow those rules for everyone’s protection.
Page 28 The lap part of the belt should be worn low and snug on the hips, just touching the thighs. In a crash, this applies force to the strong pelvic bones. And you’d be less likely to slide under the lap belt. If you slid under it, the belt would apply force at your abdomen.
Page 29 Shoulder Belt Height Adjuster Before you begin to drive, move the shoulder belt adjuster to the height that is right for you. To move it down, squeeze the release handle and move the height adjuster to the desired position. You can move 1-14 the adjuster up just by pushing up on the bottom of the release handle.
Page 30 3. Just, before it reaches the end, give it a quick pull. Let the belt go back all the way. You should hear a slight clicking sound. If you don’t, the adjustment feature won‘t set, and you’ll have to start again. 5.
Page 31 What’s wrong with this? It won’t The shoulder belt is too loose. as much protection this way. 1-16 You can be seriously hurt if your shoulder belt is too loose. In a crash, you would move forward too much, which could increase injury. The shoulder belt should fit against your body.
Page 32 What's wrong with this? The belt is buckled in the wrong place. CAUTION: You can be seriously injured if your belt is buckled in the wrong place like this. In the belt would go up over your abdomen. The belt forces would be there, not at the pelvic bones.
Page 33 What’s wrong with this? The shoulder belt is worn under the be worn over the shoulder at all times. 1-18 CAUTION: You can be seriously injured if you wear the shoulder belt under your arm. In a crash, your body would move too far forward, which would increase the chance of head and neck injury.
Page 34 What's wrong with this? CAUTION: You can be seriously injured by a twisted belt. In a crash, you wouldn't have the full width of the belt to spread impact forces. If a belt is twisted, make it straight so it can work properly, or ask your dealer to is twisted across the The belt...
Page 35 This part explains the Supplemental Inflatable Restraint (SIR) system or air bag system. Your Cadillac has two air bags -- one air bag for the driver and another air bag for the right front passenger. Here are the most important things to know about the air...
Page 36 CAUTION: Air bags inflate with great force, faster than the blink of an eye. you’re too close to an inflating air bag, it could seriously injure you. Safety belts help keep you in position for an air bag inflation crash. Always wear your safety belt, even with an air bag.
Page 37 How the Air Bag System Works Where is the air bag? The driver's air bag is in the middle of the steering wheel. 1-22 The right front passenger's air bag is in the instrument panel on the passenger's side.
Page 38 CAUTION: Don’t put anything on, or attach anything to, the steering wheel or instrument panel. Also, don’t put anything (such as pets or objects) between any occupant and the steering wheel or instrument panel. If something is between an occupant and an air bag, it could affect the performance of the air bag or worse, it could cause injury.
Page 39 How does an air bag restrain? In moderate to severe frontal or near-frontal collisions, even belted occupants can contact the steering wheel or the instrument panel. The air bag supplements the protection provided by safety belts. Air bags distribute the force of the impact more evenly over the occupant’s upper body, stopping the occupant more gradually.
Page 40 Do not open or break the air bag cover. Servicing Your Air Bag-Equipped Cadillac Air bags affect how your Cadillac should be serviced. There are parts of the air bag system in several places around your vehicle. You don’t want the system to inflate while someone is working on your vehicle.
Page 41 Safety Belt Use During Pregnancy Safety belts work for everyone, including pregnant women. Like all occupants, they are more likely to be seriously injured if they don’t wear safety belts. A pregnant woman should wear a lap-shoulder belt, and the lap portion should be worn as low as possible, below the rounding, throughout the pregnancy.
Page 42 Rear Seat Passengers It’s very important rear seat passengers to buckle up! Accident statistics show that unbelted people in the rear seat are hurt more often in crashes than those who are wearing safety belts. Rear passengers who aren’t safety belted can be thrown out of the vehicle in a crash.
Page 43 If the belt stops before it reaches the buckle. tilt the latch plate keep pulling until Pull up on the latch plate to make sure If the belt is not long enough, see "Safety Belt Extender" at the end this section. Make sure the release button on buckle positioned...
Page 44 The lap part of the belt should be worn the hips, just touching the thighs. In a crash, this applies force to the strong pelvic bones. And you'd be less likely to slide under the lap belt. If ,you slid under it, the belt would apply force at your abdomen.
Page 45 push the unlatch the belt, just button the buckle...
Page 46 Lap Belt When you sit in the center seating position, you have a lap safety belt, which has no retractor. To make the belt longer, tilt the latch plate and pull it along the belt. To make the belt shorter, pull free end as shown until belt is snug.
Page 47 Children Everyone in a vehicle needs protection! That includes infants and all children smaller than adult size. In fact, the law in every state in the United States and in every Canadian province says children up to some age must be restrained while a vehicle.
Page 48 ‘ CAUTION: Never hold a baby in your arms while riding in a vehicle. A baby doesn’t weigh much crash. During a crash a baby will become so CAUTION: (Continued) heavy you can’t hold it. For example, in a crash at only 25 mph will suddenly become a 2404b.
Page 49 Child Restraints Be sure the child restraint is designed to be used in vehicle. If it is, it will have a label saying that it meets Federal Motor Vehicle Safety Standards. Then follow the instructions the restraint. You may find these instructions on the restraint itself or in a booklet, or both.
Page 50 Eyour child restraint has a top strap, should be anchored. If you need to have an anchor installed, you Cadillac dealer to put in for you. If you want to install anchor yourself, your dealer can tell you how to do it.
Page 51 Tilt the latch plate to adjust the belt if needed. If the shoulder belt goes in front of the child's face or neck, put it behind the child restraint. 1-36 Buckle the belt. Make sure the release button is positioned so you would be able to unbuckle the safety belt quickly if you ever had to.
Page 52 5. To tighten belt, pull up on the shoulder belt while you push down on the child restraint. 6. Push and pull the child restraint in different directions to be sure it secure. To remove the child restraint, just unbuckle the vehicle's safety belt and let go back all the way.
Page 53 Make the belt as long as possible by tilting the latch plate and pulling it along the belt. Put the restraint on the seat. Follow the instructions for the child restraint. Secure the child in the child restraint as the instructions say.
Page 54 remove the child restraint, just unbuckle the vehicle’s safety belt. will be ready to work child passenger. Securing a Child Restraint in the Right Front Seat Position Your vehicle has a right front passenger air bag. Never- put a rear-facing child restraint in this seat. Here’s why: CAUTION: child in a rear-facing child restraint can be seriously injured if the right front passenger’s air...
Page 55 5. Buckle the belt. Make sure the release button 6. Pull the rest of the lap belt all the way out of the positioned so you would be abie to unbuckle the retractor to set the lock. safety belt quickly if you ever had to. 1-40...
Page 56 7 . To tighten the belt, feed the lap belt back into the retractor while you push down on the child restraint. Push and pull the child restraint in different directions to be sure it is secure. To remove the child restraint, just unbuckle the vehicle’s safety belt and it go back all the way.
Page 57 Accident statistics show that children are safer if they are restrained in the rear seat. But they need to use the safety belts properly. Children who aren’t buckled up can be thrown out in a crash. Children who aren’t buckled up can strike other people who are.
Page 58 CAUTION: Never do this. Here a child is sitting in a seat that has a lap-shoulder belt, but the shoulder part is behind the child. If the child wears the belt in this way, in a crash the child might slide under the belt. The belt's force would then be applied right on the child's abdomen.
Page 59 Safety Belt Extender If the vehicle’s safety belt will fasten around you, you should use it. But if a safety belt isn’t long enough to fasten, your dealer will order you an extender. It’s free. When you go in to order it, take the heaviest coat you will wear, so the extender will be long enough for you.
Page 60 Section 2 Features and Controls Here you can learn about many standard and optional features on your Cadillac, and information on starting, shrfting and braking. Also explained are the instrument panel and the warning systems that tell you if everything...
Page 61 When a new Cadillac is delivered, the dealer removes The square key is for the the plug from the door key. The plug has a code on it ignition only. It has a that tells the dealer or a qualified locksmith how to resistor pellet which is part make extra keys.
Page 62 Door Locks CAUTION: Unlocked doors can be dangerous. Passengers especially children open the doors and fall out. When a door is locked, the inside handle won't open it. Outsiders can easily enter through an unlocked door when you slow down or stop your vehicle. This may not be so obvious: You increase the chance of being thrown out of the vehicle in a crash if the doors aren't locked.
Page 63 Power Door Locks >,." ; ' * >?& .*.',,:a@??%* .._:.*A< " '..2 z7.,.e-,- Press the power door lock switch to lock or unlock both doors once. Automatic Door Locks Close your doors and turn on the ignition. Every time you move the shift lever out of PARK doors will lock.
Page 64 2. Close the door. 3. Do the same thing to The rear doors of your vehicle the inside when this feature Your Cadillac is equipped with rear door security locks that help prevent passengers from opening the rear doors of your vehicle from the inside.
Page 65 When you want to open a rear door when the security lock is on: 1. Unlock the door from the inside. 2. Then open the door from the outside. To cancel the rear door lock: 1. Unlock the door from the inside and open the door from the outside.
Page 66 This product has a maximum range. Check the location. Other vehicles or objects may be blocking the signal. See your Cadillac dealer or a qualified technician for service. Changes or modifications to this system by other than an authorized service facility could void authorization to use this equipment.
Page 67 Press and hold the button and within one second press the lock button. Continue to hold both buttons for approximately three seconds. See your Cadillac dealer for service if your transmitter still doesn’t work properly. Matching Transmitter(s) To Your Vehicle Each key chain transmitter is coded to prevent another transmitter from unlocking your vehicle.
Page 68 Battery Replacement Under normal use, the battery in your key chain transmitter should last about four years. You can tell the battery is weak if the transmitter won’t work at the normal range in any location. If you have to get close to your vehicle before the transmitter works, it’s probably time to change the battery.
Page 69 Frunk CAUTION: It can be dangerous to drive with the trunk lid open because carbon monoxide come into your vehicle. can’t see or smell It can cause unconsciousness and even death. you must drive with the trunk lid open or if electrical wiring or other cable connections must pass through the seal between the body and the...
Page 70 Theft VALET button is Vehicle theft is big business, especially in some cities. Although your Cadillac has a number of theft-deterrent features, we know that nothing we put on it impossible to steal. However, there are ways you can help.
Page 71 When you park your Cadillac and open the driver’s door, you’ll hear a chime reminding you to remove your key from the ignition and take it with you. Always do this. Your steering wheel will be locked, and so will your ignition and transaxle.
Page 72 “Fuses and Circuit Breakers” in the Index. If the fuse does not need to be replaced, you may need to have your Cadillac serviced. To reduce the possibility of theft, always activate the optional theft-deterrent system when leaving...
Page 73 IGNITION KEY message is displayed in the Driver Information Center, your key should be checked for damage. Starting may be attempted with an undamaged key immediately. See your Cadillac dealer or a locksmith for key service. If the STARTING DISABLED DUE TO THEFT...
Page 74 New Vehicle 44Break-In’’ NOTICE: Your modern Cadillac doesn’t need an elaborate “break-in.” But it will perform better in the long run if you follow these guidelines: Don’t drive at any one speed slow for the first 500 miles (804 km).
Page 75 With the ignition key in the ignition switch, the switch to five different positions: 2-16 ACCESSORY (A): This position lets you use things like the radio and the windshield wipers when the engine is off. get into ACCESSORY, push in the key and turn it toward you.
Page 76 To restart when you’re already moving, use NEUTRAL (N) only. =ICE: Don’t try to shift to PARK (P) if your Cadillac is moving. If you do, you could damage the transaxle. Shift to PARK (P) only when your vehicle is stopped.
Page 77 NOTICE: your Holding key in START for longer than seconds at a time will cause your battery to be drained much sooner. And the excessive heat can damage your starter motor. 2. If it doesn't start right away, hold your key in START for about three seconds at a time until your engine starts.
Page 78 Engine Coolant Heater (Option) (Canada Only) In very cold weather, 0°F C ) or colder, the engine coolant heater can help. You’ll get easier starting and better fuel economy during engine warm-up. Usually, the coolant heater should be plugged in a minimum of four hours prior to starting your vehicle.
Page 79 Instead of trying to list everything here we ask that you contact your Cadillac dealer in the area where you’ll be parking your vehicle. The dealer can give you the best advice for that particular area.
Page 80 “Towing a Trailer” in the Index. Ensure the shift lever is fully i n PARK starting the engine. Your Cadillac has a brake-transaxle shift interlock. You have to fully apply your regular brakes before you can shift from the ignition key is in the RUN position.
Page 81 NEUTRAL (N): this position, the engine doesn’t connect with the wheels. To restart when you’re already moving, use NEUTRAL (N) only. Also, use NEUTRAL (N) when your vehicle is being towed. CAUTION: or NEUTRAL (N) while Shifting out of PARK your engine is “racing”...
Page 82 THIRD (3): This position is also used for normal driving however, it offers more power and lower fuel economy than OVERDRIVE (@). Here are examples for using THIRD (3) instead of ( a ) : OVERDRIVE When driving on hilly, winding roads. When towing a trailer, so there is less shifting between gears.
Page 83 Parking Brake Hold the regular brake pedal down with your right foot and push down the parking brake pedal with your left foot to set the parking brake. If the ignition is on, the PARK BRAKE indicator light will come on. If you try to drive off with the parking brake on, the PARK BRAKE indicator light stays on.
Page 84 CAUTION: If your hand or arm is in the way you could be hurt. The pedal springs back quickly. Keep your hand and arm away use the manual release lever. NOTICE: Driving with the parking brake on can your rear brakes to overheat. You may have to replace them and you could also damage other parts of your vehicle.
Page 85 Steering Column Shift Lever 1. Hold the brake pedal down with 2. Move the shift lever into the PARK (P) position like this: Pull the lever toward you. 2-26 your right foot. Move the lever up as far as it will go. With your right foot still holding the brake pedal down, set the parking brake.
Page 86 2. Move the sh.& lever into the PARK .. . , # , r c ; I/,< .., ..-gg , , , , . ! . 3. Hold in the button the leifef h a push the lever all ~ f l way toward the front of your vehicle.
Page 87 PARK (P). 2-28 Shifting Out of PARK (P) Your Cadillac has a brake-transaxle shift interlock. You have to fully apply your regular brakes before you can shift from PARK when the ignition is in the RUN position.
Page 88 Parking Over Things That Burn CAUTION: Things that can burn could touch hot exhaust parts under your vehicle and ignite. Don't park over papers, leaves, dry grass or other things that can burn. Engine Exhaust CAUTION: Engine exhaust can kill. It contains the gas carbon monoxide (CO), which you can't see or smell.
Page 89 Running Your Engine While You’re Parked It’s better not to park with the engine running. But if you here are some things to know. ever have CAUTION:, Idling the engine with the air system control off could allow dangerous exhaust into your vehicle (see the earlier Caution under “Engine Exhaust”).
Page 90 Windows Power Windows The controls are located near each window. hess the control forward to raise the window Note position lower. that the second rearward driver‘s control operates express-down window feature. Your vehicle has Retained Accessory Power (RAP). When you stop your vehicle and turn OFF, you can still use your power windows.
Page 91 Horn The horn can be sounded by pressing any surface center steering wheel pad. Tilt Wheel Tilt steering allows you to adjust the steering wheel before you drive. Raising the steering wheel to the highest level gives your legs more room when you enter and exit the vehicle.
Page 92 If the turn signal is left on, a warning chime will sound and the DIC will display TURN SIGNAL ON (after driving about a mile) to remind you to turn it off. Arrows that flash rapidly when signaling for a turn or lane change may be caused by a burned out signal bulb.
Page 93 Windshield Wipers WIPER: Turn the band on the turn signal lever to control the wipers. MISE T u r n the band toward you and then release it for a single wipe cycle. For more cycles, hold the band on MIST longer.
Page 94 Rainsense Wipers (STS Only) This feature is mounted on the passenger’s interior side of the windshield behind the rearview mirror and is used to automatically operate the wipers by monitoring the amount of moisture that is on the windshield. The Rainsense system can be activated by turning the wiper stalk to one of the five sensitivity levels within the AUTO DELAY area.
Page 95 Windshield Washer CAUTION: In freezing weather, don't use your washer until the windshield is warmed. Otherwise the washer fluid can form ice on the windshield, blocking your vision. PUSH Press and hold the paddle to wash the windshield. Release the paddle when you have enough fluid. The wipers will clear the windshield and either stop or return to your preset speed.
Page 96 CAUTION: Cruise control can be dangerous where you can’t drive safely at a steady speed. So, don’t use your cruise control on winding roads or heavy traffic. Cruise control can be dangerous on slippery roads. On such roads, fast changes in tire traction can cause needless wheel spinning, and you could lose control.
Page 97 message will display on the DIC. 4. Remove your foot from the accelerator pedal. 2-38 Resuming Speed a Set S E T CRUISE W I P E R Remember, if you hold the switch at R/A longer than half a second, the vehicle will accelerate until release the switch or apply the brake.
Page 98 Increasing Speed While Using Cruise Control There are two ways to increase your speed. Here’s the first: 1. Use the accelerator pedal to go to a higher speed. 2. Push the button at the end of the lever and then release the button and the accelerator pedal.
Page 99 Using Cruise Control on Hills How well your cruise control will work on hills depends upon your speed, load and the steepness of the hills. When going up steep hills, you may have to step on the accelerator pedal to maintain your speed. When going downhill, you may have to brake or shift to a lower gear to keep your speed down.
Page 100 Pull the knob to the first stop to turn and taillamps, sidemarker lamps and instrument panel lights. Pull the knob out all the way to turn on the headlamps. You can brighten or dim the instrument cluster by rotating the headlamp knob. Press the knob all the way in turn them off.
Page 101 When DRL are on, only your high-beam headlamps (at reduced brightness) will be on. No other exterior lamps such as the parking lamps, taillamps, etc. will be on when the DRL are being used. Your instrument panel won't be lit up either. When it's dark enough outside, the high-beam headlamps (at reduced intensity) will change to low-beam headlamps.
Page 102 When the twilight sentinel is on and the fog lamp switch is turned off, the headlamps and parking lamps will deactivate. Also note that using fog lamps during the day will cancel the DRL feature. Cornering Lamps The cornering lamps come on when the headlamps or parking lamps are on and you signal a turn.
Page 103 Light Sensor The light sensor for the DRL and the twilight sentinel is located in the center of the front defogger grille. If you cover the sensor, it will read "dark" and the lamps will come on. Exterior Lighting Battery Saver The exterior lamps will turn off approximately 10 minutes...
Page 104 Reading Lamps The reading lamps are located in the roof. These lamps and the interior courtesy lamps come on when any door is opened and it is dark outside. Press the button to turn them on. Press it again to turn them off. If the reading lamps are left on, they automatically shut minutes after the ignition has been turned off.
Page 105 2-46 Mirrors Electrochromic DaylNight Rearview Mirror Your Cadillac has an electrochromic day/night rearview mirror. This mirror automatically changes to reduce glare from headlamps behind you. A photocell on the back of the mirror senses when it is becoming dark outside. Another photocell built into the mirror surface senses when headlamps are behind you.
Page 106 On/Off Switch Press the button at the base of the mirror to turn on the automatic feature. The button has an indicator light to show it is on. Press the button to turn the automatic feature off. Time Delay This feature prevents rapid changing of the mirror from the night mode to the day mode as you drive under lights and through traffic.
Page 107 Electrochromic Day/Night Rearview Mirror with Compass (Option) This mirror automatically changes to reduce glare when set in the M (Mirror) or positions. One photocell on the back of the mirror senses when is becoming dark outside. Another photocell is built into the mirror surface to sense headlamps behind you.
Page 108 Time Delay This feature prevents rapid changing of the mirror from the night mode to the day mode as you drive under lights and through traffic. Reverse Gear Day Mode The reverse mode is another important feature of the automatic mirror. When the shift lever is placed in REVERSE (R), the mirror changes to the day mode.
Page 109 Compass Variance 2-50 Variance is the difference between magnetic north and geographic north. In some areas, the difference between the two can be great enough to cause false compass readings. If this happens, follow these instructions to set the variance for your particular location: 1.
Page 110 Power Remote Control Mirror Your Cadillac has an electric mirror control located on the driver’s door armrest. Move the sw.itch in the middle of the control to choose the right or left mirror. To adjust the mirror, push the arrow control in the direction you want the mirror to Adjust each mirror so you can see the side of your vehicle and the area behind your vehicle.
Page 111 Storage Compartments Glove Box The glove box is located in front of the passenger seat. To lock the glove box door, insert the oval key in the lock cylinder and turn it clockwise. Turn the key counterclockwise to unlock the door. Map Pocket The driver’s door may have a map/storage compartment.
Page 112 Sunglass Compartment (Option) This feature is avai!able vehicles without the optional astroroof. To gain access this compartment, which is located directly above the inside rearview mirror in headliner, push up and the storage area will open. Rear Storage Armrest (Option) Your vehicle may be equipped with a rear seat armrest which includes an open storage compartment and a dual cupholder that unfolds for use.
Page 113 Ashtrays and Cigarette Lighter With the full console, press on the cover, which is located below the climate control system, to reveal the front ashtray. clean this ashtray, lift it out by gripping the sides. If you don’t have a center console, pull the tray out to reveal the ashtray.
Page 114 DIC. Voice activation and hands-free operation are standard features. For more information, contact your Cadillac dealer. A user's guide is provided with the telephone. Assist Handles A folding handle above each rear door can be used when getting out of your vehicle.
Page 115 Astroroof (Option) 2-56 The express-open astroroof provides an airy, spacious feel your vehicle’s interior and can also increase ventilation. It includes a sliding glass panel and a sliding sunshade. The control switch only works when ignition is on or when the Retained Accessory Power (RAP) is active.
Page 116 Universal Transmitter (Option) Thls transmitter allows you to consolidate the functions of up to three individual hand-held transmitters. It will operate garage doors and gates, or with the accessory package, other devices controlled by radio frequency such as home/office lighting systems security systems.
Page 117 Federal Consumer Safety Standards. If you cannot program the transmitter after repeated attempts, consult your Cadillac dealer. Be sure to keep the original hand-held transmitter in case you need to erase and reprogram the universal transmitter.
Page 118 Operating the Transmitter Press and hold the appropriate button on the universal transmitter. The red light comes while the signal is being transmitted. Note that the effective transmission range of the universal transmitter may differ from the hand-held transmitter and from one channel to another. Also note that the universal transmitter is disabled when the VALET button inside of the glove box is activated for more information, see “Security Override”...
Page 119 The Instrument Panel: Your Information Svstem 2-60...
Page 120 The instrument panel is designed to let you know at a glance how your Cadillac is running. You’ll fast you’re going, how much fuel you’re using and many of the other things you’ll need to know to drive safely and economically. The main components of the instrument panel are: 1.
Page 121 Digital Cluster INST United States version shown, Canadian similar 2-62 a a,, TRIP...
Page 122 Analog Cluster United States version shown, Canadian similar 2-63...
Page 123 Speedometer and Odometer The speedometer lets you see your speed in both miles per hour (mph) and kilometers per hour odometer shows how your vehicle has been driven, either miles (used in the United States) or kilometers (used Canada). may wonder what happens if a vehicle has to have a new odometer installed.
Page 124 Engine Speed Limiter This feature prevents the engine from operating at too many revolutions per minute (rpm). When the engine rpm’s are critically high, the fuel supply to the engine is shut off. When the engine speed slows, the fuel supply will come on again.
Page 125 Safety Belt Reminder Light When the key is turned to or START, a chime will come on for about eight seconds to remind people to fasten their safety belts, unless the driver’s safety belt is already buckled. The safety belt light will also come on and stay on for about 20 seconds, then it will flash for about...
Page 126 If this light stays on, you need service and you should take your Cadillac to the dealer at once. To save your battery until you get there, turn off all accessories. Brake System Warning Light on, there could be a brake this warning light comes problem.
Page 127 CAUTION: Your brake system may not be working properly if the brake system warning light is on. Driving with the brake system warning light on can lead to an accident. If the light is still on after you’ve pulled off the road and stopped carefully, have the vehicle towed for service.
Page 128 Then start the engine again to turn reset the system. If the light still stays on, again while you’re driving, your Cadillac needs service. ANTI If the regular brake system warning light isn’t on, you still have brakes, but you don’t have anti-lock brakes.
Page 129 Traction Control System Warning Light This warning light should come on briefly as you start the engine. If the warning light doesn’t come on then, have it fixed so TRACTION ready to warn you if there’s CONTROL a problem. If it stays on, or comes on when you’re driving, there may be a problem with your traction control system and your vehicle may need service.
Page 130 In the section “Problems on the Road,” this manual explains what to do. See “Engine Overheating’’ in the Index. Malfunction Indicator Lamp (Service Engine Soon Light) Your Cadillac is equipped with a computer which monitors operation of the fuel, ignition and emission SERVICE control systems.
Page 131 NOTICE: If you keep driving your vehicle with this light on, after a while, your emission controls may not work as well, your fuel economy may not be as good and your engine may not run as smoothly. This could lead to costly repairs that may not be covered by your warranty.
Page 132 If the Light Is On Steady You may be able to correct the emission system malfunction by considering the following: Did you just drive through a deep puddle of water? If so, your electrical system may be wet. The condition will usually be corrected when the electrical system dries out.
Page 133 Oil Pressure Light This light tells you if there could be a problem with your engine oil pressure. The light goes on when you turn your key to RUN or START. It goes off once you start your engine. That’s a check be sure the light works.
Page 134 Fuel Gage PREMIUM UNLEADED FUEL ONLY The fuel gage shows approximately how much fuel is in the tank. It works only when the ignition is in the RUN position. On the digital cluster, if the fuel level is within approximately two gallons (7.6 L) of being full, the letter F is shown.
Page 135 Fuel Data Panel MSPtAY The fuel data panel tells you all you need to know about the fuel economy and how far you can travel with the fuel remaining. Press the AVG button to display the average mile-per-gallon (AVG MPG). You can also display metric units by pressing the ENG MET button.
Page 136 Driver Information Center (DIC) The DIC display gives you the status of many of your vehicle’s systems. The DIC is used to display driver selectable information and warning/status messages. If more than one problem is detected, the DIC will automatically display all current messages. Digital Control Buttons DISPLAY ON/OFF: Pressing this button will turn off the DIC, Electronic Climate Control, fuel data center,...
Page 137 TIMER buttonto start the timing feature. Press the TIMER button again to stop it. If you will be starting and stopping your Cadillac, during a trip for instance, the TIMER feature will automatically start timing where it left off when you last stopped. To reset it, press and hold the RESET button until the display reads TIMER 0O:OO:OO.
Page 138 INFO RESET button the INFO RESET button again to stop displayed since starting and stopping your Cadillac, during a trip for instance, the TIMER feature timing where it left off when you last stopped. To reset it, press and hold the INFO RESET button until the display reads TIMER 0O:OO:OO.
Page 139 Oil Life Left Reset: Press the INFO button to display the OIL LIFE LEFT, then press and hold the INFO RESET button until 100% OIL LIFE LEFT is displayed. English/Metric Reset: Press the INFO button to display ENGLISHMETRIC RESET, then press the INFO RESET button to select.
Page 140 Check the brake reservoir level and add fluid as needed. Have the brake system serviced by a Cadillac technician as soon as possible. If the brake warning light is on, follow by turning off the the directions in that part.
Page 141 CHECK COOLANT LEVEL 02: This message will appear when there is a low level of engine coolant. Have the cooling system serviced by a Cadillac technician as soon as possible. CHECK FUEL GAGE 39: This message will appear when the fuel supply is less than four gallons (15.2 L) and the display is turned off (digital clusters only).
Page 142 See your Cadillac dealership for service. PCM FAULT 110: The circuit in the Powertrain Control Module (PCM) has shorted or is loose when this message appears. Have your Cadillac serviced by your dealership at once. REDUCED ENGINE POWER 41: This message...
Page 143 RUN position. Have the brake system serviced by a Cadillac technician as soon as possible. If the brake warning light is on, refer to the directions listed in that part.
Page 144 TOP SPEED FUEL CUT-OFF will appear when the PCM senses that the maximum speed for your Cadillac has been reached. The speed of your vehicle will decrease several mph as the fuel supply is cutoff. This allows your vehicle to stay in a stable operating range.
Page 145 113: A failure in the suspension control system has occurred when this message appears. The PCM determines the speed your vehicle is limited to. Have your Cadillac serviced if this message appears. VERY LOW REFRIGERANT A/C COMPRESSOR 12: This message means that the air conditioning system detects a refrigerant level that is low enough to cause damage to the A/C compressor.
Page 146 Always keep a written record of the mileage and date when you changed your oil. For more information, see Cadillac Maintenance Schedule booklet. If you see CHECK OIL LEVEL, it means that you have less than 10% of the oil life left and you should consider changing your engine oil.
Page 147 NOTES 2-88...
Page 148 Your comfort control system uses ozone-friendly R- 134a refrigerant. With these systems, you can control the heating, cooling and ventilation in your Cadillac. Your vehicle also has the flow-through ventilation system described later in this section. Electronic Climate Control (ECC)
Page 149 Fan Button The button with the fan symbol adjusts the fan speed. Press the up arrow to increase fan speed and the down arrow to decrease fan speed. Temperature Button The red and blue temperature buttons adjust the air temperature coming through the system. Press the blue button for a cooler setting or the red button for a warmer setting.
Page 150 If your vehicle is sitting out on a hot day and you have it set on AUTO, the air will first flow out the floor air outlets for a few seconds. That is normal. This is to outlets. As the air is cooled, the expel hot air in the airflow will move through the A/C outlets.
Page 151 DEFOG: Press this button to divide the windshield and the heater outlets. This is useful when fog appears on the windshield or side glass due to sudden rain o x snowy conditions. This feature is not available with the heated windshield option. AUTO/ECON: Press this button to switch between AUTO and ECON.
Page 152 EIectronic Solar Sensor The sensor monitors the sun's solar radiation and is located on top of the instrument panel near the windshield. The ECC system uses this information to automatically make the necessary temperature and airflow adjustments to maintain your comfort. Dual-Zone Climate Control (Option) Fan Button The button with the fan symbol adjusts the fan speed.
Page 153 Temperature Knob The TEMP knob adjusts the air temperature coming through the system. Turn the TEMP knob clockwise to increase the temperature and counterclockwise to decrease the temperature. The outside temperature is always displayed when your vehicle is running. Mode Button Press this button to deliver air through the floor, middle or windshield outlets.
Page 154 With this setting, the air conditioning compressor automatically cycles when needed to cool the air. In cold weather, when the system senses the need for heat, the airflow will be directed out the floor outlets. As the interior temperature approaches a desired setting, the blower speed will decrease.
Page 155 BI-LEVEL: This setting directs air into your two ways. Cool air is directed to the upper vehicle portion of your body through the middle instrument panel outlets while warmed air is directed to the floor, ’ ’ HEATER/DEFROS’E This setting directs air to the floor outlets and toward the windshield.
Page 156 AC: Press this button to turn the air conditioning on and off. The system will cool and dehumidify the air inside the vehicle. In the AUTO mode, the display will show that AC is active, but the air conditioning compressor only operates when the system determines it is needed.
Page 157 3-10 Ventilation System Your Cadillac’s flow-through ventilation system supplies outside air into the vehicle when it is moving. Outside air will also enter the vehicle when the heater or the air conditioning fan is running.
Page 158 The direction of airflow for the rear seats can also be adjusted. Move the FAN lever to adjust the blower speed from LO to Move the VENT lever to direct airflow toward the upper or floor outlets. Ventilation Tips Keep the hood and front air inlet free of ice, snow or any other obstruction (such as leaves).
Page 159 1. Remove snow that is piled up on the windshield. 2. Start your Cadillac and leave it in PARK (P). 3. Press the DE-ICE button. A light will come on to tell is working. Try not to use other electrical equipment while the system is working.
Page 160 Defogging and Defrosting On cool, humid days, use DEFOG to keep the windshield and side windows clear. Use DEFROST to remove fog or ice from the windshield quickly in extremely humid or cold conditions. If you have the ECC system, press the DEFOG or DE-ICE button and adjust the fan speed by pressing the fan button up or down.
Page 161 You will get the most enjoyment out of it if you acquaint yourself with it first. Find out what your Cadillac system can do and how to operate all its controls, getting the most out of the advanced engineering that went into it.
Page 162 AM-FM Stereo with Cassette Tape Player Also available is an AM-FM Stereo with Cassette Tape Player which includes four Bose amplified speakers. See your dealer for details. Playing the Radio PWR: Press this button lightly to release it from its recessed position.
Page 163 PUSHBUTTONS: The six numbered pushbuttons let you return to your favorite stations. You can set up to 18 stations (six AM, six FM1 and six FM2). 1. Press AM, FM1 or FM2 to select the band. 2. Find the station you want by pressing TUNE-SEEK. 3.
Page 164 Playing a Tape Cassette With the radio on, insert a cassette tape. The tape will begin playing as soon as it is inserted. While the tape is playing, use the VOL, FADE, BAL, TREB and BASS controls just as you do for the radio. Other controls may have different functions when a tape is inserted.
Page 165 SCAN: Press this button. SCAN wi11 appear display until the next selection is found and then PLAY will appear on the display. Use SCAN to listen to selections for a few seconds. The tape will go to a selection, stop for a few seconds, then go on to the next selection.
Page 166 Finding Station AM: Press this button to select AM ana preset stations. 1-2: Press this button to select FM1 preset stations. TUNE-SEEK: Press this button to activate the radio to choose higher or lower radio stations. Press and hold this button until you hear a chime. Release the button to begin seeking to the next higher or lower radio station and then stop.
Page 167 DSP: The Digital Signal Processing (DSP) feature is used to produce four audio effects. These include TALK, DRIVER SEAT, LIVE and AUDITORIUM. be used while listening to the radio, the cassette tape player or the CD player. To activate DSP, press the DSP button.
Page 168 Playing a Cassette Tape With the radio insert a cassette tape. The tape will begin playing as soon it is inserted. While the tape is playing, use the VOL, FADE, BAL, TREB and BASS controls just as you do for the radio. Other controls may have different functions when a tape is inserted.
Page 169 SCAN: Press this button. SCAN will display until the next selection is found and then will appear on the display. Use SCAN to listen to selections for a few seconds. The tape will go to a selection, stop for a few seconds, then go on to the next station.
Page 170 You must first load the magazine with discs before you can play a compact disc. Each of the 12 trays holds one disc. Press the button on the back of the magazine and pull gently on one of the trays. Load the trays from bottom to top, placing a disc on the tray label side down.
Page 171 . . . Close the door by sliding it all the way to the left. If the door is left partially open, the changer will not operate and an error will occur. When the door is closed, the changer will begin checking for discs in the magazine. This will continue for up to one and a half minutes depending on the number of discs loaded.
Page 172 DSPL: Press this button to display the time of day. Press this button again within five seconds to see the element time. Press DSPL again within five seconds to see how many compact discs are loaded the changer and where they are loaded. Press DSPL again to review the active preset buttons (1 through 6 or 7 through 12).
Page 173 Compact Disc Changer Errors ERROR appears the display, and the compact disc temporarily cannot play. CD CHANGER ERROR could be displayed for the following: The road is too rough. The disc should play when the road is smoother. The disc is dirty, scratched, wet or loaded label side The air is very humid.
Page 174 Finding a Station AM: Press this button to select AM and preset stations. FM 1-2: Press this button to select FMl or FM2 and preset stations. TUNE-SEEK: Press this button to activate the radio to choose higher or lower radio stations. Press and hold this button until you hear a chime.
Page 175 Adjusting the Speakers BAL: Press this button lightly so it extends. Turn the BAL knob to move the sound to the left or right speakers. The middle position is a detent balances the speakers. Turn the knob clockwise to adjust sound to the right speakers and counterclockwise for left speakers.
Page 176 REV: Press th~s left arrow button to reverse the tape rapidly. Press it again to return to playing speed. The radio will play wMe the tape reverses and REV will appear on the display. You may use your station pushbuttons to another radio station while in REV mode.
Page 177 Trunk Mounted Changer With the compact disc changer, you can play up to 12 discs continuously. Normal size discs may be played using the trays supplied in the magazine. The small discs (8 cm) can be played only with specially designed trays. NOTICE: Objects in the trunk which may shift or slide during driving could damage your CD changer.
Page 178 Once you have loaded the discs in the magazine, slide open the door of the compact disc (CD) changer. Push the magazine into the changer in the direction of the arrow marked on top of the magazine. Close the door by sliding it all the way to the left. If the door is left partially open, the changer will not operate and an error will occur.
Page 179 All of the functions are controlled by the radio buttons except for ejecting the magazine. Whenever with discs is loaded in the changer, the CD symbol will appear on the radio display. the CD changer is checking the magazine for CDs, the CD symbol will flash on the display until the changer is ready to play.
Page 180 The radio your Cadillac cannot be used in any other vehicle besides another Cadillac if it were to be removed. Steering Wheel Controls for Audio’ System VOLUME: Press the up...
Page 181 T r y to do it properly. Added sound equipment may interfere with the operation of your vehicle’s engine, Cadillac radio or other systems, and even damage them. Your vehicle’s systems may interfere with the operation of sound equipment that has been added improperly.
Page 182 Insert the cassette at least six times to ensure thorough cleaning. A scrubbing action cleaning cassette is available through your Cadillac dealer. You may also choose a non-scrubbing action, wet-type cleaner which uses a cassette with a fabric belt to clean the tape head.
Page 183 Power Antenna Mast Care Your power antenna will look its best and work well if it’s cleaned from time to time. To clean the antenna mast: Turn on the ignition and radio to raise the Dampen a clean cloth with mineral spirits or equivalent solvent.
Page 184 The best advice anyone can give about driving is: Drive defensively. Please start with a very important safety device in your Cadillac: Buckle up. (See “Safety Belts” in the Index.) Defensive driving really means “be ready for anything.” On city streets, rural roads or freeways, it means “always expect the unexpected.”...
Page 185 Drunken Driving Death and injury associated with drinking and driving is a national tragedy. It’s the number one contributor to the highway death toll, claiming thousands of victims every year. Alcohol affects four things that anyone needs to drive a vehicle: Judgment Muscular Coordination...
Page 186 It’s the amount of alcohol that counts. For example, if the same person drank three double martinis (3 ounces or 90 ml liquor each) within an hour, the person’s BAC would close to 0.12 percent. A person who consumes just before or during drinking will have food somewhat lower BAC level.
Page 187 The body takes about an hour to rid itself of the alcohol in one drink. No amount of coffee or number of cold showers will speed that up. “I’ll be careful” isn’t the right answer. What if there’s an emergency, a need to take sudden action, as when a child darts into the street? A person with even a moderate BAC might not be able to react quickly enough to avoid the collision.
Page 188 Control of a Vehicle You have three systems that make your vehicle go where you want it to go. They are the brakes, the steering and the accelerator. All three systems have to do their work at the places where the tires meet the road. Sometimes, as when you’re driving on snow or ice, it’s easy to ask more of those control systems than the tires and road can provide.
Page 189 Avoid needless heavy braking. Some people drive in spurts heavy acceleration followed by heavy braking rather than keeping pace with traffic. This is a mistake. Your brakes may not have time to cool between hard stops. Your brakes will wear out much faster if you do a lot of heavy braking.
Page 190 Here's how anti-lock works. Let's say the road is wet. You're driving safely. Suddenly an animal jumps out in front you. You slam on the brakes. Here's what happens with ABS. A computer senses that wheels are slowing down. If one of the wheels is about to stop rolling, the computer will separately work brakes at each front wheel and at the...
Page 191 Remember: Anti-lock doesn’t change the time you need get your foot up to the brake pedal or always decrease stopping distance. If you get close to the vehicle in front of you, you won’t have time to apply your brakes if that vehicle suddenly slows or stops.
Page 192 This warning light will come on to let you know if there’s a problem with your traction control system. See “Traction Control System TRACTION Warning Light” in the CONTROL Index. When this warning light is on, the system will not limit wheel spin. Adjust your driving accordingly.
Page 193 Braking in Emergencies Us& ptxr anti-lock braking system when you need to. With anti-lock, you can steer and brake at the same many time. In emergencies, steering can help you more than even the very best braking. Steering Power Steering If you lose power steering assist because the engine stops or the system is not functioning, you can steer but it will take much more effort.
Page 194 But sometimes you can’t; there isn’t room. That’s the time for evasive action problem. Your Cadillac can perform very well in emergencies like these. First apply your brakes. (See “Braking in Emergencies” earlier in this section.) It is better to remove as much speed as you can from a possible collision.
Page 195 An emergency like this requires close attention and a quick decision. If you are holding the steering wheel at the recommended 9 and 3 o’clock positions, you can turn it a full 180 degrees very quickly without removing either hand. But you have to act fast, steer quickly and just as quickly straighten the wheel once you have avoided the object.
Page 196 Passing The driver of a vehicle about to pass another on a two-lane highway waits for just the right moment, accelerates, moves around the vehicle ahead, then goes back into the right lane again. A simple maneuver? Not necessarily! Passing another vehicle on a two-lane highway is a potentially dangerous move, since the passing vehicle occupies the same lane as oncoming traffic for several seconds.
Page 197 “overdriving” those conditions. But skids always possible. The three types of skids correspond to your Cadillac’s three control systems. In the braking skid, your wheels aren’t rolling. In the steering or cornering skid, too much speed or steering in a curve causes tires to slip and lose cornering force.
Page 198 Of course, traction is reduced when water, snow, ice, gravel or other material is on the road. For safety, you’ll want to slow down and adjust your driving to these conditions. It is important to slow down on slippery surfaces because stopping distance will be longer and vehicle control more limited.
Page 199 Here are some tips on night driving. Drive defensively. Don’t drink and drive. Since you can’t see as well, you may need to slow down and keep more space between you and other vehicles. Slow down, especially on higher speed roads. Your headlamps can light up only so much road ahead.
Page 200 Driving in Rain and on Wet Roads Rain and wet roads can mean driving trouble. On a wet road, you can’t stop, accelerate or turn as well because your tire-to-road traction isn’t good as on dry roads. And, if your tires don’t have much tread left, you’ll get even less traction.
Page 201 Driving too fast through large water puddles or even going through some car washes can cause problems, too. The water may affect your brakes. Try to avoid puddles. But if you can’t, try to slow down before you hit them. 4-18 CAUTION: Wet brakes can cause accidents.
Page 202 Hydroplaning Hydroplaning is dangerous. So much water can build up under your tires that they can actually ride on the water. This can happen if the road is wet enough and you’re going fast enough. When your vehicle is hydroplaning, has little or no contact with the road.
Page 203 City Driving One of the biggest problems with city streets is the amount of traffic on them. You’ll want to watch out for what the other drivers are doing and pay attention to traffic signals. 4-20 Here are ways to increase your safety in city driving: Know the best way to get to where you are going.
Page 204 Freeway Driving Mile for mile, freeways (also called thruways, parkways, expressways, turnpikes or superhighways) are of all roads. But they have their own special rules. The most important advice on freeway driving is: Keep up with traffic and keep to the right. Drive at the same speed most of the other drivers are driving.
Page 205 If it needs service, have it done before starting out. Of course, you’ll find experienced and able service experts in Cadillac dealerships all across North America. They’ll bc. ready and willing to help you need...
Page 206 Highway Hypnosis Is there actually such a condition as “highway hypnosis”? Or it just plain falling asleep at the wheel? Call it highway hypnosis, lack of awareness or whatever. There is something about an easy stretch of road with the same scenery, along with the hum of the tires on the road, the drone the engine and the rush of the wind against the vehicle that can make you sleepy.
Page 207 If you drive regularly in steep country, or if you're planning to visit there, here are some tips that your trips safer and more enjoyable. in good Keep your vehicle shape. Check all fluid levels and also the brakes, tires, cooling system and transaxle.
Page 208 Winter Driving Here are some tips for winter driving: Have your Cadillac in good shape for winter. You may want to put winter emergency supplies in your trunk. Include an ice scraper, a small brush or broom, a supply of windshield washer fluid, a rag, some winter outer clothing, a small shovel, a flashlight, a red cloth and a couple of reflective warning triangles.
Page 209 Driving on Snow or Ice Most of the time, those places where your tires meet the road probably have good traction. However, if there is snow or ice between your tires and the road, you can have a very slippery situation. You’ll have a lot less traction or “grip”...
Page 210 Your anti-lock brakes improve your vehicle's stability when you make a hard stop a slippery road. Even though you have the anti-lock braking system, you'll you would on want to begin stopping sooner than pavement. See "Anti-Lock'' in the Index. Allow greater following distance on any slippery road.
Page 211 a red cloth to your vehicle to alert police that you’ve been stopped by the snow. extra clothing or wrap a blanket around you. you have no blankets or extra clothing, make body insulators from newspapers, burlap bags, rags, floor mats anything you can wrap around yourself or tuck under your clothing to keep warm.
Page 212 Run your engine only as long as you must. This saves fuel. When you the engine, make it go a little faster than just idle. That is, push the accelerator slightly. This uses less fuel for the heat that you get and it keeps the battery charged.
Page 213 MFD BY GENERAL MOTORS CORP DATE GVWR GAWR FRT THJS VEHICLE CONFORMS TO ALL APPLI CABLE U.S. FEDERAL 'MOTOR VEHiCLE SAFETY, BUMPER, AND THEFT PREVENT STANDARDS IN EFFECT ON THE DATE 0 MANUFACTURE SHOWN ABOVE. The other label is the Certification label, found on the rear edge of the driver's door.
Page 214 Pull trailer only if you have followed all the steps in this section. Ask your Cadillac dealer for advice and information about towing with your vehicle. NOTICE: Pulling a trailer improperly can damage your vehicle and result in costly repairs not covered by your warranty.
Page 215 Your vehicle can tow a trailer if it is equipped with proper towing equipment. To identify what the vehicle trailering capacity is for your vehicle, you should read the infomation in “Weight of the Trailer” that appears later in this section. But trailering is different than just driving your vehicle by itself.
Page 216 And, it can also depend on any special equipment that you have on your vehicle. You can ask your dealer for our trailering information or advice, or you can write us at: Cadillac Customer Assistance Center Cadillac Motor Car Division 30009 Van Dyke P.O. Box 9025...
Page 217 If you’re using a “dead-weight” hitch, the trailer tongue (A) should weigh 10% of the total loaded trailer weight (B). If you have a “weight-distributing” hitch, the trailer tongue (A) should weigh 12% of the total (B). loaded trailer weight After you’ve loaded your trailer, weigh the trailer and then the tongue, separately, to see if the weights are proper.
Page 218 Safety Chains You should always attach chains between your vehicle and your trailer. Cross the safety chains under the tongue of the trailer so that the tongue will not drop if it becomes separated from the hitch. Instructions about safety chains may be provided by the hitch manufacturer or by the trailer manufacturer.
Page 219 Following Distance Stay at least twice as far behind the vehicle ahead as you would when driving your vehicle without a trailer. This can help you avoid situations that require heavy braking and sudden turns. Passing You’ll need more passing distance up ahead when you’re towing a trailer.
Page 220 When you tow a trailer, your vehicle may need a different turn signal flasher and extra wiring. Check with your Cadillac dealer. The green arrows on your instrument panel will flash whenever you signal a turn or lane change. Properly hooked up, the trailer lamps will also flash, telling other drivers you’re about to turn,...
Page 221 When You Are Ready to Leave After Parking on Hill 1. Apply your regular brakes and hold the pedal down while you: Start your engine; into Shift a gear; and Be sure the parking brake has released. 2. Let up on the brake pedal. 3.
Page 222 Section 5 Problems on the Road Here you'll find what to do about some problems that can occur on the road. Hazard Warning Flashers Your hazard warning flashers let you warn others. They also let police know you have a problem. Your front and rear turn signal lamps will flash on and off.
Page 223 This light on the instrument panel will flash indicating that the hazard warning flashers are on. The hazard warning fiashers will work once the button is pressed in regardless of the key position. Pull out on the collar to turn the flashers off. When the hazard warning flashers are on, the turn work since they are already flashing.
Page 224 If your battery has run down, you another vehicle and some jumper cables to start your Cadillac. Please follow the steps below to do it safely. NOTICE: Ignoring these steps could result in costly damage to your vehicle that wouldn’t be covered by your warranty.
Page 225 If they are, it could cause a ground connection you don’t want. You wouldn’t be able to your Cadillac and the bad grounding could start damage the electrical systems.
Page 226 CAUTION: Using a match near a battery can cause battery gas to explode. People have been hurt doing this, and some have been blinded. Use a flashlight you need more light. Be sure the battery has enough water. You don’t need to add water to the Delco Freedom@ battery installed in every new GM vehicle.
Page 227 . C ' , 7. Connect the red positive cable to the positive terminal of the vehicle with the dead battery. 8. Don't let the other end of the positive cable touch metal. Connect it to the positive. terminal of the good battery.
Page 228 Don't let the other end of the negative anything until the next step. The other end of the negative cable doesn't go to the dead battery. It goes to a heavy unpainted metal part on the engine of the vehicle with the dead battery. 10.
Page 229 Towing Your Vehicle Try to have a Cadillac dealer or a professional towing service tow your Seville. See “Roadside Assistance” in the Index. If your vehicle has been changed or modified since it was factory-new by adding aftermarket items like fog lamps, aero skirting or special tires and wheels, these instructions may not be correct.
Page 230 Rear Towing CAUTION: To help avoid injury to you others: Never let passengers ride in a vehicle that is being towed. Never tow faster than safe or posted speeds. Never tow with damaged parts not fully secured. Never get under your vehicle after it has been lifted by the tow truck.
Page 231 CAUTION: A vehicle can fa11 from a car carrier if it isn’t adequately secured. This can cause a serious personal injury and vehicle damage. The vehicle should be tightly secured with chains or steel cables before it is transported. Don’t use substitutes (ropes, leather straps, canvas webbing, etc.) that can be cut by sharp edges underneath the towed vehicle.
Page 232 Front Towing Tow Limits 35 mph (56 kph), 25 miles (40 km) NOTICE: Do not tow with sling type equipment or fascidfog lamp damage will occur. Use wheel-lift or car carrier equipment. Additional ramping carrier may be required for car equipment.
Page 233 Attach T-hook chains on both sides, in the slotted holes in the bottom of the frame rails, behind the front wheels. These slots be used when loading and securing to are to car carrier equipment. 5-12 Attach a separate safety chain around the outboard end each lower control arm.
Page 234 Rear Towing (56 kph), 25 miles Limits NOTICE: not tow with sling type equipment or bumper valance damage will occur. Use wheel-lift or car carrier equipment. Additional ramping may be required for car carrier equipment. Use safety chains and wheel straps. Towing a vehicle over rough surfaces could damage vehicle.
Page 235 Attach R-hook chains to the R-hook slots in the frame rails just ahead of the rear wheels on both sides. These slots are to be used when loading and securing car carrier equipment. 5-14 Attach a separate safety chain around the end of each axle inboard of the spring.
Page 236 Engine Overheating You will find an ENGINE COOLANT HOT-IDLE ENGINE message or a STOP ENGINE ENGINE OVERHEATED message on the Driver Information Center. There is also an engine temperature warning light on the instrument panel. See “Engine Temperature Warning Light” in the Index. Overheated Engine Protecaon Operating Mode Should a low coolant condition exist and the message...
Page 237 If Steam Is Coming From Your Engine 5-16 CAUTION: Stcam from an overheated engine can burn you badly, even if you just open the hood. Stay away from the engine if you see hear steam coming from it. Just turn it off and get everyone away from the vehicle until it cools down.
Page 238 If No Steam Is Coming From Your Engine If you get the overheat warning but see or hear no steam, the problem may not be too serious. Sometimes the engine get a little too hot when you: Climb a long hill on a hot day. Stop after high-speed driving.
Page 239 When you decide it's safe to lift the hood, here's what you'll see: T a n k A. Coolant Surge with Pressure Cap B. Electric Engine Fans 5-18 CAUTION: An electric fan under the hood can start PIP even when the engine is running and can injure you.
Page 240 -,. . The coolant level should be indicated by a CHECK COOLANT LEVEL message on the Driver Information Center. If it isn't, you may have a leak in the radiator hoses, heater hoses, radiator, water pump or somewhere else in the cooling system. CAUTION: Heater and radiator hoses, and other engine parts, can be very hot.
Page 241 NOTICE: Engine damage if you keep running your engine without coolant isn’t covered by your warranty. See “Overheated Engine Protection Operating Mode’? in the Index. If there seems to be no leak, with the engine on, check to see if the electric engine fans are running. If the engine is overheating, both fans should be running.
Page 242 " CAUTION: Adding only plain water to your cooling system can be dangerous. Plain water, or some other liquid like alcohol, can boil before the proper coolant mix will. Your vehicle's coolant warning system is set for the proper coolant mix. With plain water or the wrong mix, your engine could get too hot but you wouldn't warning.
Page 243 NOTICE: In cold weather, water can freeze and crack the engine, radiator, heater core and other parts. So use the recommended coolant. CAUTION: can be burned if you spill coolant on hot engine parts. Coolant contains ethylene glycol and it will burn if the engine parts are hot enough.
Page 244 3. Then fill the coolant surge tank with the proper mix, 2. Then keep turning the cap, but now push down as up to the base of the filler neck. you turn Remove the pressure cap. 5-23...
Page 245 With the coolant surge tank pressure cap off, start the engine and let run until you can feel the upper radiator hose getting hot. Watch out for the engine fans. By this time, the coolant level inside the coolant surge tank may be lower. If the level is lower, add more of the proper mix to the coolant surge tank level reaches about 2.5 inches (60 mm) until...
Page 246 If a Tire Goes Flat It’s unusual for a tire to “blow out” while you’re driving, especially if you maintain your tires properly. If air goes out of a tire, it’s much more likely to leak out slowly. But if you should ever have a “blowout,” here are a few tips about what to expect and what to do: If a front tire fails, the flat tire will create a drag that pulls the vehicle toward that side.
Page 247 The following steps will tell you how change a tire. 5-26 Removing the Spare Tire and Tools The equipment you’ll need is in the trunk. Pull the carpeting from the floor of the trunk. Turn the center dial on the compact spare cover counterclockwise to remove it.
Page 248 Turn the nut holding the jack and wheel wrench counterclockwise and remove it. Then remove the jack and wrench. Lift up the tire to remove it from the trunk. 5-27...
Page 249 The tools you'll be using include the jack (A) and the wheel wrench (B). 5-28 Removing the Wheel Cover There a center wheel cover on the aluminum wheel. Using the flat end of the wheel wrench, gently pry the wheel cover off. Be careful not scratch the aluminum wheel edge and don't try to remove it with your hands.
Page 250 Removing the Flat Tire and Installing the Spare Tire 1. Using the wheel wrench, loosen all the wheel nuts. Don't remove them yet. 2. Turn the jack handle clockwise to raise the jack lift head a few inches. CAUTION: Getting under a vehicle when it is jacked up is dangerous.
Page 251 INCHES INCHES 11.0 (177 (279 3. Position the jack under the vehicle and raise the jack lift head until it fits firmly into the notch in the vehicle's frame nearest the flat tire. Put the compact spare tire near you. 5-30 4.
Page 252 6. Remove any rust or dirt from the wheel bolts, mounting surfaces and spare wheel. CAUTION: Rust dirt the wheel, or on the parts to which it is fastened, can make the wheel nuts become loose after a time. The wheel could come off and cause an accident.
Page 253 8. Lower the vehicle by turning the jack hanale counterclockwise. Lower the jack completely. 5-32 9. Tighten the wheel nuts firmly in a criss-cross sequence as shown. CAUTION: Incorrect wheel nuts or improperly tightened wheel nuts can cause the wheel to become loose and even come off.
Page 254 NOTICE: Improperly tightened wheel nuts can lead to brake pulsation and rotor damage. To avoid expensive brake repairs, evenly tighten the wheel nuts in the proper sequence and to the proper torque specification. Don’t try to put a wheel cover on your compact spare tire.
Page 255 Secure the tire with the stud cap that was used to hold spare in place. Store the. compact the cover as forward possible. Storing the Spare Tire and Tools CAUTION: Storing a jack, a tire or other equipment in the passenger compartment of the vehicle could cause injury.
Page 256 The compact spare is for temporary use only. Replace the compact spare tire with a full-size tire as soon as you can. See the storage instructions label to replace your compact spare into your trunk properly. Compact Spare Tire Although the compact spare tire was fully inflated when your vehicle was new, it can lose air after a time.
Page 257 NOTICE: When the compact spare is installed, don’t take your vehicle through automatic car wash with guide rails. The compact spare can get caught on the rails. That can damage the tire and and maybe other parts of your vehicle. Don’t use your compact spare on other vehicles.
Page 258 NOTICE: Spinning your wheels can destroy parts of your vehicle as well as the tires. If you spin the wheels too fast while shifting your transaxle back and forth, you can destroy your transaxle. For information about using tire chains on your vehicle, see “Tire Chains”...
Page 259 NOTES...
Page 260 Your If you want to do some of your own service work, you’ll want to get the proper Cadillac service manual. It tells you much more about how to service your Cadillac than this manual can. To order the proper service manual, see ”Service and Owner Publications”...
Page 261 If this occurs, return to your authorized Cadillac dealer for diagnosis to determine the cause of failure. In the event it is determined that the cause of the condition is the type of fuels used, repairs may not be covered by your warranty.
Page 262 If this happens, return to your authorized Cadillac dealer for service. To provide cleaner air, all gasolines are now required to contain additives that will help prevent deposits from forming in your engine and fuel system, allowing your emission control system to function properly.
Page 263 Filling Your Tank The cap is behind a hinged door on the driver's side of your vehicle. CAUTION: Gasoline vapor is highly flammable. It burns violently, and that can cause very bad injuries. Don't smoke if you're near gasoline or refueling your vehicle.
Page 264 “hiss” noise to stop. Then unscrew the cap all the way. Be careful not to spill gasoline. Clean gasoline from painted surfaces as soon as possible. See “Cleaning the Outside of Your Cadillac” in the Index. open the slowly and...
Page 265 When you put the cap back on, turn it to the right until hear at least three clicks. Make sure you fully install the cap. NOTICE: If you need new cap, be sure type. Your dealer can get one for you. If you get the wrong type, it may not fit or have proper venting, and your fuel tank and emissions system might be damaged.
Page 266 Hood Release Pull the lever inside the vehicle to open the hood. It is located on the lower left side of the instrument panel. Then go to the front of the vehicle and find the secondary hood release which is located above the front grille.
Page 267 When you open the hood, you'll see: Battery Location Coolant Fill Location C. Power Steering Fluid Before closing the hood, be sure all filler caps are on properly. Then pull the hood down and close it firmly. Fill D. Oil E.
Page 268 Engine Oil iMlUM UNLEADED FUEL ONLY mB8DBam ...." ... . . U ..
Page 269 Checking Engine Oil Pull out the dipstick and clean it with a paper towel or cloth, then push it back in all the way. Remove it keeping the tip down, and check the level. 6-10 When Add Oil If the oil is at or below the to add some oil.
Page 270 The oil fill cap is located behind the radiator on the passenger’s side of the Turn engine. counterclockwise to remove. Just fill it enough to put the level somewhere in the proper operating range. Push the dipstick all the way back in when you’re throtlgh.
Page 271 GM Goodwrench@ oil meets all the requirements for your vehicle. Engine Oil Additives Don’t add anything to your oil. Your Cadillac dealer is ready to advise if you think something should be added. use SAE 5W-30 if it’s C) before your (16”...
Page 272 When to Change Engine Oil Your Cadillac has an Oil Life Indicator. This feature will let you know when to change your oil and usually between 3,000 miles (5 000 filter 7,500 miles (12 500 k m ) since your last oil change.
Page 273 Air Cleaner The air filter is located next to the windshield washer fluid reservoir on the driver's side of the engine. Be sure the engine has cooled before following these steps to replace the air filter: 6-14 3. Disconnect the air duct from the mass airflow sensor. 1.
Page 274 4. Unhook both air cleaner cover latches. One latch is located near the radiator hose (not shown) and the other latch is located next to the IAT sensor. 5. Pivot the air cleaner and air duct assembly towards the front of the vehicle. Remove the cover. 6.
Page 275 Follow these steps to reinstall the air cleaner assembly: Slide the air cleaner lid into the slots in the front edge of the air cleaner base. Pivot the air cleaner cover and the air duct assembly downward. Make sure that both latches are secure and fully engaged.
Page 276 Maintenance Schedule booklet. How to Check Because this operation can be a little difficult, you may choose to have this done at your Cadillac dealership service department. If you do it yourself, be sure to follow all the instructions here, or you could get a false reading on the dipstick.
Page 277 Wait at least 30 minutes before checking the transaxle fluid level if you have been driving: When outside temperatures are above 90°F (32°C). At high speed for quite a while. In heavy traffic especially in hot weather. While pulling a trailer. To get the right reading, the fluid should be at normal operating temperature, which is 180 (82°C to 93°C).
Page 278 3. Check both sides of the dipstick, and read the lower level. The fluidlevel must be in the cross-hatched area. 4. If the fluid level is in the acceptable range, push the dipstick back all the way. 5. Replace the air cleaner assembly. How to Add Fluid Refer to the Maintenance Schedule to determine what kind of transaxle fluid to use.
Page 279 No. 3634621) with use this mixture, you don’t need to add anything else. A special procedure is required for adding sealer; see the Cadillac service manual. (To order a service manual, see “Service and Owner Publications” in the Index.) 6277M.
Page 280 CAUTION: ~~~~~ Adding only plain water to your cooling system can be dangerous. Plain water, or some other liquid like alcohol, can boil before the proper coolant mix will. Your vehicle’s coolant warning system is set for the proper coolant mix. With plain water or the’wrong mix, your engine could get too hot but you wouldn’t get the overheat warning.
Page 281 Checking Coolant The surge tank is located next to the engine block on the passenger's side of the engine. The cooling system when hot is under a.lot of pressure. If the CHECK COOLANT LEVEL message appears on DIC, you will need to add coolant. 6-22 CAUTION: Tbrning the surge tank pressure cap when the...
Page 282 Adding Coolant If you need more coolant, add the proper mix at the surge tank, but only when the engine is cool. CAUTION: You can be burned if you spill coolant on hot engine parts. Coolant contains ethylene glycol, and it will burn if the engine parts are hot enough.
Page 283 Power Steering Fluid The power steering fluid reservoir is located next to the coolant surge tank on the passenger’s side of When to Check Power Steering Fluid It is not necessary to regularly check power steering fluid unless you suspect there is a leak in the system or you hear an unusual noise.
Page 284 Adding Washer Fluid The windshield washer fluid reservoir is located next to the air filter on the driver’s side of the engine. Open the cap labeled WASHER FLUID ONLY. Add washer fluid until the tank is full. NOTICE: When using concentrated washer fluid, follow the manufacturer’s instructions for adding water.
Page 285 Brakes Brake Fluid Your brake master cylinder reservoir is here. It is filled with DOT-3 brake fluid. There are only two reasons why the brake fluid level in the reservoir might go down. The first is that the brake an acceptable level during normal fluid goes down brake lining wear.
Page 286 If you do, wash it off immediately. See “Appearance Care” in the Index. Brake Wear Your Cadillac has four-wheel disc brakes. Disc brake pads have built-in wear indicators that make a high-pitched warning sound when the brake pads are worn and new pads are needed. The sound may come and go or be heard all the time your vehicle is moving (except when you are pushing on the brake pedal firmly).
Page 287 Vehicles we design and test have top-quality GM brake parts in them, as your Cadillac does when it is new. When you replace parts of your braking system example, when your brake linings wear down and you have to have new ones put in genuine GM replacement parts.
Page 288 Battery Every new Cadillac has a Delco Freedom@ battery. You never have to add water to one of these. When it’s time new battery, we recommend a Delco Freedom@ battery. Get one that has the replacement number shown on the original battery’s label.
Page 289 Headlamp 2. Turn the headlamp housing socket counterclockwise socket from the lamp housing. to unlock the Lift cover gain access. 6-30...
Page 290 3. Remove the headlamp housing socket. 4. After removing the wiring harness from the headlamp housing socket, replace the bulb and socket. Reconnect it to the wiring harness and reinstall the headlamp housing socket back into the headlamp assembly. Do not touch the glass portion of the new halogen bulb! The oil from your fingers will shorten the bulb life.
Page 291 Lamp Lornermg Open the hood gain access mounting screw. to the 2. Remove the screw securing the cornering lamp housing. 3. Gently pull out the cornering lamp assembly. 6-32...
Page 292 Taillamp 1. Open the trunk to gain access to taillamp housing. 2. Remove the convenience net.and pull trim.away to access the wing nuts. 4. Remove the socket by rotating it counterclockwise slightly, then replace the bulb reinstall. 6-33...
Page 293 3. Remove the three wing nuts. Gently remove taillamp housing. 6-34 5 . Press the bulb housing lever and rotate the housing counterclockwise to remove it. To remove the bulb, push rotate counterclockwise. Once you have replaced the burned out bulb, reverse the steps reassemble the taillamp.
Page 294 Wiper Blade Replacement It’s a good idea to clean or replace the wiper blade assembly on a regular basis or when worn. For proper windshield wiper blade length and type see “Normal Maintenance Replacement Parts” later in this section. replace the wiper blade assembly: 1.
Page 295 Tires We don’t make tires. Your new Cadillac comes with high-quality tires made by a leading tire manufacturer. If you ever have questions about your tire warranty and where to obtain service, see your Cadillac booklet for details. CAUTION: Poorly maintained and improperly used tires are dangerous.
Page 296 pressures to those listed on the Tire-Loading Information label. NOTICE: Don’t let anyone tell you that underinflation or overinflation is all right. It’s not. If your tires don’t have enough air (underinflation), you can get the following: Too much flexing Too much heat Tire overloading Bad wear...
Page 297 The purpose of regular rotation is to achieve more uniform wear for all tires on the vehicle. The first rotation is the most important. See “Scheduled Maintenance Services” in the Maintenance Schedule booklet for scheduled rotation intervals. When rotating your tires, always use the correct rotation pattern shown here.
Page 298 When It’s Time for New Tires One way to tell when it’s time for new tires is to check the treadwear indicators, which will appear when your tires have only 1/16 inch (1.6 mm) or less of tread remaining. You need a new tire if any of the following statements are true: You can see the indicators at three or more places around the tire.
Page 299 CAUTION: Mixing tires could cause you to lose control while driving. If you mix tires of different sizes (radial and bias-belted tires), the vehicle may not handle properly, and you could have a crash. tires Using of different sizes may also cause damage to your vehicle.
Page 300 A, B, C Traction The traction grades, from highest to lowest, are A, and C, and they represent the tire’s ability to stop on wet pavement as measured under controlled conditions on specified government test surfaces of asphalt and concrete. A tire marked C may have poor traction performance.
Page 301 (except some aluminum wheels, which can sometimes be repaired). See your Cadillac dealer if any of these conditions exist. Your dealer will know the kind of wheel you need. Each new wheel should have the same load carrying capacity, diameter, width, offset and be mounted the same way as the one it replaces.
Page 302 Used Replacement Wheels CAUTION: Putting a used wheel on your vehicle is dangerous. You can’t know how it’s been used or how many miles it’s been driven. It could fail suddenly and cause an accident. If you have to replace a wheel, use a new GM original equipment wheel.
Page 303 When you use anything from a container to clean your Cadillac, be sure to follow the manufacturer’s warnings and instructions. And always open your doors or windows when you’re cleaning the inside.
Page 304 Using Foam-Type Cleaner on Fabric Vacuum and brush the area to remove any loose dirt. Always clean a whole trim panel or section. Mask surrounding trim along stitch or welt lines. Mix Multi-Purpose Powdered Cleaner following the directions on the container label. Use suds only and apply with a clean sponge.
Page 305 Special Cleaning Problems Greasy or Oily Stains Stains caused by grease, oil, butter, margarine, shoe polish, coffee with cream, chewing gum, cosmetic creams, vegetable oils, wax crayon, tar and asphalt can be removed as follows: Carefully scrape off excess stain. Follow the solvent-type instructions described earlier.
Page 306 Cleaning Leather Use a soft cloth with lukewarm water and a mild soap or saddle soap. For stubborn stains, use a GM VinylLeather Cleaner or equivalent product. Never use oils, varnishes, solvent-based or abrasive cleaners, furniture polish or shoe polish on leather. Soiled leather should be cleaned immediately.
Page 307 Care of Safety Belts Keep belts clean and dry. CAUTION: Do not bleach or dye safety belts. If you do, it may severely weaken them. In a crash they might able to provide adequate protection. Clean safety belts only with mild soap and lukewarm water. Glass cleaned often.
Page 308 High pressure car washes may cause water to enter your vehicle. Finish Care Occasional waxing or mild polishing of your Cadillac by hand may be necessary to remove residue from the paint finish. You can get GM-approved cleaning products from your dealer. (See “Appearance Care and Materials”...
Page 309 Exterior painted surfaces are subject to aging, weather and chemical fallout that can take their toll over a period of years. You can help to keep the paint finish looking new by keeping your Cadillac garaged or covered whenever possible. Aluminum or Chrome Wheels Keep your wheels clean using a soft clean cloth with mild soap and water.
Page 310 Although no defect in the paint job causes this, Cadillac will repair, at no charge to the owner, the surfaces of new vehicles damaged by this fallout condition within 12 months or 12,000 miles (20 000 km) of purchase, whichever occurs first.
Page 311 Appearance Care Materials Chart PARTNUMBER SIZE 1050004 2.75 sq. ft. 1050 172 16 (0.473 L) 10501 73 (0.473 16 oz. (0.473 L) 1050174 1050201 16 oz. (0.473 1050214 32 oz. (0.946 (0.680 1050427 23 oz. (2.72 1050429 lbs. 1398* 8 oz. (0.237 1051515 (0.946 L)
Page 312 4UXTM072675 CODE MODEL YEAR This is the legal identifier for your Cadillac. It appears on a plate in the front comer of the instrument panel, on the driver’s side. You can see it if you look through the windshield from outside your vehicle. The VIN also appears on the Vehicle Certification and Service Parts labels and the certificates of title and registration.
Page 313 Electrical System Add-on Electrical Equipment NOTICE: Don’t add anything electrical to your Cadillac unless you check with your dealer first. Some electrical equipment can damage your vehicle and the damage wouldn’t be covered by your warranty. Some add-on electrical equipment can keep other components from working as they should.
Page 314 Fuses and Circuit Breakers The wiring circuits in your vehicle are protected from short circuits by a combination of fuses and circuit breakers. This greatly reduces the chance of fires caused by electrical problems. Look at the silver-colored band inside the fuse. If the band is broken or melted, replace the fuse.
Page 315 INT LPS HDLP R HDLP LO L HDLP 0 0 ~ 0 0 HDLPS HAZARD WIPERS CRANK IGN O(ENG) FUSE CENTER IDENTIFICATION SEN2 OXY SEN1 FUEL CRUISE DlSTR ,PC~JI(IGN)~ ,PCM(BAT), IA/C COM? FRONT OF VEHICLE Fuse Usage Trunk Lamp, Courtesy Lamps, Front INT LPS Vanity Lamps, Glove Box Lamp, Garage Door Opener, Courtesy...
Page 316 Fuse Usage Daytime Running Lamp (DRL) Relay FOG/DRL (Domestic Only), Fog Lamp Relay (Optional), Headlamp Switch, Right Left Front Fog Lamps (Optional) IGN 0 (ENG)* Powertrain Control Module (PCM) CRANK Sensing and Diagnostic Module (SDM) Anti-Lock Brake System/Anti-Slip Regulation-5 (ABS/ASR-5) Controller Rear Ignition-1 Relay, Front Fog IGN 1 Lamp Relay, Rear Lamp Relay...
Page 317 MaxiFuse/Relay Center The MaxiFuses and relays are located next to the engine compartment fuse block on the driver’s side of the engine. If a MaxiFuse should blow, have your vehicle serviced by your Cadillac dealer immediately. RELAY CENTER IDENTIFICATION RELAY...
Page 318 Fuse Usage Highbow Beam Relay, Headlamp LAMPS Relay, Fog Lamp/DRL Fuse, Hazard Fuse, Mirror Fuse, Headlamp Fuse, Right and Left High Beam Fuse, Right and Left Low Beam Fuse, Stop Fuse IGN 1 Rear Ignition-1 Relay, Wiper Fuse, Relay Ignition- 1 Fuse, Supplemental Inflatable Restraint (SIR) Fuse Delayed Accessory Bus (DAB)
Page 319 RLY ION 1 0 .-BODY COMFORT CONSOLE RR DEFOG HTD MIR HTD SEAT HTDSEAT ANTENNA HDLPWASH CONVENC BATr PARK Fuse Usage RLY IGNl* SDM, Cluster, Cruise in Stalk, Brake Switch, PZM, Fuel Level Sensor, Catalytic Converter Overtemp Amplifier (Export) PRNDL, Heated Windshielc BODY (Optional), PZM, Cluster, Air Control Module (ACM), Upper...
Page 320 Fuse Usage Radio Receiver, Radio Interface RADIO/ PHONE Module (RIM)(Bose Only), Phone, DAB Relay, Trunk Release Relay, Fuel Door Release Relay, High Beam Relay Steering Wheel Controls, Cluster CLUSTER PZM, Electrochromic Mirror, Rain Sensor (Optional), Accessory Relay RR DEFOG Rear Defog HTD MIR Right and Left Outside Heated Mirror...
Page 321 Cornering Courtesy/Reading *Fog Glove Compartment Headlamps Composite Inner High Beam Outer Low Beam Illumination Entry Lock For service information on these bulbs, contact your Cadillac dealer service department. 6-62 Number Application hstrument Panel Illumination 1156 Instrument Panel Telltales 1 156...
Page 322 Capacities and Specifications Engine Specifications Displacement. Type VIN Engine Code Horsepower Torque ........... Firingorder Thermostat Starts To Open 279 cubic inches...
Page 323 Capacities and Specifications (Continued) Capacities Transaxle (4T80-E) Crankcase (Engine Oil with Filter Change) Engine Cooling System FuelTank R-134a Refrigerant Vehicle Dimensions Wheel Base Length Height Width Front Tread Rear Tread Wheel Nut Torque 6-64 15 quarts 7.5 quarts 12.5 quarts 20gallons 2.0 lbs.
Page 324 Not all air conditioning refrigerants are the same. If the air conditioning system in your vehicle needs AC Type A1096C refrigerant, be sure the proper refrigerant is used. 25096932 If you’re not sure, ask your Cadillac dealer. AC Type GF-580 25121468 AC Type PF-58 25014377...
Page 325 NOTES 6-66...
Page 326 NOTES 6-67...
Page 327 NOTES...
Page 328 , - " ' % - , Section 7 Customer Assistance Information Here you will find out how to contact Cadillac if you need assistance. This section also tells you how to obtain service publications and how to report any safety defects.
Page 329 Your dealer has the facility, trained technicians, special tools and up-to-date information to promptly address any issue which may arise. Cadillac has empowered its dealers to make decisions and repair vehicles, and they are eager to resolve your concern to your complete satisfaction.
Page 330 To assist customers who are deaf, hard of hearing, or speech-impaired and who use Text Telephones (TTYs), Cadillac has TTY equipment available at its Customer Assistance Center. Any TTY user can communicate with Cadiilac by dialing: 1-800-833-CMCC. (TTY users in...
Page 331 Cadillac Roadside Service can be reached by 1-800-882-1112,24 hours a day, 365 days a year. This service is provided at no charge for any warranty-covered situation and for a nominal charge if the Cadillac is no longer under warranty. Cadillac Owner Privileges Roadside Service provides several Cadillac Owner Privileges at “no charge”, throughout your I996 Cadillac...
Page 332 Advisor will assist you information: A description of the problem Name, home address, home telephone number Location of your Cadillac and number you are calling from The model year, vehicle identification number and date of delivery If your trip is interrupted...
Page 333 Hearing or Speech Impaired Roadside Service is prepared to assist owners who have hearing difficulties or are speech impaired. Cadillac has installed special telecommunication devices called Text Telephone (TTY) in the Roadside Service Center. Any customer who has access to a (TTY) or a...
Page 334 Cadillac's commitment to provide the services you expect and deserve as a Cadillac owner. Gold Key Courtesy Transportation helps you get where you need to be when your Cadillac is in the dealership for warranty service.* Courtesy Vehicle Gold Key Courtesy Transportation provides you with transportation if your car requires warranty repairs.
Page 335 Some state insurance regulations make it impractical to rent vehicles to people under 21 years of age. If you are under 21 and have difficulty renting a vehicle, Cadillac will reimburse you, up to $30/day, for any documented transportation you receive.
Page 336 BBB at any time. The BBB will attempt to resolve the complaint serving as between you and Cadillac. If this mediation is unsuccessful, an informal hearing will be scheduled where eligible customers may present their case to an impartial third-party arbitrator.
Page 337 REPORTING SAFETY DEFECTS THE UNITED STATES GOVERNMENT If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you should immediately inform the National Highway Traffic Safety Administration (NHTSA), in addition to notifying General Motors.
Page 338 NHTSA (or Transport Canada) in a situation like this, we certainly hope you’ll notify us. Please call us at our Customer Assistance Center, 1-800-458-8006 or write: Cadillac Customer Assistance Center Cadillac Motor Car Division 30009 Dyke P.O. Box 9025...
Page 339 Service Manuals Service manuals contain diagnostic and repair information for all chassis and body systems. They may be useful for owners who wish to get a greater understanding of their vehicle. They are also useful for .owners with the appropriate skill level or training who wish to perform “do-it-yourself’...
Page 340 NOTES 7-13...
Page 341 NOTES 7-14...
Page 342 Section 8 Index A / C Engine Protection Message Off For ........AirBag .
Page 343 3.17.3.21. 3.28 Glass 2-55 Inside of Your Cadillac 2-52 Instrument Panel ........
Page 344 ......Speakercovers Special Problems ........Stains .
Page 345 Driving City ........Defensive ........Drunken Freeway a Blizzard...
Page 346 ......Flat Tire. Changing ........Floor Mats Fluid Capacities .
Page 347 Keyless Entry System Keys Labels Certification/Tire Service Parts Identification Tire-Loading Information Vehicle Identification Number Lamps Interior On Reminder Panel Leaving .Your Vehicle Leaving Your Vehicle with the Engine Running Level Control, Electronic Light Sensor Lighter Lights Air Bag Readiness Anti-Lock Brake System Warning Brake System Warning Charging System Engine Coolant Temperature Warning...
Page 348 ......N e t . Convenience Neutral (N). Automatic Transaxle New Vehicle Break-In Nightvision Odometer .
Page 349 Rear Compartment Fuse Block DoorSecurityLocks Outside Seat Position Storage Armrest Towing Window Defogger Window Lockout Rearview Mirror, Electrochromic Daymight Reclining Front Seatbacks ....Reduced Engine Power Message .
Page 350 ..... . Service and Appearance Care ....Service and Owner Publications Servicing Your Air Bag-Equipped Cadillac Sheet Metal Damage ShiftLever . . .
Page 351 Steering Wheel Touch Control Stop Engine Low Pressure Message Stop Engine Overheated Message Storage Compartments Storage. Vehicle Stuck: Sand. Mud. Ice or Snow Sunvisors Sunglasses Storage ....Supplemental Inflatable Restraint Surge Tank.
Page 352 Trailer ........Brakes Driving on Grades Drivingwith Hitches Maintenance When Towing...
Page 353 Windows Express-Down Power RearLockout Windshield. Heated Windshield Washer Fluid 8-12 Windshield Wiper 2-31 Blade Replacement Fuses 2-31 Winter Driving 2-31 Wiring, Headlamp 3- 12 ......Wood Panels, Care 2-36 .

Cadillac 1996 Seville Owner's Manual

Quick Links

Related Manuals for Cadillac 1996 Seville

Summary of Contents for Cadillac 1996 Seville
