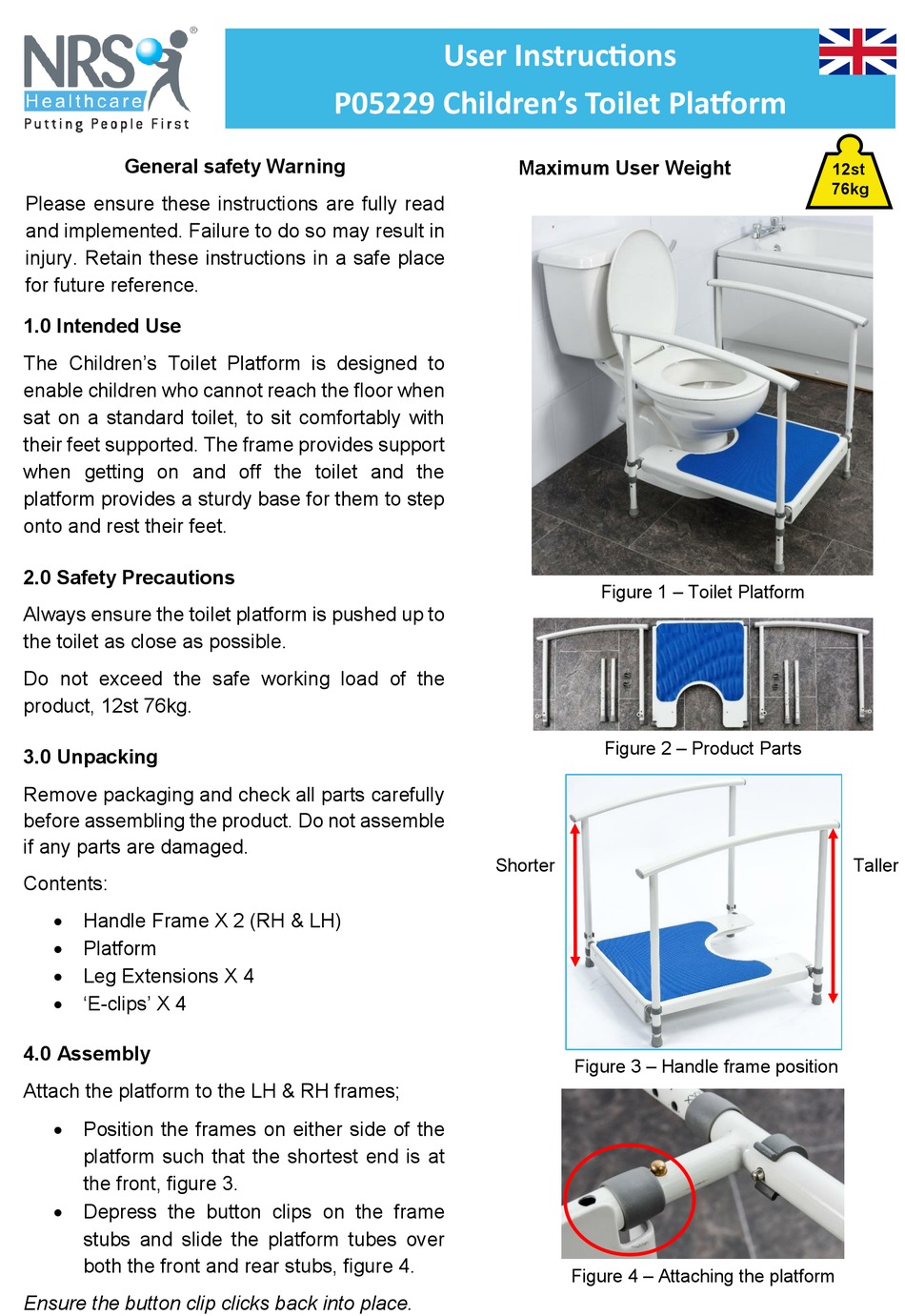

NRS P05229 User Instructions

General safety Warning
Please ensure these instructions are fully read
and implemented. Failure to do so may result in
injury. Retain these instructions in a safe place
for future reference.
1.0 Intended Use
The Children's Toilet Platform is designed to
enable children who cannot reach the floor when
sat on a standard toilet, to sit comfortably with
their feet supported. The frame provides support
when getting on and off the toilet and the
platform provides a sturdy base for them to step
onto and rest their feet.
2.0 Safety Precautions
Always ensure the toilet platform is pushed up to
the toilet as close as possible.
Do not exceed the safe working load of the
product, 12st 76kg.
3.0 Unpacking
Remove packaging and check all parts carefully
before assembling the product. Do not assemble
if any parts are damaged.
Contents:
 Handle Frame X 2 (RH & LH)
 Platform
 Leg Extensions X 4
 'E-clips' X 4
4.0 Assembly
Attach the platform to the LH & RH frames;
 Position the frames on either side of the
platform such that the shortest end is at
the front, figure 3.
 Depress the button clips on the frame
stubs and slide the platform tubes over
both the front and rear stubs, figure 4.
Ensure the button clip clicks back into place.
User Instructions
P05229 Children's Toilet Platform
Shorter
Maximum User Weight
Figure 1 – Toilet Platform
Figure 2 – Product Parts
Figure 3 – Handle frame position
Figure 4 – Attaching the platform
12st
76kg
Taller
