NRS Mowbray Lite User Instructions

User
Instructions
Mowbray Lite Toilet Frame
M66613 - Mowbray Lite - Width Adjustable - Flat Pack
M66625 - Mowbray Lite - Fixed Width Assembled
M92740 - Mowbray Lite 510 - Fixed Width Assembled

General Safety Warning

Please ensure these instructions are fully read
and understood before installation/ use. Retain
these instructions in a safe place for future
reference.

Intended Purpose

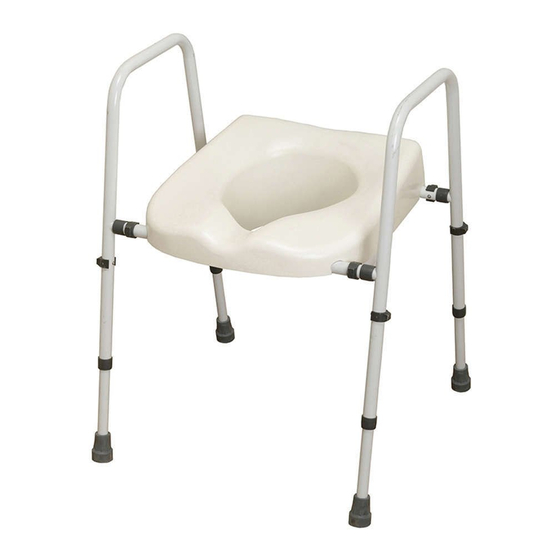

The Mowbray Lite toilet frame and seat range is
designed to assist those who have difficulty in
lowering onto or rising from a standard toilet. The
plastic moulded seat offers support in a natural
position and the frame is height and width* adjustable.
(*Only available with M66613 – Mowbray Lite Flat
Pack)

Unpacking

·
Remove all items from the packaging.
·
Check all component parts are present (see
contents list overleaf)
·
Check for any sign of damage.
·
If you see any damage, or suspect a fault, do not
assemble the product; contact your supplier
immediately.
Contents M66613 Flat Pack
Description
Toilet seat
Frame Side LH
Frame Side RH
Frame Centre bar
Leg assembly
E-clips
Note: M66625 & M92740 are delivered
assembled.

Safety Precautions

Please ensure the user does not exceed the
maximum user weight 190kg (30 stones).
Seat Range
&

Fitting Instructions

1 - Mowbray Lite Flat Pack only: Assemble the
Qty.
frame sides to the centre bars, slide until the
1
desired width is achieved, align the holes and
secure using the four E clips provided. Please
1
ensure the equivalent holes are used on each
1
side of the frame to ensure it remains square.
2
2 - All Models: Remove the moulded seat from its
4
polythene bag and snap into place on the centre
8
bars of the frame.
3 - Ensure the seat is firmly in place and secure at
both back and front.
4 - Adjust to the required height by removing each
'E' clip in turn.
5 - Slide each leg up or down to the required
height. Align the holes in and replace 'E' clip.
Maximum
User
Weight
