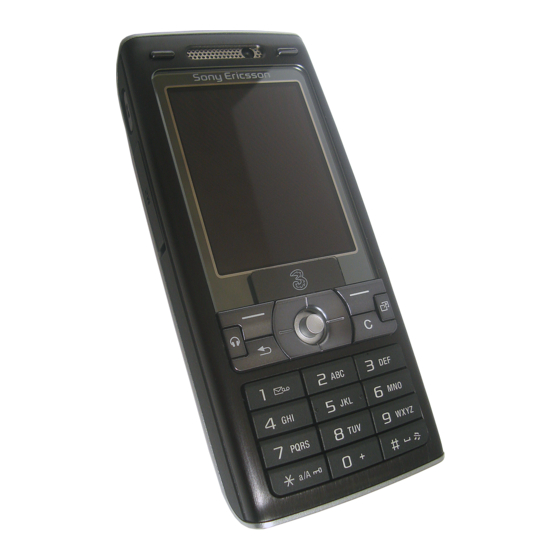

Sony Ericsson K800i disassembly

Tools required: Torx 6 screwdriver, Size 0 Phillips screwdriver

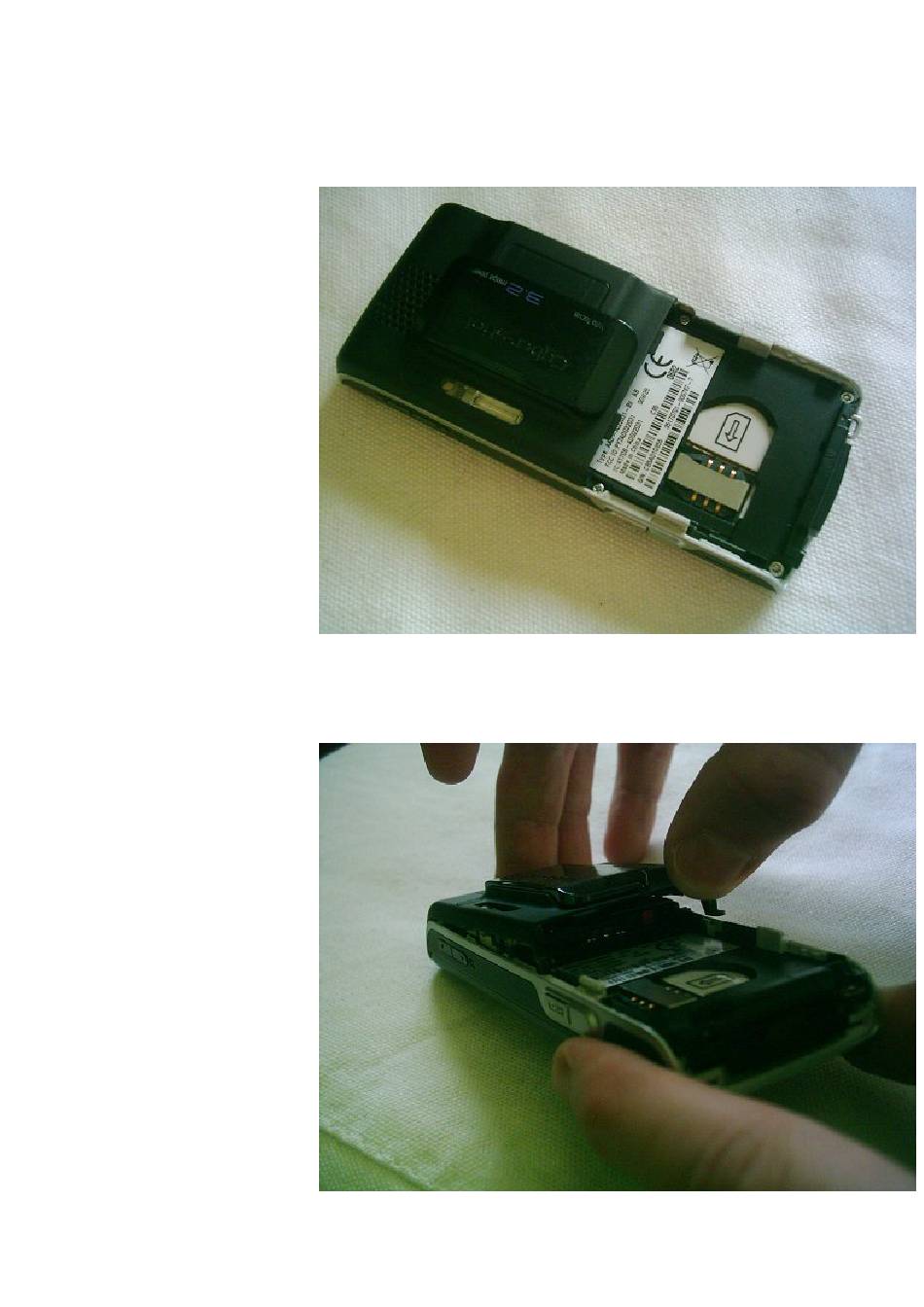

Remove the two

screws at the bottom of

the phone with the torx

6 screwdriver. Remove

the other two screws

with the Phillips

screwdriver

Lift the antenna cover

away from the phone. It

unclips at the top of the

phone and needs a

little force to remove

Need help?

Do you have a question about the K800i and is the answer not in the manual?

Page 1 Sony Ericsson K800i disassembly Tools required: Torx 6 screwdriver, Size 0 Phillips screwdriver Remove the two screws at the bottom of the phone with the torx 6 screwdriver. Remove the other two screws with the Phillips screwdriver Lift the antenna cover away from the phone.
Page 2 Remove the two torx 6 screws at the top of the phone which are revealed after removing the antenna cover Pull the front cover away at each side so that it releases...
Page 3 The phone will now be in two parts, as below Wiggle and pull the keypad assembly up, away from the phone and it will pop off...
Page 4 The screen assembly is held on by two clips at each side of the phone, indicated below. Unclip them to remove the screen assembly Unclip the ribbon which hold the screen assembly to the circuit board of the phone. It attaches like a plug and socket...
