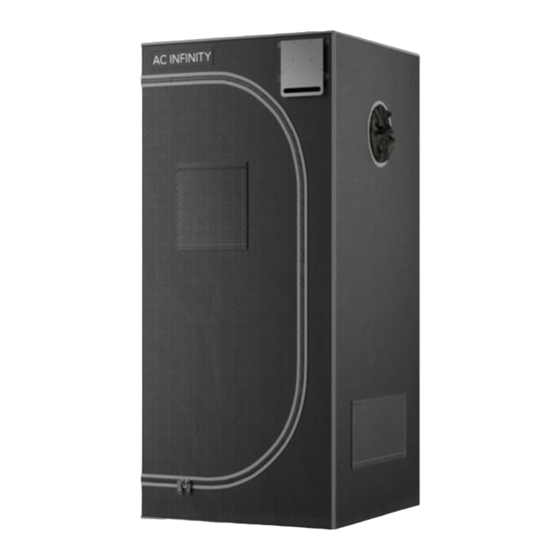

AC Infinity CLOUDLAB Series User Manual

Advance grow tent
Hide thumbs Also See for CLOUDLAB Series:
Table of Contents

Advertisement

Quick Links

CLOUDLAB SERIES
ADVANCE GROW TENT
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CLOUDLAB Series and is the answer not in the manual?

Questions and answers

Related Manuals for AC Infinity CLOUDLAB Series

Summary of Contents for AC Infinity CLOUDLAB Series

  • Page 1 CLOUDLAB SERIES ADVANCE GROW TENT USER MANUAL...
  • Page 3 WELCOME Thank you for choosing AC Infinity. We are committed to product quality and friendly customer service. If you have any questions or suggestions, please don’t hesitate to contact us. Visit www.acinfinity. and click contact for our contact information. EMAIL LOCATION support@acinfinity.com...
  • Page 4 MANUAL CODE CL2107X1 PRODUCT MODEL UPC-A CLOUDLAB 422 AC-CBA422 819137021532 CLOUDLAB 632 AC-CBA632 819137021556 CLOUDLAB 642 AC-CBA642 819137021549 CLOUDLAB 733 AC-CBA733 819137021563 CLOUDLAB 722 AC-CBA722 819137022102 CLOUDLAB 844 AC-CBA844 819137021570 CLOUDLAB 866 AC-CBA866 819137021587 CLOUDLAB 816 AC-CBA816 819137021884 CLOUDLAB 811 AC-CBA811 819137021877 CLOUDLAB 899...

  • Page 5: Table Of Contents

    Controller Plate Set Up ..............Page 27 Mounting Guide ................Page 29 Ventilation Guide ................Page 30 Configuration Setup ..............Page 31 AC Infinity Grow System ............... Page 32 Other AC Infinity Products ............. Page 33 Warranty ..................Page 34...

  • Page 6: Key Features

    KEY FEATURES HIGH-DENSITY CANVAS Mylar canvas with 2000D density rating to be 100% external lightproof. Diamond-patterned interior lining amplifies reflectivity. VIEWING WINDOW Clear and adjustable window offers you a snapshot of the interior without compromising your environment. DUCTWORK ACCESS Double cinching ports secure your flexible ducting tubes on both sides of the tent to streamline airflow routing.

  • Page 7: Product Contents

    PRODUCT CONTENTS Canvas CLOUDLAB Controller Spill Filter Controller Controller Velcro Mylar Drying Tent SERIES Plate Tray Straps Velcro Screws Ties Wall Rack CLOUDLAB 422 CLOUDLAB 632 CLOUDLAB 642 CLOUDLAB 722 CLOUDLAB 733 CLOUDLAB 844 CLOUDLAB 866 CLOUDLAB 816 CLOUDLAB 811 CLOUDLAB 899 CLOUDLAB 894 CLOUDLAB 632D...
  • Page 8 PRODUCT CONTENTS CLOUDLAB SERIES Included only with CLOUDLAB 422 AC-CBA422 CLOUDLAB 722 AC-CBA722 PAGE 10-14, 27-29 For Setup Instructions FRAME POLES CLOUDLAB SERIES Included only with CLOUDLAB 632 AC-CBA632 PAGE 10-14, 27-29 For Setup Instructions FRAME POLES CLOUDLAB SERIES Included only with...
  • Page 9 PRODUCT CONTENTS CLOUDLAB SERIES Included only with CLOUDLAB 899 AC-CBA899 CLOUDLAB 811 AC-CBA811 PAGE 19-22, 27-29 For Setup Instructions FRAME POLES CLOUDLAB SERIES Included only with CLOUDLAB 894 AC-CBA894 CLOUDLAB 816 AC-CBA816 PAGE 15-18, 27-29 For Setup Instructions FRAME POLES...

  • Page 10: Tent Setup

    TENT SETUP CLOUDLAB 422 / 632 / 642 / 722 / 733 / 844 / 866 STEP 1 Insert the eight (A) poles and into the floor end of the corner (D1) pieces to create two bases. A / A1 When assembling, make sure the feet of each corner (D1) piece faces the floor with the arrow facing down.
  • Page 11 TENT SETUP CLOUDLAB 422 / 632 / 642 / 722 / 733 / 844 / 866 STEP 3 Door Unzip the tent so that three of the walls lay flat. Roof Floor STEP 4 Guide Base One into the floor of the tent, making sure its corners meet the tent’s corners.
  • Page 12 TENT SETUP CLOUDLAB 422 / 632 / 642 / 722 / 733 / 844 / 866 STEP 5 Insert the poles of Base Two into the poles of Base One to complete the frame. Base Two Base One *Two people is recommended for this portion of the tent assembly. STEP 6 Pull the roof over the assembled frame.
  • Page 13 TENT SETUP CLOUDLAB 422 / 632 / 642 / 722 / 733 / 844 / 866 STEP 7 Pull the upper and lower zippers to close the walls and door. *CLOUDLAB 733 / 844 / 866 has additional side door for ease of access. STEP 8 You can neatly hold the window wall open any time by using its attached Velcro strap.
  • Page 14 TENT SETUP CLOUDLAB 422 / 632 / 642 / 722 / 733 / 844 / 866 STEP 9 Add the roof support beams (E) then (F). Insert the spill pool into the tent and secure the Velcro straps around the poles. CLOUDLAB 422,722, 632 CLOUDLAB 733 CLOUDLAB 844, 866...
  • Page 15 TENT SETUP CLOUDLAB 816 / 894 STEP 1 Insert six (A) poles into the floor end of the corner (D1) pieces and 3-way (D2) connectors to create the base. Insert the six (B) poles into the corner (D1) pieces and the two 3-way (D2) connectors. When assembling, make sure the feet of each corner (D1) piece faces the floor with the arrow facing down.
  • Page 16 TENT SETUP CLOUDLAB 816 / 894 STEP 3 Insert four corner (D1) pieces into the corner (C) poles and the two 4-way (D3) connectors into the middle (C) poles. Insert six (A) poles in between the corner (D1) pieces and 4-way (D3) connectors. STEP 4 Unzip the tent so that it lays flat.
  • Page 17 TENT SETUP CLOUDLAB 816 / 894 STEP 5 Guide the completed frame into the floor of the tent, making sure its corners meet the tent’s corners. Floor *Two people is recommended for this portion of the tent assembly. STEP 6 Pull the roof over the assembled frame.
  • Page 18 TENT SETUP CLOUDLAB 816 / 894 STEP 7 Latch both walls together in the center and pull the zipper down, making sure the front flaps are over the walls. STEP 8 Add the roof support beams (E) then (F). Insert the spill pool into the tent and secure the Velcro straps around the poles.
  • Page 19 TENT SETUP CLOUDLAB 811 / 899 STEP 1 Insert ten (A) poles into the floor end of the corner (D1) pieces, 3-way (D2) connectors, and 4-way (D3) connectors to create the base. Two of the ten (A) poles will be set in the center, attached by a third 3-way (D2) connector.
  • Page 20 TENT SETUP CLOUDLAB 811 / 899 STEP 3 Insert four corner (D1) pieces into the corner (C) poles, four 4-way (D3) connectors into the middle (C) poles, and the 5-way (D4) connector into the center (C) pole. Insert twelve Group (A) poles in between the corner (D1) pieces and 4-way (D3) connectors.
  • Page 21 TENT SETUP CLOUDLAB 811 / 899 STEP 5 Guide the completed frame into the floor of the tent, making sure its corners meet the tent’s corners. Floor *Two people is recommended for this portion of the tent assembly. STEP 6 Pull the roof over the assembled frame.
  • Page 22 TENT SETUP CLOUDLAB 811 / 899 STEP 7 Latch both walls together in the center and pull the zipper down, making sure the front flaps are over the walls. STEP 8 Add the roof support beams (E) then (F). Insert the spill pool into the tent and secure the Velcro straps around the poles.
  • Page 23 TENT SETUP CLOUDLAB 632D / 743D / 864D STEP 1 Insert four (A2/A) poles in between two corner (D1) pieces and two 4-way (D3) A1/A A1/A connectors. Then insert two (C) poles to the two 4-way (D3) connectors. A1/A A1/A A1/A Insert an (A2/A) pole to two corner (D1) A1/A...
  • Page 24 TENT SETUP CLOUDLAB 632D / 743D / 864D STEP 3 Insert the remaining four corner (D1) pieces and two 4-way (D3) connectors into the poles. A2/A Insert the remaining (A2/A) poles in between the connectors as shown here. A2/A A2/A STEP 4 Add a rack (G) support beam onto the shelf.
  • Page 25 TENT SETUP CLOUDLAB 632D / 743D / 864D STEP 5 Guide the completed frame through the tent canvas, pulling the tent floor and the ceiling a little at a time so that the canvas properly envelops the frame. STEP 6 Locate the Velcro strip that lines the tent interior, making sure it extends out enough to fully apply the mylar wall.
  • Page 26 TENT SETUP CLOUDLAB 632D / 743D / 864D STEP 7 Apply the mylar wall using the interior Velcro to divide the two chambers. Press the wall firmly to avoid gaps. STEP 8 Add the roof support beams (G), (E) then (F).

  • Page 27: Controller Plate Setup

    Mount your controller onto the included bracket. Use the included screws to mount an AC Infinity controller. Use the Velcro adhesive to attach a non-AC Infinity controller. Refer to page 29 for mounting instructions of your controller. Controller Not Included...
  • Page 28 CONTROLLER PLATE SETUP STEP 3 Route your inline duct fan’s power connector through the opening inside and plug it into your controller. Plug the probe into the controller and route its cables through the opening.

  • Page 29: Mounting Guide

    MOUNTING GUIDE CONTROLLER PLATE This grow tent includes a steel plate with a mounting slot for AC Infinity controllers. Mount your con- troller to the corresponding areas on the plate’s slot. Route its wires through the oval opening and through the grow tent’s flap. Some controller models may contain a hidden magnet on the backside, which can stick onto this plate without screws.

  • Page 30: Ventilation Guide

    VENTILATION GUIDE INLINE FAN AND GROW LIGHT First hang your inline duct fan to be use as an exhaust fan by the roof support beams. Position the intake fan at the bottom end so the intake air will be passive through the bottom vents. If you are installing a carbon filter inside, use the included straps to hang the carbon filter.

  • Page 31: Configuration Setup

    CONFIGURATION SETUP LIGHT AND VENTILATION PLACEMENT There are many ways to configure these components to bring airflow into your grow space. A typical setup places the fan and the filter inside, which makes it easier to manage while dampening the fan noise.

  • Page 32: Ac Infinity Grow System

    Advance UIS™ controllers can provide each connected UIS™ device with their own automated programming like temperature, humidity, cycles, schedules, and dynamic levels, while also pairing with the AC Infinity app. UNIVERSAL INFINITY SYSTEM Central controllers and grow devices will be sold separately and may still be in development at the...

  • Page 33: Other Ac Infinity Products

    AC INFINITY PRODUCTS Inline Duct Fans The CLOUDLINE series is a line of duct fans designed to quietly ventilate AV rooms and closets, as well as various DIY air circulation and exhaust projects. Features a thermal controller with intelligent programming that will automatically adjust duct fan speeds in response to changing temperatures.

  • Page 34: Warranty

    WARRANTY This warranty program is our commitment to you, the product sold by AC Infinity will be free from defects in manufacturing for a period of two years from the date of purchase. If a product is found to have a defect in material or workmanship, we will take the appropriate actions defined in this warranty to resolve any issues.
  • Page 36 www.acinfinity.com...
