Summary of Contents for Metsys ML360
- Page 2 CONTENTS Introduction Operation Trouble Shooting Product Specifications Product Inclusions Warranty LS1 Operations Contact Social Media ON THE COVER Metsys ML360 / ML360G Lasers.

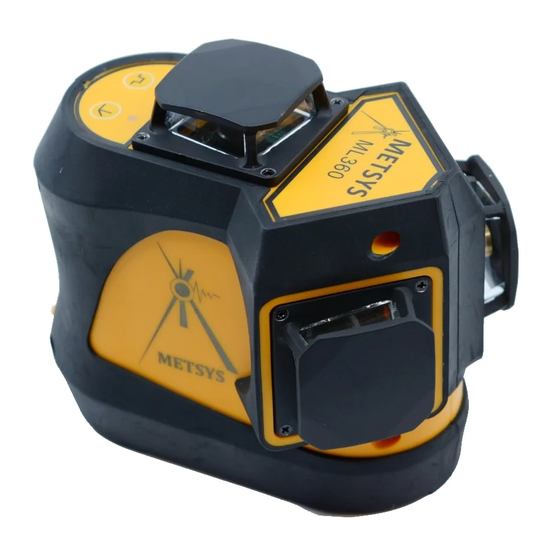

- Page 3 The ML360 series, generates continuous 360 degree planes of laser light. A horizontal plane is ideal for ceiling and height-transfer applications, whilst two vertical planes that are 90 degrees apart provide all the reference needed for all indoor tasks. High quality laser beams ensure the visibility. Green LD withstands the hot/ cold environment at any job sites.
- Page 4 When the unit is not in use, the pendulum should always be in the Off position Locking the pendulum allows the Laser unit to better withstand vibration and trauma incurred during transportation or in the case the unit is dropped. To use the laser under leveling mode, Users should push the main switch button to the Unlock position and the horizontal plane will be activated.
- Page 5 FEATURE SPEC'S ± ± . ° / " & / " ℃ ℃ ℃ ℃ ......I 03...
- Page 6 1x ML360/360G Laser tool 1x Magnetic ceiling bracket Clamp for drywall application 1x Magnetic laser Target Visibility enhancement glasses Injection carry case 1x Charger Optional Extras LS1 detector Fine adjustment base 1.5m Tripod 04 I...
- Page 7 Switch the LS1 (detector / receiver) on by pressing the power button, the speaker will beep indicating the instrument is operating. Move the receiver / detector into the path of the laser beam. Hold the Detector upright for horizontal beams , rotate the receiver / detector 90 degrees for vertical beams.
- Page 8 BAYSWATER NORTH, VICTORIA 3153 03 9 7 2 0 6 222 P H O N E : support@metsys.com.au E M A I L : P R O D U C T D E S I G N E R Justin Davis P U R C H A S E O N L I N E www.lightwavetechnology.com.au...
