Summary of Contents for Metsys ML3

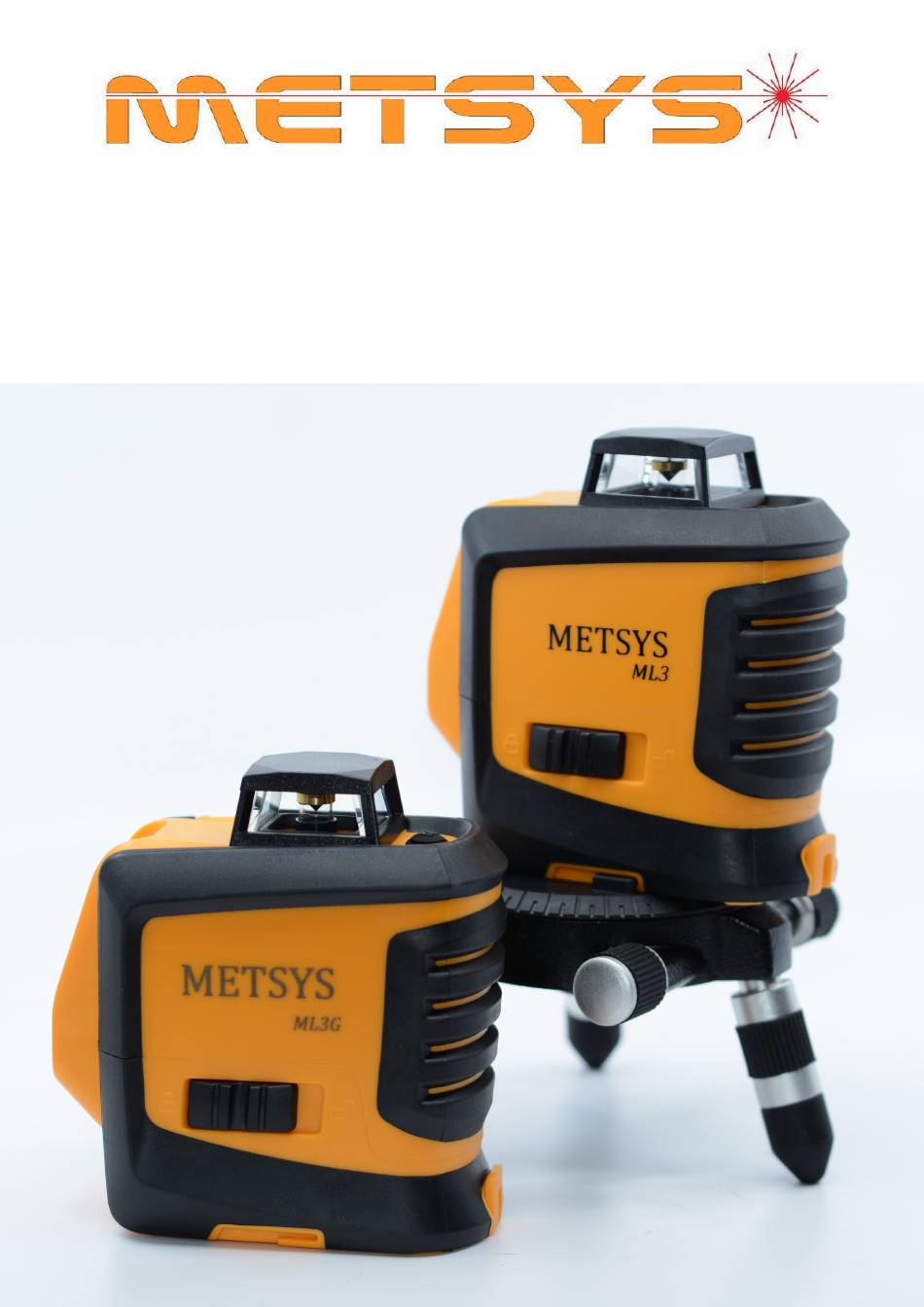

- Page 2 CONTENTS Introduction Features Product Specifications Safety instructions Maintenance and Care Battery Safety Operation Self leveling Manual Mode Pulse Mode Receiver Operation Product Inclusions Warranty Contact Social Media ON THE COVER Metsys Laser.
- Page 3 The Metsys ML3 / ML3G is part of the line laser range, with a lock switch on the side of the unit to avoid any pendulum damage when transporting the unit as well as it being a on and off switch making the unit easy to use and operate.
- Page 4 FEATURE ML3G ± ± ± ± ± . ± . ± . ° ± . ° ° ~ ° ° ~ ° ° ~ ° ° ~ ° / " - / " - Note: 02 I...
- Page 5 Please read thoroughly and comply with the Safety Instructions and User Manual before using this product. Failure to read and follow may void the warranty. WARNING! : ≤ ATTENTION: Read all instructions prior to operating this laser tool. Do not remove any labels from tool.
- Page 6 • When not in use please power OFF the tool and place the pendulum lock in its locked position. • In Manual Mode, self-leveling is OFF. The accuracy of the beam is not ensured to be level. • The laser tool is sealed and calibrated at the plant to the accuracy specified.
- Page 7 Turn ON the laser tool: • Method 1: Slide the side switch to the Unlocked Position, turn on horizontal line and self-leveling mode in default. • Method 2: When the side switch is in the Locked Position, press button and hold for ≥ 2 seconds to turn on the laser tool. Turn on horizontal line and manual mode in default.
- Page 8 • is enabled when the laser tool is switched to the unlocked position. • has laser plumb blink fast when tool is out of self-leveling range (±3.5°). Note: • Slide the side switch to the Locked Position, then press button and hold for ≥...
- Page 9 Switch the LS1 (detector / receiver) on by pressing the power button, the speaker will beep indicating the instrument is operating. Move the receiver / detector into the path of the laser beam. Hold the Detector upright for horizontal beams , rotate the receiver / detector 90 degrees for vertical beams.
- Page 10 The Metsys ML3 (Red Beam) The Metsys ML3G (Green Beam) Package Contains: Package Contains: 1 x Line laser 1 x Line laser 1 x Safety Glasses 1 x Safety Glasses 1 x Green Target 1 x Red target 4 x Rechargeable batteries...
- Page 11 BAYSWATER NORTH, VICTORIA 3153 03 9 7 2 0 6 222 P H O N E : support@metsys.com.au E M A I L : P R O D U C T D E S I G N E R Justin Davis P U R C H A S E O N L I N E www.lightwavetechnology.com.au...
