NetBob2 Installation ManualEthernet CNC
Hard- and software development
Interface
Beamicon2 Breakout Board
Interface board for
CNC control up to
6 axes via Ethernet
Installation manual
Version 1

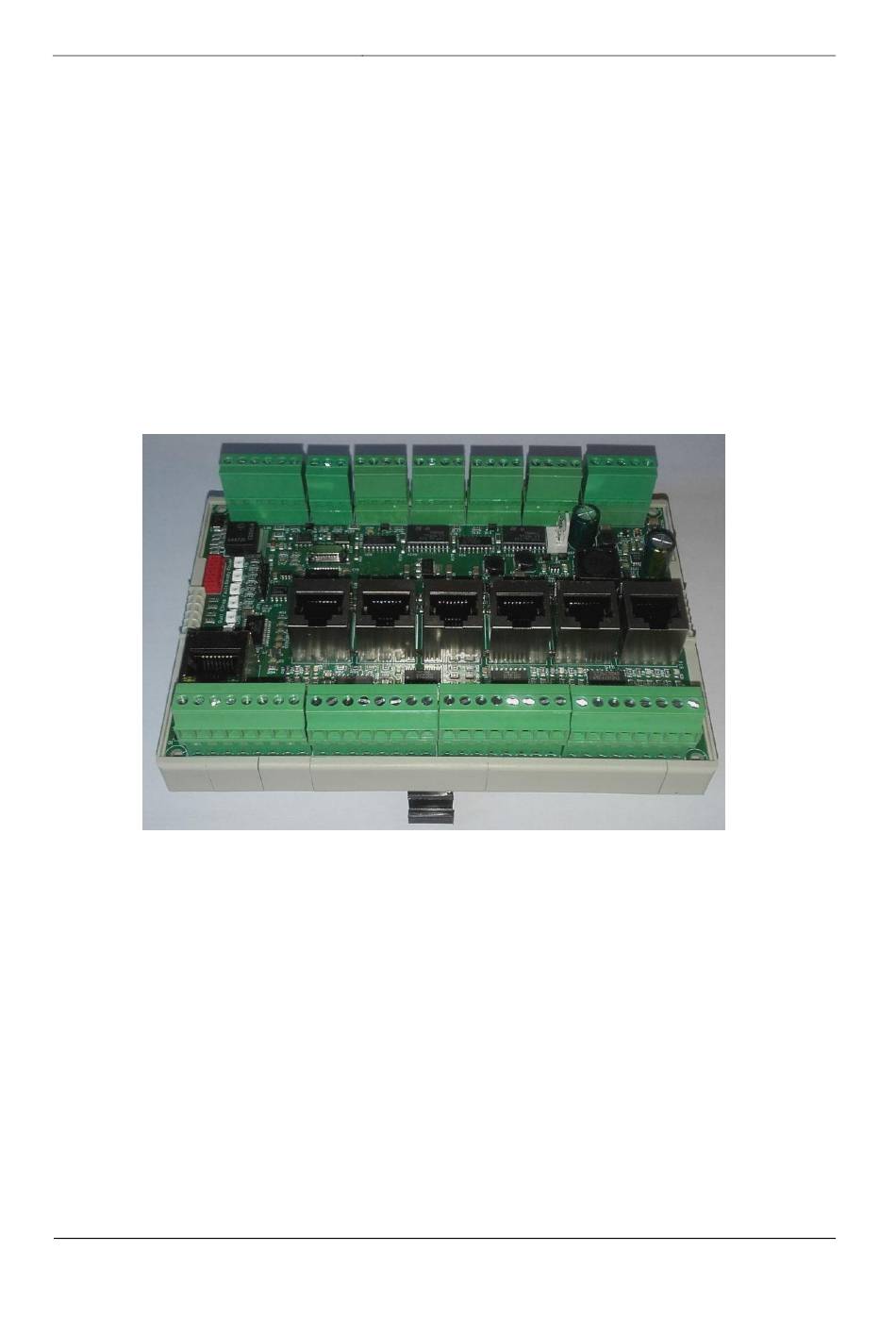

Brief product description
The interface board allows the operation of up to six stepper motor or servo output stages with the Beamicon2
CNC software. A normal network connection with RJ45 cable is used for data transfer from the PC. No LPT port
is required, and the well-known limitations of step frequency and timing problems are a thing of the past. The
board can be adjusted to many different configurations. Depending on the selected configuration, additional
functions such as control of a frequency converter or speed controller, reference switches, up to 9 outputs (24V)
and up to 16 inputs (24V) are available.
All signals are galvanically isolated from the PC, so that a maximum of noise immunity is achieved. All
machine-side signals are designed for 24V level, ensuring robustness and compatibility with industrial sensors.
Ready-made connection cables for BEAST stepper motor power amplifiers, UHU-DC servo controllers and
brushless servo systems (SpeedCube and Sanyo-Denki R-series) are available (not included), so that quick and
error-free wiring is possible.
Nicolas Benezan, Stauffenbergstr. 26, 72108 Rottenburg
Page
Phone: +49 (0) 7457/946365 0 benezan-electronics.de
NetBob2-Installation_Englisch (Vereinigte
Staaten).docx 23.09.2020
Advertisement
Related Manuals for Benezan Electronics NetBob2
Summary of Contents for Benezan Electronics NetBob2
- Page 1 Benezan Electronics NetBob2 Installation ManualEthernet CNC Hard- and software development Interface Beamicon2 Breakout Board Interface board for CNC control up to 6 axes via Ethernet Installation manual Version 1 Brief product description The interface board allows the operation of up to six stepper motor or servo output stages with the Beamicon2 CNC software.
- Page 2 Benezan Electronics NetBob2 Installation ManualEthernet CNC Hard- and software development Interface Safety Instructions The interface board may only be installed and put into operation by qualified personnel. Please read the operating instructions carefully and follow all instructions exactly. Improper installation or operation of the device can cause damage to the electronics or the machine and can result in dangers to the health of the operating personnel.
- Page 3 Benezan Electronics NetBob2 Installation ManualEthernet CNC Hard- and software development Interface Additional functions (6-pin terminal X2, top left) Description Ground 0V for output 9 Output 9 (holding brake) Analog output ground 0V Analog output 0..10V Emergency stop switch Input Emergency stop switch +24V...
- Page 4 Benezan Electronics NetBob2 Installation ManualEthernet CNC Hard- and software development Interface Power supply Modbus (5-pole terminal X1, top right) (3-pole terminal X7, top) Description Description 5V output (max. 0.3A) Signal ground Ground 0V Data - 12V output (max. 0.3A) Data + Ground 0V 24V input (15..36V)
- Page 5 Benezan Electronics NetBob2 Installation ManualEthernet CNC Hard- and software development Interface Functional description In contrast to conventional breakout boards with LPT interface, which only pass on the signals from the PC and, if necessary, adjust or amplify the signal levels, the Beamicon2 interface board has a powerful 32-bit processor, which can generate step and direction signals in real time independently of the PC.
- Page 6 Benezan Electronics NetBob2 Installation ManualEthernet CNC Hard- and software development Interface Power supply The breakout board can be supplied with an operating voltage of 15 to 36V DC. It is recommended to use a power supply with 24V and 1A to 10A current carrying capacity.
- Page 7 Use at your own risk - Benezan Electronics declines all responsibility. Some drives support setting the polarity of the ENA and ALM signals using PC software. Nevertheless, their use is not safe enough for personal protection.
- Page 8 The breakout board can also be operated together with industrial servos which support a position control mode with step/direction signals, e.g. the Speedcube controllers from Benezan Electronics or the RS1A series from SanyoDenki. These controllers have a separate connection for motor operating voltage and internal supply or have inputs for safe stop.
- Page 9 Attention: For an unrestricted operation of the breakout board at least software version V1.72 is required. You can find this or a newer version on the download page of Benezan Electronics (benezan- electronics.de/downloads) under "Beamicon2 trial version with latest features".
- Page 10 Benezan Electronics NetBob2 Installation ManualEthernet CNC Hard- and software development Interface only enter the deviations from the standard values. You can also load the default values later by selecting "File - > Import settings" from the menu and clicking "Default parameters".
- Page 11 Benezan Electronics NetBob2 Installation ManualEthernet CNC Hard- and software development Interface Enable 5 Current reduction signal or servo enable for axis no. 5 Enable 6 Current reduction signal or servo enable for axis no. 6 (RJ45 right) Output 1 Output no. 1 (terminal X8.2) Output 2 Output no.
- Page 12 Benezan Electronics NetBob2 Installation ManualEthernet CNC Hard- and software development Interface Technical data Absolute limit values The following parameters must not be exceeded under any circumstances to prevent damage to the device: Parameters min. max. Unit Operating voltage (X1.5) Storage temperature °C...
- Page 13 Benezan Electronics NetBob2 Installation ManualEthernet CNC Hard- and software development Interface Commissioning and troubleshooting If you are using the interface board for the first time, please check the following points again before switching it Are all terminal blocks correctly aligned in the slots? ...
- Page 14 Benezan Electronics NetBob2 Installation ManualEthernet CNC Hard- and software development Interface Troubleshooting The following table gives an overview of the most common errors and the possible causes. Symptom Cause LED "Power" (green top) is a) Power supply (ground at pin 4 of X1, +15 to +36V at pin 5 of X1, not lit right) not connected or wrongly polarized.
