Benezan Electronics
Hard- and software development
Brief product description

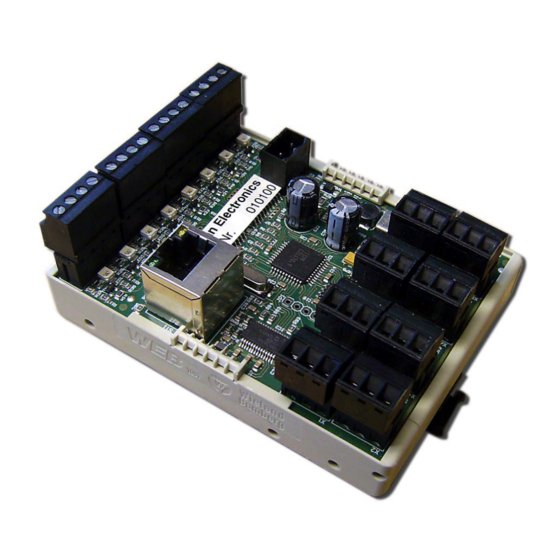

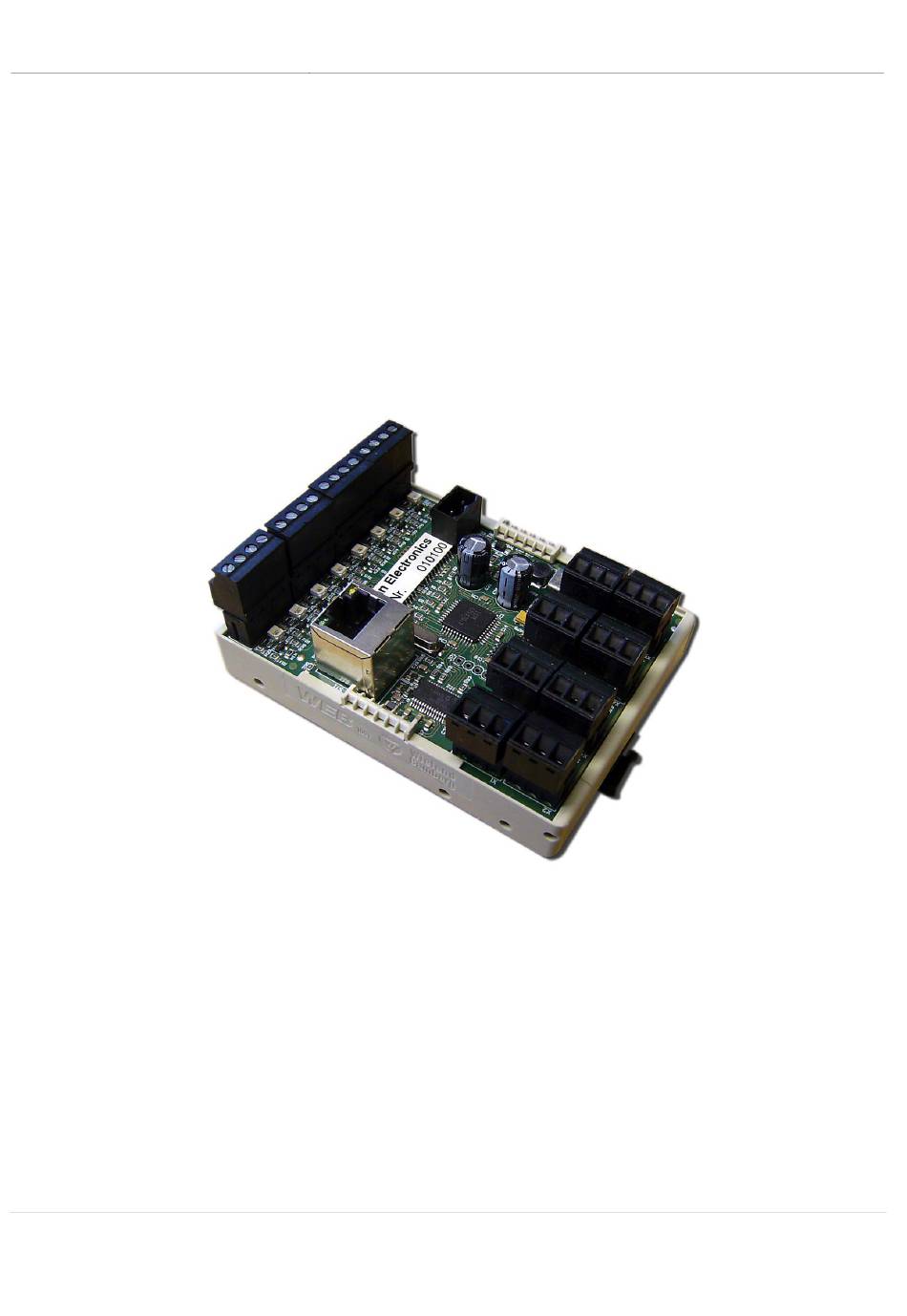

The IO Expansion provides additional digital inputs and outputs for the Beamicon2 CNC control. This means
that the number of available inputs and outputs is not limited to the limited number on the NetBOB or the
CncPod, but can be expanded practically at will.
The module has eight outputs and eight inputs with 24V level. Unused outputs can also be used as inputs, so
that up to 16 inputs are available alternatively. A normal network connection with RJ45 cable is used for data
transfer from the PC. A network switch is required to connect several modules to one PC. All signals are
galvanically isolated from the PC. All outputs and inputs are equipped with filters and protected against short-
circuit and polarity reversal, so that a maximum of interference immunity is achieved.
Nicolas Benezan, Stauffenbergstr. 26, 72108 Rottenburg
Phone: +49 (0) 7457/946365 0 benezan-electronics.de
Beamicon2 IoExt1
Input/output extension for
CNC control with Ethernet interface
Installation manual
Version 1
IoExt installation guide
Io-Ext1-Installation.docx22.09.2020
Page
Advertisement
Table of Contents
Related Manuals for Benezan Electronics Beamicon2 IoExt1
Summary of Contents for Benezan Electronics Beamicon2 IoExt1
- Page 1 Benezan Electronics IoExt installation guide Hard- and software development Beamicon2 IoExt1 Input/output extension for CNC control with Ethernet interface Installation manual Version 1 Brief product description The IO Expansion provides additional digital inputs and outputs for the Beamicon2 CNC control. This means that the number of available inputs and outputs is not limited to the limited number on the NetBOB or the CncPod, but can be expanded practically at will.
-
Page 2: Safety Instructions
Benezan Electronics IoExt installation guide Hard- and software development Safety Instructions The interface board may only be installed and put into operation by qualified personnel. Please read the operating instructions carefully and follow all instructions exactly. Improper installation or operation of the device can cause damage to the electronics or the machine and can result in dangers to the health of the operating personnel. -
Page 3: Pc / Network Connection
Benezan Electronics IoExt installation guide Hard- and software development PC / network connection The data transfer from the PC software to the CncPod is done via an Ethernet network connection (IEEE802.3 10BASE-T). The connection can be made with standard patch cables to the RJ45 socket ST1. - Page 4 Benezan Electronics IoExt installation guide Hard- and software development Configuration The assignment of the inputs and outputs is done in the Beamicon2 software. The installation and operation of the software as well as the adjustment of the machine parameters is described in detail in the Beamicon2 software manuals.
-
Page 5: Technical Data
Benezan Electronics IoExt installation guide Hard- and software development Technical data Absolute limit values The following parameters must not be exceeded under any circumstances to prevent damage to the device: Parameters min. max. Unit Operating voltage Storage temperature °C Operating temperature °C...
