Installation Manual
RADIANT365
AZRA6RADIANT + AZRA6CM1VALC
P d r a o b p il C
u N e g a
r e b m

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RADIANT365 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Airzone RADIANT365

Summary of Contents for Airzone RADIANT365

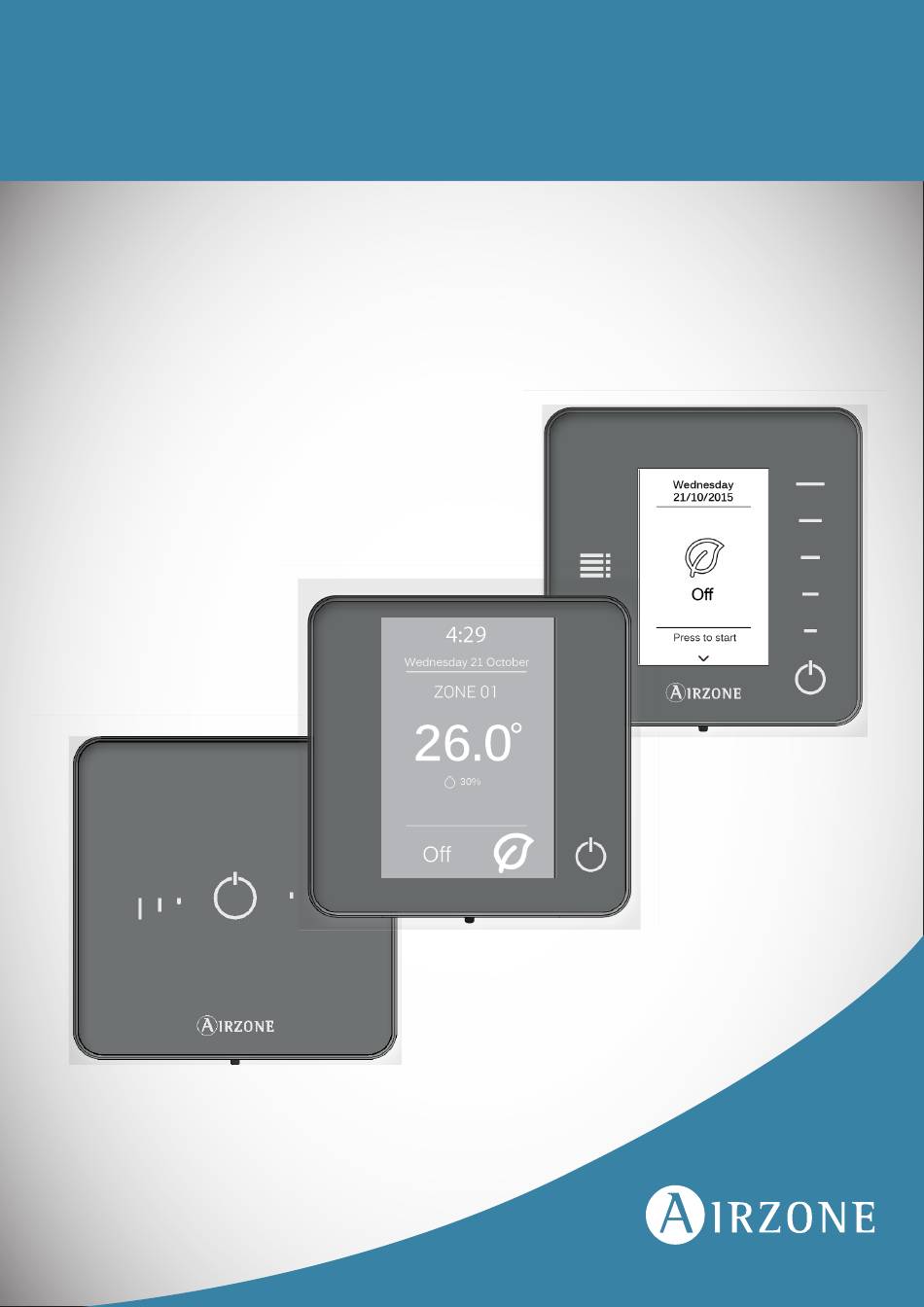

  • Page 1 Installation Manual RADIANT365 AZRA6RADIANT + AZRA6CM1VALC P d r a o b p il C u N e g a r e b m...
  • Page 2 1-8 ZONES (AZRA6RADIANT + AZRA6CM1VALC)

  • Page 3: Table Of Contents

    Airzone 3 speeds/stages dehumidifier control module (AZRA6CMOD3V) ....................16 Assembly ............................................16 Connection ............................................17 AIRZONE RADIANT365 CONTROL MODULE FOR WIRED VALVES 110/230V VALC (AZRA6CM1VALC) ..........17 Assembly ............................................17 Connection ............................................18 AIRZONE WIRED THERMOSTATIC VALVE ACTUATOR 110/230V VALC FOR RADIANT ELEMENTS (AZX6AC1VALC) ....19 Assembly ............................................
  • Page 4 Webserver Airzone cloud Ethernet/wifi WI-FI DUAL 2.4-5G (AZX6WEBSCLOUDC / AZX6WSC5GER) ..........23 Assembly ............................................23 Connection ............................................23 Airzone Supermaster controller (AZX6CSMASTER [S/E] [B/G]) ......................... 24 Assembly ............................................24 Connection ............................................24 Cloud ethernet Airzone production control board (AZX6CCPWSCC) ......................25 Assembly ............................................

  • Page 5: Warnings And Environmental Policy

    WARNINGS AND ENVIRONMENTAL POLICY PRECAUTIONS For your security, and to protect the devices, follow these instructions: • Do not handle the system with wet or damp hands. • Disconnect the power supply before making any connections. • Take care not to cause a short circuit in any of the system connections. ENVIRONMENTAL POLICY Do not dispose of this equipment in the household waste.

  • Page 6: System Elements

    Control module of radiant elements for cooling/heating stages by zone, through the management of wired valve actuators. Communications via the Airzone connection bus of the main control board. External power supply at 110/230 VAC (50/60 Hz). Mounted using DIN rail.

  • Page 7: Airzone Wired Thermostatic Valve Actuator 110/230V Valc For Radiant Elements (Azra6Cm1Valc)

    Visual indication of valve opening/closing by the movement of the central red valve piston. AIRZONE BLUEFACE COLOR THERMOSTAT WIRED (AZRA6BLUEFACEC) Color graphic interface with capacitive screen for controlling zones in Airzone systems. Powered by main control board. Finished in steel and glass. Available in white and black. Functionalities: •...

  • Page 8: Airzone Lite Thermostat Wired/Wireless (Azra6Lite [C/R])

    Room temperature and relative humidity reading. WEBSERVER AIRZONE CLOUD DIN ETHERNET/WIFI (AZX6WSCLOUDDIN [C/R]) Webserver for controlling Airzone systems through Airzone Cloud platform. Accessible through browser or App (available for IOS and Android). Connected to router via Ethernet (AZX6WSCLOUDDINC) or WiFi (AZX6WSCLOUDDINR). Externally power supplied at 110 / 230 Vac.

  • Page 9: Webserver Airzone Cloud Ethernet/Wi-Fi Dual 2.4-5G (Azx6Webscloudc/Azx6Wsc5Ger)

    WEBSERVER AIRZONE CLOUD ETHERNET/WI-FI DUAL 2.4-5G (AZX6WEBSCLOUDC/AZX6WSC5GER) Webserver for controlling Airzone systems through Airzone Cloud platform. Accessible through browser or App (available for IOS and Android). Connected to router via Ethernet (AZX6WEBSCLOUDC) or WiFi (AZX6WSC5GER). Power supplied through Production Control Board (AZX6CCP).

  • Page 10: Cloud Ethernet Airzone Production Control Board (Azx6Ccpwscc)

    • Input for boiler probe. AIRZONE AIR TO WATER HP GATEWAY (AZX6GAW XXX) Communication gateway between Airzone system and Air to water units. Powered through the AC unit bus of the production control board (AZX6CCPWSCC). Features: • Two-way communication of the basic control parameters depending on the demand of the Airzone control system.

  • Page 11: Airzone-Lutron Integration Gateway (Azx6Gtilut)

    • Reading/Writing of the fan speeds. Important: Only available for installations with AZX6CCP. KNX INTEGRATION GATEWAY (AZXKNXGTWAY) Airzone integration gateway of HVAC systems into KNX TP-1 control systems through Modbus. Powered through KNX bus. DIN-rail mounting. Functionalities: • One Airzone system per KNX gateway.

  • Page 12: General Requirements

    • Perform all the connections with total abscense of power suppliance. • In order to connect the elements of the system, use Airzone cable: shielded twisted pair cable formed by 4 wires: 2x0,22 + 2x0,5mm (AWG 20 – 4 wired).

  • Page 13: Introduction

    INTRODUCTION Airzone systems enable the management of Master and Zone interfaces. Master thermostats enable mode management or define the efficiency level with the Eco-Adapt function. It is recommended the use of a Blueface thermostat as Master Interface, this enables time schedule management and more unique functionalities.

  • Page 14: Assembly And Connection

    Domotic bus Airzone connection bus connectors The Airzone connection bus allows you to connect all the internal components independents of the Main Control Board to control up to 8 zones. These are the elements that can be connected: Airzone Thermostats: Blueface (AZRA6BLUEFACEC), Think (AZRA6THINKC) and Lite (AZRA6LITEC).

  • Page 15: Airzone 3 Speeds/Stages Dehumidifier Control Module (Azra6Cmod3V)

    Domotic bus connector The domotic bus allows you to interconnect multiple systems in order to control them through Airzone control peripherals or to integrate them into a superior control network. These are the elements that can be connected: Webserver Cloud DIN (AZX6WSCLOUDDIN [C/R]).

  • Page 16: Connection

    Connection The module is a device which connects to the Airzone connection bus of the main board. Control relay specs: Imax = 10 A at 110/230 Vac, voltage-free. Significado Power supply Airzone connection bus Dehumidifier control relays LED of relays state...

  • Page 17: Connection

    Remember to connect the neutral connector directly from the circuit to the element to be controlled. Operation It has a 5-pin terminal to connect it to the Airzone connection bus of the main board Attach the wires with the terminal screws following the color code.

  • Page 18: Airzone Wired Thermostatic Valve Actuator 110/230V Valc For Radiant Elements (Azx6Ac1Valc)

    (AZX6AC1VALC) Assembly Airzone wired thermostatic valve actuators are mounted on each of the valves of a manifold / heater. Check that the thermostatic valve actuator is compatible with the valve body that you are going to equip (M30 x 1.5).

  • Page 19: Connection

    Connection The Airzone thermostats are connected to the Airzone connection bus of the main board. Attach the wires with the terminal screws following the color code. Important: Use a suitable screwdriver to press in the locking tabs. Note: To connect more than 4 Blueface, it is necessary an external power supply (AZX6POWER). These values can be altered depending on the separation distance among them.

  • Page 20: Webserver Airzone Cloud Din Ethernet/Wifi (Azx6Wsclouddin [C/R])

    Power supply Assembly The Webserver Airzone Cloud Din can be mounted on DIN rail or on wall. This module is externally power supplied at 110/230 Vac. Location and installation of the module must comply the current electronic rules. Note: To take the module away, pull the reed down to release it.

  • Page 21: Connection

    Connection The Webserver Cloud DIN is a device which connects to the domotic bus of the Main Control Board or to the exterior domotic bus 2 of the Production Control Board, AZX6CCP. AZX6WSCLOUDDINC AZX6WSCLOUDDINR It has a 5-pin terminal to connect to the domotic bus of the Main Control Board Attach the wires with the terminal screws following the color code.

  • Page 22: Webserver Airzone Cloud Ethernet/Wifi Wi-Fi Dual 2.4-5G (Azx6Webscloudc / Azx6Wsc5Ger)

    WEBSERVER AIRZONE CLOUD ETHERNET/WIFI WI-FI DUAL 2.4-5G (AZX6WEBSCLOUDC / AZX6WSC5GER) Important: Only available for installations with AZX6CCP. AZX6WEBSCLOUDC Nº Description Ethernet WiFi USB connector and antenna Domotic bus output AZX6WSC5GER Domotic bus input Assembly The Webserver Cloud is integrated into the exterior domotic bus 1 of the Production Control Board, AZX6CCP.

  • Page 23: Airzone Supermaster Controller (Azx6Csmaster [S/E] [B/G])

    Connection The Supermaster controller connects to the domotic bus of the Main Control Board. Important: This device is power supplied by the Airzone connection bus of the Main Control Board. AZX6CSMASTERS For wall-mounted thermostats, use the tabs located on the back of the thermostats.

  • Page 24: Cloud Ethernet Airzone Production Control Board (Azx6Ccpwscc)

    Note: To configure it, follow the steps described in the user's manual, available at myzone.airzone.es/productos Note: For a proper operation of this module, all the main control boards must be addressed (see section Advanced settings).
  • Page 25 Remember: Once all the connections are made, make sure you replace the cover properly. Digital inputs The production control board has 4 digital inputs to externally control the Airzone systems. These inputs are configured as normally open. It is recommended to use a shielded cable to connect it.
  • Page 26 Domotic bus connectors The indoor domotic bus allows you to connect the production control board with the main control board and aerothermal gateways (AZX6GAWxxx). The domotic bus has two terminals which are interconnected so that can be used interchangeably. This system can only be connected by bus. Attach the wires with the terminal screws following the color code.

  • Page 27: Configuration

    The cloud production control board settings are only available in the master Blueface thermostat of the system nº1 (see section Production Parameters). AIRZONE PRODUCTION CONTROL BOARD (AZX6CCP) Assembly The production control board is supplied in a patter that is screwed to Wall for a better fixing.

  • Page 28: Connection

    Connection It connects to the domotic bus of the main control board. Nº Description Power Digital inputs … External domotic bus 2 Internal domotic bus External domotic bus 1 FRIO_Y Cooling mode CALOR_W Heating mode AIRE_Y Cooling air demand Control relays RADIANTE_Y Cooling radiant demand...
  • Page 29 Digital inputs The production control board you have 4 digital inputs to externally control the Airzone systems. These inputs are configured as normally open. It is recommended to use a shielded cable to connect it. ACS: This input activates the DHW mode: all the Acuazone/Innobus Pro32 systems working on Air heat will stop and the message ACS will be displayed by the zone thermostats.
  • Page 30 Communication gateway for electromechanical units (AZDI6MCIFR [C/R]) in Acuazone and Innobus Pro32 systems configured as zoning or combined systems. Airzone infrared individual unit zone module (AZDI6MCIFRC) in Acuazone and Innobus Pro32 systems configured as zoning or combined systems. Airzone individual unit modules (AZDI6MCxxxC) in Acuazone and Innobus Pro32 systems configured as zoning or...

  • Page 31: Airzone Air To Water Hp Gateway (Azx6Gaw Xxx)

    Assembly The Airzone air to water gateway is integrated into the domotic bus of the Cloud Ethernet Production Control Board, (AZX6CCPWSCC). It has a 4-pin terminal. Disconnect the terminal to which you want to connect to the Webserver and fit the...

  • Page 32: Airzone-Lutron Integration Gateway (Azx6Gtilut)

    Domotic Bus Assembly Airzone Lutron gateway is integrated into the domotic bus of the production control board AZX6CCP. It has a 5-pin terminal. Disconnect the terminal to which you want to connect to the gateway and fit the connector. Note: Remove the fixing post from the Webserver to mount the production control board.

  • Page 33: Knx Integration Gateway (Azxknxgtway)

    KNX gateway connects to the AC unit bus of the main board. Description Programming key KNX bus connection Airzone bus connection It has a 5-pin terminal to connect it to the domotic bus of the main board . Attach the wires with the terminal screws following the color code.

  • Page 34: Assembly And Connection Evaluation

    IMPORTANT: not to open more than one radio channel at the same time, it may alter the process. Start the radio channel search, to do so, press Airzone to start the search. The controller will display the different wireless zone modules found, with the signal level of each one of them. Select the wanted module and press “Check”, the selected module will begin to “beep”...
  • Page 35 Blueface Think Important: Use to confirm and to return.

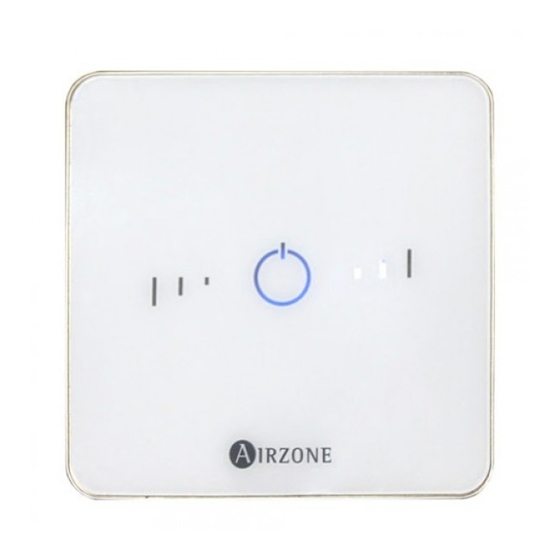

  • Page 36: Airzone Lite Thermostat

    AIRZONE LITE THERMOSTAT Zone address Select the zone associated to the thermostat pulling up the microswitch of the corresponding zone. Associated outputs If required, select other control outputs associated to the zone. The address zone will be the one with a lower value.

  • Page 37: Initial Configuration Evaluation

    INITIAL CONFIGURATION EVALUATION Check the following aspects: AC unit-system communication: Choose any mode (except STOP mode) and switch on the zone to generate demand. Opening-closing of control outputs (Thermostatic valve actuators and Thermostats): Turn on the system and generate demand in all the zones. Then, switch off and on all the zones to verify the associated control outputs are correct. To manage your thermostat, check the user manual.

  • Page 38: System Parameters

    System address. Use this parameter to define the system number in your installation using this parameter. The Supermaster option (available in installations with Airzone production control board, AZX6CCP / AZX6CCPWSCC) allows you to impose the operation mode of the system to the rest of the systems connected to the CCP in a semi-forced way:...

  • Page 39: Producction Parameters

    It is set to Manual by default. SELF-DIAGNOSE AIRZONE BLUEFACE AND THINK THERMOSTATS (AZRA6BLUEFACEC / AZRA6THINK [C/R]) Blueface and Think Thermostats Warnings Thermostat displays all the system warnings on the screensaver. If there is any error, it will be displayed on the screensaver, on the main screen and on “About errors”, in user settings.

  • Page 40: Blueface And Think Thermostats Errors

    Main control board status: Airzone connection bus LEDs are operating properly. Connection: Verify the polarity of the main control board and thermostat connectors. Wiring: Disconnect the terminal from the Airzone connection bus and check that the voltage between the poles (A/-) and (B/-) is about 0.65 Vdc.
  • Page 41 Error 1: Wireless thermostat-Main control board communication error This incident blocks the control of the zone. Check this error is not common to all thermostats. If so, verify the proper operation of the main board. To solve this incident check: Thermostat status: Check the signal range of the thermostat with the main control board through the Information parameter (see section Advanced settings, system settings) or approach the thermostat to the main control board if the thermostat recovers the communication, it is necessary to relocate it as it was out of range.
  • Page 42 Check which Lite thermostat is not working properly. To solve this incident check: Connection: Check the polarity of the main control board and thermostat connectors. Wiring: Disconnect the terminal from the Airzone connection bus and check that the voltage between the poles (A/-) and (B/-) is about 0.65 Vdc.
  • Page 43 Error 12: Main Board-Webserver communication error The system loses the communication with the webserver. Check the connection of the webserver to the Main board domotic bus. AZX6WSCLOUDDIN [C/R] AZX6WEBSCLOUDC/AZX6WSC5GER Check the webserver is properly plugged to the production control board as well as the connection between the production control board AZX6CCP and the system main board.
  • Page 44 This incident blocks the control of the zone. To solve this incident check: Status of the control module of the radiant elements: Correctly powered. Status of the control module of the radiant elements and the main control board: Airzone connection bus LEDs are operating properly.
  • Page 45 Connection: Check the polarity of the connectors of the Main Control Board and the dehumidifier control module Wiring: Disconnect the terminal from the Airzone connection bus and check that the voltage between the poles (A/-) and (B/-) is about 0.65 Vdc.
  • Page 46 Error C-09: Aerothermal Gateway-Production Control Board Communication Error The system loses communication with the Gateway and, therefore, with the aerothermal system. The control of the system will be disabled, enabling the system to work from the manufacturer’s thermostat. To solve this incident check: Verify that the Gateway is properly connected to the unit port of the Production Control Board.

  • Page 47: Airzone Lite Thermostat (Azra6Lite [C/R])

    Main control board status: Airzone connection bus LEDs are operating properly. Connection: Verify the polarity of the main control board and thermostat connectors. Wiring: Disconnect the terminal from the Airzone connection bus and check that the voltage between the poles (A/-) and (B/-) is about 0.65 Vdc.

  • Page 48: Led Status

    See the data sheet to check the status of the LEDs of each device: Airzone Radiant365 Main Control Board (AZRA6RADIANT) Airzone 3 Speeds/Stages Dehumidifier Control Module (AZRA6CMOD3V) Airzone Radiant365 Control Module For Wired Valves 110/230v Valc (AZRA6CM1VALC) Webserver Airzone Cloud (AZX6WSCLOUDDINC, AZX6WSCLOUDDINR...

  • Page 49: Navigation Trees

    NAVIGATION TREES NAVIGATION TREE - BLUEFACE THERMOSTAT...

  • Page 50: Navigation Tree - Think Thermostat

    NAVIGATION TREE - THINK THERMOSTAT...
  • Page 51 94573 Rungis - France Cormano – Milano - Italia Teléfono: +34 900 400 445 Téléphone : +33 184 884 695 Telefono: +39 02 56814756 Fax: +34 902 400 446 Fax : +33 144 042 114 Fax: +39 02 56816158 http://www.myzone.airzone.es http://www.myzone.airzonefrance.fr http://www.myzone.airzoneitalia.it...
