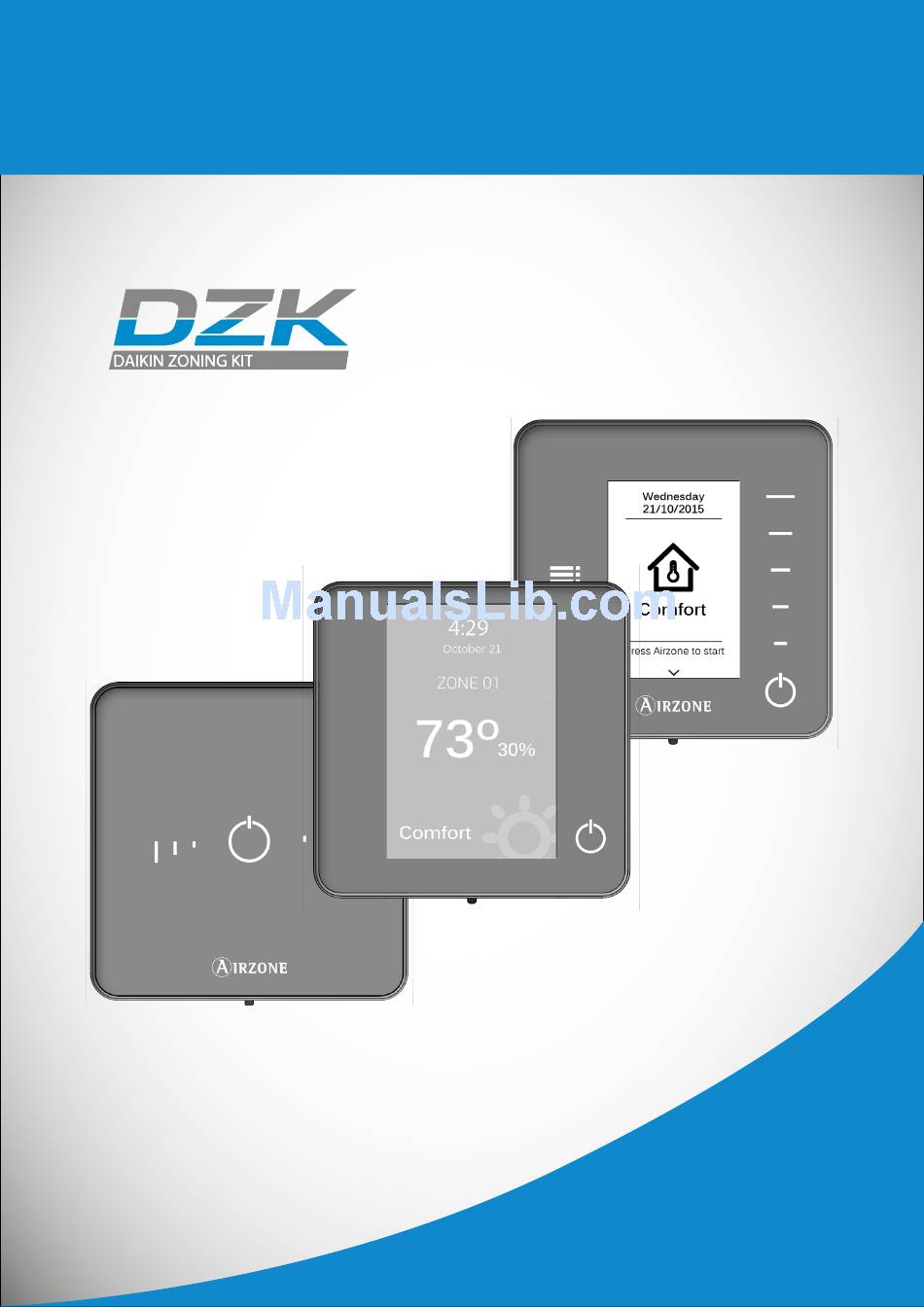

  • Page 1 User´s Manual...
  • Page 2 User’s Manual Rev. 1.00 Date 03-2017...

  • Page 3: Table Of Contents

    User’s Manual Rev. 1.00 Date 03-2017 TABLE OF CONTENTS Warnings and Environmental policy FCC Regulatory Notices DZK Interfaces Wired Thermostat Getting to know your Wired Thermostat Main Screen Display Screensaver Using your Wired Thermostat Adjusting the temperature Operation Mode User Mode...
  • Page 4 User’s Manual Rev. 1.00 Date 03-2017...

  • Page 5: Warnings And Environmental Policy

    User’s Manual Rev. 1.00 Date 03-2017 WARNINGS AND ENVIRONMENTAL POLICY WARNINGS For personal safety and protection of the equipment, use the following safety precautions: • Do not handle the system with wet or damp hands. • Disconnect the power supply before making any connections. •...

  • Page 6: Fcc Regulatory Notices

    User’s Manual Rev. 1.00 Date 03-2017 FCC REGULATORY NOTICES Modification statement Corporación Empresarial Altra S.L. has not approved any changes or modifications to this device by the user. Any changes or modifications could void the user’s authority to operate the equipment. Interference statement This device complies with Part 15 of the FCC Rules.

  • Page 7: Dzk Interfaces

    Rev. 1.00 Date 03-2017 DZK INTERFACES DZK thermostats control the air conditioning and boost the energy efficiency of your AC unit. Both the main and zone thermostats can be easily configured. From your main thermostat you can select the available operation modes or define the energy efficiency (profile).

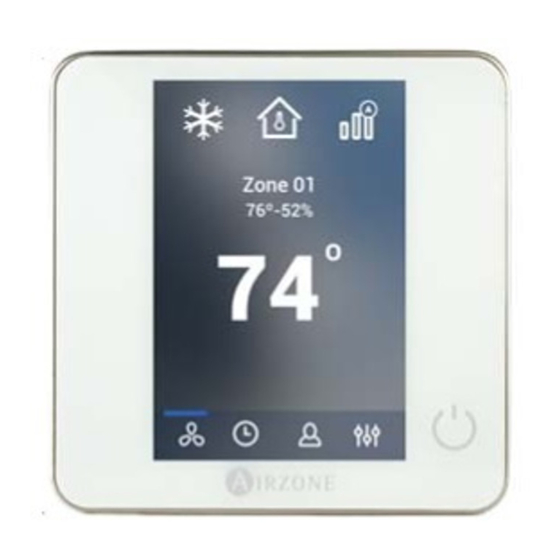

  • Page 8: Wired Thermostat

    User’s Manual Rev. 1.00 Date 03-2017 WIRED THERMOSTAT GETTING TO KNOW YOUR WIRED THERMOSTAT MAIN SCREEN DISPLAY The Main Screen options for the Wired Thermostat are: Airflow control Operation mode User Mode Current Room Current zone/ Zone Temperature/ navigation menu Relative humidity Current Set point Zone demand...

  • Page 9: Screensaver

    User’s Manual Rev. 1.00 Date 03-2017 Zone Demand. This icon will be displayed if the zone is actively cooling or heating the space. Local Ventilation. This option allows activation or deactivation of the fan mode in the selected zone when the system is no longer actively cooling or heating To change Local the zones.

  • Page 10: Using Your Wired Thermostat

    User’s Manual Rev. 1.00 Date 03-2017 USING YOUR WIRED THERMOSTAT Adjusting the temperature On/Off. Press to switch On/Off the zone. 72º Temperature Control. The temperature displayed on the screen is the current set point temperature. You can easily adjust the set point on your wired Thermostat.

  • Page 11: User Mode

    It may cause the This option allows activation or deactivation of the ventilation in Stop user mode to turn off the selected zone when the system is not actively cooling or heating any of the rest of the DZK zoning box. the zones.

  • Page 12: Time Schedule

    User’s Manual Rev. 1.00 Date 03-2017 TIME SCHEDULE If you press the time schedule icon, you will access the menu where you can schedule your air conditioning: Create schedule Days Preset Schedules Two options available: 1. Preset schedules. Preset schedules are deactivated by default and they apply to all the zones, everyday.

  • Page 13: Zone Navigation

    User’s Manual Rev. 1.00 Date 03-2017 To configure the schedule, press the desired schedule to access the edit setting and then press the parameters to modify. Press and hold on any schedule, to see all the available settings: Edit: Change the name of a schedule. Edit names Press and hold on the name Delete: Deletes an existing schedule (Not available for preset schedules).

  • Page 14: Zone Settings

    User’s Manual Rev. 1.00 Date 03-2017 Information. This parameter provides information on: • Zone: firmware, zone, association, actuator or status of the communications. • System: firmware, settings and information about the system controllers. • Devices: It displays the elements connected to the system. •...

  • Page 15: Warnings And Errors

    Interface Board and the system. Error 10. Communication error between the DZK BACnet Interface and the system. Error 11. Communication error between the DZK Interface Board and the Daikin indoor unit. AC Unit error. Note: Refer to the DZK Installation Manual for troubleshooting steps.

  • Page 16: Wireless Thermostat

    Rev. 1.00 Date 03-2017 WIRELESS THERMOSTAT GETTING TO KNOW YOUR WIRELESS THERMOSTAT MAIN SCREEN DISPLAY Press on the Airzone icon to deactivate the screensaver and go to the home screen. The following functions are available: User Mode Operation mode Airflow control...

  • Page 17: Screensaver

    Timer. Automatically switches off the zone after 30, 60 or 90 minutes. On/Off. Turn On and Off the zone where the thermostat is located. Airzone. A button used to confirm, return to home and to switch between the heating set point and cooling set point.

  • Page 18: Using Your Wireless Thermostat

    The available temperature range is: Cool set point temperature • Heating mode: 59º F/15º C – 84º F/29º C. Press Airzone to switch • Cooling mode: 64º F/18º C – 86º F/30º C. between heat set point temperature and cool set If you are using Auto mode, note that there is a minimum difference allowed point temperature.

  • Page 19: About The Battery

    User’s Manual Rev. 1.00 Date 03-2017 About the battery Wireless Thermostats will display a battery alert on their screen when the batteries are low. In order to replace the battery, please remove the thermostat from its back plate and then replace it (CR2450). Important: We recommend the use of top-brand batteries.

  • Page 20: Setting Parameters

    It may cause the Timer. It is an auto power-off timer of the zone. You can select: Stop user mode to turn off the rest of the DZK zoning box. Off. Timer is not activated. 30. Thirty minutes after its activation, the zone will turn off.

  • Page 21: Warnings And Errors

    Interface Board and the system. Error 10. Communication error between the DZK BACnet Interface and the system. Error 11. Communication error between the DZK Interface Board and the Daikin indoor unit. AC Unit error. Note: Refer to the DZK Installation Manual for troubleshooting steps.

  • Page 22: Wireless Lite Thermostat

    User’s Manual Rev. 1.00 Date 03-2017 WIRELESS LITE THERMOSTAT GETTING TO KNOW YOUR WIRELESS LITE THERMOSTAT The Wireless Lite Thermostat provides simple control of the set point temperature of the zone. It can be used to adjust the set point temperature in three increments, up or down, from the base set point set by any Wired thermostat.

  • Page 23: Using Your Wireless Lite Thermostat

    User’s Manual Rev. 1.00 Date 03-2017 USING YOUR WIRELESS LITE THERMOSTAT Adjusting the temperature On/Off. Press on the On/Off button to turn on or off the zone. This button also displays the operation mode. It follows a color code system: Purple: Stop User mode.

  • Page 24: About The Battery

    (CR2450). Important: We recommend the use of top-brand batteries. Using low-quality batteries may reduce the duration of use. WARNINGS AND ERRORS Errors On/Off icon flashing red quickly. Loss of communication with the DZK Control Board.

  • Page 25: Navigation Guides

    User’s Manual Rev. 1.00 Date 03-2017 NAVIGATION GUIDES WIRED THERMOSTAT...

  • Page 26: Wireless Thermostat

    User’s Manual Rev. 1.00 Date 03-2017 WIRELESS THERMOSTAT...
  • Page 27 User’s Manual Rev. 1.00 Date 03-2017...
  • Page 28 User’s Manual Rev. 1.00 Date 03-2017 Phone: (855) 770-5678 http://www.daikinac.com...
