Monitoring
Monitoring Software −
continued

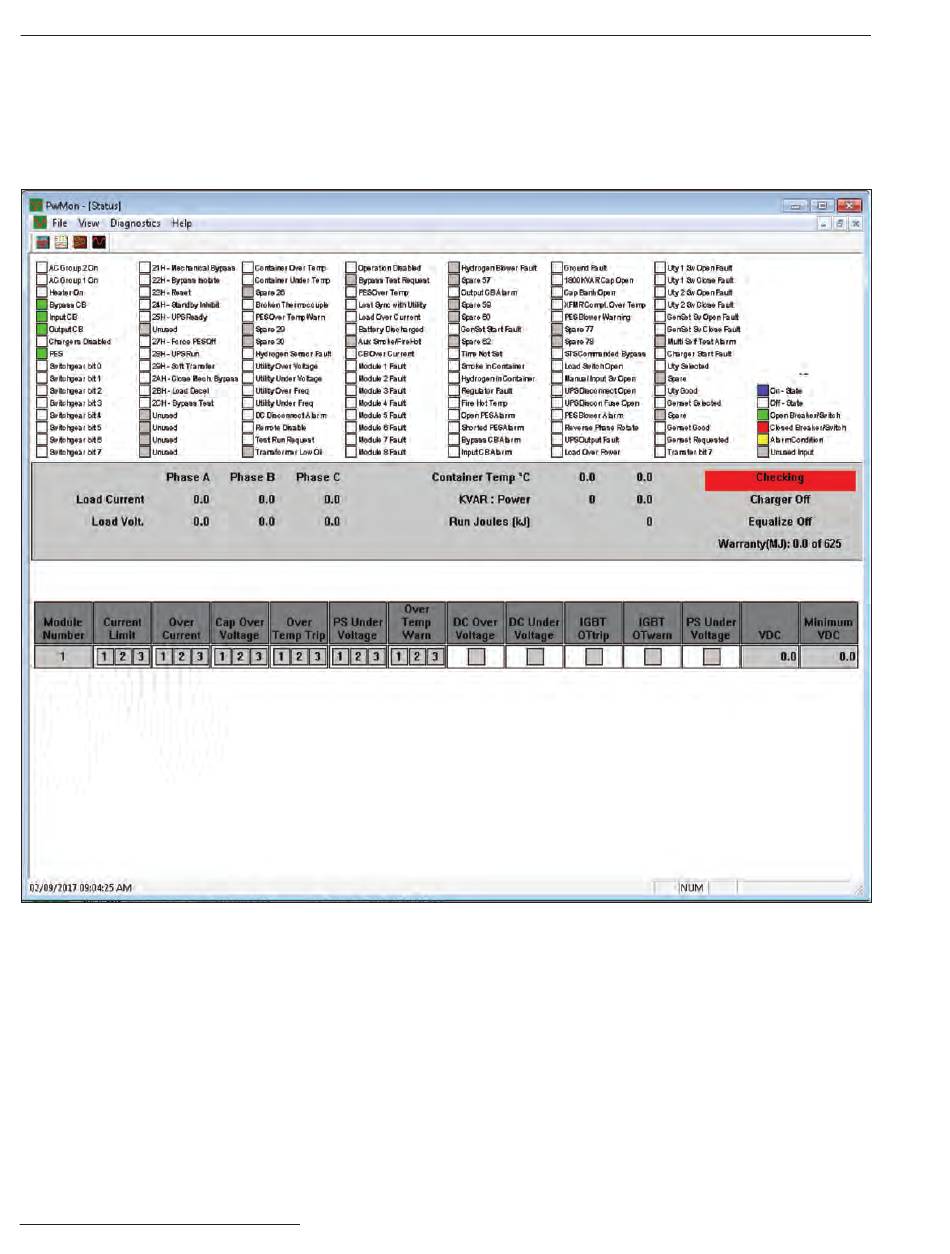

Figure 19. Status screen.
36
S&C Instruction Sheet 653-502
Status Screen
The Status screen shows all the alarms for the PureWave UPS System and displays the
active alarms using color indicators. In addition, the screen shows the current, voltage,
and other parameters of the system as displayed in Figure 19.
