Monitoring Software

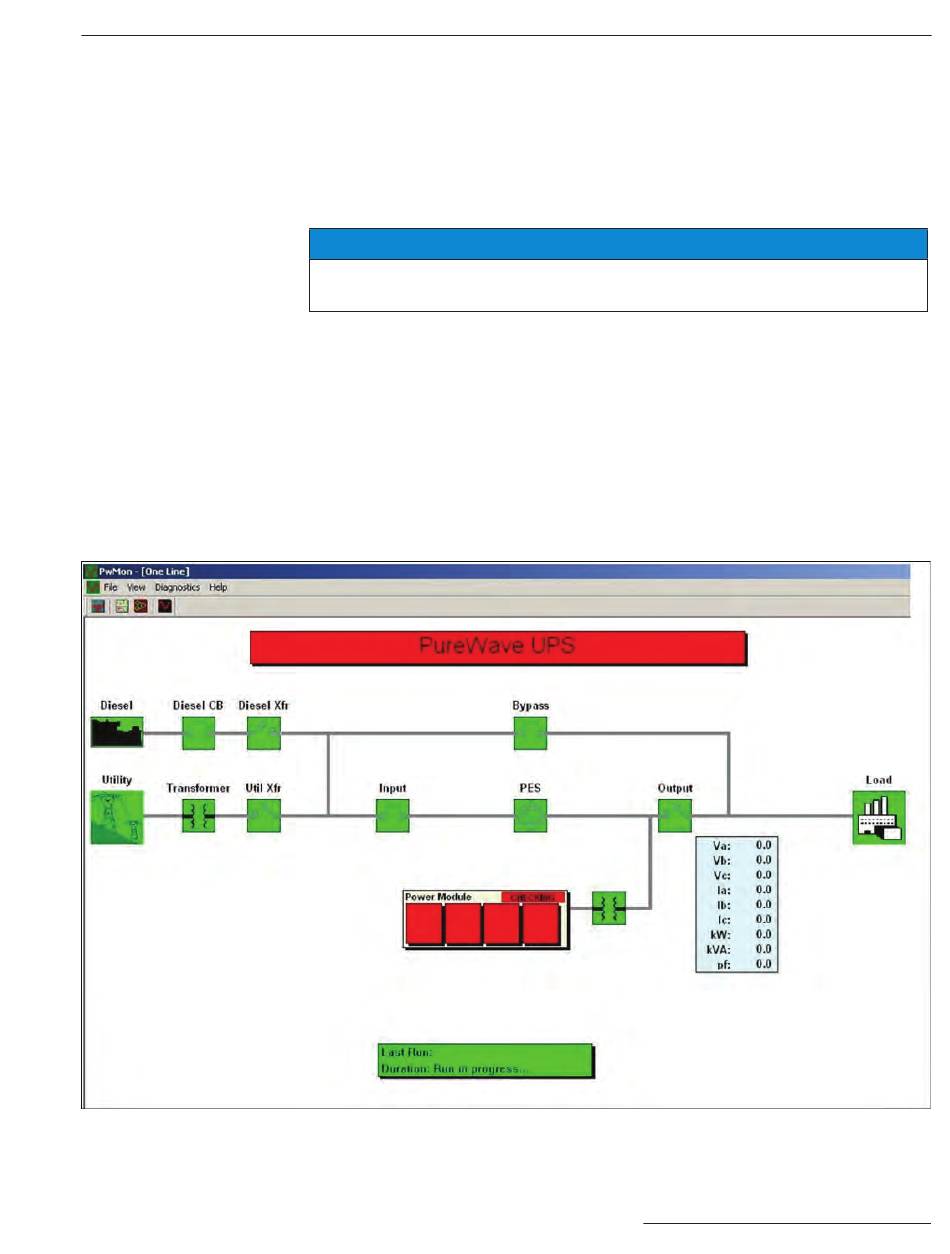

Figure 16. One-line screen of the monitoring software.
The PureWave UPS System can be monitored in three ways. The system can be monitored
through the LCD screen display, through the computer provided in the control bay via a
local connection, and remotely using an Ethernet connection.
The PureWave UPS System computer can only be accessed by users with the appropriate
security clearance. A valid user name and password are necessary to access the system
information. To access the system remotely, the remote monitoring software is required
along with a user name and password for authorized access.
Contact S&C Electric Company to obtain the username and password for access to the
monitoring program if you forget your username and/or password.
One-Line Screen
After the user name and password has been entered, the user will have access to the
monitoring software. The home screen is the system one-line screen. The one-line screen
shows the overview of the PureWave UPS System. It displays the power-flow path through
the system, providing the user with accurate and timely system information.
Icons
Icons on the One-Line screen change according to the state of the system. The icons and the
lines connecting the icons change color depending on the state of the object represented by
the icon. See Figure 16 to see the icons and their meanings on the system One-Line screen.
