Components and Controls

LCD screen

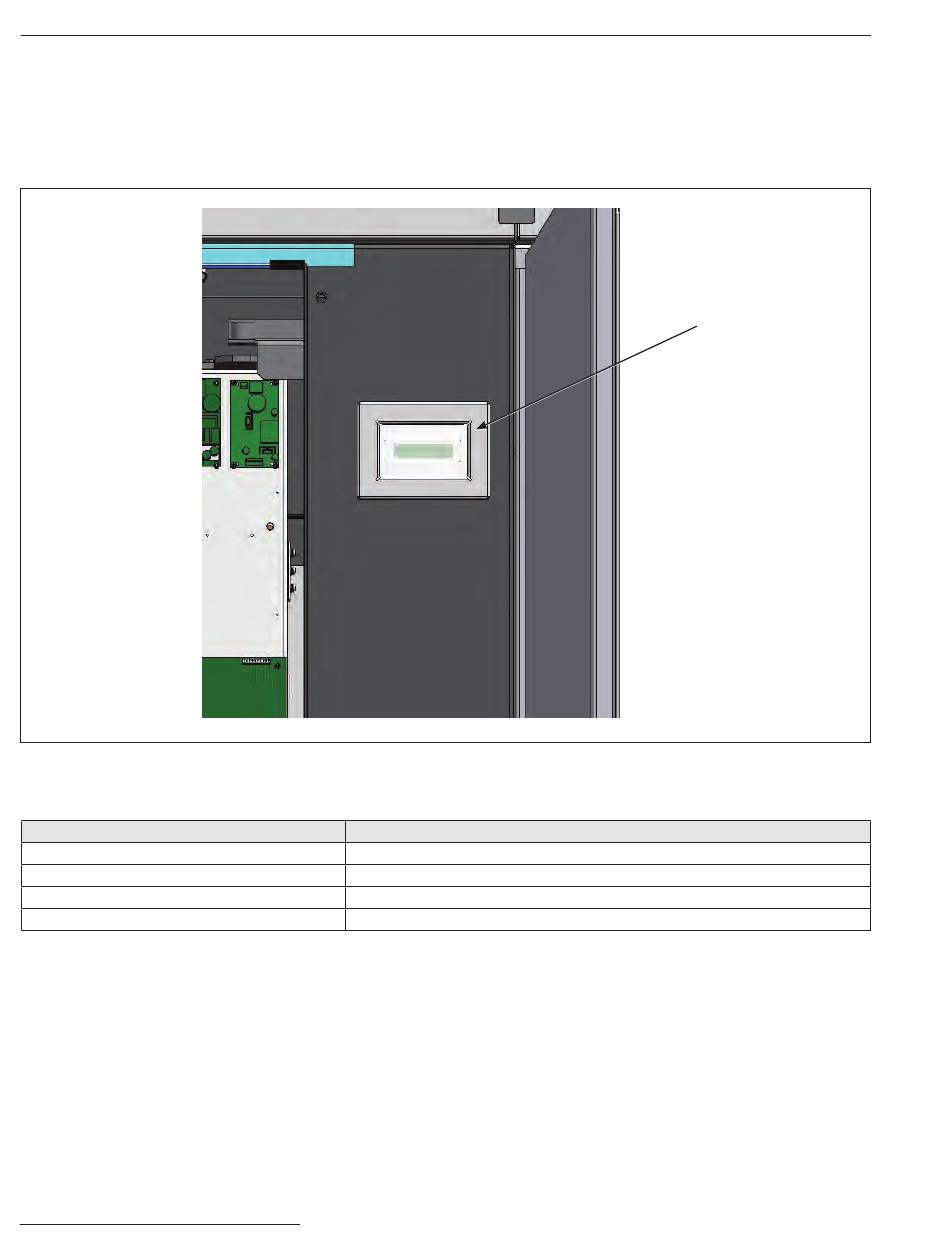

Figure 10. Location of the LCD screen.
Table 1. General Messages on LCD Screen
Message
S&C PUREWAVE UPS
FWVER PQ001VvvvRrrr
CNFG CcccRrrr
Test Run Request
Air Control
and Ventilation
20 S&C Instruction Sheet 653-502
Next to the control bay is the LCD screen, which displays information regarding the state
of the PureWave UPS System. See Figure 10. The bottom line of the LCD screen displays
the general messages as stated in Table 1.
Indicates the type of PureWave product
Indicates the version of firmware in the PureWave UPS System
Indicates the configuration revision of the firmware running in the PureWave UPS System
Indicates the PureWave UPS System has received a manual Run request
Components such as air conditioners and air-inlet and -outlet vent/vent hoods are used
to regulate the air inside the enclosure. Periodic maintenance is required to ensure the
air conditioners, air-inlet filter, vents, and hoods are clear from debris or obstructions
that can restrict air flowing in and out of the PureWave UPS System enclosure. Refer
to the maintenance instruction sheet for detailed instructions for proper air ventilation
maintenance.
