SmartCell SC-31-0100-0001-99 Installation Manual

Sounder

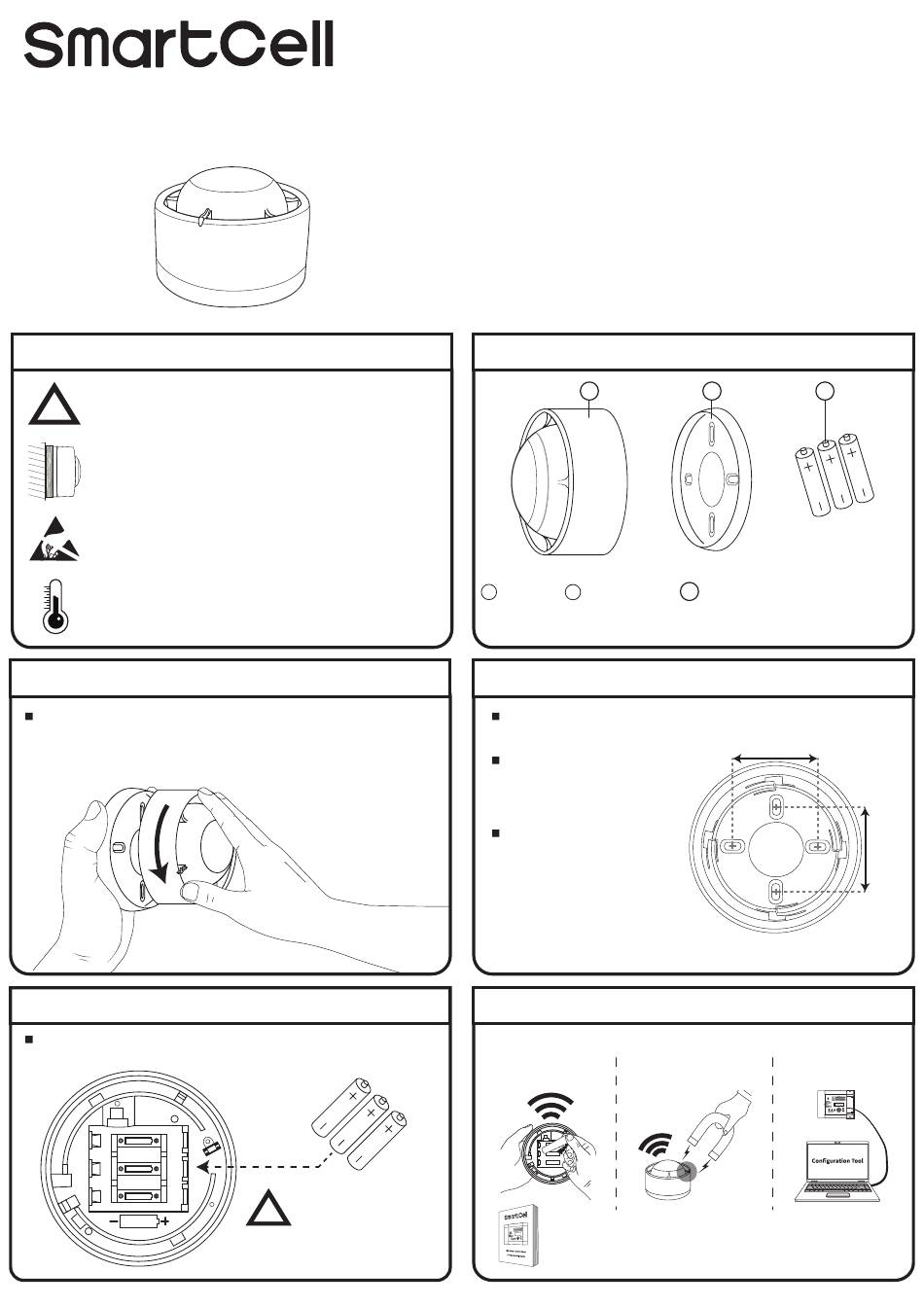

Installation Guide
1 Pre installation
Installation must conform to applicable local installation codes and
!
should only be installed by a fully trained competent person.
The use of a non-metallic spacer should be considered if mounting
the device on to a metal surface.
This device contains electronics that may be susceptible to damage
from Electrostatic Discharge (ESD). Take appropriate precautions
when handling electronic boards.
To ensure correct operation, products must be used within the
specified environmental operating conditions.
3 Remove mounting plate
Remove the mounting plate by turning the device ANTICLOCKWISE, to
release it from the mounting plate.
5 Fit batteries
When fitting / replacing batteries, observe correct polarity, using only
specified batteries.
3x ER14505M
LITHIUM 3.6V
www.acornfiresecurity.com
OBSERVE BATTERY
!
POLARITY!
www.acornfiresecurity.com
Part number Product description

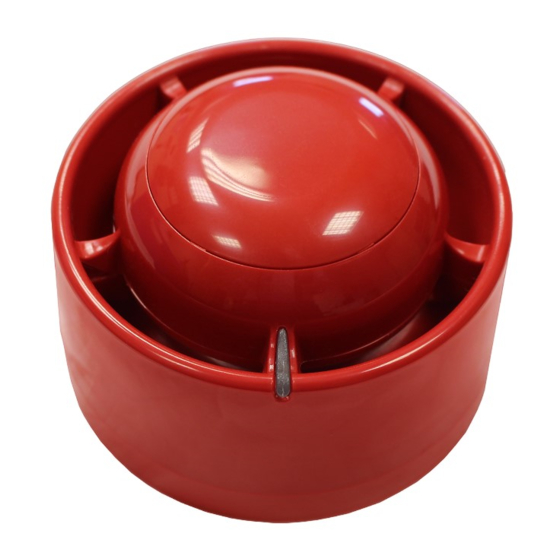

SC-31-0100-0001-99 RED Sounder
SC-31-0200-0001-99 WHITE Sounder
2 Components
1
1 Sounder 2 Mounting plate
*When batteries are not supplied, only fit specified batteries.
4 Fix mounting plate
When fixing to the wall/ceiling, all four fixing positions should be used to
ensure a firm fixing.
Where existing electrical
mounting boxes are present,
two fixing positions may be
used.
Use suitable fasteners and
fixings.
6 Configuration
The device must now be added (programmed) to the control panel.
Method 1
Device powering Magnet application
- AA+
ER14500
- AA +
ER14500
- +
AA
ER14500
Refer to the programming manual (TSD155) for full programming
details.
2
3
3
Batteries (Not included in some regions*)
60 mm
Method 2 Method 3
Via computer
60 mm
