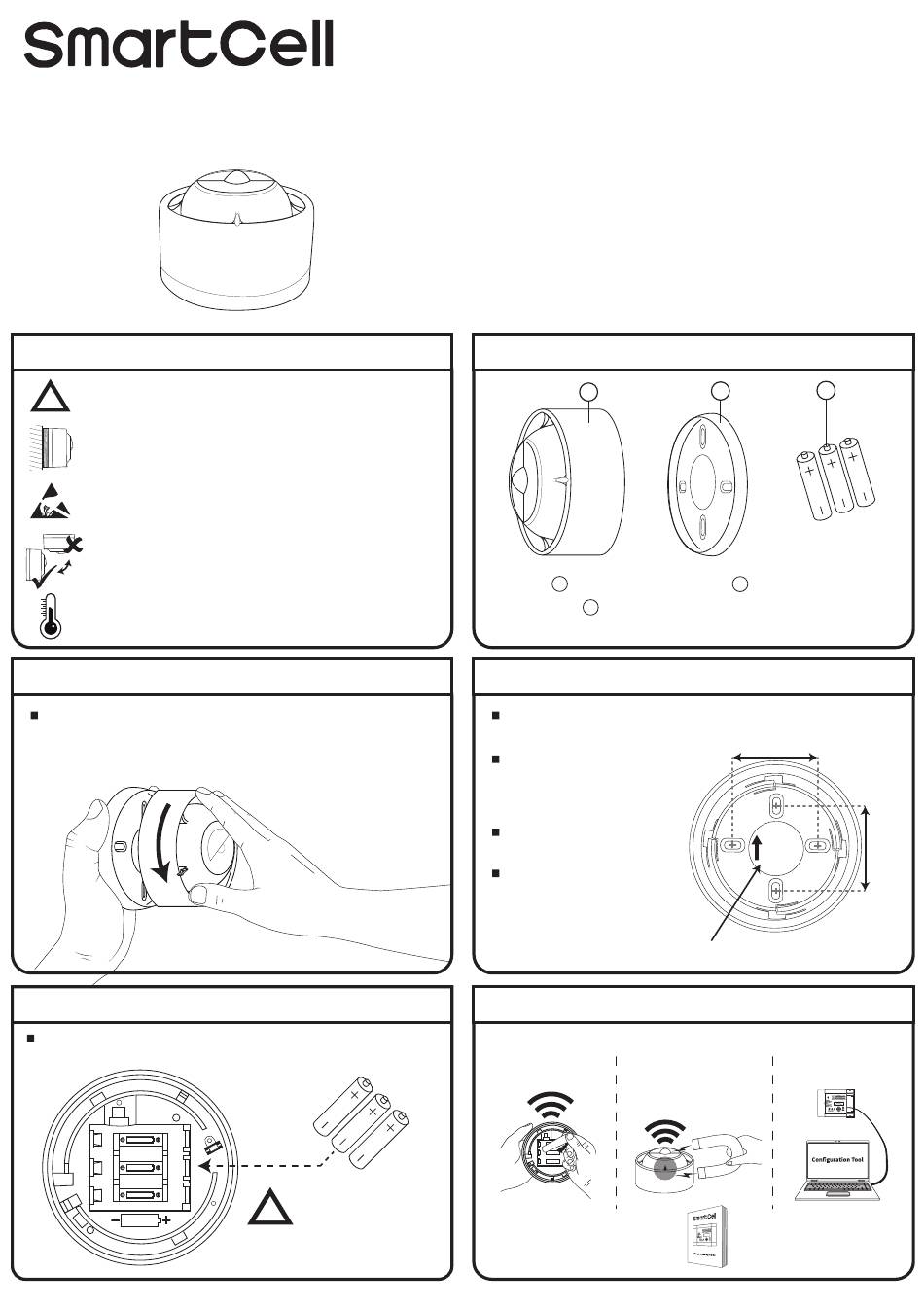

SmartCell SC-32-0110-0001-99 Installation Manual

Sounder and Wall Beacon
Installation Guide
1 Pre installation
Installation must conform to applicable local installation codes and
!
should only be installed by a fully trained competent person.
The use of a non-metallic spacer should be considered if mounting
the device on to a metal surface.
This device contains electronics that may be susceptible to damage
from Electrostatic Discharge (ESD). Take appropriate precautions
when handling electronic boards.
This device is suitable for wall mounting only. Ceiling mounted
variants are also available.
To ensure correct operation, products must be used within the
specified environmental operating conditions.
3 Remove mounting plate
Remove the mounting plate by turning the device ANTICLOCKWISE, to
release it from the mounting plate.
5 Fit batteries
When fitting / replacing batteries, observe correct polarity, using only
specified batteries.
3x ER14505M
LITHIUM 3.6V
©2021 EMS Ltd. All rights reserved.
OBSERVE BATTERY
!
POLARITY!
Page 1 of 2
Part number Product description

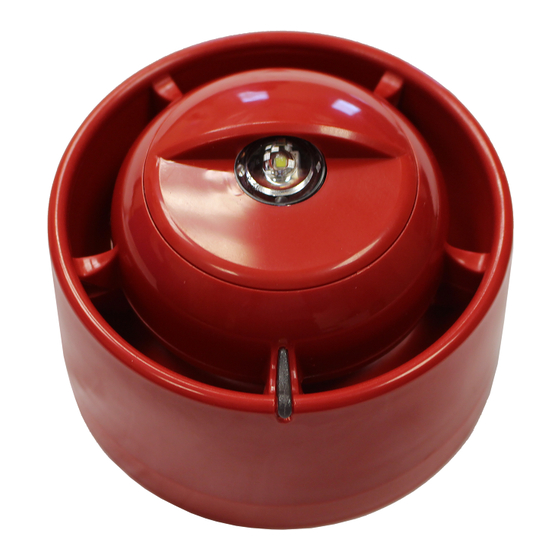

SC-32-0110-0001-99 SmartCell RED Sounder and Wall
Beacon (VAD RED Flash)
SC-32-0120-0001-99 SmartCell RED Sounder and Wall
Beacon (VAD WHITE Flash)
SC-32-0210-0001-99 SmartCell WHITE Sounder and Wall
Beacon (VAD RED Flash)
SC-32-0220-0001-99 SmartCell WHITE Sounder and Wall
Beacon (VAD WHITE Flash)
2 Components
1
Sounder and wall beacon
1
3
Batteries (not included in some regions*)
*When batteries are not supplied, only fit specified batteries.
4 Fix mounting plate
When fixing to the wall, all four fixing positions should be used to ensure a
firm fixing.
Where existing electrical
mounting boxes are present,
two fixing positions may be
used.
Use suitable fasteners and
fixings.
Observe the orientation
marking!
Orientation marking
6 Configuration
The device must now be added (programmed) to the control panel.
Method 1
Device powering Magnet application
- AA+
ER14500
- AA +
ER14500
- AA +
ER14500
Refer to the programming manual
for full programming details.
2
3
2 Mounting plate
60 mm
THIS WAY UP
FOR WALL
MOUNTED
DEVICES
Method 2 Method 3
Via computer
SmartCell panel = TSD155
SmartCell WZM = MK067
TSD109-0001-99 (Issue 3) 20/05/2021 AJM
60 mm
