- Page 1 MAXX ® OPERATOR’S MANUAL...
-
Page 2: Safety Instructions
HOTRONIX ® Safety Instructions MAXX ® When using your heat press, basic precautions should always be followed, including the following: 1. Read all instructions. 2. Use heat press only for its intended use. 3. To reduce the risk of electric shock, do not immerse the heat press in water or other liquids. 4. -
Page 3: Table Of Contents
Safety Instructions Safety Instructions Machine View Control Panel Guide Operating Instructions Connecting the System Start Up/Shut Down Adjusting Temperature Adjusting Time Adjusting Pressure Printing/Pressing Electrical Schematic Parts Location Guide Replacement Parts List Contact us WWW.STAHLS.DE... -
Page 4: Machine View

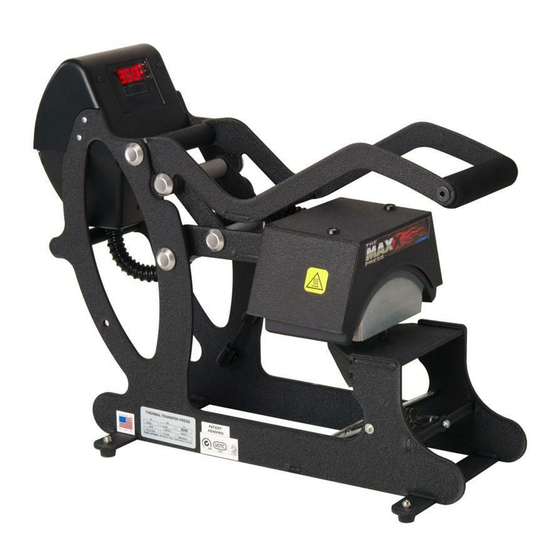

HOTRONIX ® Machine View MAXX ® Lift Handle LED Display ON/OFF Switch Upper Platen Lower Platen Pressure Adjustment Knob (not shown in picture) Cap Hold Down Lever Circuit Power Breaker Supply Located on the back of the press... -
Page 5: Control Panel Guide
Control Panel Guide Temperature Indicator Digital Display Set Indicator Time Indicator Decrease Increase Mode Select WWW.STAHLS.DE... -
Page 6: Operating Instructions
HOTRONIX ® Operating Instructions MAXX ® Connecting the System Start Up/Shut Down Connect the power cord into a properly grounded electrical outlet with a sufficient amperage rating. Voltage Locate the lift handle and position the heat platen in the 120 volt requires a full 20-amp grounded circuit. UP position. -
Page 7: Adjusting Temperature
Operating Instructions Adjusting Temperature Adjusting Time Press the Mode Select button in the center of the Control Once you have adjusted the temperature, press the Mode Panel. Select button again to advance to Time Mode. The (SET) and (TEMP) lights located next to the display The (SET) and (TIME) lights will illuminate. -
Page 8: Adjusting Pressure
HOTRONIX ® Operating Instructions MAXX ® Adjusting Pressure Printing/Pressing Pressure Adjustment Knob The Pressure Adjustment Knob is located directly under the lower platen. Once your equipment has reached the designated Turn the knob clockwise to increase pressure and temperature: counterclockwise to decrease pressure. •... -
Page 9: Electrical Schematic
Electrical Schematic Electrical Schematic: MAXX Cap US 120V/240V VERSION 120V 240V CE 230V VERSION WWW.STAHLS.DE... -
Page 10: Parts Location Guide
HOTRONIX ® Parts Location Guide MAXX ® = wear parts... -
Page 11: Replacement Parts List
Replacement Parts List ITEM # PART # DESCRIPTION ITEM # PART # DESCRIPTION 4-1172-B Control Housing, MAXX 1-1023 Adjustment Spindle, STX 6x6 1-2018 Controller Overlay, MAXX 1-1095 Knob, Black Plastic 3/8"-16 1-2105 Grommet, 9/32" ID 3/8" OD 1-1051 Bronze Washer 3-1011-235 Screw, Sheet Metal #6 x 1/2"... -
Page 12: Contact Us
HOTRONIX ® CONTACT US MAXX ® STAHLS’ Europe GmbH Dieselstraße 62 66763 Dillingen Germany Technical Support & Customer Service +49 (0) 68 31/97 33 0 Email info@stahls.de stahls.de This document includes multiple trademarks and describes equipment covered by many patents that are owned by GroupeSTAHL and/or its subsidiaries. GroupeSTAHL enforces its rights to protect these intellectual properties.
