USER MANUAL
ASIN Pool
INTELLIGENT NETWORK CONTROLLER
to Control the Pool Technology with Smartphone
L
N PE
REL 1 REL 2 REL 3
REL 4 REL 5 REL 6 REL 7
n1 n2 n3
GND
STOP
1
2
3
4
5
6
GND
SENSOR POWER
GND
A
GND
B
ASIN Pool
VS Pump Module
www.aseko.com
1
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ASIN Pool and is the answer not in the manual?

Questions and answers

Related Manuals for Aseko ASIN Pool

Summary of Contents for Aseko ASIN Pool

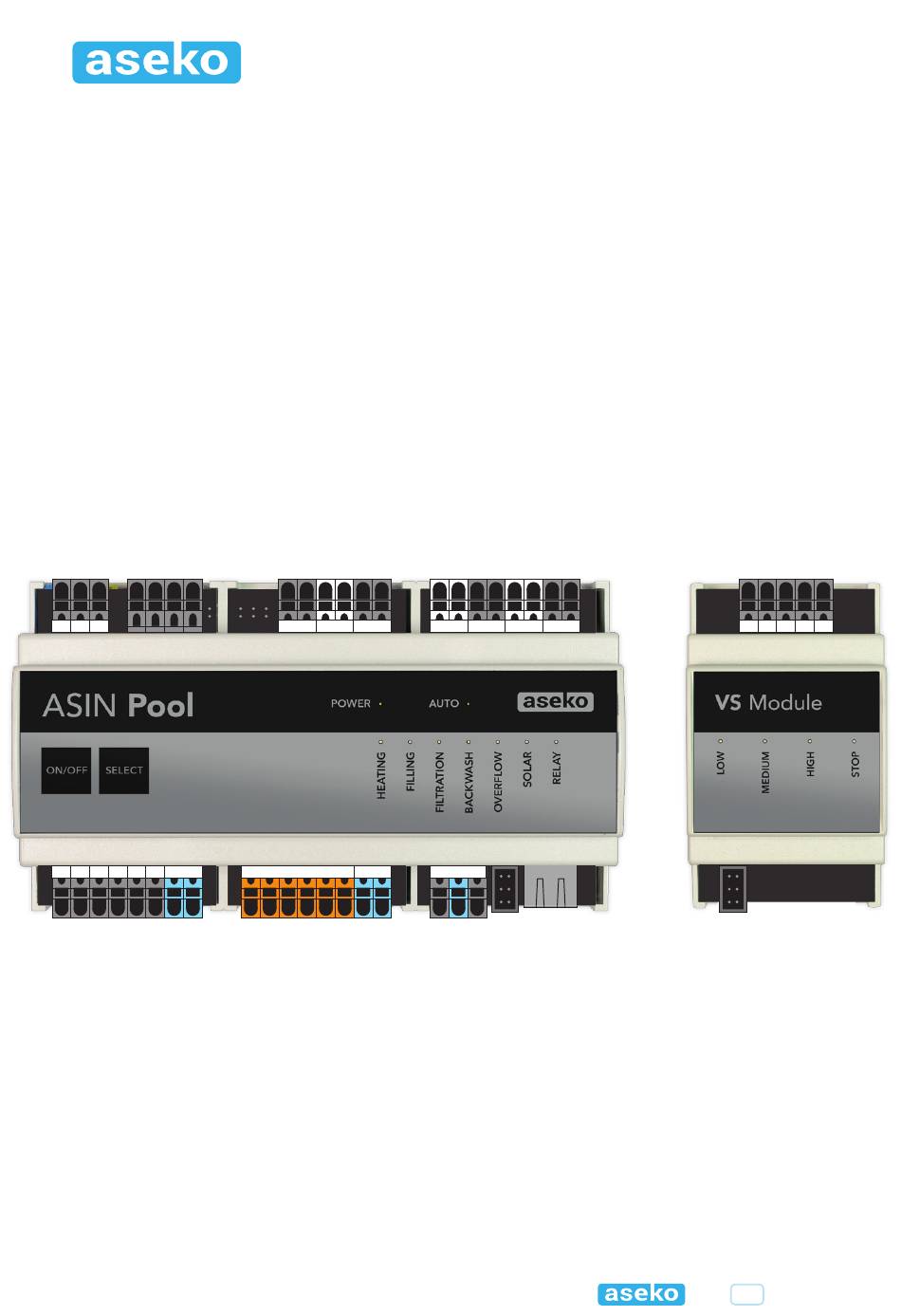

  • Page 1 USER MANUAL ASIN Pool INTELLIGENT NETWORK CONTROLLER to Control the Pool Technology with Smartphone N PE REL 1 REL 2 REL 3 REL 4 REL 5 REL 6 REL 7 n1 n2 n3 STOP SENSOR POWER ASIN Pool VS Pump Module...

  • Page 2: General Safety Information

    General Safety Information This user manual has basic information that should be observed during assembly, start-up, operation, and maintenance. Therefore, this user manual must be read by installers and operators prior to assembly and start/up, and must be accessible to every user of this unit. Additionally, all further safety information in this document absolutely must be observed.
  • Page 3 Check for an updated version of the user manual or additional documentation available for the relevant functions. • Make use of the integrated help function of the ASIN Pool to get ® detailed information on functions and their parameter settings.
  • Page 4 REL 4 REL 5 REL 6 REL 7 REL 4 REL 5 REL 6 REL 7 n1 n2 n3 n1 n2 n3 STOP STOP SENSOR POWER SENSOR POWER 155 mm 55 mm ASIN Pool Electrical Box ASIN Pool Electrical Box # 12168 ??? mm...

  • Page 5: Technical Specification

    Technical specification Power supply 110-240 VAC / 50 Hz / 60 Hz Input power 10 VA Overvoltage category Protection degree IP30 Climatic resistance +5 to +40°C Weight 800 g Installation wall DIN rail mounting Relay output contacts max 230 V / 1 A, potential free contact - NO Dimensions 155 x 110 x 60 mm and 55 x 110 x 60 mm Sensor power supply...

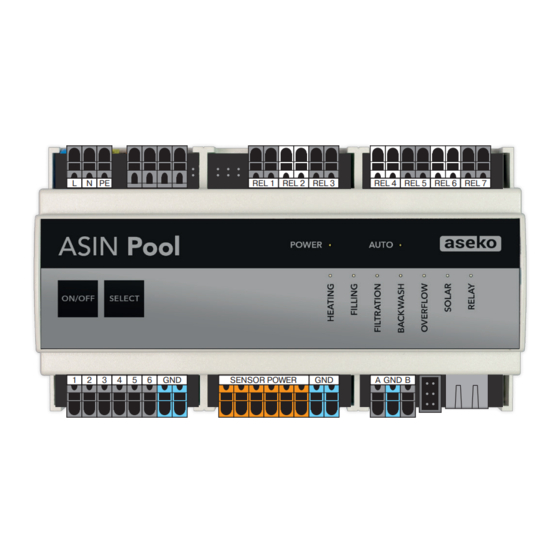

  • Page 6 ASIN Pool The network controller. The ASIN Pool network controller is designed to control and set all the pool technology elements: • Lights or pool cover • Heating • Automatic water filling • Flow control over/bottom • Solar collector pump •...
  • Page 7 REMOTE app for iOS and Android ASEKO HOME NETWORK SERVICES Real time HOME ROUTER communication SSL protected ASEKO SERVER Protected safe located INTERNET Real time secure communication Pool Technology Connected...

  • Page 8: Manual Operation

    SELECT. This way you can switch on or off all outputs. There will not blink any blue LED (after 8 press of SELECT button) and you can leave ASIN Pool or in manual mode or by pressing ON/OFF button return to automatic mode.
  • Page 9 Operation via iPool REMOTE iPool REMOTE app for iOS and Android Mode selection All STOP Nonstop filtration PARTY Nonostop filtration, heating ON. Mode for using the pool at the time of your wild party. AUTO Automatic mode, heating ON Mode for common fully automatic operation of swimming pool technology.

  • Page 10: First Time Login

    Google play for Android. For iOS For Android First time login Prior to the first connection to the ASIN Pool, confirm your acceptance of “ASIN Pool Terms and Conditions”. Type your serial number Enter the serial number of your ASIN Pool.
  • Page 11 Create new password When signing in for the first time, choose a password you will use. ASIN Pool will remember the password. From this moment use the serial number and this password to log in to your ASIN Pool.
  • Page 12 Overview The screen provides all the important information about the current status of your pool and the connected components controlled by ASIN Pool. Reload data Actual operation mode Water temperature, air temperature, solar panel temperature Pool technology status ASIN AQUA paired device status...

  • Page 13: Mode Selection

    Mode selection The screen serves to switch between operation modes of your pool controlled via ASIN Pool. This mode switches the circulating pump on speed MEDIUM and heating to the required temperature.This mode has no time functions. The slider serves to control your pool operation modes.

  • Page 14: Direct Control

    Direct control Switches on the filter backwash process Open / close cover Turns the lights on/off...
  • Page 15 Settings The screen serves to set the ASIN Pool and parameters of each mode including the filtration timer.
  • Page 16 Smart heating Heating at Time This function allows to set time of heating operation. This is particularly useful for switching on the heat pumps that have higher efficiency during the day time when outdoor temperature is higher. Heating at air Temperature This function allow you to customize the pool heating and achieve the highest possible efficiency of the heat pump.
  • Page 17 The maximum filling time acts as protection for case of any failure of the level measuring. This function will switch off the pool filling after the adjusted time has elapsed regardless of a level sensor signal. ASIN AQUA should be switched off during the filling. This functionis implemented in ASIN Pool Eletrical Box.
  • Page 18 Automatic Filter Backwash The automatic backwash function ensures the filter backwash on a regular basis in the preset intervals. To enable this function is necessary to use the automatic 5-way BESGO valve. Its moving controlled by the relay switching on/off. When the relay switches on, the BESGO valve is activated and moved to the required position by the action of pressure water or air.

  • Page 19: Variable Speed Pump Control

    Solar The ASIN Pool allows control of the solar heating. To enable this function it is necessary to install the outdoor thermometer to the solar collector. At the preset temperature of the solar collector, e.g. 40°C, solar system circulating pump as well as the filter pump will start on. This start takes absolute priority over other settings in order to prevent the solar collector from being overheated.
  • Page 20 Relay settings (lights/cover) Optional relay settings, switch between lights control and pool cover control. Calibration Allows more accurate measurement of probes and sensors by assigning them measured values by certified meters.
  • Page 21 Connect ASIN AQUA device Adding your device using a serial number allows you to monitor disinfection and pH values in real time. Also gives a direct access to iPool live application, if it’s installed. Device in control by another user Device in control by another user, wait for device to be ready to use.

  • Page 22: Warning Messages

    Warning messages High level – start FILTER BACKWASH High level runs one backwash procedure. If the level does not drop, an error message is displayed. High level – ALARM To lower the level, run the filter backwash. Pump ON.
  • Page 23 Low level Start water filling. Filling time exceeded The correct level has not been reached within the set refill time. Check the set time and system.
  • Page 24 High temperature of the solar panel Check the function of the pump of solar system and heat exchanger. The solar panel thermometer does not work Risk of overheating of the solar collector!
  • Page 25 Pool cover Operate the cover only if you have clear view of the pool. Watch the pool whole time that cover is on the move. Operating the cover without the clear sight of the pool can cause serious injuries or death.

  • Page 26: Installation

    Maximum relay load is 230 V AC / 1A. Power supply cable by CYKY 2x1,5 should be equipped by single pole circuit breaker 6A/250V, characteristic B signed as ASIN Pool. Do not forget to add suitable RCD, for example 16A(B)/30mA.

  • Page 27: Maintenance

    Maintenance ASIN Pool system and connected sensors does not require any special maintenance. Protect all vent outlets against overlapping. Servis In case of need any additional info or service, contact the manufacturer: ASEKO, spol. s r.o. Vídeňská 340, Vestec u Prahy, 252 50 IČ: 40766471, DIČ: CZ40766471...

  • Page 28: Sensors Connection

    POOL COVER CONTROLLER Kontroler bazénové rolety (network/internet) Connection Propojení Bez rolety Dont have Relay ON Sepnuto Relay OFF Vypnuto of ASIN Pool ASIN Pool propojte roleta roleta a COVER cover is cover is and VS Pump a VS Pump 5 + GND OTEVŘENÁ...

  • Page 29: Electrical Connection

    L N PE Electrical Connection Power Supply Napájení HEATING TOPENÍ L is logic signal L je logický signál Independent logic signal Nezávislý logický HEATING TOPENÍ signál Filling Solenoid solenoid dopouštění Filtration pump relay Relé filtrace Filtration pump Čerpadlo filtrace 230 Vac Besgo Besgo (praní...
  • Page 30 ASIN Pool Electrical Box Preinstaled in Electrical Box. ASIN Pool + VS Module. Relay light/cover Relay circulation pump CB 6A/230V CB 10A/230V circulation pump ASIN Pool VS Module Power input RCD 16A/230V ON/OFF relay for ASIN AQUA Power Supply ON/OFF relay for...
  • Page 31 LIGHTS SVĚTLA 230 ~ 24 = – Lights Osvětlení nebo Pool Cover Ovládání rolety Control box 2 s pulse Pulz 2 s bezpotencionální POOL ROLETA relé COVER Solar collector pump Čerpadlo solárního kolektoru 230 Vac Besgo Besgo (bottom/overflow) (dno/žlábek) Besgo Besgo (praní...
