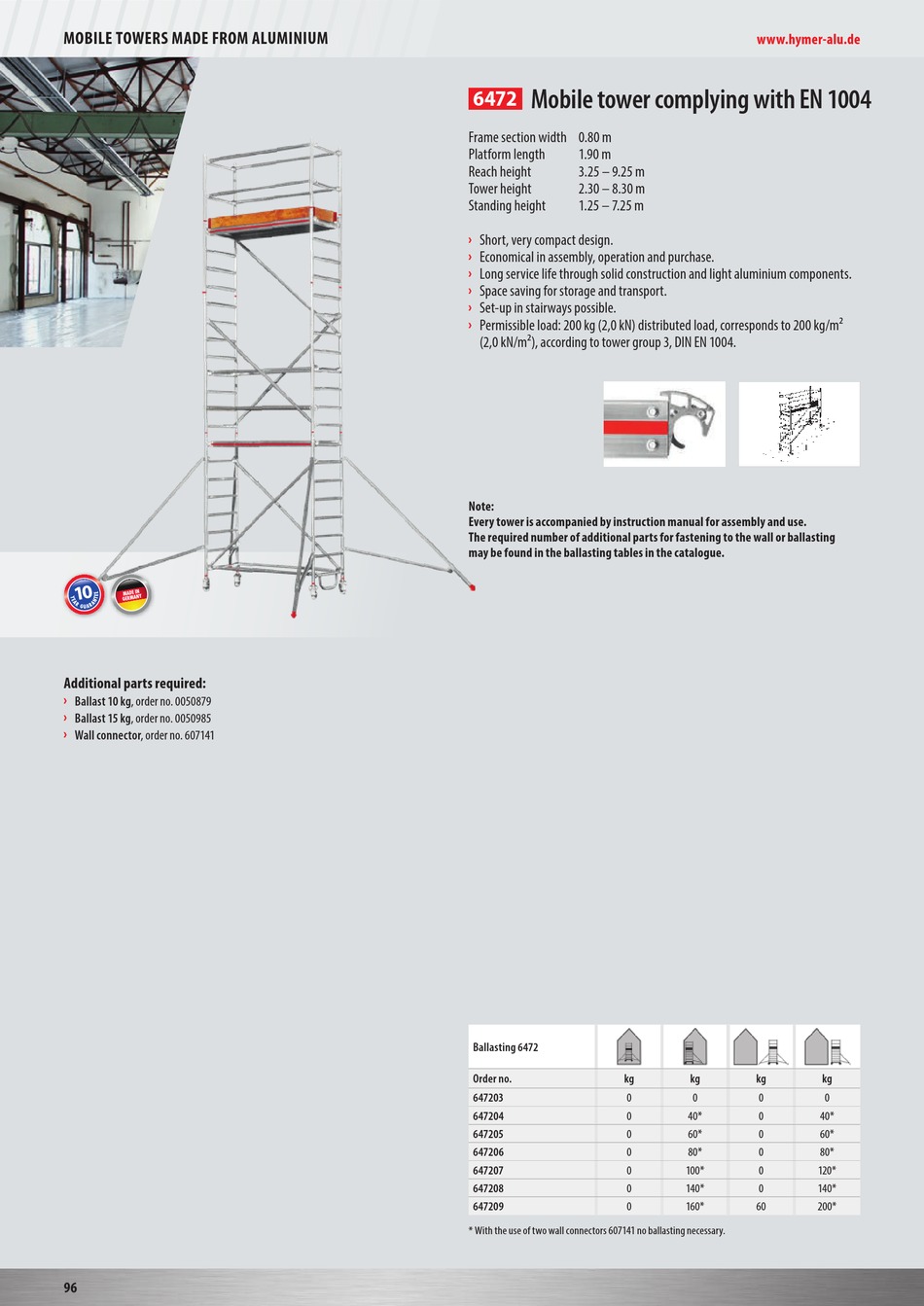

hymer 6472 Quick Start Manual

MOBILE TOWERS MADE FROM ALUMINIUM

Additional parts required:

Ű
Ballast 10 kg, order no. 0050879
Ű
Ballast 15 kg, order no. 0050985
Ű
Wall connector, order no. 607141
96

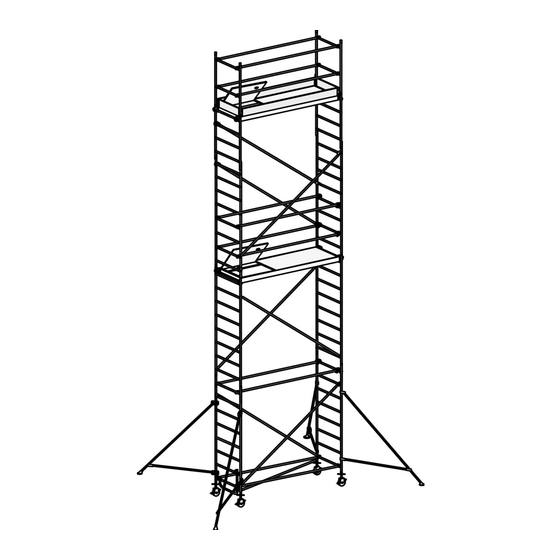

Mobile tower complying with EN 1004
6472
Frame section width 0.80 m

Platform length

1.90 m

Reach height

3.25 – 9.25 m

Tower height

2.30 – 8.30 m

Standing height

1.25 – 7.25 m
Short, very compact design.
Ű
Economical in assembly, operation and purchase.
Ű
Long service life through solid construction and light aluminium components.
Ű
Space saving for storage and transport.
Ű
Set-up in stairways possible.
Ű
Permissible load: 200 kg (2,0 kN) distributed load, corresponds to 200 kg/m²
Ű
(2,0 kN/m²), according to tower group 3, DIN EN 1004.
Note:
Every tower is accompanied by instruction manual for assembly and use.
The required number of additional parts for fastening to the wall or ballasting
may be found in the ballasting tables in the catalogue.
Ballasting 6472
Order no. kg
647203 0
647204 0
647205 0
647206 0
647207
0
647208 0
647209 0
* With the use of two wall connectors 607141 no ballasting necessary.
kg kg kg
0 0 0
40* 0 40*
60* 0 60*
80* 0 80*
100* 0 120*
140* 0 140*
160* 60 200*
