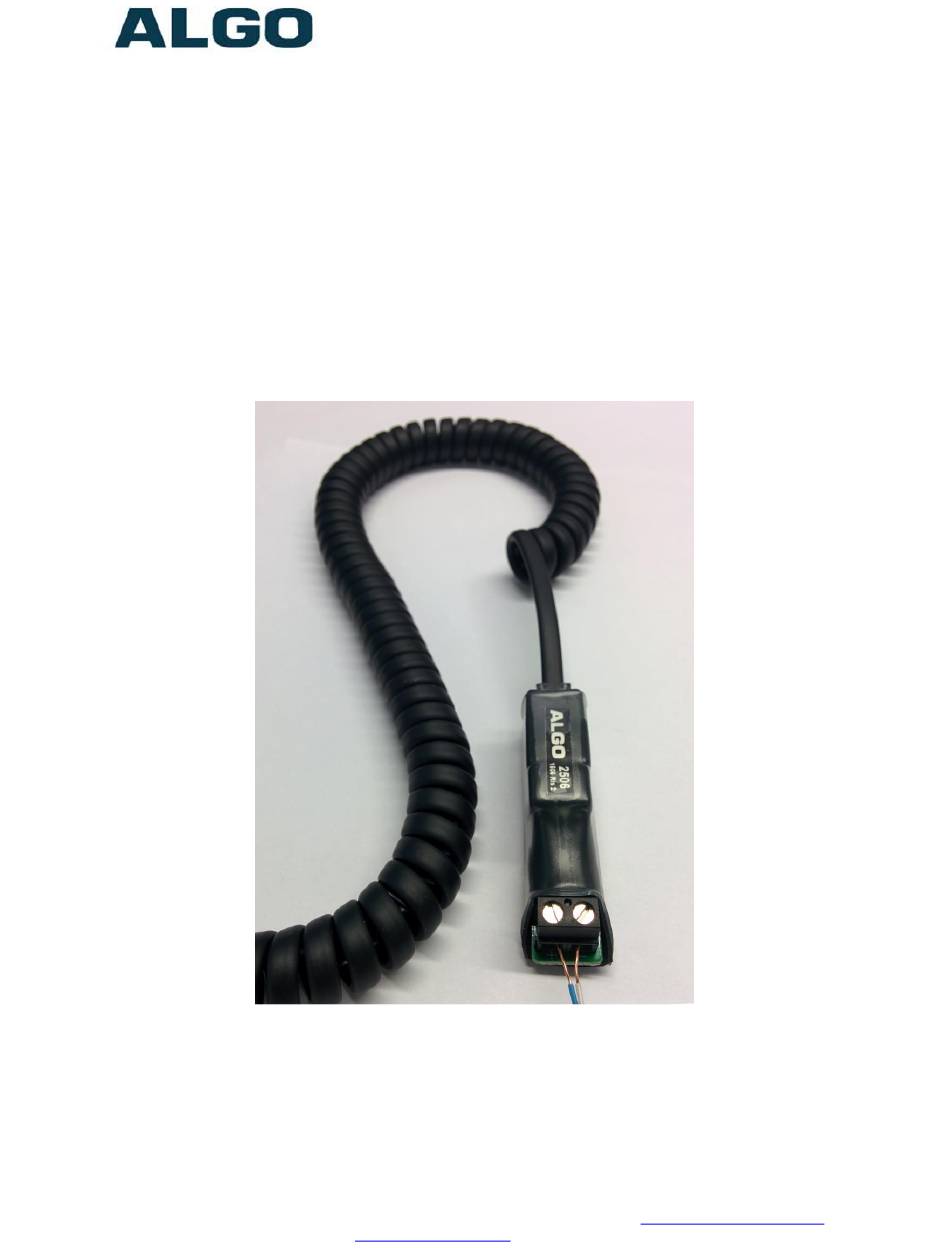

- Page 1 2506 Polycom Ring Detector Wiring & Configuration Order Codes 2506 Polycom Ring Detector Document 90-00082 Algo Communication Products Ltd (604) 454-3792 2016-03-31 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com Page 1 www.algosolutions.com...
-
Page 2: Table Of Contents
Table of Contents ABOUT THE ALGO 2506 POLYCOM RING DETECTOR ................3 8180 WEB INTERFACE CONFIGURATION ....................4 CONNECTING THE 2506 TO THE 8180 ..................... 6 CONNECTING THE 2506 TO THE 8128 ..................... 8 TRIGGERING MULTIPLE DEVICES ......................10 & V .................... -
Page 3: About The Algo 2506 Polycom Ring Detector
The Algo 2506 module detects the low-level audio from the headset jack and provides an isolated signal to activate an Algo 8180 SIP Audio Alerter or 8128 SIP Strobe Light directly instead of using SIP. -
Page 4: 8180 Web Interface Configuration
Directions to obtain the IP address of the SIP device can be found in Algo 8180 SIP Audio Alerter User Guide pages 8-9. The IP address may also be discovered by downloading the Algo locator tool to find Algo devices on your network: www.algosolutions.com/locator Document 90-00082... - Page 5 5. Ensure that “Relay Input Polarity” is set to “Normally Open Contact”. Other configuration options can be set as desired. 6. Press “Save” in the bottom right corner of the page. Document 90-00082 Algo Communication Products Ltd (604) 454-3792 2016-03-31 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com...
-
Page 6: Connecting The 2506 To The 8180
The 8180’s web interface should be configured before any wiring connections are made to avoid damaging the 2506. The 2506 can be connected to the Algo 8180 SIP Audio Alerter via the following setup: Use a screwdriver to connect the wires into the “+”... - Page 7 HEADSET jack of the Polycom VVX phone. When an incoming call is received by the Polycom VVX phone, an audible alert will be triggered. Document 90-00082 Algo Communication Products Ltd (604) 454-3792 2016-03-31 4500 Beedie St Burnaby BC Canada V5J 5L2 support@algosolutions.com Page 7 www.algosolutions.com...
-
Page 8: Connecting The 2506 To The 8128
Connecting the 2506 to the 8128 Note: The 8128 does not require any web configuration to operate with the 2506. The 2506 can be connected to the Algo 8128 SIP Strobe Light via the following setup: Use a screwdriver to connect the wires into the “+”... - Page 9 Plug the coiled handset cord into the RJ jack of the 2506. Plug the other end of the handset cord into the HEADSET jack of the Polycom VVX phone. When an incoming call is received by the Polycom VVX phone, a visual alert will be triggered.
-
Page 10: Triggering Multiple Devices
When using multicast, ensure that all the alerting devices are connected to the same subnet and VLAN. The 8180/8128 that is connected directly to the 2506 should be set as a multicast master and all the additional devices as multicast slaves. -
Page 11: Testing
Testing Call the Polycom VVX phone to active the 8180 or 8128. Ensure only one alerting device is connected directly to the 2506 at a time. Troubleshooting Wiring Connections To verify that the 8180/8128 is powered and configured correctly, short the wire pair on the input to the 8180/8128 and see if an audio/visual alert is triggered.
