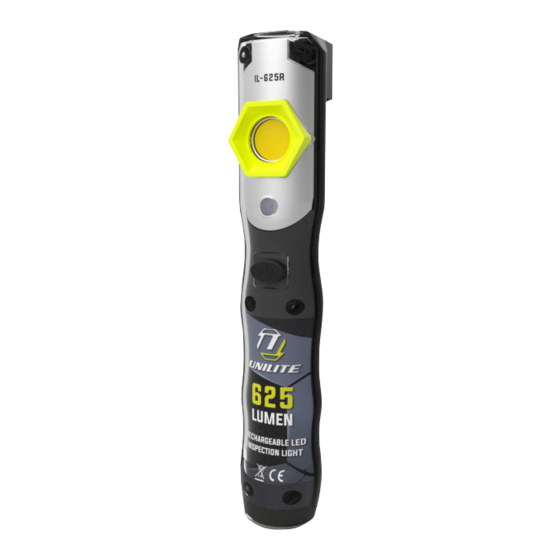

UNILITE IL-625R Quick Start Manual

IL-625R
FEATURES
• High power 625 Lumen 5W 6500K COB LED
• 250 Lumen 3W 6500K SMD LED spot beam torch
• UV LED on front
• Super tough aluminium & polycarbonate structure
• IP65 dust & water resistant
• IK07 shock proof
• Strong integral magnets on back & base
• Rear magnetic pocket clip
• Glow-in-the-dark strip around LED
• Battery level & charging indicators LEDs
• High power 3.7v 2500mAh Li-ion battery
• Faster USB type-C charging - 3 hour charge time
• 1m USB charging cable included
Battery - 3.7v 2500mAh Li-ion Rechargeable Battery
Dimensions - 188 x 35 x 35mm
Weight - 190g
OPERATION
Switch Sequence:
COB LED HIGH > COB LED LOW > TOP TORCH > UV LED > OFF
[If left in any mode for over 3 seconds, the next press will turn the light off.]
CHARGING
1. Only use a 5v USB-type-C cable (1m cable included)
2. Lift the charge port cover on the back of the light.
3. Plug the USB-C end of the cable into the charge port.
4. Plug the USB end of the cable into any USB charging port (max 1A).
5. 4 x Green LEDs will flash to indicate charging. All 4 LEDs will light up
constantly to confirm fully charged.
6. Charge Time: approx 3 hours Fully charge before first use.
**Warranty void if not used with the specified chargers**
ADVICE & IMPORTANT INFORMATION!
Do not look directly at the LED. Do not operate in direct sunlight or extreme temperature conditions (below -10⁰C or above 45⁰C). The LED will become hot when switched on; do not touch
and do not place face down on any surface – risk of fire! Do not use the device if there is any visible damage to the housing, plug or cable. Children under 12 years of age should only use the
product under adult supervision.
Do not open, disassemble or attempt to modify the product; this will void the warranty and can be dangerous. Improper use or modification is not covered under the warranty.
Ensure the lens does come into contact with hard/sharp objects; damage to the lens may affect light output.
This product is water resistant to IPX5 – DO NOT SUBMERGE.
If the product has been subjected to excessive moisture/water the warranty may be void.
To maintain the rechargeable batteries, distributors should recharge the battery every 6 months and users should recharge every 3 months if not using for an extended period.
Fully charge the product before storage. The rechargeable batteries will reach their optimum performance only after several complete charging and discharging cycles. Protect the battery
from heat, intense sunlight, fire, water and moisture – danger of explosion!
If the battery is damaged, fluids can leak out. AVOID contact as this can lead to skin irritation and/or burns. If skin contact happens, rinse thoroughly with water. If irritation persists, seek
medical advice. Also seek immediate medical assistance if battery fluid comes into contact with the eyes.
Do not dispose of this device in normal household waste. It must be disposed of via an authorised disposal centre or at your local waste disposal unit.
Please recycle packaging where possible. Keep these instructions for future reference or for subsequent possessors.
Unilite Limited | The LAB | Moons Moat Drive
T • F •
+44 (0)1527 584 344
| Off Winyates Way
E •
+44 (0)1527 584 345 sales@unilite.co.uk
ANSI FL 1 Standard
MAIN LED - HIGH
MAIN LED - LOW
TOP TORCH
UV LED
| Redditch | Worcestershire | B98 9FG
W •
www.unilite.co.uk
625
46 M
Lumens
315
23 M
Lumens
250
21 M
Lumens
395 nm --
| UK
3 H
6 H
10 H
12 H
