UNILITE PS-HDL6R User Manual

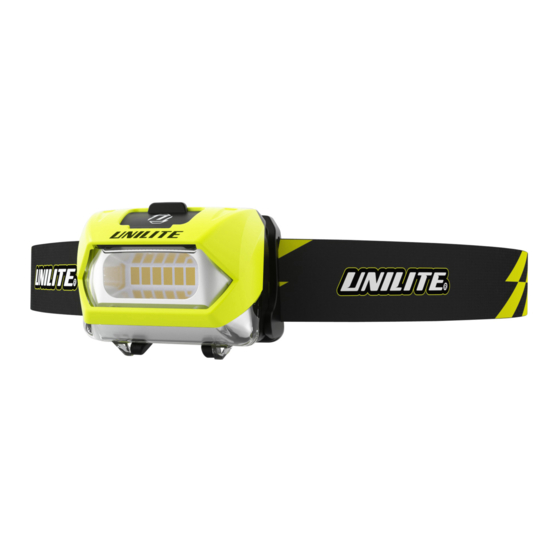

PS-HDL6R - DUAL POWER HEADLIGHT
Features
350 Lumen white SMD LEDs
Dual power options
Evenly dispersed wide light spread
Anti-dazzle retractable light shield
45° rotational head
3M VHB adhesive helmet mount (inc)
Fully adjustable non-slip silicone headband
IPX6 Water resistant
Specifications
Operation HIGH > MED > LOW > FLASH > OFF
(If left in any mode for 3 seconds, next press will turn OFF)
Bulb Type 6 x White SMD LEDs
Size H:50 x W:65 x D:45mm
Weight 86g - with rechargeable lithium battery
94g - with 3xAAA batteries & case
Battery Type 1 x 3.7v 1800mAh 6.66Wh Li-Polymer Rechargeable Battery (Inc)
1 x Battery Case for 3xAAA Batteries (Inc)
Charging Info for Approx 4hrs charging time
Rechargeable Battery Red LED on = charging / Green LED on = fully charged
Accessories 1800mAh Li-Polymer Battery
Micro-USB Charging Cable
3xAAA Battery Case
3M VHB Adhesive Helmet Mount
Non-Slip Silicone Adjustable Headband
Power Indicator
Direct Charging Li-Polymer
Battery (3.7v 1800mAh)
Battery Installation
*IMPORTANT!
Only use Unilite's rechargeable battery, otherwise the manufacturer's warranty will be void. To keep the rechargeable battery alive, distributors should recharge the battery every 6 months, and users should recharge every 3 months if it is not being used for a
long time. The rechargeable battery will reach full performance only after a few complete charging and discharging cycles. Always use high-quality alkaline 1.5v AAA batteries in the battery case provided. Battery life is affected by different battery brands,
different ambient temperatures and different lighting modes. If not using the headlight for 3 weeks or more be sure to remove the disposable batteries to avoid battery leakage (not covered under warranty). It is also advised to remove the rechargeable battery
to avoid battery depletion. Do not use this product in extreme cold or hot environments (below -30⁰C or above 60⁰C). This product is water resistant to IPX6 – DO NOT SUBMERGE. If the product has been affected by damp, remove the batteries and leave the unit
open and allow to dry out completely before using. If the batteries are installed and the headlight does not work, try checking for the following: (1) Press the switch button several times. (2) Check that the batteries are inserted the correct way around according
to polarity markings. (3) Check there is no debris on the contacts that might affect the battery connection. (4) Check there is no water or dampness in the light, if so, allow it to fully dry out and try again. If the product has been subjected to excessive
moisture/water the warranty may be void. Take care not to let the lens come into contact with hard/sharp objects, damage to the lens will affect light output. Children under 12 years of age should only use the product with adult supervision. Do not disassemble
or attempt to modify the product, this will void the warranty. Improper use or battery leakage is not covered under warranty.
disposal unit. Please recycle packaging where possible. Keep these instructions for future reference or for subsequent possessors.
Unilite Limited - The LAB, Winyates Way, Moons Moat North Ind. Est., Redditch, Worcestershire, B98 9FG - UK
T • 00[44] 1527 584 344 F • 00[44] 1527 584 345
[batteries not inc]
Blue 30%
Red
30%-5%
Flash 5%
3 x AAA Battery Case
(batteries not inc.)
Open the battery compartment and insert
either the Unilite 3.7v 1800mAH
Lithium battery
or insert 3 x high quality AAA alkaline
batteries into the battery case
then insert into the headtorch taking note
of the polarity marks
E • sales@unilite.co.uk W •
RECHARGEABLE
BATTERY
HIGH
MED
LOW
FLASH
3 x AAA ALKALINE
BATTERIES
HIGH
MED
LOW
FLASH
Anti-Dazzle Screen
Do not dispose of this device in normal household waste. It must be disposed of via an authorised disposal centre or at your local waste
www.unilite.co.uk
1m
350
27 M 3.5 H
Lumens
140
16 M 7 H
IP66
Lumens
30
6 M 47 H
Lumens
1m
21 H
IP66
1m
350
27 M 2 H
Lumens
140
16 M 6.5 H
IP66
Lumens
30
6 M 59 H
Lumens
1m
24 H
IP66
