- Page 1 User’s manual BCM S REEN OLUTION R591346...
- Page 2 R591346 , Current Version Title: BCM S – User’s Manual REEN OLUTION ID-no.: R591346 Revision: Date: November-2016 ______________________________________________________________________ Barco – Green BCM Solution – R591346 – user's manual – Revision 04– November-2016...
- Page 3 Copyright © 2015-2016 by Barco All rights reserved. No part of this document may be copied, reproduced or translated. It shall not otherwise be recorded, transmitted or stored in a retrieval system without the prior written consent of BARCO. _____________________________________________________________________...
- Page 4 (such as high temperatures, humidity, dust, power surges…). In no event shall Barco be liable for any defects, failures, loss of or damage caused by or resulting from wear and tear, any external cause or event out of Barco’s control, use or operation of the product prior to acceptance, any act or negligence of customer or any third party, or any phenomena inherent to the technology used such as image retention, burn-in, vibrations, etc…...
- Page 5 Greschbachstr. 5a, D-76229 Karlsruhe Phone: +49-721-6201-0, Fax: +49-721-6201-298 E-mail: docu.de.bcd@barco.com, Web: www.barcocontrolrooms.com From: Date: Please correct the following points in this documentation (R591346 ): page wrong correct ______________________________________________________________________ Barco – Green BCM Solution – R591346 – user's manual – Revision 04– November-2016...
-
Page 6: Table Of Contents
5.2 Switching off Green BCM Box, Stand-by Mode ................... 39 6 Maintenance ............................41 6.1 Replacing the SMPS power unit ........................42 6.2 Upgrading Firmware of Green BCM Box ...................... 43 _____________________________________________________________________ Barco – Green BCM Solution – R591346 – user's manual – Revision 04– November-2016... - Page 7 7.6.1 Distribution of power bricks / displays per power module .............. 50 8 Contact ..............................51 9 Certification ............................53 10 RoHS of Chinese Mainland ........................ 55 ____________________________________________________________________ Barco – Green BCM Solution – R591346 – user's manual – Revision 04– November-2016...
-
Page 9: Introduction
Green Power Switch (optional, requires displays with AC power module) Green On/Off button (mandatory with Power Module 19inch, else optional) Power Module 19inch (optional, requires displays with DC power module) ______________________________________________________________________ Barco – Green BCM Solution – R591346 – user's manual – Revision 04– November-2016... -
Page 10: Styles And Symbols
This hand marks tips. Cette icône attire l'attention sur des conseils. Next to this icon you find important Cette icône est suivie de remarques notes. importantes. ____________________________________________________________________ Barco – Green BCM Solution – R591346 – user's manual – Revision 04– November-2016... -
Page 11: Safety Instructions
être tenu de prendre les quired to take adequate measures. mesures adéquates. ____________________________________________________________________ Barco – Green BCM Solution – R591346 – user's manual – Revision 04– November-2016... -
Page 12: Precautions
Mains lead (AC Power cord) with CEE 7 plug: The wires of the mains lead are colored in accordance with the following code: yellow + green Earth (Ground) blue Neutral brown Line (Live) ____________________________________________________________________ Barco – Green BCM Solution – R591346 – user's manual – Revision 04– November-2016... - Page 13 (green-yellow, neutral, live; connection method: screw connection). The customer is responsible for providing the correct connecting cables based on local power net and the electric specification on the product ID label. ____________________________________________________________________ Barco – Green BCM Solution – R591346 – user's manual – Revision 04– November-2016...
-
Page 14: Intended Use
Note advises on the packaging for unpacking! Only unpack for immediate installation! 1.2.6 Importers contact information To find your local importer, contact Barco directly or one of Barco’s regional offices. Use the contact information given on the official Barco web site http://www.barco.com. 1.2.6.1 Made in information •... -
Page 15: Environmental Information: Disposal Information
Turkey RoHS compliance Türkiye Cumhuriyeti: AEEE Yönetmeliğine Uygundur [Republic of Turkey: In conformity with the WEEE Regulation] ____________________________________________________________________ Barco – Green BCM Solution – R591346 – user's manual – Revision 04– November-2016... -
Page 17: Summary
Each display needs to be connected to either a power switch box (AC power supply) or an exit of the power module on the Power Box 19 inch (DC power supply) ____________________________________________________________________ Barco – Green BCM Solution – R591346 – user's manual – Revision 04– November-2016... -
Page 19: Components Of The Green Bcm Solution
API or the Green ONOFF Button. In its role as Barco Wall Control Manager, the Green BCM Box manages and controls the displays of an OVD/KVD/IVD/HVD display wall in terms of color and brightness. Please refer to the user manual of Barco Wall Control Manager for detailed description. -
Page 20: Position And Function Of The Control Elements On The Front

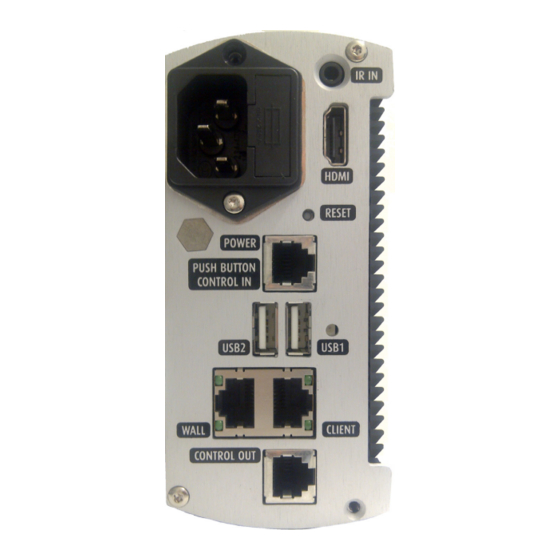

Interfaces WALL, CLIENT These interfaces are used by Green BCM Box as wall router running Barco Wall Control Manager service: Green BCM Box is operated via LAN and controls the displays also via LAN. Therefore the LAN interfaces Wall and Client are required for operating Green BCM Box as wall router. -
Page 21: Green Power Switch
électrique, ne branchez pas dans ne importe quel autre type de système d'alimentation. ____________________________________________________________________ Barco – Green BCM Solution – R591346 – user's manual – Revision 04– November-2016... -
Page 22: Complete Solution
This solution is completed by the Green ONOFF button to switch the display wall from standby into operation and vice versa and also mounted to the DIN RAIL. The max. distance between Green ONOFF button the Green BCM BOX is 5m. ____________________________________________________________________ Barco – Green BCM Solution – R591346 – user's manual – Revision 04– November-2016... -
Page 23: Power Module 19Inch
6.1 Replacing the SMPS power unit For countries with 100-110 power net, only the 800W version is available! The 1200W version is restricted to countries with 220-240V power net! ____________________________________________________________________ Barco – Green BCM Solution – R591346 – user's manual – Revision 04– November-2016... -
Page 24: Position And Function Of Controls
Always connect the CONTROL OUT interface of the previous Power Module 19inch. to the CONTROL IN interface of the following Power Module 19inch. A shortening plug needs to be plugged into CONTROL OUT interface of the last Power Module 19inch. ____________________________________________________________________ Barco – Green BCM Solution – R591346 – user's manual – Revision 04– November-2016... -
Page 25: Green Onoff Button
The Green ONOFF Button shows the status of a display wall: Flashing/turning red Display wall is in standby Display wall is on ____________________________________________________________________ Barco – Green BCM Solution – R591346 – user's manual – Revision 04– November-2016... -
Page 27: Installation
However the Green BCM Box can be installed and located anywhere, provided the ambient conditions are met and provided the LAN cables and control cables are sufficient in length. ____________________________________________________________________ Barco – Green BCM Solution – R591346 – user's manual – Revision 04– November-2016... -
Page 28: Control Cabling
“off” the display logiciel sont "off", l'écran reste sombre bien remains dark although connected to the connecté au réseau. mains. ____________________________________________________________________ Barco – Green BCM Solution – R591346 – user's manual – Revision 04– November-2016... -
Page 29: Power Cabling
ON position! ligne de l'entrée de puissance est en position ON! ____________________________________________________________________ Barco – Green BCM Solution – R591346 – user's manual – Revision 04– November-2016... -
Page 30: Installing Green Bcm Box And Power Module 19Inch
DIN rail. Make sure that the ventilation slots show Assurez-vous que les fentes d'aération apparaissent! Install the 19inch ONOFF cover into a 19” rack. ____________________________________________________________________ Barco – Green BCM Solution – R591346 – user's manual – Revision 04– November-2016... - Page 31 Mount the Power Module 19inch into a 19inch rack. Make sure that there is 1U free space above the Power Modules 19inch: Mount the blind cover!! ____________________________________________________________________ Barco – Green BCM Solution – R591346 – user's manual – Revision 04– November-2016...
-
Page 32: Control Cabling
A shortening plug needs to be plugged into CONTROL OUT interface of the last Power Module 19inch. One Green BCM Box can control up to 50 One Green BCM peut contrôler jusqu'à 50 displays. écrans. ____________________________________________________________________ Barco – Green BCM Solution – R591346 – user's manual – Revision 04– November-2016... -
Page 33: Power Cabling
SMPS échoue: Tant que la quantité restante de puissance est suffisante, tous les écrans sont alimentés. ____________________________________________________________________ Barco – Green BCM Solution – R591346 – user's manual – Revision 04– November-2016... -
Page 34: Cabling Within The Responsibility Of A Qualified Electrician
Power Module 19inch, traction! Pour la première version Power this is a cable tie. Module 19inch, ce est une attache de câble. ____________________________________________________________________ Barco – Green BCM Solution – R591346 – user's manual – Revision 04– November-2016... - Page 35 Fixed installation 4x outer diameter Temperature range Occasional flexing -15°C up to +70°C max. conductor temperature Fixed installation -40°C up to +75°C max. conductor temperature ____________________________________________________________________ Barco – Green BCM Solution – R591346 – user's manual – Revision 04– November-2016...
-
Page 36: Disconnection And Reconnection Of A Dc Power Cable / Hard Display Reboot
Please note that switching a panel to idle (push button on the panel) or switching the wall to idle (button in BCM client application) is NOT sufficient. Only disconnect a DC power cable when the wall is in StandBy. ____________________________________________________________________ Barco – Green BCM Solution – R591346 – user's manual – Revision 04– November-2016... -
Page 37: Network Setup
à et de lancer la page Web of the display wall. BCM Box Vert. Cela permet une configuration facile des dispositifs de mur d'affichage. ____________________________________________________________________ Barco – Green BCM Solution – R591346 – user's manual – Revision 04– November-2016... - Page 38 5. Network setup The Barco Wall Control Manager software enables communication to the WALL network via the CLIENT interface. The Client interface comes with the fixed IP address 192.168.10.1 and is set for manual configuration. For con- trolling the display wall, please refer to the user manual of Barco Wall Control Manager software.
-
Page 39: Test Green Bcm Box
Each time Green BCM Box switches on, the processor will initially test the basic functions (POST). Finally, the processor will boot the operating system from the hard disk and start Barco Wall Control Manager service. The Barco Wall Control Manager client application can be downloaded from the homepage of the Green BCM BOX. -
Page 41: Maintenance
Green BCM Box F 5x20 T 5A H UL Green Power Switch F 5x20 T 5A H UL Power Module 19inch F 5x20 T 16A H UL ____________________________________________________________________ Barco – Green BCM Solution – R591346 – user's manual – Revision 04– November-2016... -
Page 42: Replacing The Smps Power Unit
Use a screw driver and press the yellow lock down. and then pull out the power unit. Subsequently open the lock on the left and on the right and pull out the power unit. ____________________________________________________________________ Barco – Green BCM Solution – R591346 – user's manual – Revision 04– November-2016... -
Page 43: Upgrading Firmware Of Green Bcm Box
Re-plug the power cord to start-up the new system. • Connect to the Green BCM Box by entering its IP address into a web browser. ____________________________________________________________________ Barco – Green BCM Solution – R591346 – user's manual – Revision 04– November-2016... - Page 44 Navigate to the page BCM client on the web interface of the Green BCM Box. Click on the link to start the BCM web start client The BCM client starts automatically ____________________________________________________________________ Barco – Green BCM Solution – R591346 – user's manual – Revision 04– November-2016...
-
Page 45: Technical Specifications
40.6mm | 1.6in. Depth 230mm | 9.0in. Weight 1.1kg |2.2lbs Input 85VAC-275VAC, 47-63Hz Nominal Output Power 800W Nominal Output Voltage 48VDC Nominal Output Current 15 ADC ____________________________________________________________________ Barco – Green BCM Solution – R591346 – user's manual – Revision 04– November-2016... -
Page 46: Smps Power Unit 1200W
7.5 Interfaces 7.5.1 HDMI Type A signal assignment signal assignment TMDS Data 2+ TDMS Clock Shield TMDS Data Shield TDMS Clock - TMDS Data 2- ____________________________________________________________________ Barco – Green BCM Solution – R591346 – user's manual – Revision 04– November-2016... -
Page 47: Usb Connector
+5 V Power TMDS Data 0- Hot Plug Detect TMDS Clock + 7.5.2 USB connector +5V power Differential Data line Differential Data line 7.5.3 RJ25 connector ____________________________________________________________________ Barco – Green BCM Solution – R591346 – user's manual – Revision 04– November-2016... -
Page 48: Rj45 Connector
7. Technical specifications 7.5.4 RJ45 connector 7.5.5 10.00mm Pitch Mini-fit ™ Header ____________________________________________________________________ Barco – Green BCM Solution – R591346 – user's manual – Revision 04– November-2016... -
Page 49: Module Configurations
1200 W power bricks 110V 10 m HVD5521 20 m KVD5521 IVD5521 50 m 100 m 230V 10 m HVD5521 20 m KVD5521 IVD5521 50 m 100 m ____________________________________________________________________ Barco – Green BCM Solution – R591346 – user's manual – Revision 04– November-2016... -
Page 50: Distribution Of Power Bricks / Displays Per Power Module
(in case of redundancy, 4 power modules 19” are required, and each of them is connected to 4 displays, the number of bricks sums up to 4* (3+1)) ____________________________________________________________________ Barco – Green BCM Solution – R591346 – user's manual – Revision 04– November-2016... -
Page 51: Contact
President Kennedypark 35, 8500 Kortrijk (Belgium) RPR Kortrijk - BE0473191041 Visit Barco at http://www.barco.com For Professional Support visit http://www.barco.com/support For Sales or other Contact information visit http://www.barco.com/contact/regional-offices ____________________________________________________________________ Barco – Green BCM Solution – R591346 – user's manual – Revision 04– November-2016... -
Page 53: Certification
9. Certification 9 Certification • The product has successfully been tested to be in accordance with: See product ID label for additional approval marks! ____________________________________________________________________ Barco – Green BCM Solution – R591346 – user's manual – Revision 04– November-2016... -
Page 55: Rohs Of Chinese Mainland
Electronic Products” (Also called RoHS of Chinese Mainland), the table below lists the names and contents of toxic and/or hazardous substances that Barco’s product may contain. The RoHS of Chinese Mainland is included in the MCV standard of the Ministry of Information Industry of China, in the section “Limit Requirements of toxic substances in Electronic Information Products”.
