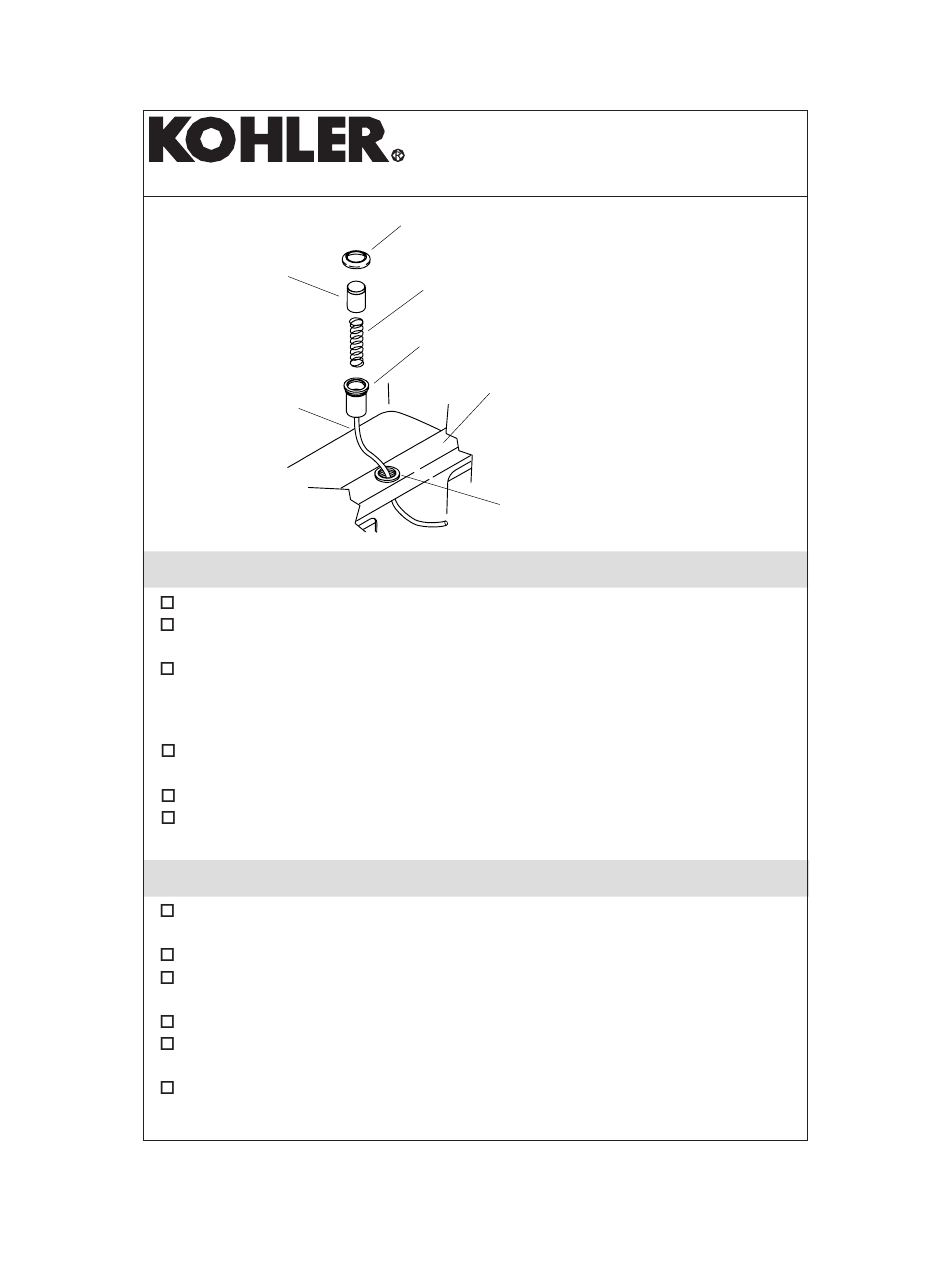

SERVICE KIT INSTRUCTIONS

Button

Tube

Remove the Existing Air Switch

Insert a flat-blade screwdriver under the escutcheon.

While holding the button in place with your thumb and forefinger, gently

pryoff the escutcheon.

Remove and discard the escutcheon, button, and spring.

NOTE: When removing the base, ensure that the tube remains attached to the

base. Do not allow the tube to fall down into the unit.

Using a needle nose pliers, firmly grasp the base from the switch body,

then pull the base from the switch body.

Remove and discard the base.

Temporarily secure the tube to the whirlpool/installation surface with

masking tape.

Install the New Air Switch

Remove and discard the switch body from the new air switch. The switch

body cannot be replaced.

Remove the masking tape from the tube, then slide the tube onto the base.

Insert the base into the switch body, then firmly press the base into place

with your finger.

Insert the spring, then the button into the base.

While holding the button in place with your thumb and forefinger,

position the escutcheon around the button.

Snap the escutcheon into place.

1041996-9-C

Escutcheon

Spring

Base

Whirlpool/Installation Surface

Switch Body

AIR SWITCH KIT

1041995
