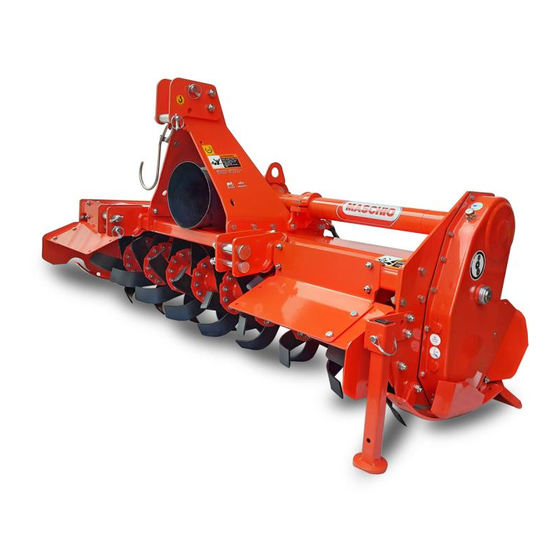

Summary of Contents for Maschio WEEKEND WARRIOR 6042
Page 1
O P E R A T O R ’ S M A N U A L MASCHIO GASPARDO S.p.A. WEEKEND WARRIOR HD 6042-6049-6062-6073 6042R-6049R-6062R-6073R USE AND MAINTENANCE Cod. F07011720 2020-04...
TABLE OF CONTENTS Technical specifi cation Tiller depth adjustment ......... 21 Adjusting levelling board ....... 21 Technical specifi cation ........Tilling tips ............. 22 Technical specifi cation - Hitch ...... During tilling ..........22 Replacement parts ........22 Safety signs Safety-Alert symbol ........
Page 3
Use only genuine Maschio service parts.Substitute parts will void the warranty and may not meet stan- dards required for safe and satisfactory operation. Record the model number and serial number of your...
SAFETY SIGNS Safety-alert symbol Read and recognize safety information. Be alert to the potential for personal injury when you see this safety-alert symbol. On your machine safety labels, the words DANGER, WARNING, and CAUTION are used with safety-alert symbol. DANGER identifi es the most serious hazards. In this manual, the word CAUTION and this symbol call attention to safety messages. Machine Identifi...
10) Oil fi ll plug 11) Number of revolutions of power takeoff 12) Side Gear decal 13) Reverse decal (only for Reverse model) 14) Serial number plate 15) Maschio logo big 16) Maschio logo small 17) Model label EN - 11 cod. F07011720...
PREPARING THE VEHICLE Preparing the tractor CAUTION: Avoid injury. Proper ballastings is required for safe operation of your tiller IMPORTANT: Refer to the tractor operator manual for proper ballasting information and tire infl ation • A 540 rpm PTO • Refer to the tractor operator manual for correct ballasting and tire pressure, depending on installed equipment. Park vehicle safety •...
Page 13
INSTALLING each draft link to draft link brackets with hitch pins and quicklock pins (C). For cat. I iMatch Quick Hitch Ø = 36.5 mm (1.437 inch) Locate hitch pin in lower hole (I). WW 6042 - 6042R - 6049 - 6049R - 6062 - 6062R model (Cat.
INSTALLING 4. Install PTO shaft to tractor. For cat. I & II iMatch Quick Hitch Ø = 31.5 mm (1.24 inch) IMPORTANT: Tiller MUST BE level front to rear. • Engage the cardan shaft and check that it is perfectly locked on the tractor PTO (G).
INSTALLING PTO shaft with clutch The PTO shaft is equipped with slip clutch to protect the transmission components of the machine from stress and/ or excessive overloads. The tilt of the PTO shaft must not exceed 10 degrees. 152.4 mm If it slips too easily (and overheats), it will be necessary to evenly tighten all the nuts (C) that retain the spring.
INSTALLING Quick Coupler (optional) 1) Install hitch Quick Coupler (A) on the tractor (see tractor operator manual). 2) Stop vehicle on a level surface, not on a slope, then moving back to the tractor until the Quick Coupler (A) is range with the (B) and (C) hitch points. 3) Raise the Quick Coupler (A) and make sure that tiller’s hitch is in the right position (E).
REMOVING Removing tiller 1. Raise tiller. 2. Put parking stand (A) in the DOWN position: Install spring locking pin (C) in order to secure parking stand (A) to the tiller bracket (B). 3. Lower tiller to the ground. CAUTION: Before you work around hitch: •...
OPERATING Operate safely • Protect your hands when you inspect or unplug the tiller. You may need gloves or tools, such as a screwdri- ver or scraper. Be sure hardware is tight. Repair or replace damaged, badly worn, or missing parts. Be sure guards and shields are in good condition and fastened in place.
OPERATING Wear appropriate clothing • Wear close fi tting clothing and safely equipment appropriate for the job. • Loud noise can cause impairment or loss of hearing, wear a suitable protective device such as earplugs. Stay clear of rotating drivelines Entanglement in rotating driveline can cause serious injury or death: •...
OPERATING Leveling attachments (side-to-side) 1. Start the engine. Raise the tiller. 2. Stop the engine. Lock the park brake. CAUTION: DO NOT work under a raised tiller unless it is safely supported. Leveling tiller (front-to-rear) 1. Start the engine. 2. Lower the tiller to 25 mm (1 in.) off the ground. 3.
OPERATING Tiller depth adjustment For WW6062 - WW6062R - WW6073 - WW6073R For WW6042 - WW6042R - WW6049 - WW6049R SKID HOLE POSITION DEPTH VALUE 'T' SKID HOLE POSITION DEPTH VALUE 'T' 1" 1" 2" 2" 2.9" 2.8" 3.6" NOTE: Adjust both skid shoes according to hole positions P, Q, R, S with respect to working depth (T).
PART NUMBERS MAY CHANGE, use part numbers listed at the end of this manual when you order. If a number changes, your dealer will have the latest number. WHEN YOU ORDER PARTS, your Maschio Equipment dealer needs your machine serial number. This is the number you have recorded in the INTRODUCTION section in the front of this manual.
SERVICE MACHINE SAFELY Practice safe maintenance • Understand service procedure before doing work. Keep area clean and dry. • Never lubricate, service, or adjust machine while it is moving. Keep safety devices in place and in working condition. Keep hardware tight. •...
SERVICE LUBRICATION Service lubrication WARNING: • Firmly block tiller on horizontal surface. • Always keep oils and greases well away from children’s reach. • Always thoroughly read the warnings and precautions indicated on the containers. Avoid contact with the skin. •...
To get the best performance from your tiller: • Replace badly bent, worn, or broken tines immediately. • Replace worn or broken hardware (see your Maschio dealer for correct hardware). • MAKE SURE to replace tines on ONE spindle at a time to keep spiral tine pattern.
Using troubleshooting chart If you are experiencing a problem that is not listed in this chart, see your Maschio dealer for service. When you have checked all the possible causes listed and you are still experiencing the problem, see your Maschio dealer.
STORING MACHINE Storing tiller CAUTION: Before you work around hitch: • STOP engine. • LOCK park brake. • FIRMLY block tiller on horizontal surface. 1. Put parking stand in the DOWN position (See Lowering Parking Stand in the Operating Tiller section). 2.
ASSEMBLY WW 6042 - 6042R- 6049 - 6049R - 6062 - 6062R CAUTION: FIRMLY block tiller on horizontal surface. Installing mast braces (PHASE 1) 1) Install spacers (E), bolts (D) and nuts (G) on mast braces (A, I) and third point plates (B,F) Do not tighten bolts and nuts at this time.
Page 32
Installing Side Rear Shield on tiller (PHASE 2, operation 4) Tiller is shipped with Plate For Skid Adjuster (W) installed on the tiller. 9) Loose the Bolts at location X and remove bolts Y and Z. 10) Install Rear Protection Skid Adjuster (U for Left side and V for Right side) along with Plate For Skid Adjuster (W) to the tiller.
Page 34
ASSEMBLY WW 6073 - 6073R CAUTION: FIRMLY block tiller on horizontal surface. Installing mast braces (PHASE 1) 1) Install spacers (E), bolts (D) and nuts (G) on mast braces (A, I) and third point plates (B,F) Do not tighten bolts and nuts at this time. 2) Insert the pin (C) and fi...
Page 36
Installing Side Rear Shield on tiller (PHASE 2, operation 4) Tiller is shipped with Plate For Skid Adjuster (W) installed on the tiller. 9) Loose the Bolts at location X and remove bolts Y and Z. 10) Install Rear Protection Skid Adjuster (U for Left side and V for Right side) along with Plate For Skid Adjuster (W) to the tiller.
ASSEMBLY Installing safety guards CAUTION: FIRMLY block tiller on horizontal surface. DANGER: Before using the machine, be certain that all accident prevent guards are in place and correctly installed. Installing side safety guards (PHASE 1) 1) Install bolts (C) and (E), washers (D) and nuts (F) to fi x the right side and left side safety guards. 2) Tighten lock bolts and nuts to to secure side guards to the frame.
Page 39
ASSEMBLY PHASE MOUNTING HOLE POSITION FRONT SIDE GUARD LH SIDE GUARD RH SIDE GUARD WW 6042/6042R WW 6049/6049R WW 6062/6062R WW 6073/6073R WW 6042/6042R WW 6049/6049R WW 6062/6062R FRONT GUARD FRONT GUARD FRONT GUARD ONLY ON RH SIDE ON BOTH SIDES ON BOTH SIDES WW 6073/6073R - CAT.1 WW 6073/6073R - CAT.2...
Page 40
CAUTION: The clearance to respect between the front protections and the lower connec- tions is indicated in the table below: Sr. No. MACHINE MODEL REMARK Inch WW 6042/6042R CAT I WW 6049/6049R CAT I WW 6062/6062R CAT I CAT I WW 6073/6073R CAT II WW 6042 - 6042R...
ASSEMBLY WW 6042R - 6049R - 6062R - 6073R Installing reverse shield (A) CAUTION: FIRMLY block tiller on horizontal surface. 1) Place the reverse shield (A) under the frame. 2) Install bolts (D),washers and nuts (G) to fi x the reverse shield (A) to the frame. Do not tighten bolts and nuts at this time.
