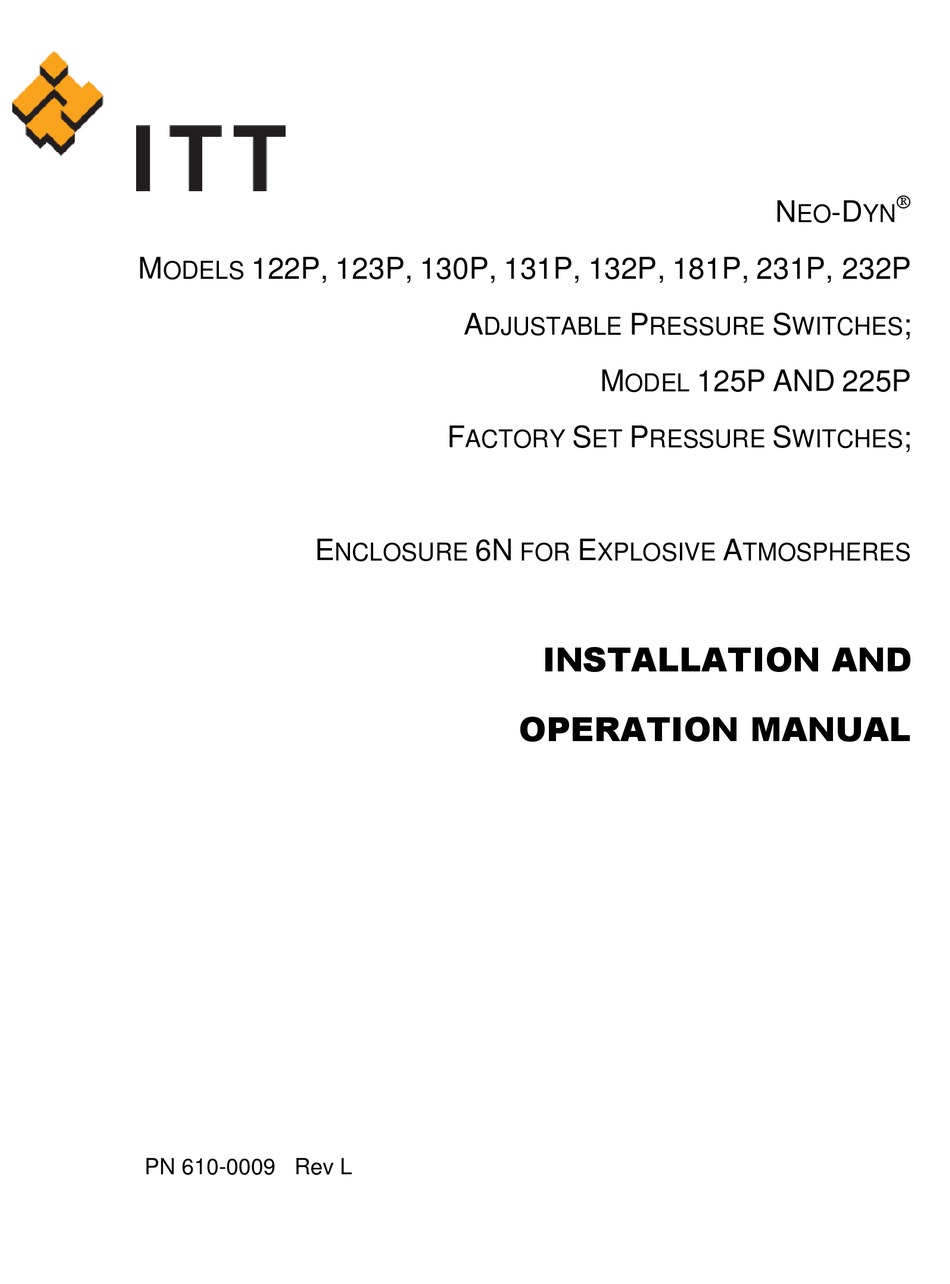

- Page 1 122P, 123P, 130P, 131P, 132P, 181P, 231P, 232P ODELS DJUSTABLE RESSURE WITCHES 125P AND 225P ODEL ACTORY RESSURE WITCHES NCLOSURE XPLOSIVE TMOSPHERES INSTALLATION AND OPERATION MANUAL PN 610-0009 Rev L...
- Page 2 This document contains proprietary information, which is the property of Neo-Dyn , a unit of ITT industries. This document may not be reproduced, either in part or in full, without the consent of ITT industries. Enclosure 6N Pressure Switches Page i...
-
Page 3: Table Of Contents
TABLE OF CONTENTS CHAPTER 1 INTRODUCTION ......................1 CUSTOMER SERVICE ........................2 OTHER CONFIGURATIONS ......................2 CHAPTER 2 INSTALLATION ......................3 MOUNTING ............................. 3 PROCESS CONNECTIONS ......................4 PROCESS MEDIA ..........................4 POTENTIALLY EXPLOSIVE ATMOSPHERES (HAZARDOUS LOCATIONS) ...... 5 ELECTRICAL CONNECTIONS...................... 5 CHAPTER 3 ADJUSTMENTS AFTER INSTALLATION .............. -
Page 4: Chapter 1 Introduction

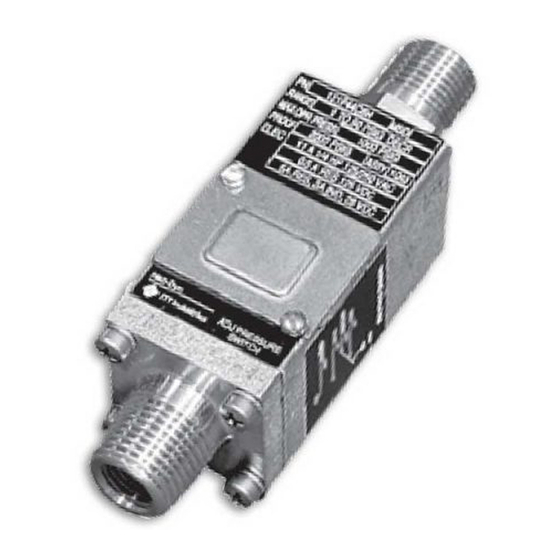

CHAPTER INTRODUCTION ® The Neo-Dyn Enclosure 6N Switches described in this manual are weather and explosion-proof, electromechanical sensing devices designed for a wide range of applications in pneumatic and hydraulic systems up to 10,000 psig, and for use in Zone 1 Potentially Explosive Atmospheres (Division 1 hazardous locations). -
Page 5: Customer Service
2X 1.50 in 5.40 in Max (38.1 mm) (137.2 mm) 1/2 in NPT CONDUIT FITTING 18 in (46 cm) PROCESS FREE LEADS CONNECTION 18 AWG STD 2 MOUNTING HOLES, ADJUSTMENT COVER, MODELS 125P, 132P, ALL MODELS EXCEPT 225P, 232P ONLY 125P, 130P, AND 225P Figure 1. -
Page 6: Chapter 2 Installation
CHAPTER INSTALLATION ® Installation of these Neo-Dyn Enclosure 6N pressure switches is straightforward. However, they must be installed by a qualified electrician, in compliance with all local and national electrical codes. WARNING Electrical hazard WARNING Do not make electrical connections while power is on. WARNING Always check for multiple circuits. -
Page 7: Process Connections
PROCESS CONNECTIONS The process connections are: Model 130P port: ¼” - 18 NPT male standard. Model 131P, 181P, and 231P: combined ¼” - 18 NPT female and ½” - 14 NPT male standard. Models 132P and 232P: ¼” - 18 NPT female standard; ½ ” - 14 NPT female (G Option) and 7/16-20 SAE (E Option) are available. -
Page 8: Potentially Explosive Atmospheres (Hazardous Locations)
POTENTIALLY EXPLOSIVE ATMOSPHERES (HAZARDOUS LOCATIONS) Suitable for Zone 1, Ex db IIC explosive atmospheres, in accordance with Potentially Explosive Atmospheres Directive 2014/68/EU (ATEX) Suitable for Division 1; Class 1, Groups A, B, C and D; Class II, Groups E, F and G hazardous locations, in accordance with the National Electric Code (NEC), and applicable UL, CSA, FM, INMETRO specifications. -
Page 9: Chapter 3 Adjustments After Installation
CHAPTER ADJUSTMENTS AFTER INSTALLATION The factory-set setpoint or adjustable setpoint range is marked on the nameplate of the switch. This section describes the adjustments needed after an Adjustable Pressure Switch has been properly installed. Models 125P, and 225P are not adjustable. SETPOINT ADJUSTMENT WARNING Do not remove switch while under pressure. - Page 10 6. If you want to check the decreasing setpoint, slowly decrease the pressure or vacuum after the switch has actuated and note the value at which the audible snap or an ohmmeter indicates deactuation. Deadband may be calculated if desired by subtracting the decreasing setpoint reading from the increasing setpoint reading.
-
Page 11: Chapter 4 Troubleshooting
If a leak is verified, return the unit for repair. Contact ITT directly, or your local sales representative or distributor (see www.neodyn.com... -
Page 12: Chapter 5 Specifications
CHAPTER SPECIFICATIONS This section shows standard specifications and available options. STANDARD Interfaces Weight: All models weigh approximately 20 ounces (0.6 kg) each with an aluminum- alloy body. Standard Pressure Port: 122P: ½” - 14 NPT Female 123P: 1½” - 11½ NPT Male 130P: ¼”... - Page 13 Part Number The part number contains information about which configurations and options are included in your Adjustable Pressure Switch. To determine the pressure range, electrical rating, and options, compare the part number of your unit with the information in Figure 3 the following tables.
- Page 14 Wetted Material 8 for Model 122P “Wetted Material 8” allows various material combinations. The part number of this Model contains a series of 3 numbers following the miscellaneous options; these numbers define the individual wetted materials: Example: 122P82C6MN443 Number (4) is Pressure Port Material: UNS 31600 CRES Monel UNS 31600 CRES*...
- Page 15 Pressure Ratings - Models 122P and 132P See Figure 3 for the part number breakdown Table 2 Part No Range Max Operating Proof Pressure Pressure, psig (bar) PSIG (bar) 132P*8*6N 1350 (93) 2000 (138) 132P*9*6N 1350 (93) 2000 (138) 132P*1*6N 4000 (278) 6000 (414) 132P*2*6N...
- Page 16 Pressure Ratings - Model 231P Table 4 Part No Range No Max Operating Proof Pressure Pressure, psig (bar) psig (bar) 231P*3*6N 4000 (276) 6000 (414) 231P*4*6N 4000 (276) 6000 (414) 231P*5*6N 6000 (414) 9000 (621) 231P*6*6N 6000 (414) 9000 (621) 231P*7*6N 8000 (552) 12000 (827)
- Page 17 Weather Proof Ratings Ingress protection IP66 Enclosure type 3, 3R, 3S, 4, 4X, 13 (NEMA) Temperature Ranges for Pressure Media Standard (Nitrile O-rings, -40°C (-40°F) to +121°C (+250°F) and Wetted Matl. 5-7, 9); C Option (EPR O-rings): -40°C (-40°F) to +121°C (+250°F) and Wetted Matl. 5-7, 9); B Option (Viton O-rings): -26°C (-15°F) to +121°C (+250°F) and Kalrez O-rings Electrical and Ambient Temperature Ratings Minimum ambient temperature is -40 °C (-40 °F),...
- Page 18 OPTIONS The available options for standard switches are listed below. These options can be combined; every included option will be indicated in the part number of the unit. Table 7 Option Description Available on Model Epoxy-painted exterior Viton O-Ring - Refer to 100P, 110P, 160P, 180P, 200P Wetted Materials EPR O-Ring - Refer to...
-
Page 19: Warranty Information
If any defect within this warranty appears, the Buyer shall notify ITT immediately. ITT agrees to repair or furnish a replacement for, but not install, any product which, within one (1) year from the date of shipment by ITT shall, upon test and examination by ITT, prove defective within the above warranty.
