w w w . s u t t l e o n l i n e . c o m
900 & 630 S
ERIES
The Suttle Line Conditioner family of products isolates telephone equipment impedances from ADSL, delivering high bandwidth ADSL transmission capabilities. This
means that you will need to filter / condition all of the telephone devices attached to your telephone wiring except the ADSL modem connection. Types of telephone
devices that will need to be connected through the ADSL Line Conditioner are: Telephone Sets, Answering Machines, Fax's, Caller I.D. Boxes, Bells and other ancillary
telephone devices. In the single line ADSL line conditioner, pins 3 & 4 are conditioned. The two line ADSL line conditioner conditions line #1 (pins 3 & 4) and line #2
(pins 2 & 5) of your telephone system.

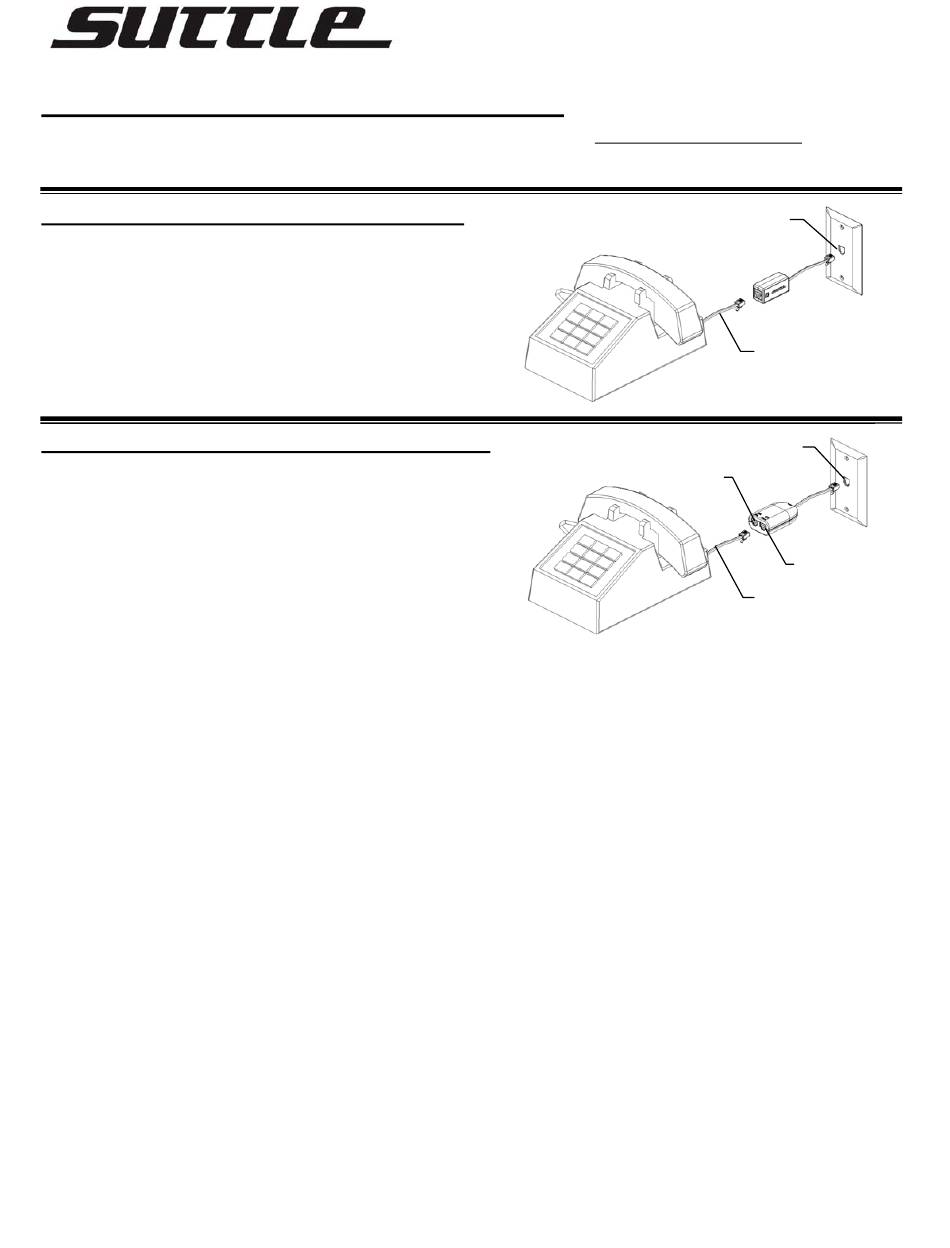

900LCC & 900LCC-2F Installation Procedure:
1. Unplug the existing station cord from the wall jack.
2. Plug the station cord into the SE- 900LC jack (labeled
"PHONE").
3. Plug the Line Conditioner
900LCCS & 900LCCS-2F Installation Procedure:
1. Unplug the existing station cord from the wall jack.
2. Plug the station cord into the filter jack labeled "PHONE".
3. Plug the filter cord into the wall jack.
4. Plug any ADSL compatible device into the (unfiltered)
"DSL" jack.
ADSL L
C
INE
ONDITIONERS
®
cord into the wall jack.
®
Wall Jack
Wall Jack
"DSL"
Station Cord
(Phone Plug)
"Phone"
Station Cord
(Phone Plug)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Suttle 900 Series
Summary of Contents for Suttle 900 Series
- Page 1 ONDITIONERS The Suttle Line Conditioner family of products isolates telephone equipment impedances from ADSL, delivering high bandwidth ADSL transmission capabilities. This means that you will need to filter / condition all of the telephone devices attached to your telephone wiring except the ADSL modem connection. Types of telephone devices that will need to be connected through the ADSL Line Conditioner are: Telephone Sets, Answering Machines, Fax’s, Caller I.D.
- Page 2 If trouble is experienced with this equipment 900LCC/630LCC, for repair or warranty information, please contact Suttle, Customer Service Department. Phone 320-848-6711. If the equipment is causing harm to the telephone network, the telephone company may request that you disconnect the equipment until the problem is resolved.
