Suttle FutureLink 649NV-48 Quick Start Manual

FutureLink

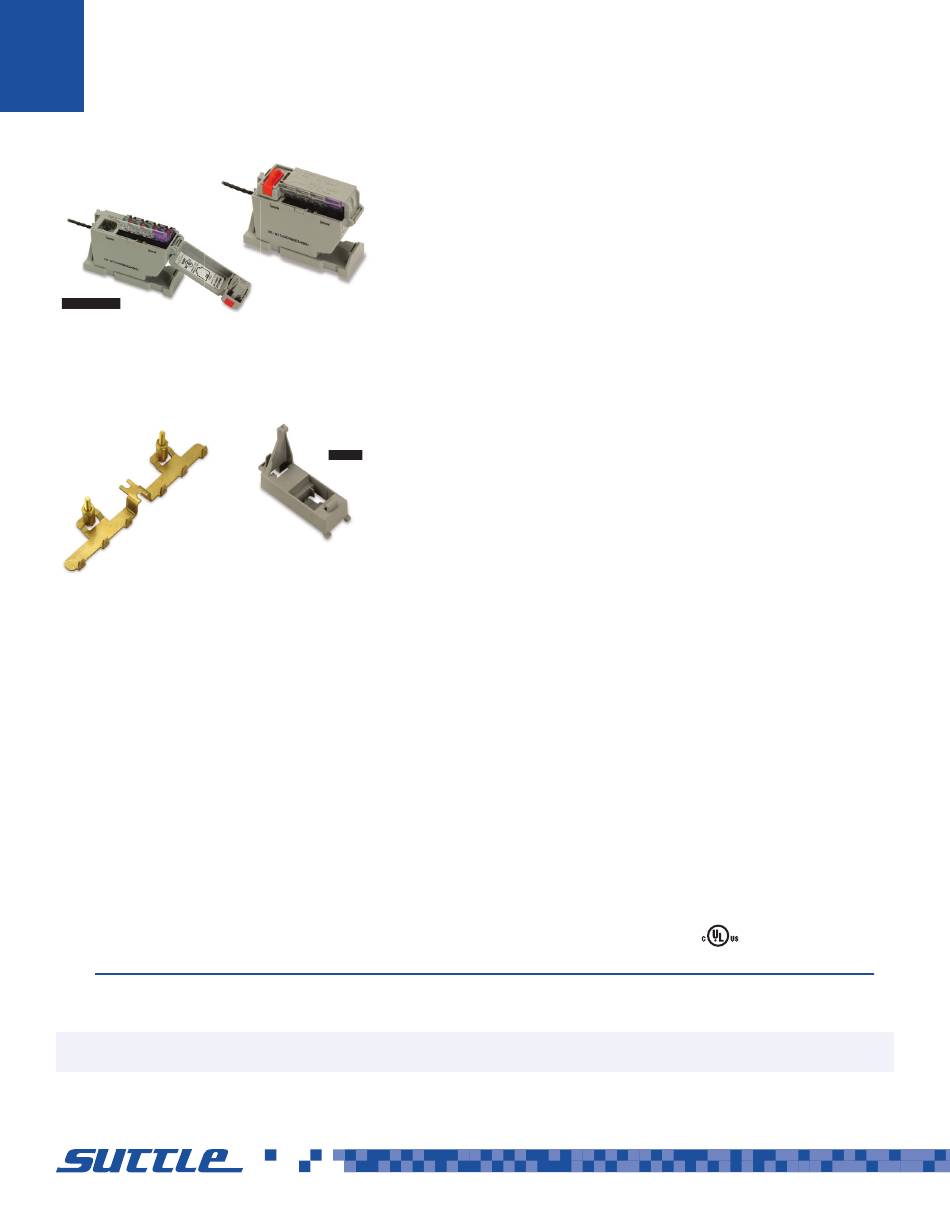

649NV-48 649NV-48
649NV-CONVKT
Specifications
DC Loop Current:
0 – 100mA
DC Loop Voltage: 0 to -60V
DC Resistance:
≤ 25 Ω
Insertion Loss:
< 0.5dB
Attenuation Distortion: < 1.0dB
Delay Distortion:
< 200us
ADSL Band Attenuation: > 65dB @ 30kHz – 300kHz
> 55dB @ 300kHz – 30MHz
Return Loss:
6dB ERL, 5dB SRL-Low, 3dB SRL-High
Longitudinal Balance: > 57dB
Lead Wire Length:
12 inches
Product Information
Suttle
Part Number
649NV-48
649NV-CONVKT
649-ADP
TM
649-ADP 649-ADP
Description
1-line VDSL2 NID splitter, RJ14 test jack (pair 1 = network, pair 2 = premise), 3 x single-pair tool-less toggles
for voice, 1 x single-pair tool-less toggle for data (purple)
Conversion ground bar and adapter cradle used to install 649NV-48 & protection module in Siecor NI-2006-
13L11CT, NI-2006-13L
Adapter cradle and auxilliary clip used in Siecor NI-2006-13L11CT, NI-2006-13L to install 649-NV-48
Description
The FutureLink VDSL NID splitter is designed to provide POTS
TM
separately from VDSL signals at the point of entry to a subscriber.
The Ring Trip Mitigation feature allows uninterrupted IPTV
services during phone calls. Its unique tool-less technology is
designed to fit inside most NIDs.
A toggle design allows three pair tool-less voice distribution
and one pair tool-less data distribution. Clear toggles allow the
installer to clearly see that the connection has been established.
The splitter supports all ADSL and VDSL2 technologies up to 30
MHz (30a Profile).
Features
Tool-less capability with easy viewing for proper connections
I
Front facing IDC wire entry holes for ease of insertion
I
Accepts 22-26 AWG wire
I
Minimal termination force required for each wire pair
I
Audible click toggle upon installation
I
Convenient mounting for most NID styles
I
Ring Trip Mitigation for superior IPTV delivery
I
Cradle detaches and allows placement on premise walls separate from NID
I
Compatible for ADSL to VDSL2 technologies up to 30MHz (30a profile)
I
Compatible with a variety of NIDs including:
Corning:
7600 Series, 9600 Series, UNI-3056-11U2,
UNI-30EQ3-13U1, UNI-30K3, UNI-30K6,
NI-2006-13L11CT, UNI-30C3-13U1, UNI-30C6-13U1
Tyco-Keptel: SNI4600
AFL: SNI-760
Siecor: NI-2006-13L11CT, NI-2006-13L
Testing
TR-127 (Ring Trip Mitigation):
GR-3167:
FCC:
Tool-less VDSL NID Splitter
Approved
Compliant
Approved
