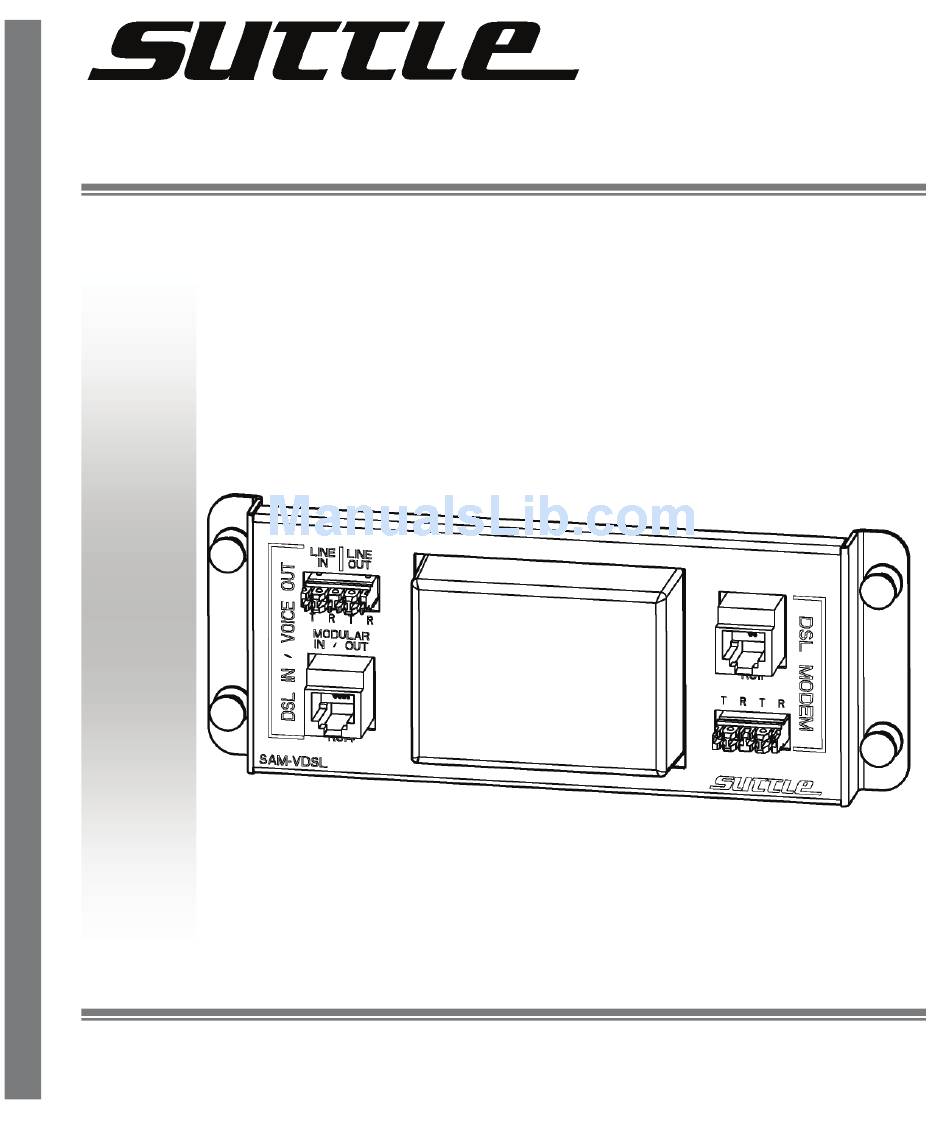

- Page 1 SAM-VDSL VDSL POTS Splitter User Guide 1001 East Hwy 212 Toll Free: 1-800-852-8662 Hector, MN 55342 Local: 1-320-848-6711 www.suttlesoho.com Fax: 320-848-2361...
- Page 2 Adjust the “LINE IN SWITCH” positions as instructed in the SAM-MP4-SP user guide then connect the “MODULAR IN / OUT” jack on the SAM-VDSL to the “SAM-VDSL” jack on the SAM-MP4-SP using the provided line cord. Connect your DSL modem to either the RJ11 jack or IDC labeled “DSL MODEM”.
- Page 3 Connect the incoming twisted pair for the selected service line to the “LINE IN” IDC on SAM-VDSL. Connect the “LINE OUT” IDC of the SAM-VDSL to the “LINE IN” on the SAM-VE. Connect your DSL modem to either the RJ11 jack or IDC labeled “DSL MODEM”.
-
Page 4: Safety Information
Important Information: • Read and understand all instructions. Follow all warnings and instructions marked on the product. • Do not use this product near water, --e.g., near a bath tub, wash basin, kitchen sink, wet basement, or near a swimming pool. •...
